Tank SS Single Wall 500GAL

  Back to All Equipment

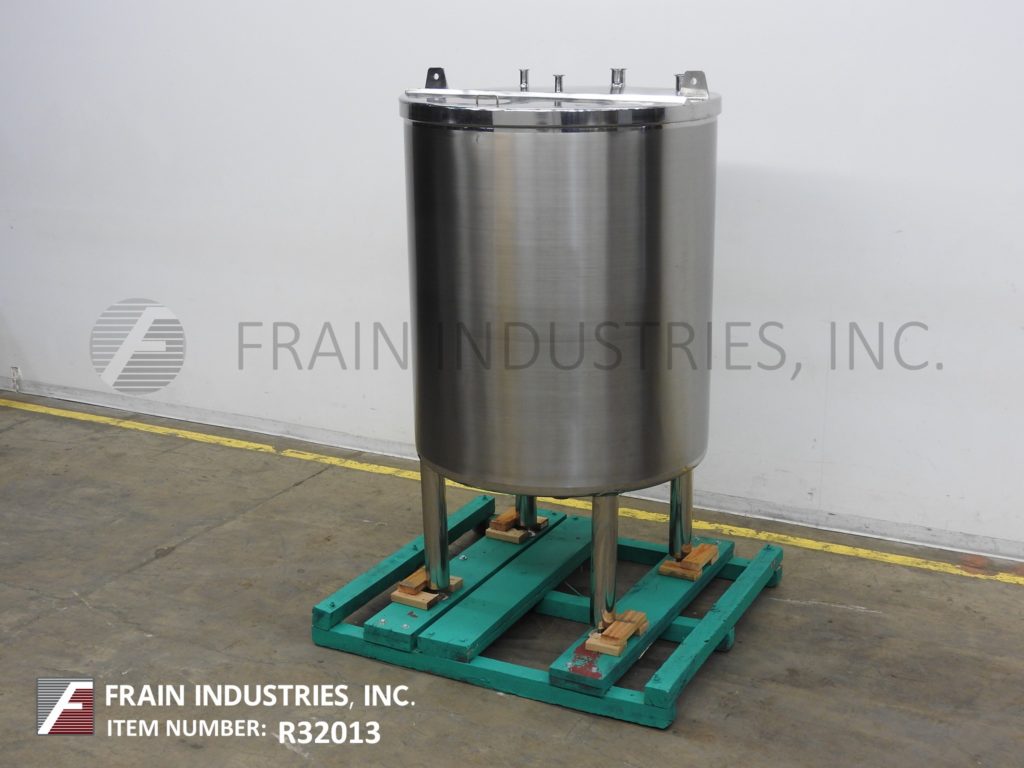

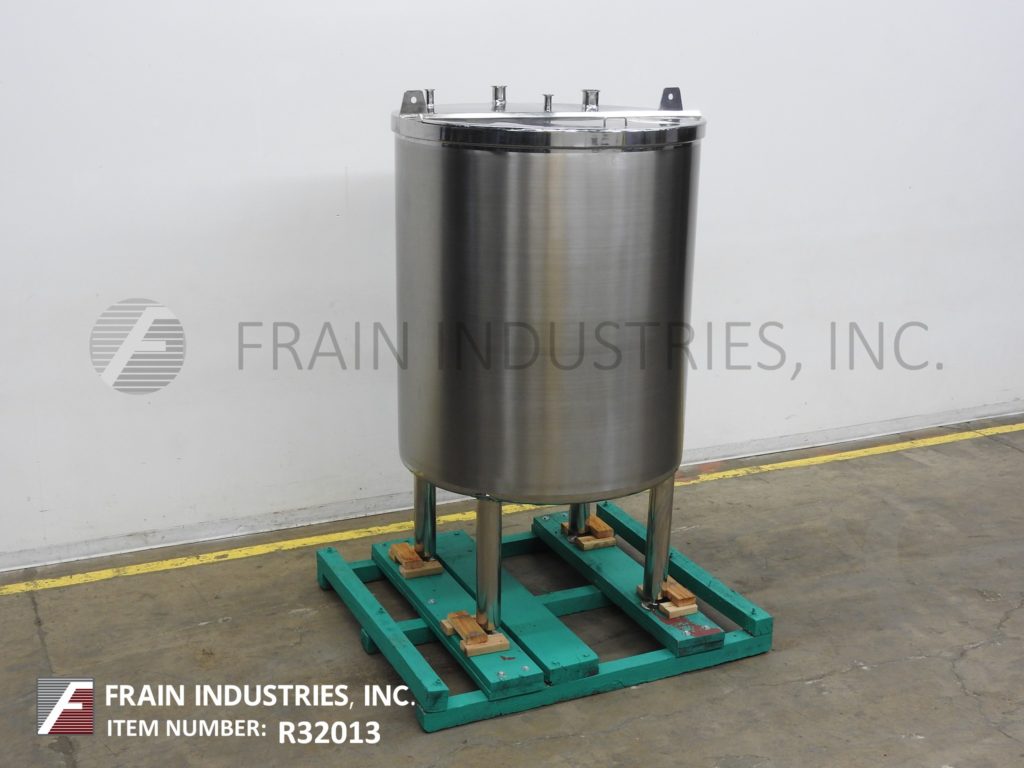

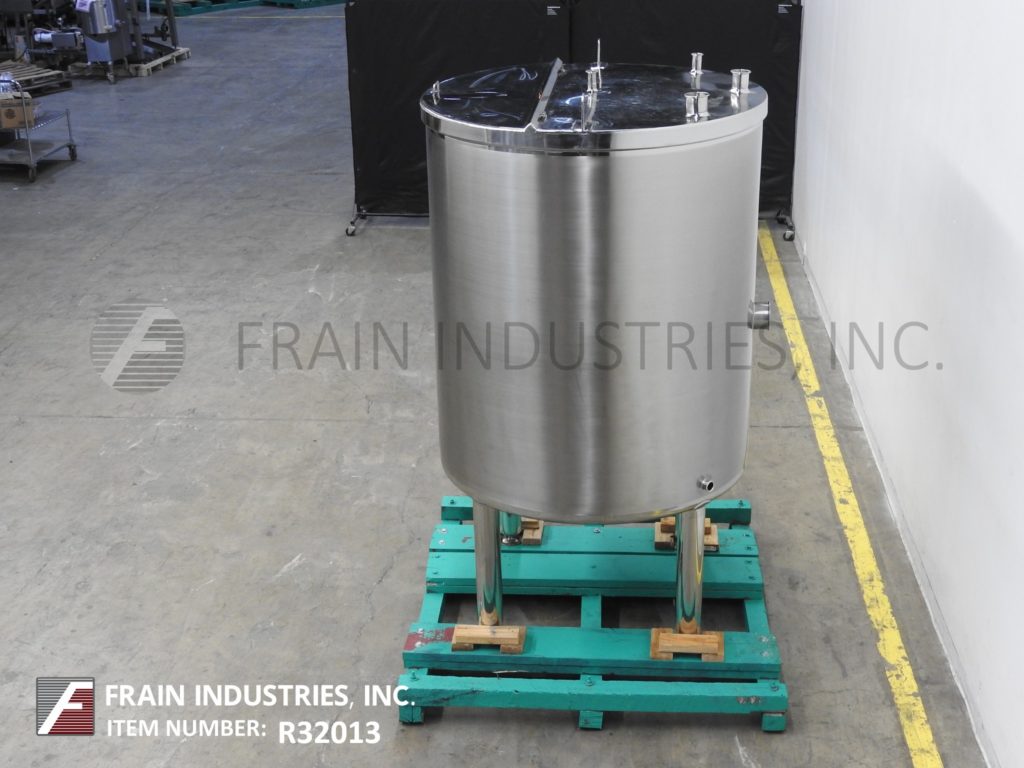

500 gallon, 304 stainless steel, single wall tank. Vessel Dimmensions: 50" diameter x 66" deep with a 60" straight wall. Equipped with 1/2 flip up cover and 3½"OD / 3"ID Tri-Clamp style center bottom discharge port with 16" floor clearance. Mounted on (4) legs.

Top Access Ports
(1) 3½"OD / 3"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
(1) 2"OD / 1"ID Tri-Clamp

Side Access Ports
(1) 4¾"OD / 4"ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp

OAD: 55"L x 53"W x 90"H
