New England, Model NEHCPCL-36, Compact, automatic, stainless steel, bulk plastic container feeder and unscrambler rated from 20 to 120 containers per minute – depending materials and application. Equipped with 20" wide x 60" long white flexlink container feed conveyor to 70" long x 19" wide vertical cleated container elevator with 4-3/4" wide cleats set on 14" centers to 36" OD container sorting bowl, with container size range of (5/8)" to 6½" OD x up to 10" in Height and capable of handling variety of sizes and shape containers including round, oval, straight-wall, tapered, and non-tapered with proper change parts. 14" OD rotary orientation wheel with single hook container arm upender, (4) sets of dual soft container transfer belts all 1½" wide with a 14" long belt thru cleaner, 19" long transfer belt from cleaner to 24" and 32" long container discharge belts. Control panel has (8) A/B PowerFlex variable speed controllers with auto / manual switch and reset, jog, start, stop and e-stop push buttons. Mounted on stainless steel base frame.
OAD: 68" L x 84" W x 85" H
New England, Model NEHCP-36, Compact, automatic, stainless steel, bulk plastic container feeder and unscrambler rated from 20 to 120 containers per minute – depending materials and application. Equipped with 20" wide x 60" long white flexlink container feed conveyor to 70" long x 19" wide vertical cleated container elevator with 4-3/4" wide cleats set on 14" centers to 36" OD container sorting bowl, with container size range of (5/8)" to 6½" OD x up to 10" in Height and capable of handling variety of sizes and shape containers including round, oval, straight-wall, tapered, and non-tapered with proper change parts. 14" OD rotary orientation wheel with single hook container arm upender, (4) sets of dual soft container transfer belts all 1½" wide with a 14" long belt thru cleaner, 19" long transfer belt from cleaner to 24" and 32" long container discharge belts. Control panel has (8) A/B PowerFlex variable speed controllers with auto / manual switch and reset, jog, start, stop and e-stop push buttons. Mounted on stainless steel base frame.

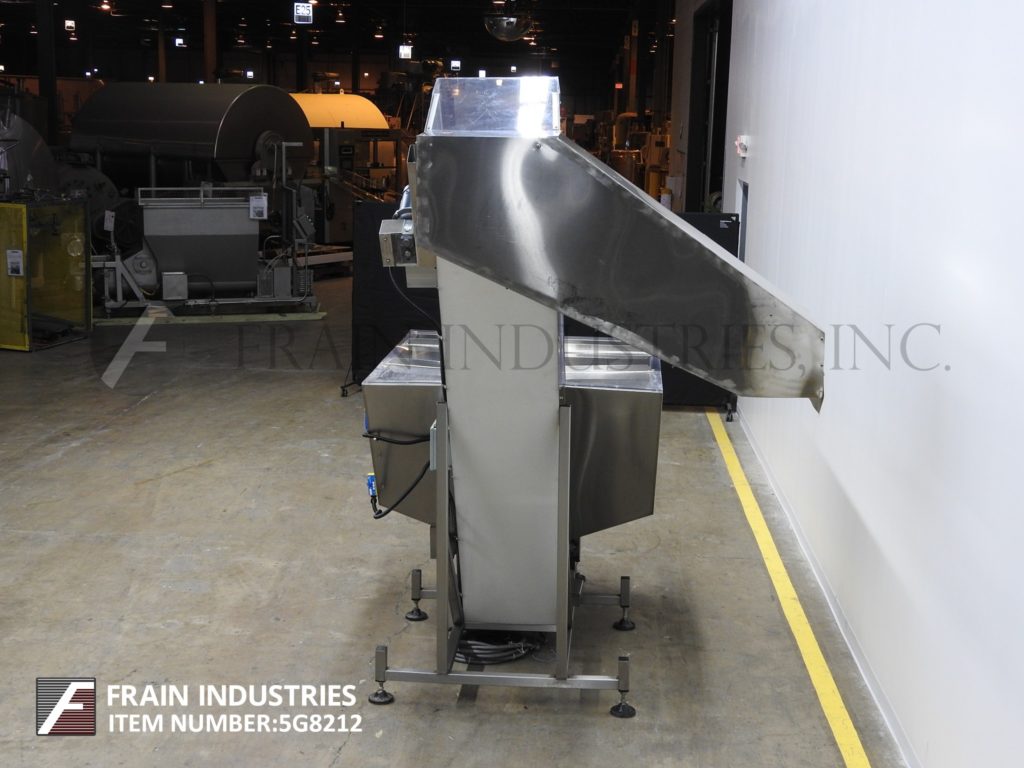

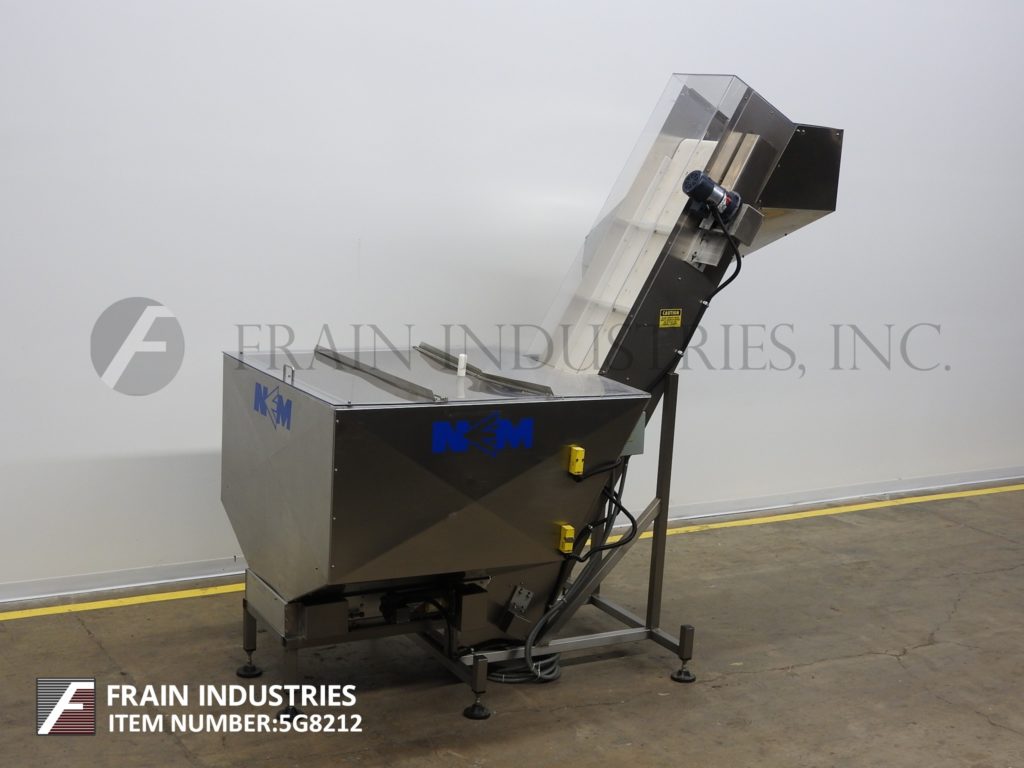

New England, Model H/ECS-10, automatic, stainless steel, water fall style cap elevator / feeder and sorter. Rated from 50 to 300 caps per minute – depending on materials and application. Capable of handling screw, snap or childproof caps (with proper change parts). Equipped with 38" wide x 26" long x 18" deep (3½ ft³) cap hopper, 18" wide x 84" long cleated cap conveyor belt with ¼" high cleats on 6¼" centers, discharge chute with 85" discharge height. Mounted on a stainless steel base frame with leveling legs.
OAD: 48"L x 38"W x 110"H
New England, Model NEHCPE-60, automatic, stainless steel, compact, easy access, bulk plastic bottle feeder and unscrambler. Equipped with a 51" wide x 90" long x 15" deep (40 ft³) bottle hopper with a 35" wide x 72" long live bottom conveyor, 34" wide vertical bottle elevator with 6" high cleats on 12" centers, 60" OD container sorting bowl, with container size range: (5/8)" to 6½" in Diameter x up to 12" in Height and capable of handling variety of sizes and shapes including round, oval, straight-wall, tapered, and non-tapered containers with proper change parts. 20" OD rotary orientation wheel with single hook arm container upender, (2) sets of 1½" wide x 32" long dual soft belt container transfer system. Control panel has an AB controller with an AB PanelView 600 touch screen display. Mounted on stainless steel base frame. Speed dependent on materials, application an machine configuration.
OAD: 115"L x 85"W x 93"H
New England Model NEHACL-60, bulk bottle unscrambler. Container size range: 5/8" to 6½" in Diameter; up to 12" in Height. Equipped with product hopper, inclined feed belt with 2" high cleats set on 12" centers, 60" sorting bowl, rotary orientation wheel with container upender, air cleaner and soft belt transfer discharge.Additional features E-Stop and interlock safety doors. Rates dependent on materials, application and machine configuration. Change parts required to accommodate size range.
OAD: 84" L x 78" W x 76" H Unscrambler 132" L x 60" W x 111" H Feed Hopper
New England, Model NEH-48, automatic, stainless steel, bulk bottle unscrambler. Container size range: 5/8" to 6½" in Diameter; up to 8½" in Height. Equipped with a 58" long x 64" wide x 30" deep container hopper, 18" wide x 114" long cleated inclined feeder belt with 3" high cleats set on 12" centers, 48" sorting bowl, hook arm orientation wheel and belt container transfer system. Change parts required to accommodate size range. Speed dependant on materials application and machine configuration.
OAD: 72"L x 58"W x 80"H (Unscrambler)OAD: 102"L x 64"W x 127"H (Feeder)

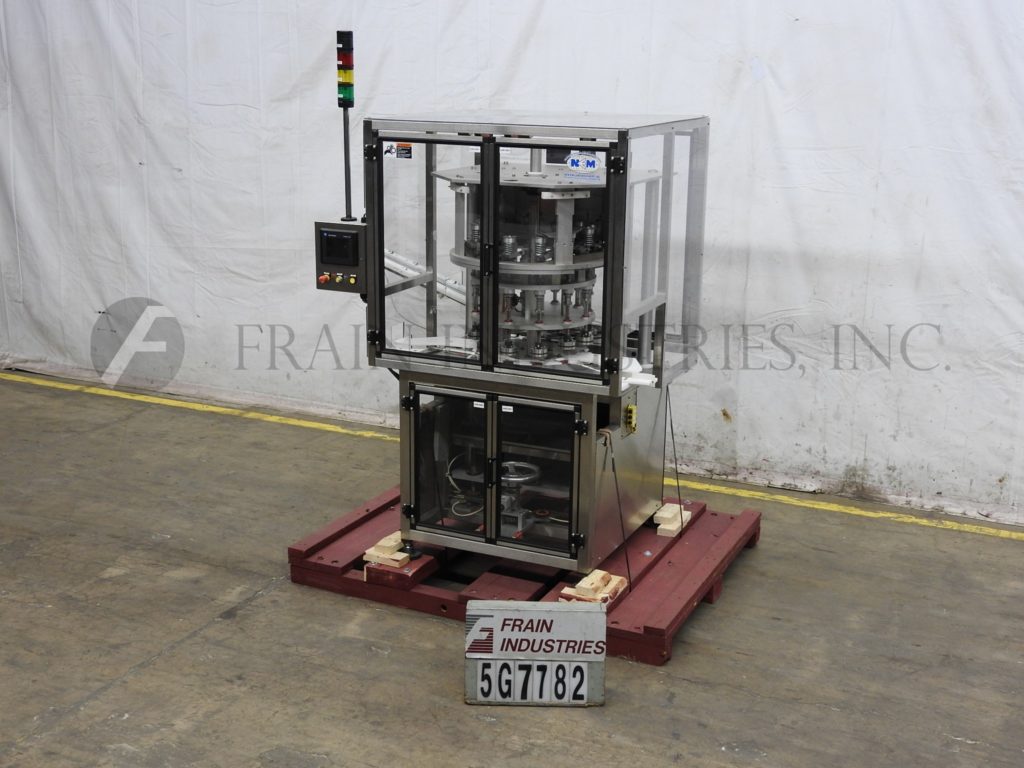

New England Model NERCA12, rotary 12 head, stainless steel, rotary chuck capper. Rated from 50 to 200 containers per minute – depending on materials and application. Cap size range: 13mm to 89mm, container size range: 1" to 5" in diameter; 2" to 7" in height with proper change parts. Equipped with star wheel container and cap indexing, a 22" diamter rotary turret with 12 friction chuck capper heads set on 5¼" centers, collet pull pins for quick release change overs; adaptable to a wide variety of caps and containers. Control panel has an A/B controller with AB PanelView 600 and interlock safety guarding. Mounted on stainless steel base frame.
OAD: 60"L x 54"W x 77"H

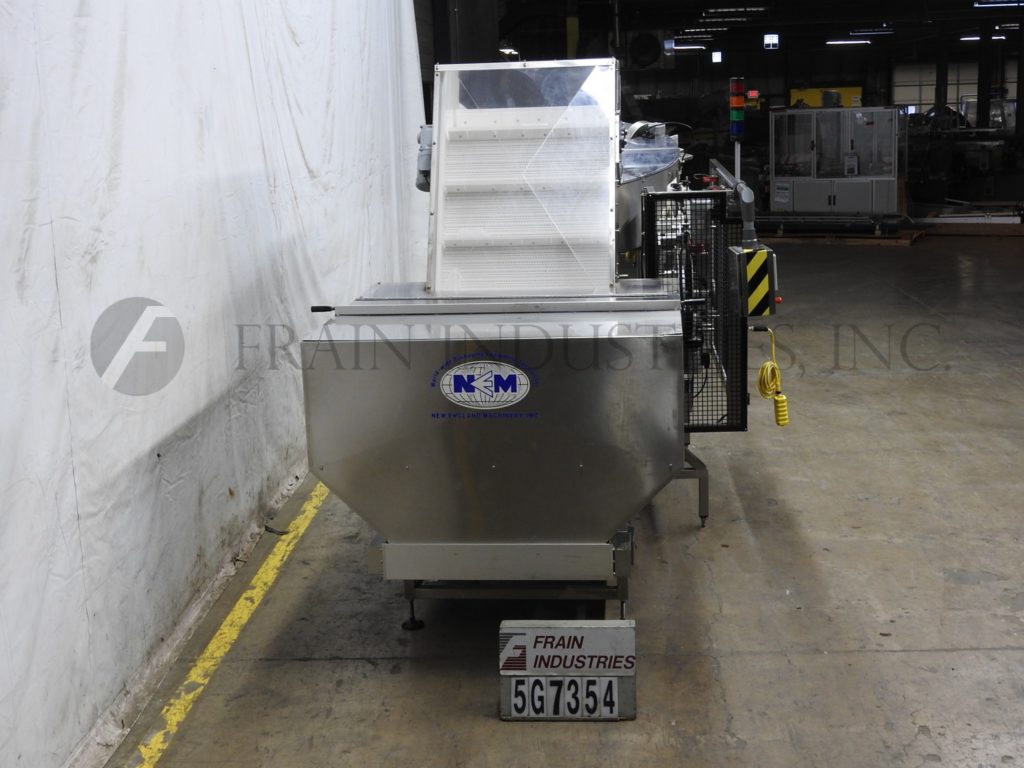

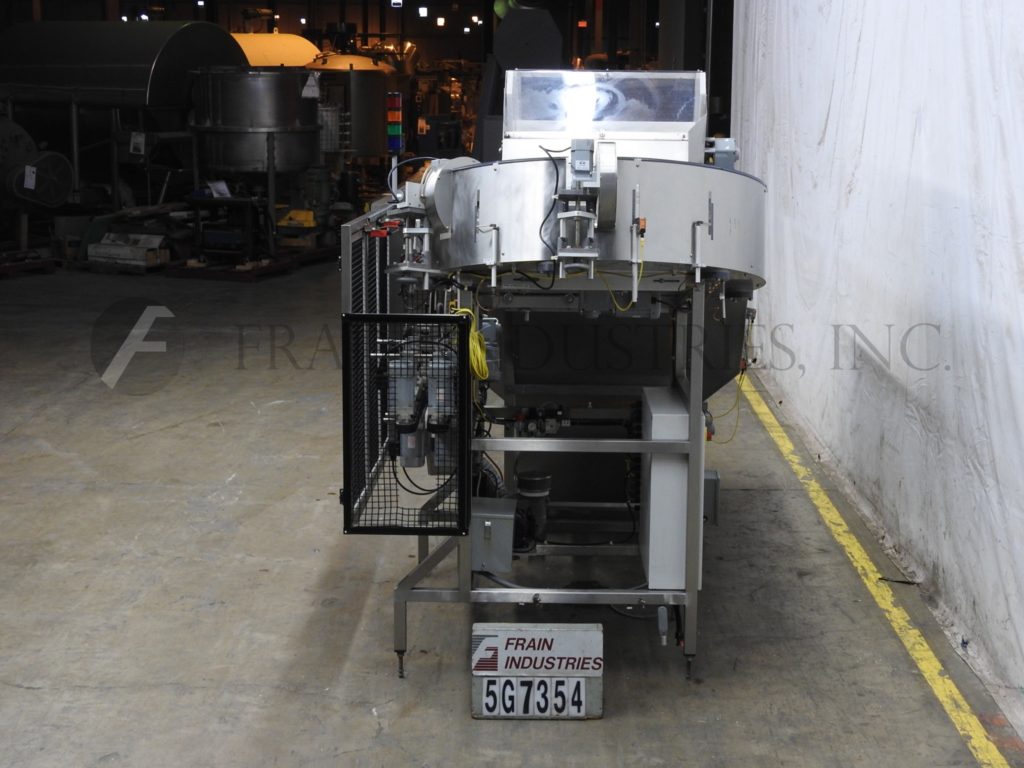

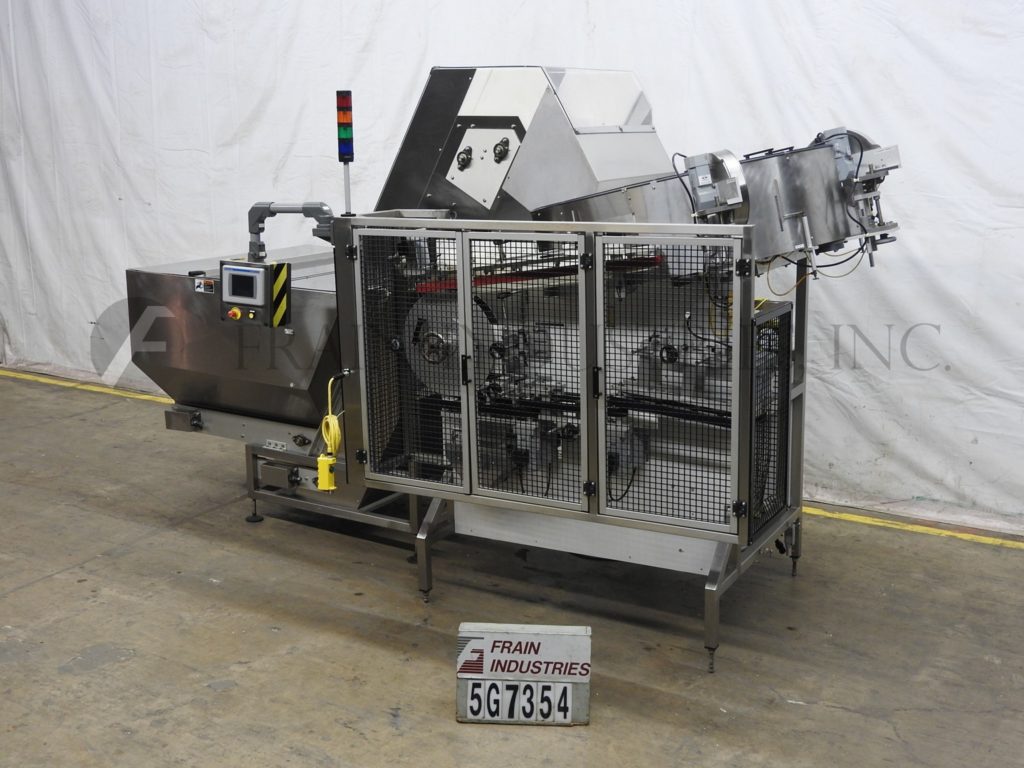

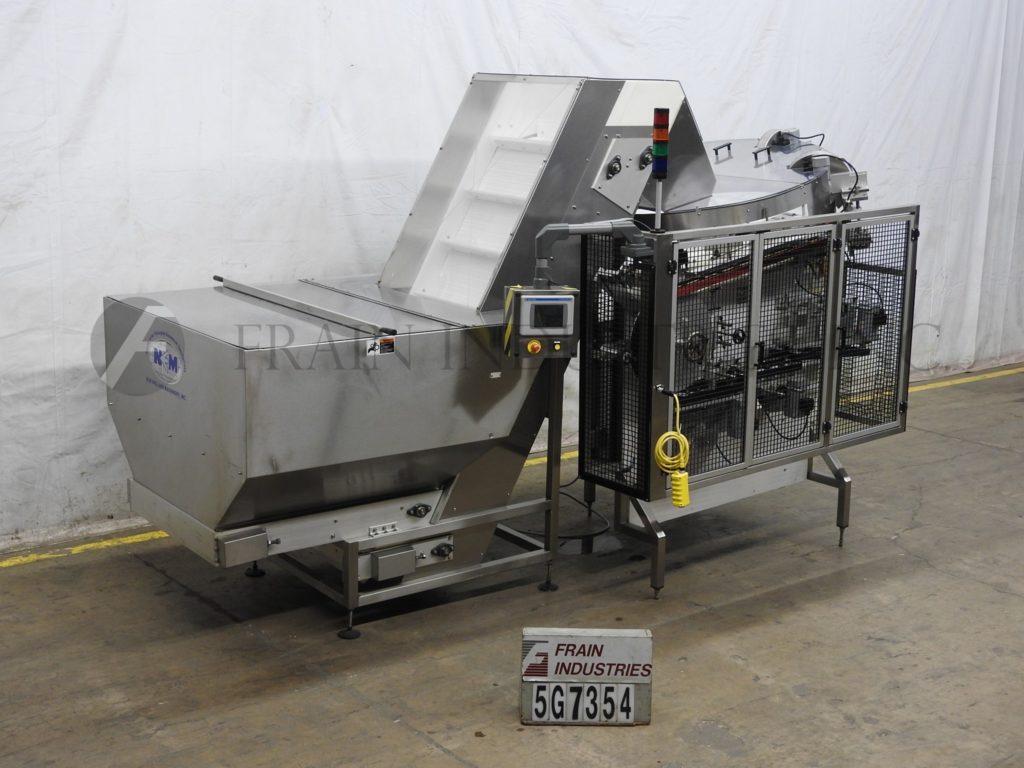

New England, Model NEHACL-60, stainless steel, bulk unscrambler. Container size range: 5/8" to 6½" in Diameter; up to 12" in height.Equipped with a 60" OD container sorting bowl, 20" rotary orientation wheel, hook arm container up ender, ionized air and vacuum container cleaner, soft belt container transfer system and safety cage. AB PLC with PanelView.
New England, Model H/E6036W, stainless steel bulk hopper / incline feeder. Equipped with 60" long x 60" wide x 34" deep product hopper, 36" wide x 36" long live bottom conveyor, 84" long x 36" wide white flex link conveyor with 4" high cleats on 12" centers, at 66" discharge.
Change parts required to accommodate size range.Speed dependent on materials, application and machine configuration.
OAD: 108"L x 73"W x 90"H (Unscrambler)OAD: 118"L x 60"W x 96"H (Feeder)
New England, Model NERCCE, 4 head, stainless steel, rotary chuck capper and Model NES 36 cap feeder and bowl sorter. Equipped with 150" long x 3¼" wide product conveyor, 24" rotary turret with four servo driven pneumatic chucks on 15" centers, electronic torque control, interlocked safety guarding and Micrologix PLC with Panel View.
NES 36 stainless steel cap feeder and sorter has 30" long x 27" wide x 26" deep cap hopper and 55" long x 10" wide flexlink conveyor belt with 3-1/2′ high cleats on 10" centers and 36" OD stainless steel sorting bowl.
Speed dependent on materials, application and machine configuration.
OAD: 155" L x 48" W x 87" H Capper 56" L x 42" W x 90" H Feeder
New England Model NEHHLP-72, bulk bottle unscrambler with number of containers per minute – depending on materials and application. Container size range: 3/4" to 8.5" in Diameter; up to 13" in Height. Equipped 72" long x 57" wide x 33" deep stainless steel bulk product hopper, 72" sorting bowl, air clean station, e-stop and safety guarding. Control panel has A/B CPU with panel view. Mounted on heavy duty base frame with safety guarding. Change parts required to accommodate size range.
OAD: 128" L x 30" W x 60" H Unscrambler 132" L x 60" W x 70" H Feed Hopper 78" L x 78" W x 32" H Disc Bowl
