Pester Machines


Pester Machines In Stock

Pester Wrapper Overwrap, Bar PEWO FOLD

  • Manufacturer: Pester
  • Model Number: PEWO FOLD
  • Frain Number: 5H5411

Pester Model Pewo Fold, automatic, cut and fold, horizontal overwrapper and can also be operated as a band sealer rated up to 50 cycles per minute with number of packages – depending on materials and application. Package size range: Length to 250mm (9.85"); Width to 400mm (15.75"), Height to 140 mm (5.5") and is capable of running polyethylene, polypropylene and PVC films, with minimum / maximum film widths of: 90mm (3.6"); 400mm (15.75") and minimum / maximum film thickness of: 0.02mm to 0.05mm. Equipped with waterfall up ender, up-stacker, multiple row collation, film registration, metric scales for adjustments, dual film arbors, empty roll sensor, static eliminator, hand crank adjustable with in feed / discharge belt conveyors and statis light. Control panel has PLC. controller with push button controls and e-stop with sealing jaws, back-up time and machine function statis gauges. Mounted on base frame with interlock safety guarding, casters and leveling legs.

OAD: 235" L x 66" W x 63" H

Get a Free Quote Call: 630-629-9900

Pester Shrink Bundler PEWO 400

  • Manufacturer: Pester
  • Model Number: PEWO 400
  • Frain Number: 5C5781

Pester Pewo 400, Shrink bundler capable of speeds from 10 to 32 strokes per minute – depending on materials and application. Package size: up to 13" in Length; up to 16" in Width; up to 8" in Height. Equipped with variable speed conveyor, adjustable height overhead belt conveyor and PLC controls.
Heat and cooling tunnel combo: Heat tunnel: 16" in width; 13" in height total aperature; 48" in length, Cooling tunnel:16" in Width; 13" in Height total aperature; 24′ in Lenght with heat and velocity controls.

OAD: 70" L x 60" W x 68" H Bundler
108" L x 28" W x 59" H Tunnel

Get a Free Quote Call: 630-629-9900

Pester Shrink Bundler PEWOPACK450

  • Manufacturer: Pester
  • Model Number: PEWOPACK450
  • Frain Number: 5F1630

Automatic, stainless steel, shrink bundler rated up to 40 bundles per minute – depending on materials and application. Equipped with a 16" wide x 60" long infeed conveyor, "Z" style colation section, 17-3/4" wide impulse seal jaw with 13" of verticle travel, top hold down, Panel View 1000 operator interface, interlocking safety guarding, and a 16" wide x 144" long discharge conveyor with 6" high guide rails. Mounted on height adjustable legs and casters. Film specifications: up to 12" in diameter; up to 20" in width; 3" core; 25 – 80µ.

OAD: 228" L x 60" W x 66"

Get a Free Quote Call: 630-629-9900

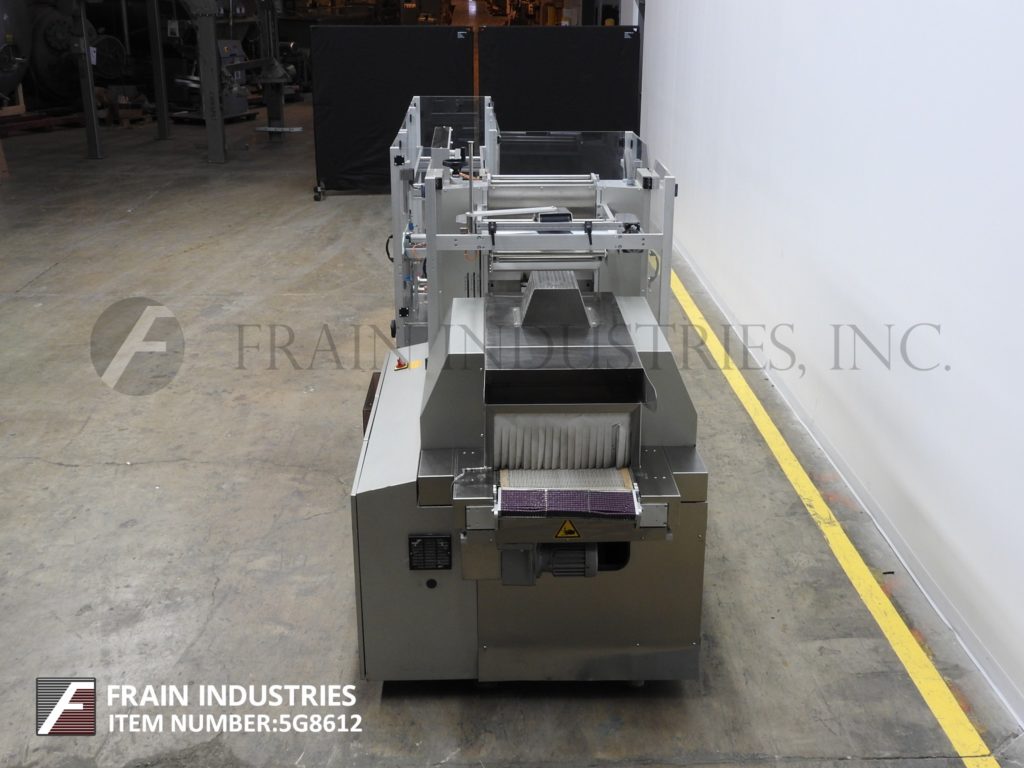

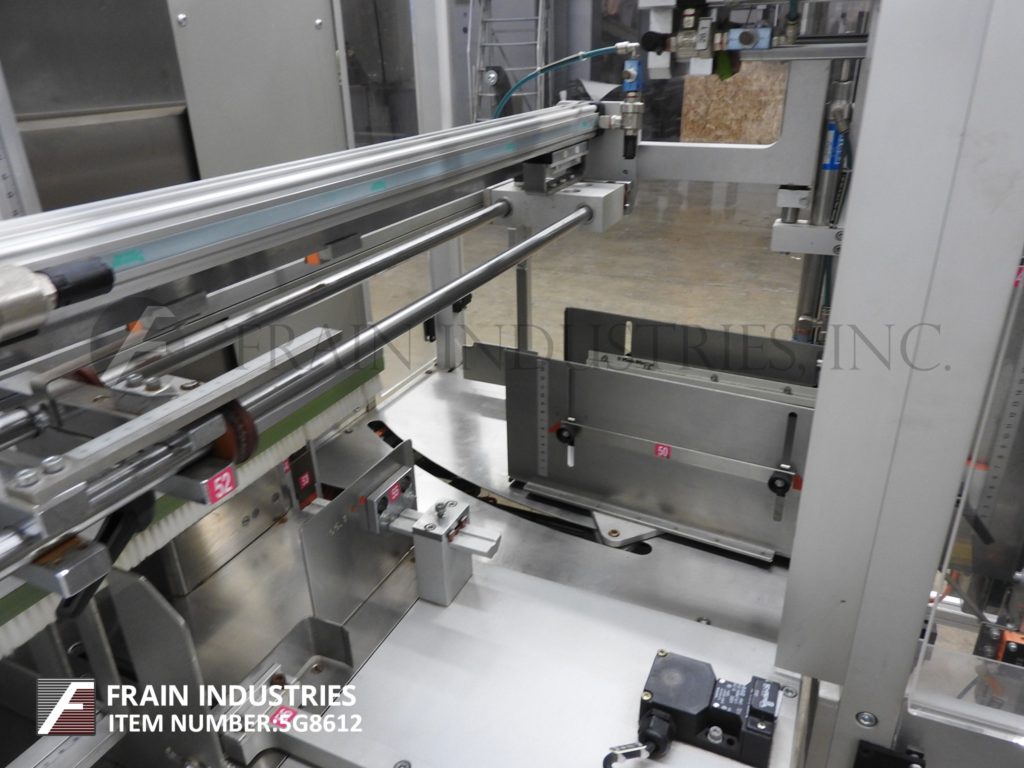

Pester Shrink Bundler PEWOPACK450

  • Manufacturer: Pester
  • Model Number: PEWOPACK450
  • Frain Number: 5G8612

Pester, Model 450, automatic in line stainless steel, shrink bundler. Rated from 10 to 40 cycles per minute with number of product – depending on materials, application pack pattern and machine configuration. Bundle size range: 1" to 9½" in Length; up to 16" in Width; ¼" to 4½" in Height. Equipped with inline in feed with product upender and product upstacking, single arm product ram and after wrap top hold-down. Utilizes film up to 16" wide. Tunnel aperture is 8" high x 18" wide with a tunnel length of 46" and a 62" long x 17½" wide mesh conveyor belt. Additional features include interlocking barrier guarding and touch pad control panel. Mounted on adjustable leveling pads.

OAD: 231" L x 51" W x 73" H

Get a Free Quote Call: 630-629-9900

Pester Case Packer Erector/sealer PEWOFORM UVP2

  • Manufacturer: Pester
  • Model Number: PEWOFORM UVP2
  • Frain Number: 5G4343

Pester model PEWO-form UVP 2 case packer with speeds from 2 to 20 cases per minute – depending on materials, application, configuration, and number of upstacks. Case size range: 5.9" to 17.5" long x 6.2" to 12.5" wide x 4.7" to 12.5" high. Package size range up to: 17.5" long x 6" high x 4" high. Equipped with 42" long case magazine, 80" long x 8" wide infeed conveyor with 1.5" high adjustable guide rails, suction cup vacuum pick and place, 36" dual bottom case conveyor and 36" top compression case conveyor feeding through two side mount 2" tape heads, 80" powered roller discharge conveyor with mechanical reject. Additionally features control panel with 10" touch screen controls, lexan guarding with safety interlocks, stainless steel frame, and servo drives.

Get a Free Quote Call: 630-629-9900
