Simplex Machines


Simplex Machines In Stock

Simplex Filler Paste Over 4 Head SP10HEADAIR

  • Manufacturer: Simplex
  • Model Number: SP10HEADAIR
  • Frain Number: 5C5141

Ten (10) head stainless steel paste filler /depositor with jacketed 10 gallon scrape agitated hopper. Machine currently set with (10) 1 3/8” 5 oz max fill pistons.(Up to a 10 oz max fill with proper pistons change parts). Hopper capable of temperatures up to 200 deg. F. and is equipped with temperature gauge. Pistons are pneumatically actuated for fill deposit. Additional feature includes a self contained heating system that maintains a constant temperature throughout jacket, piston block and fill nozzles. Unit was last filling a heated cheese product while mounted over a Multivac Thermo former. Filler is mounted on an adjustable steel base with rolling locking casters. OAD: 51”(L) x 54”(W) x 72”(H)

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Over 4 Head SP10HEADAIR

  • Manufacturer: Simplex
  • Model Number: SP10HEADAIR
  • Frain Number: 5C5142

Ten (10) head stainless steel paste filler with jacketed 10 gallon scrape agitated hopper. Machine currently set with (10) 1 3/8” for 5 oz max fill pistons.(Up to a 10 oz max fill with proper pistons change parts from oem). Hopper capable of temperatures up to 200 deg. F. and is equipped with temperature gauge. Pistons are pneumatically actuated for fill deposit. Additional feature includes a self contained heating system that maintains a constant temperature throughout jacket, piston block and fill nozzles. Unit was last filling a heated cheese product while mounted over a Multivac Thermo former. Filler is mounted on an adjustable steel base with rolling locking casters. OAD: 51”(L) x 54”(W) x 72”(H)

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Twin F

  • Manufacturer: Simplex
  • Model Number: F
  • Frain Number: 5G9607

Simplex, Model F, stainless steel, dual head piston filler / depositor. Rated from 24 oz to 160 oz per piston with number of product per minute – depending on materials, application and machine configuration. Equipped with 7" wide x 117" long Delrin conveyor with bimba indexing, (2) 160 oz pistons, (2) 4½"OD / 3¾"ID Tri-clamp discharges set on 7¼" centers with pneumatic ball valves and 7" belt clearance. Control panel with push button stop / start for belt and filler.

OAD: 120"L x 55"W x 140"H

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Twin F

  • Manufacturer: Simplex
  • Model Number: F
  • Frain Number: 5G9606

Simplex, Model F, stainless steel, dual head piston filler / depositor. Rated from 24 oz to 160 oz per piston with number of product per minute – depending on materials, application and machine configuration. Equipped with 3½" wide x 115" long (2) chain conveyor with bimba indexing, (2) 160 oz pistons, (2) 4½"OD / 3¾"ID Tri-clamp discharges set on 8" centers with pneumatic ball valves and 10" belt clearance. Control panel with push button stop / start for belt, valve and filler.

OAD: 120"L x 60"W x 156"H

Get a Free Quote Call: 630-629-9900

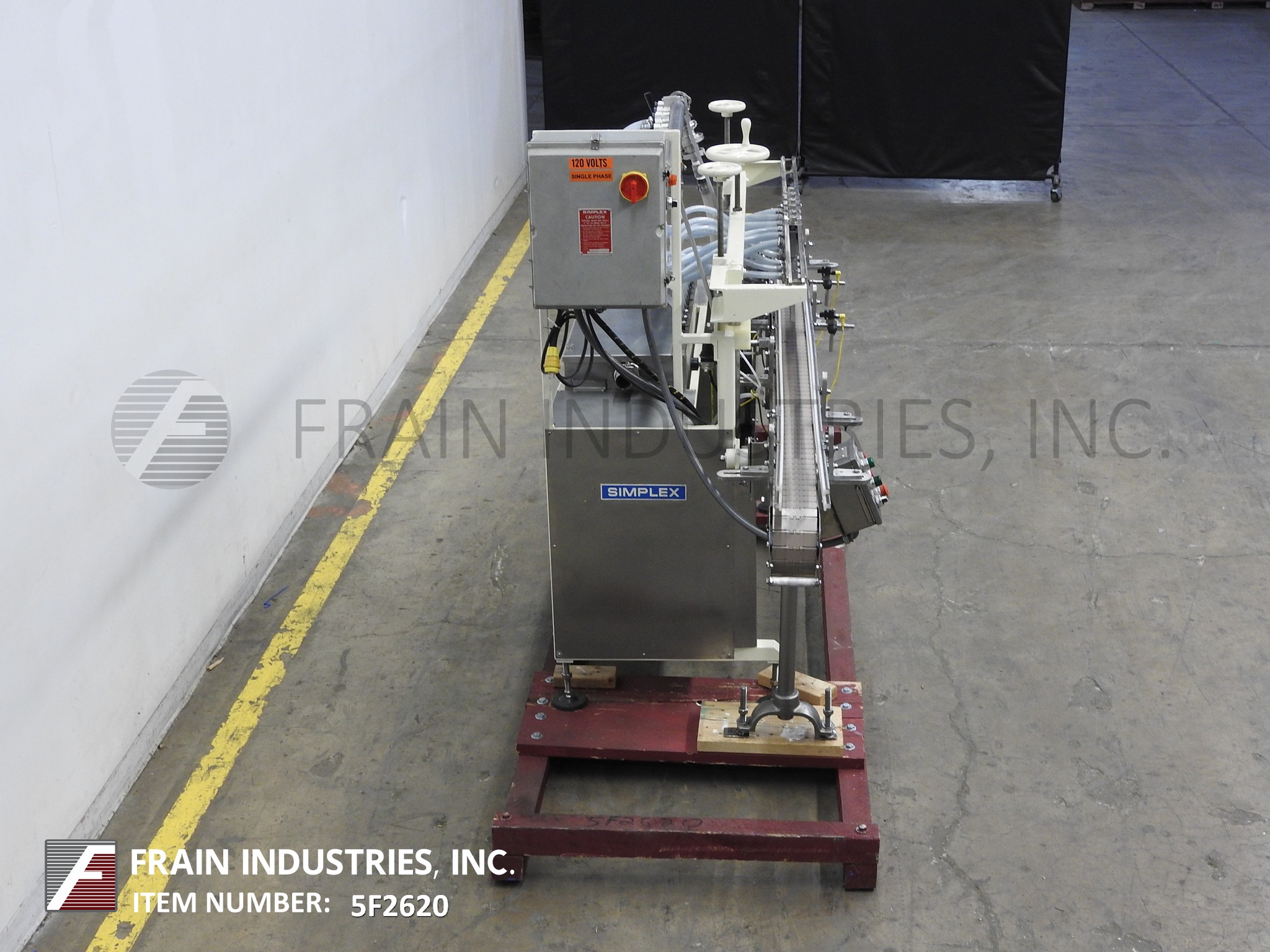

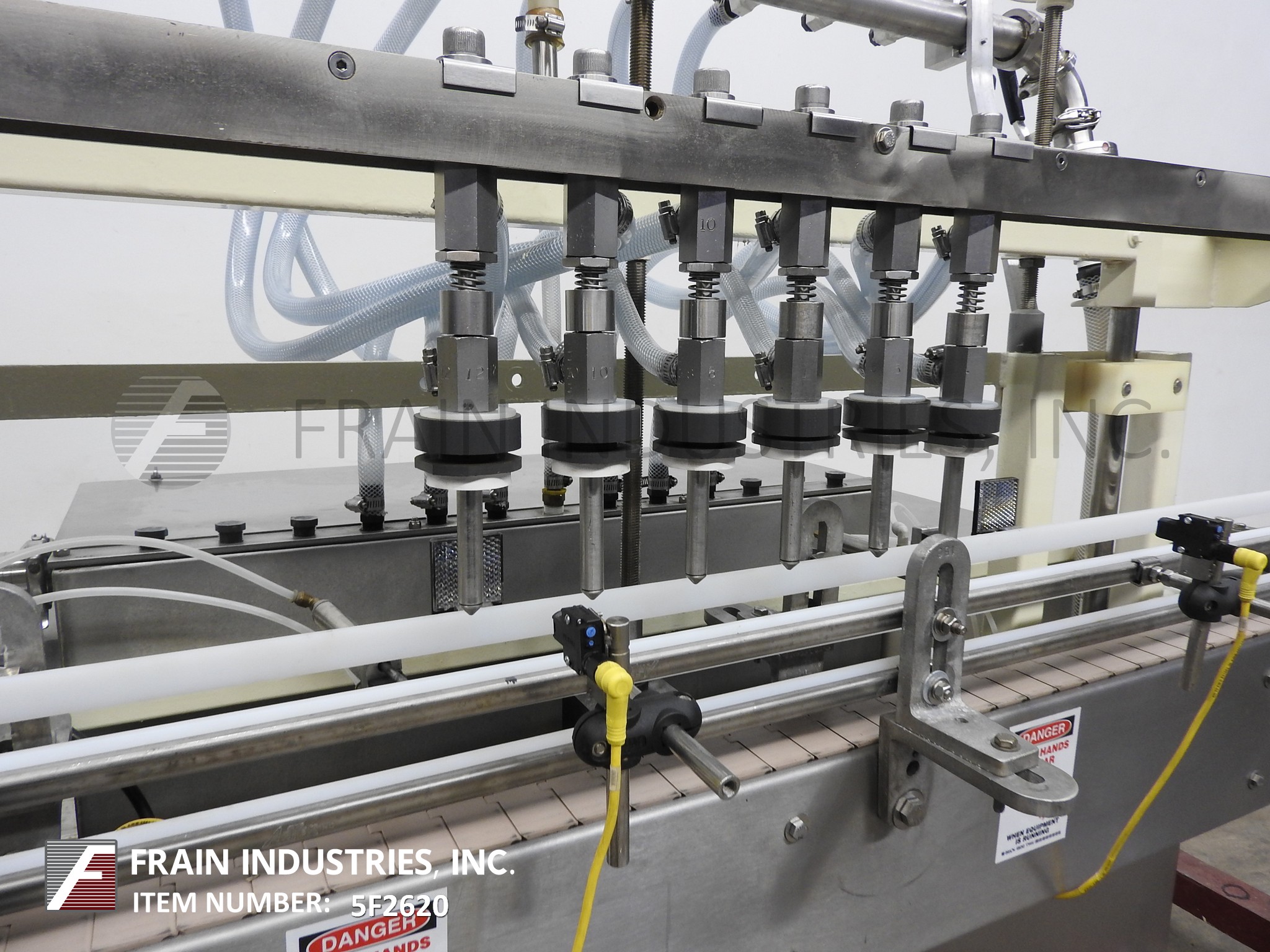

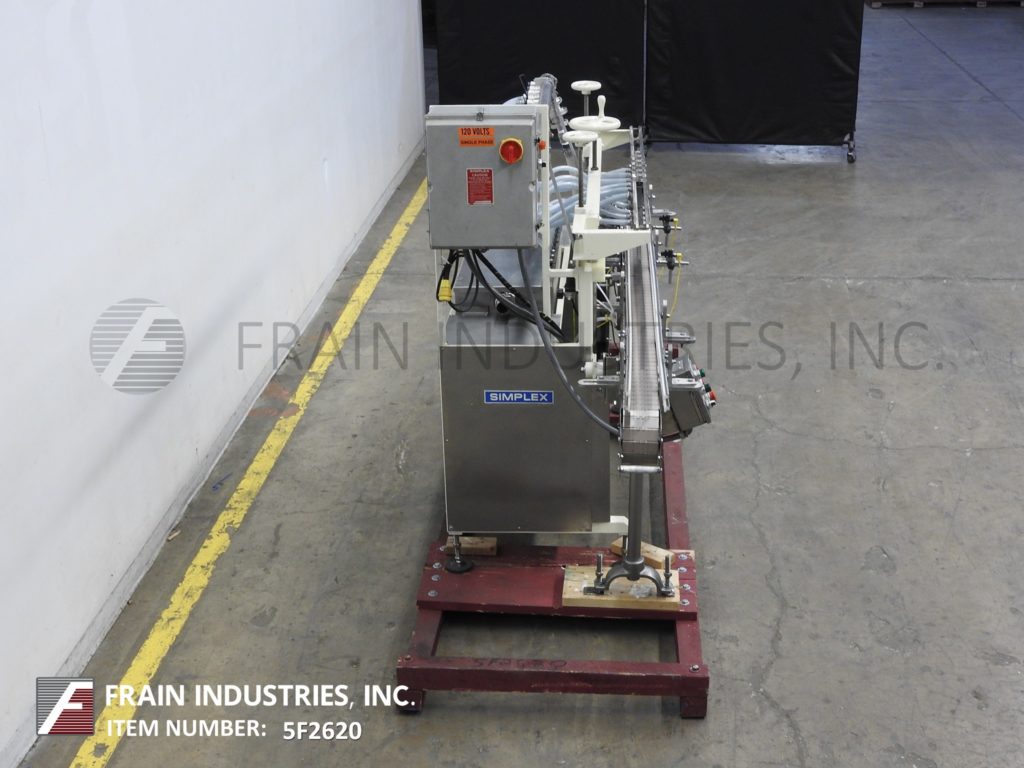

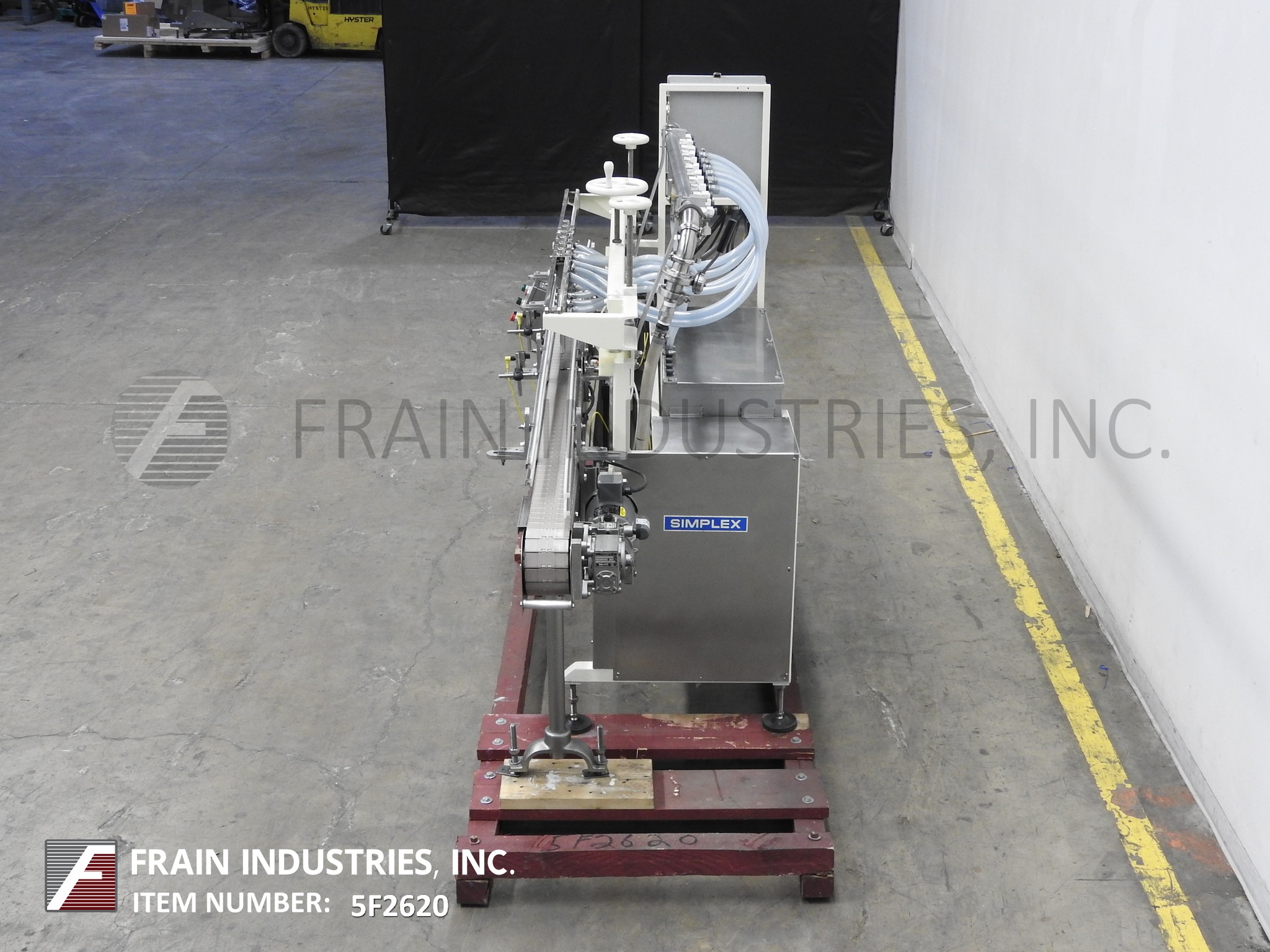

Simplex Filler Liquid Grav/Press 400A

  • Manufacturer: Simplex
  • Model Number: 400A
  • Frain Number: 5F2620

In line, 12-head, pressure filler. Equipped with 4-1/2" wide conveyor with adjustable side rails, twelve spout fill manifold currently set with six 3/8" OD nozzles mounted on 65" long height adjustable slide bar & product tank with float valve level control. Can handle water-thin foaming or non-foaming to medium viscosity fluids. All stainless steel contact parts. Speeds dependant on materials and application.

OAD: 120" L x 36" W x 64" H

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Twin T200

  • Manufacturer: Simplex
  • Model Number: T200
  • Frain Number: 5F2147

Twin piston filler, rated 5 to 30 strokes per minute – depending on materials and application. Equipped with 28" diameter 34" deep product hopper and cover, twin 4" ID (45oz) pistons and two nozzles fittings set on 7" centers. Mounted on locking casters.

OAD: 60" L x 36" W x 73" H

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Twin F

  • Manufacturer: Simplex
  • Model Number: F
  • Frain Number: 5D8121

Inline, 2 head piston filler, rated at speeds 4 to 20 containers per minute – depending on materials, application and machine configuration. Fill range of: 16 – 128 ounces. Equipped with 10′ indexing conveyor, 29" L x 20" W x 21" D, S/S product hopper and two one gallon stainless steel pistons with 1" ID nozzles set on 8" centers.
OAD: 125" L x 74" W x 76" H

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Twin AS200

  • Manufacturer: Simplex
  • Model Number: AS200
  • Frain Number: 5F2137

Simplex Model AS200, twin piston filler, rated from 5 to 15 cycles per minute – speeds dependant on materials, application and machine configuration. Fill range: up to 8.9 oz . Equipped with 4-1/2" wide stainless steel Delran indexing conveyor, worm screw in feed, product hopper, positive cut-off 1/2" OD diving nozzles and PLC with swing arm panel.
(Capable of accepting pistons up to 45 oz.)
OAD: 124" L x 55" W x 85" H

Get a Free Quote Call: 630-629-9900

Simplex Filler Paste Quad AIR-QT

  • Manufacturer: Simplex
  • Model Number: AIR-QT
  • Frain Number: 5H0667

Simplex, Model Air-QT, (4) head semi-automatic piston filler. Rated from 5 to 20 strokes per minute with number of containers – depending on materials, application and operator dexterity. Equipped with 26" diameter x 24" deep product hopper (4) 1¼" ID x 10" long pistons with fill range up to 10 oz and ½" OD nozzles. Mounted on base frame with casters with foot pedal operation.

OAD: 60"L x 30"W x 70"H

Get a Free Quote Call: 630-629-9900
