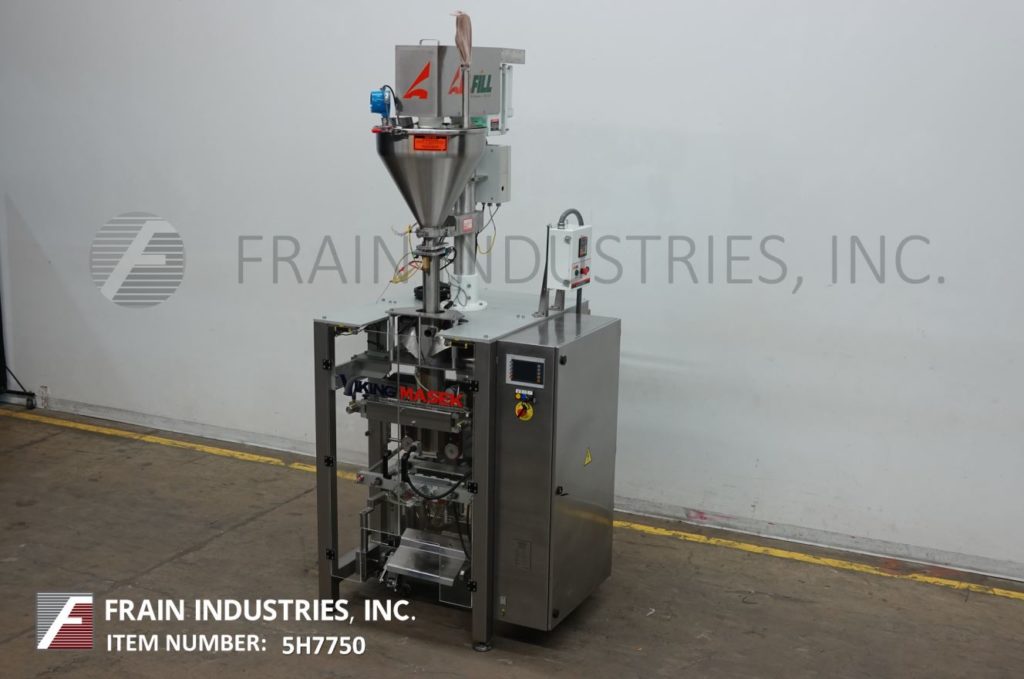

Viking Maeck Global Packaging Tech, Model E250, Vertical form, fill, seal machine, rated from 10 to 50 cycles per minute with number of bags or pouches – depending on materials, application and machine configuration. All Stainless steel construction. Bag or pouch size range of: 2½" to 15" long x 2½" to 11" wide. Film Roll size of: 21" wide maximum. Equipped with All Fill single head auger filler and product hopper, fill tube, dual side belt assist, 12" wide hot impulse seal jaws with 16" long lap seal bar and product discharge chute. Control panel has touch pad controller with panel view and start, stop, reset and e-stop push buttons. Mounted on stainless steel frame with height adjustable legs and interlock safety doors.
OAD: 72" L x 48" W x 62" H Without Auger Filler 115" H With Auger Filler
Viking, Model E250, complete vertical form fill and seal system. Rated from 10 to 60 cycles per minute – depending on materials, application and machine configuration. Bag size: 2½" – 15" long x 2½" – 10" wide. Film Roll size: 21" wide max. Equipped with a bucket elevator feeding into a 12" wide x 30" long vibratory product feeder, 10-head Yamato scale with dimpled buckets, Lock Met 30+ 8" diameter flow thru metal detector, 18" long x 1¾" wide fill tube, 16" long lap seal bar, 11" wide hot serrated knife seal jaw, film registration, Markem SmartDate x40 coder, 10" wide x 18" long product discharge chute with 11" ground clearance and controlled by a touch screen panel. System is mounted on a painted mezzanine.
OAD: 134"L x 105"W x 154"H

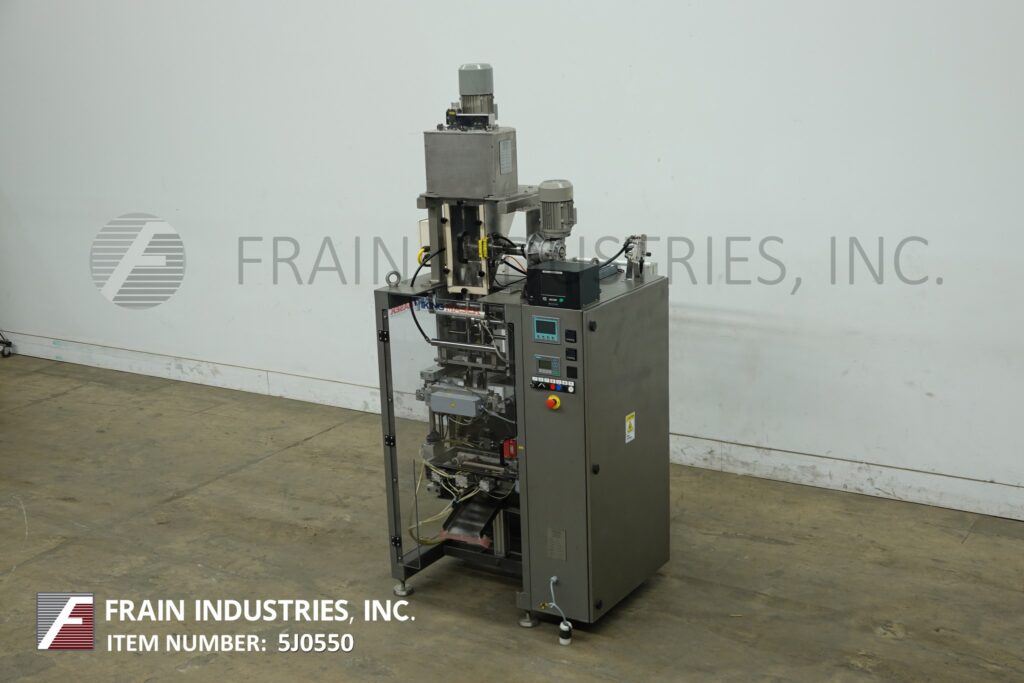

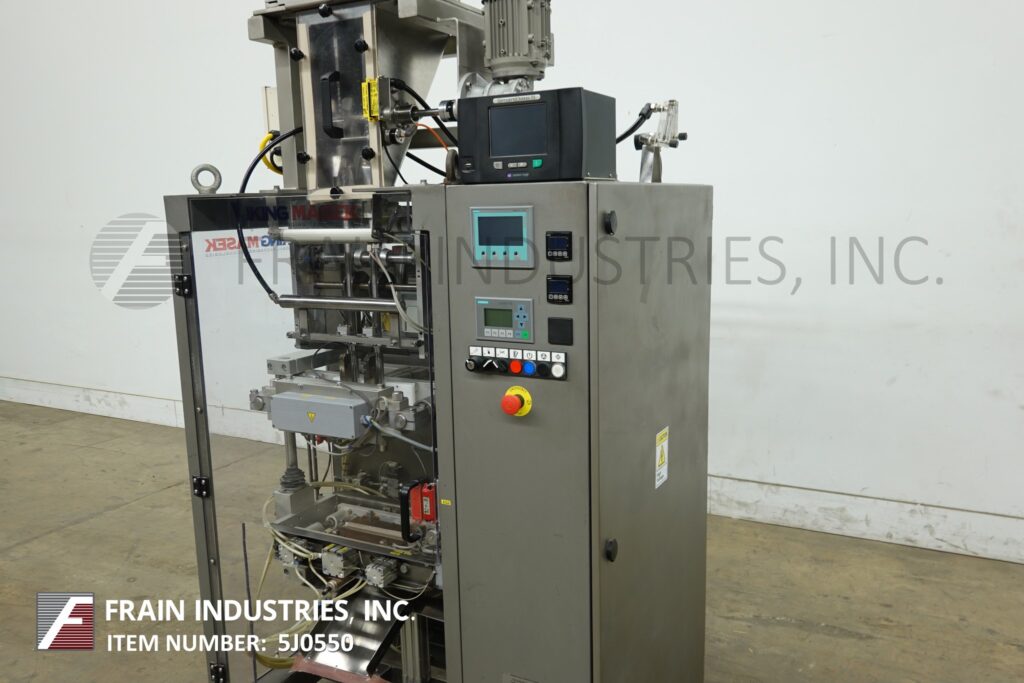

Viking Masek Model ST200, 2-up, vertical, stick pack, form / fill / seal machine rated from 5 to 30 cycles per lane with the number of product per minute – depending on materials and application. Minimum bags size: 17mm to 50mm. Maximum bag size: 40mm to 200mm. Equipped with product hopper and dual auger fillers mounted above stick pack machine, slitters and dual forming tubes, with 9" vertical and 9" cross-cut seal jaws, film roll with manual film tracking has maximum film width of 200mm with maximum roll diameter of 400mm. Control panel has Siemens controller with touch pad controls and readout with seal jaw, heat seal controls, e-stop, discharge conveyor and vacuum transfer system. Mounted on (4) leg height adjustable base frame.
OAD: 68" L x 48" W x 109" H
