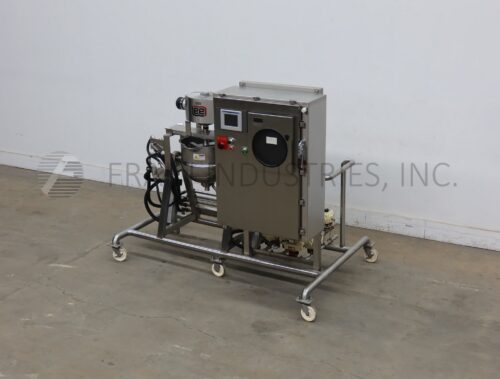

Lee Kettle Double Motion 10CHD9MT
Back to All EquipmentLee, model 10CHD9MT, 10 gallon, 316 stainless steel, open top, variable speed, double motion, jacketed kettle. Vessel dimensions: 17" diameter x 14½" deep with a 48½" infeed height. Equipped with hydraulic tilt up bridge mounted double motion scrape and counter rotation agitation (powered by 1½ Hp drive), 1½" Tri-clamp discharge with a butterfly valve at 26" ground clearance and vessel tilt out with a 30" discharge height. AB PLC with touchscreen HMI, and chart recorder. Mounted on stainless steel tubular frame on castors.
Jacket Fittings:
(2) 1" NPT
(1) 1" NPT drain
National Board: 4885
MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI
OAD: 83" L x 52" W x 68" H
