Screw compressors uses two interlocking rotating screws to compress the air. The screws take air in at one end, and as the air passes through the screws, the volume the air can occupy between the two screws is progressively reduced. Because the air cannot escape from between the screws, the pressure of the air increases as the volume between the screws decreases. These units oil-free or utilize oil.

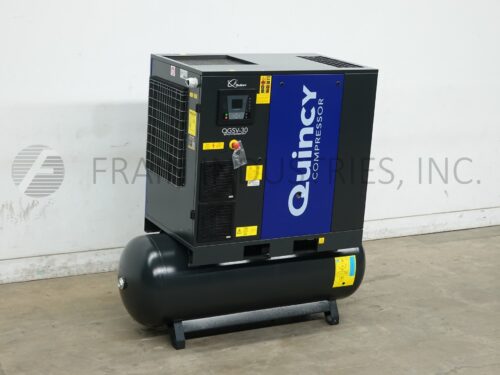

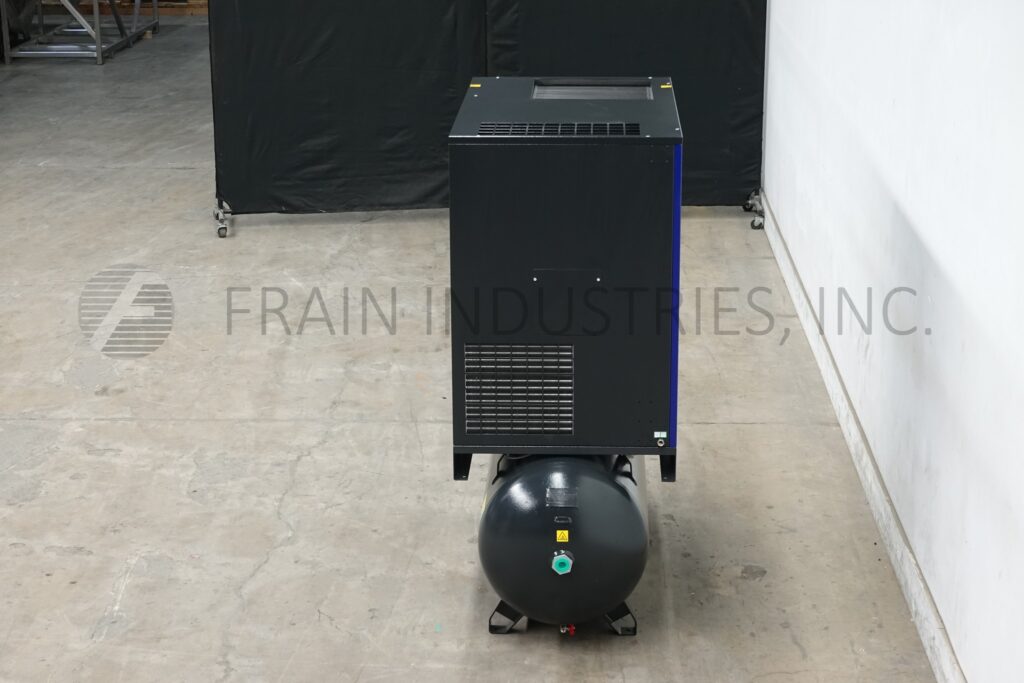

Quincy, Model QGSV30 screw compressor rated to 136 ACFM @ 100 PSI with a 120 Gal receiver tank. Includes direct drive transmission for power saver, variable speed controls, and quiet enclosure noise output to as low as 66 dBA . Additional features Air Systems Air/Oil/Water separator.
MAWP: 182 Psi @ 150 F
Nat’l Brd: 51686
OAD: 72" L X 32" W X 72"H
Nat’l Brd: 51688
Atlas Copco Model ZR5-60, 350 Hp, 2 stage rotary water cooled, oil free, fully enclosed screw air compressor, rated up to 123 psi at 2385 cfm with 1760 rpm and interstage pressure of 30,5. Ingersall Rand Intellisys touch pad controller with read out and start, stop, e-stop push button controls with local and remote operation switch. 10" OD , 4-1/2" ID flanged side end bottom port with (8) 1/2" bolts on 3" centers and butterfly valve and (2) 7" OD, 2" ID end bottom ports with (4) 1/2" bolts on 4" centers and (2) end bottom bleed release valves and mounted on epoxy coated frame with a silenced enclosure. Mounted on heavy duty forkable frame.
OAD: 156" L x 96" W x 93" H
