Cooler equipment is designed to cool product. Cooler equipment can either be continuous or batch style. With continuous cooler equipment, product enters one end of the cooler and exits the other end of the cooler already cooler. With batch cooler equipment, product is placed within the cooler and is taken out of the cooler after a certain time has elapsed. See also cooling tunnels.

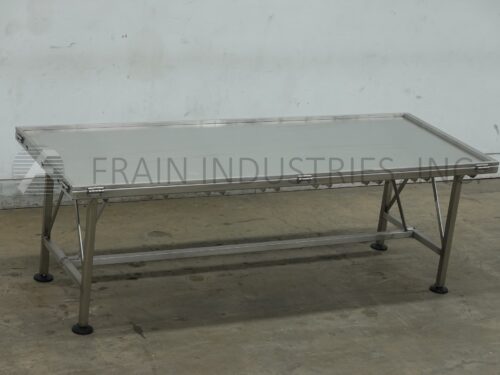

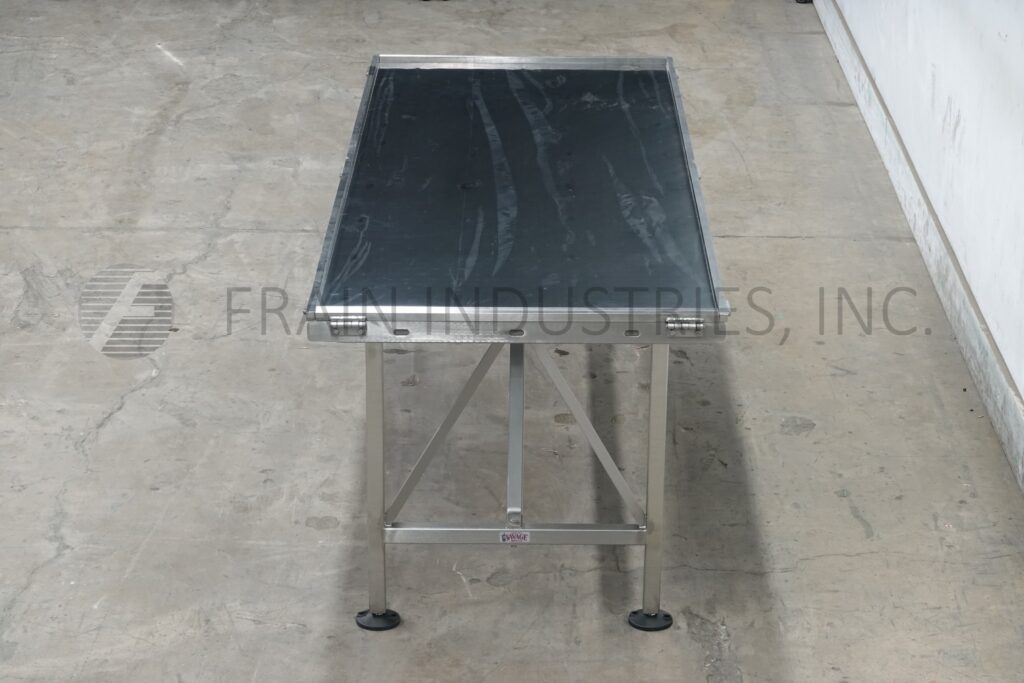

Savage, 36" x 96L stainless steel frame jacketed table top designed to withstand 100 PSI. Ribbed table top to prevent twisting or deflection during alternate cooling/heating cycles from steam or water source. Equipped with a 34½" wide x 94½" long working space, hinged perimeter of table and 32" loading height.
OAD: 97"L x 37"W x 32"H

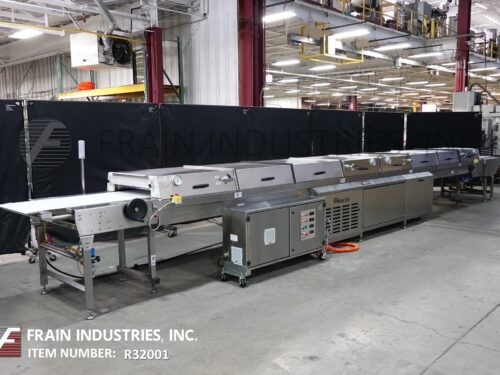

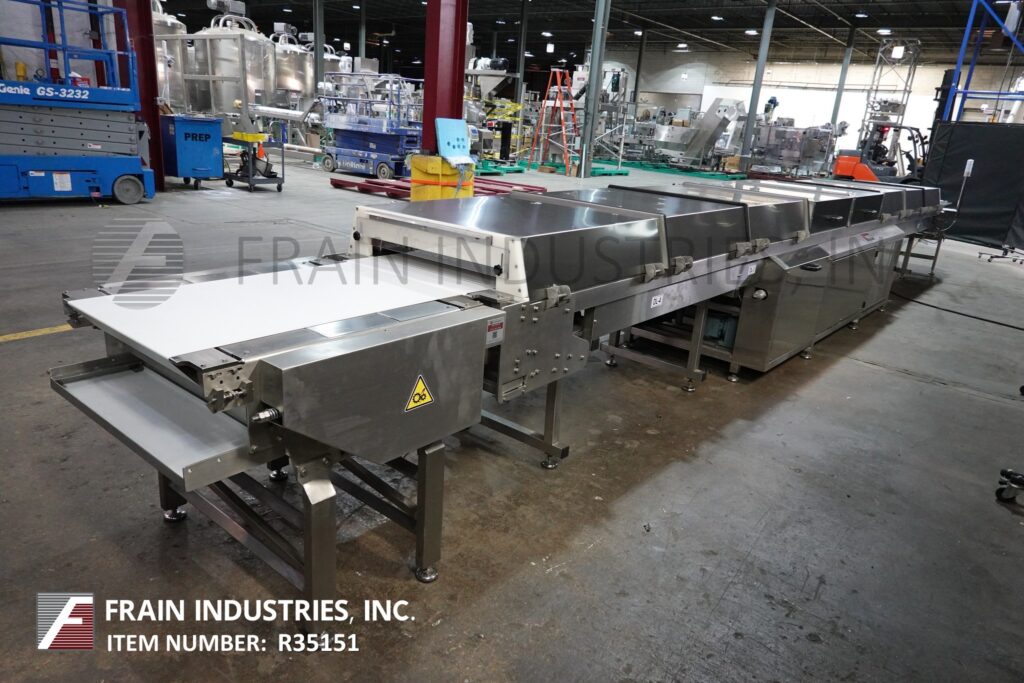

Marcos Machinery Model STKK24, 24 inch wide x 24 feet long convection cooling tunnel with number of product per hour – depending on materials and application. Equipped with stainless steel frame and cladding contact parts, 3 foot In feed table with adjustable approach edge, 24" wide x 24′ long pneopreme product belt, has its own motor drive, centering device with automatic belt tracking and tensioning, drive station with speed inverter and spring loaded scrapers for roller self cleaning. 8 section tunnel with hinged gas spring assit flip up covers, with temperature gauges and height up to 60mm or 2.36". Built in air cooling units one unit for each zone (1) complete 3.5 Kw cooling system with humidity control and cooling air is delivered in loops by forced cold air streams through twin blowers with (2) independent adjustable cooling zones, cooling compressor, air cooled condenser, with frequency inverter and evaporator. Control panel has blower and belt on / off and speed controls with e-stops. Mounted on heavy duty frame.
OAD: 389" L x 42" W x 44" H

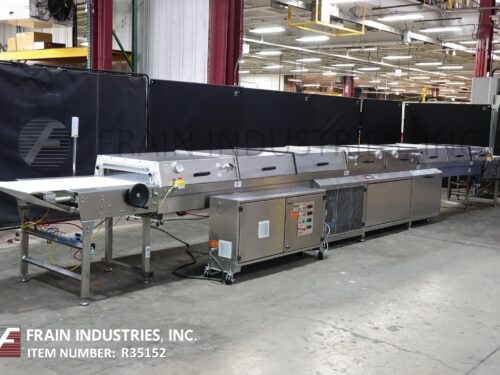

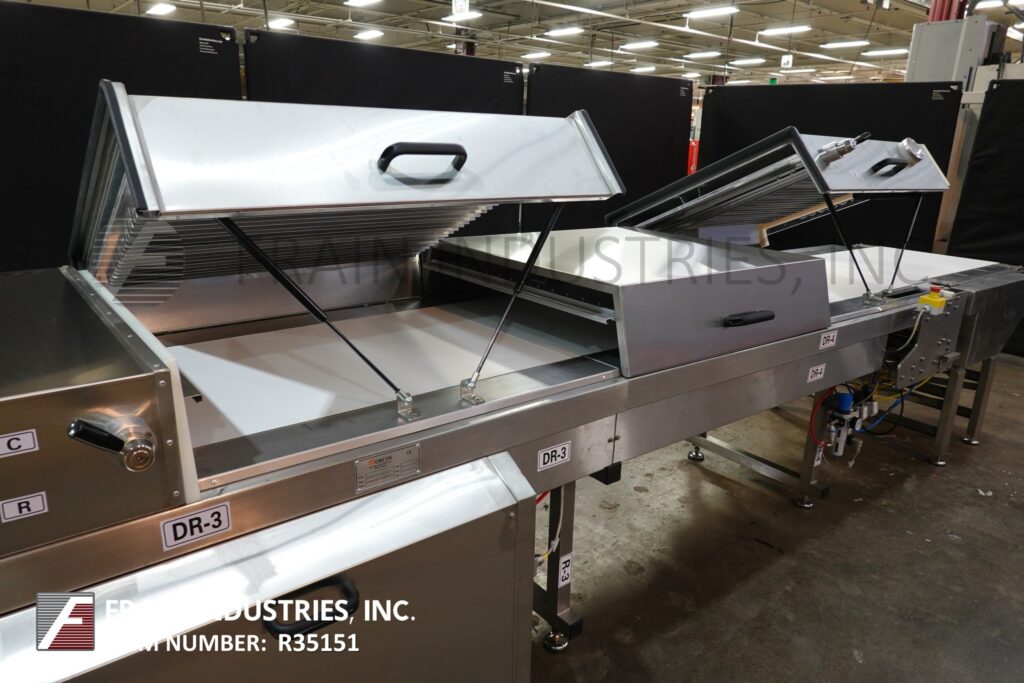

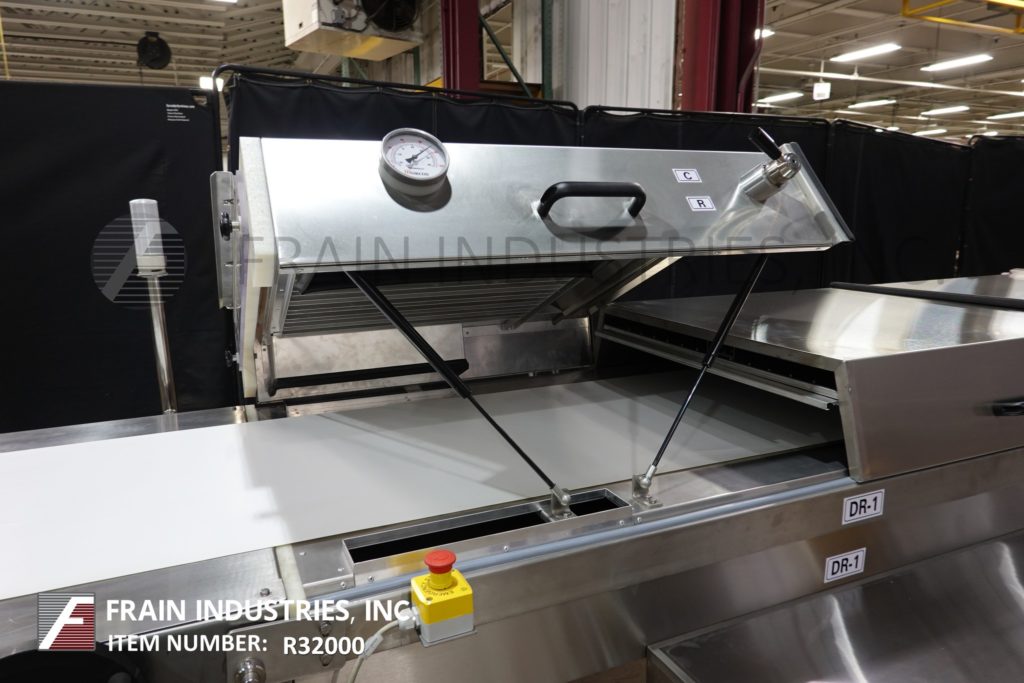

Morcos Machinery Model STKK24, 24 inch wide x 24 feet long convection cooling tunnel with number of product per hour – depending on materials and application. Equipped with stainless steel frame and cladding contact parts, 3 foot In feed table with adjustable approach edge, 24" wide x 24′ long pneopreme product belt, has its own motor drive, centering device with automatic belt tracking and tensioning, drive station with speed inverter and spring loaded scrapers for roller self cleaning. 8 section tunnel with hinged gas spring assit flip up covers, with temperature gauges and height up to 60mm or 2.36". Built in air cooling units one unit for each zone (1) complete 3.5 Kw cooling system with humidity control and cooling air is delivered in loops by forced cold air streams through twin blowers with (2) independent adjustable cooling zones, cooling compressor, air cooled condenser, with frequency inverter and evaporator. Control panel has blower and belt on / off and speed controls with e-stops. Mounted on heavy duty frame.

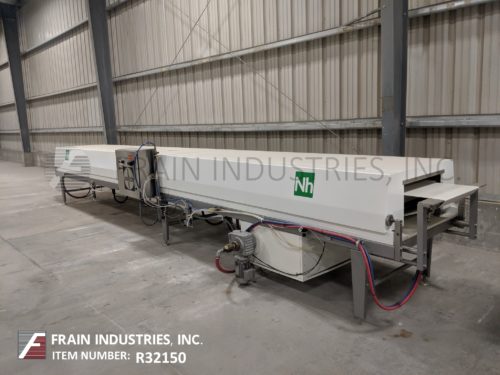

Sollich KT620S cooling table with jacketed bed for chilled glycol water with universal convection cooling from above and intensive cold water or glycol contact cooling below, Equipped with 24" wide x 300" long neoprene conveyor belt, total aperture of 3-1/8" high by 25" wide, usable aperture of 2-3/4" in height by 24" in width. Features (5) 59" long tunnel sections with air tight polyurethane hoods. Control panel has conveyor on / off switch and speed control dial with e-stop and AB Power Flex controller. Mounted on leveling legs. Product per hour – depending on materials, application and machine configuration. Requires external chiller.
OAD: 325" L x 59" W x 48" H

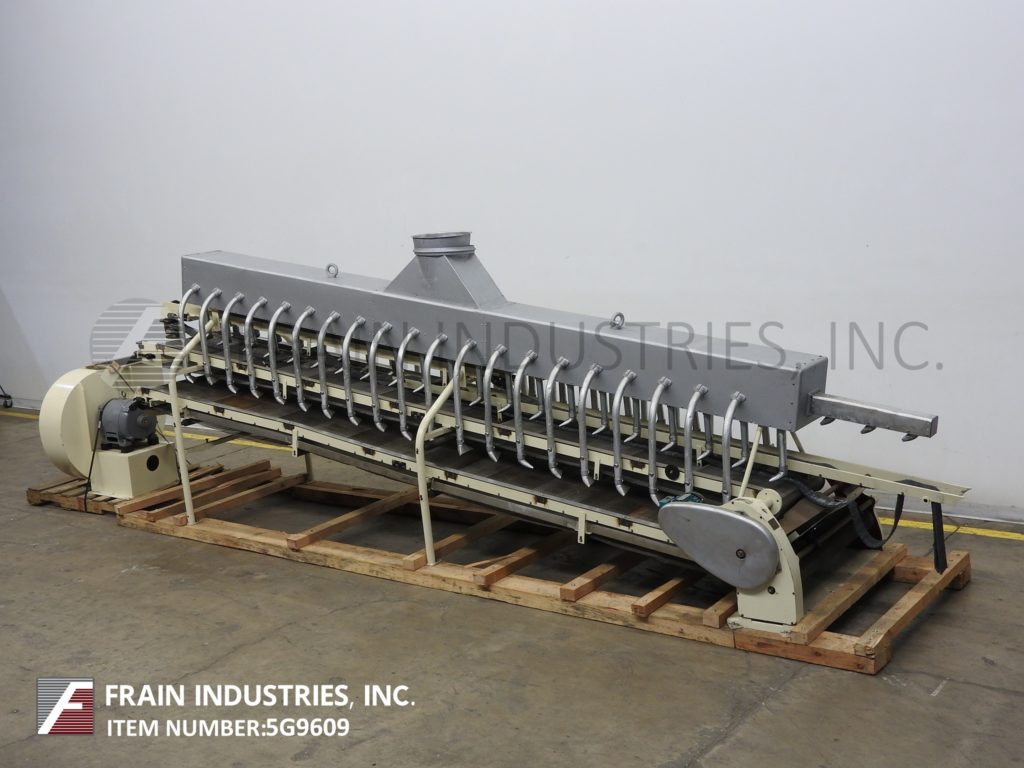

Hansella, Model 71E, three tier cooling belt conveyor. Equipped with a 180" long x 14" wide top mounted air distribution box with a 14" diameter charge port. Top belt: 258" long x 3½" wide mild steel mesh style belt. Middle belt: 183" long x 23" wide stainless steel mesh style belt. Bottom belt: 185" long x 37¾" wide stainless steel mesh style belt with a 34" discharge height. Powered by a ¾ hp drive. Includes a 5 HP blower unit.
OAD: 266"L x 52"W x 75"H

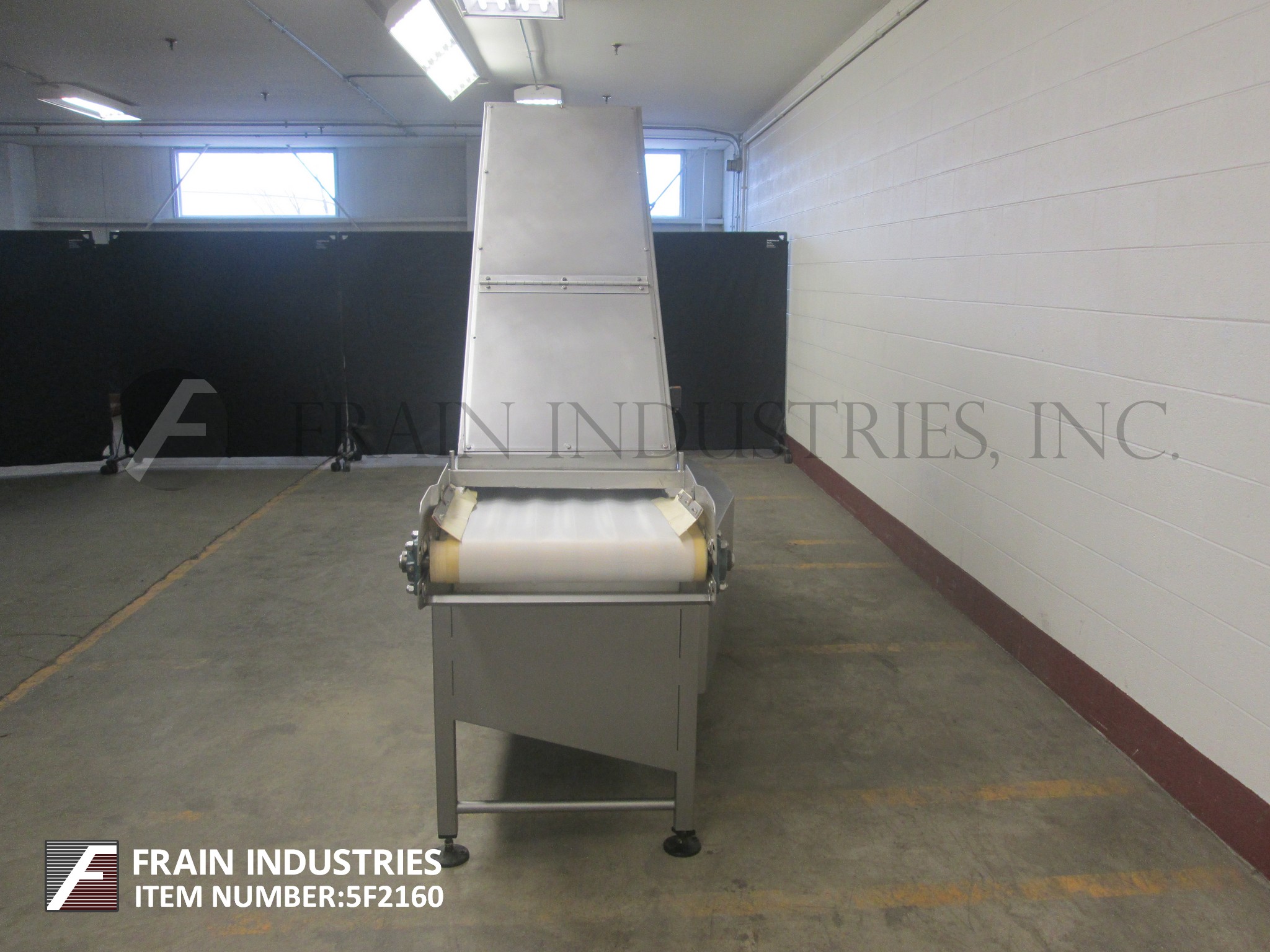

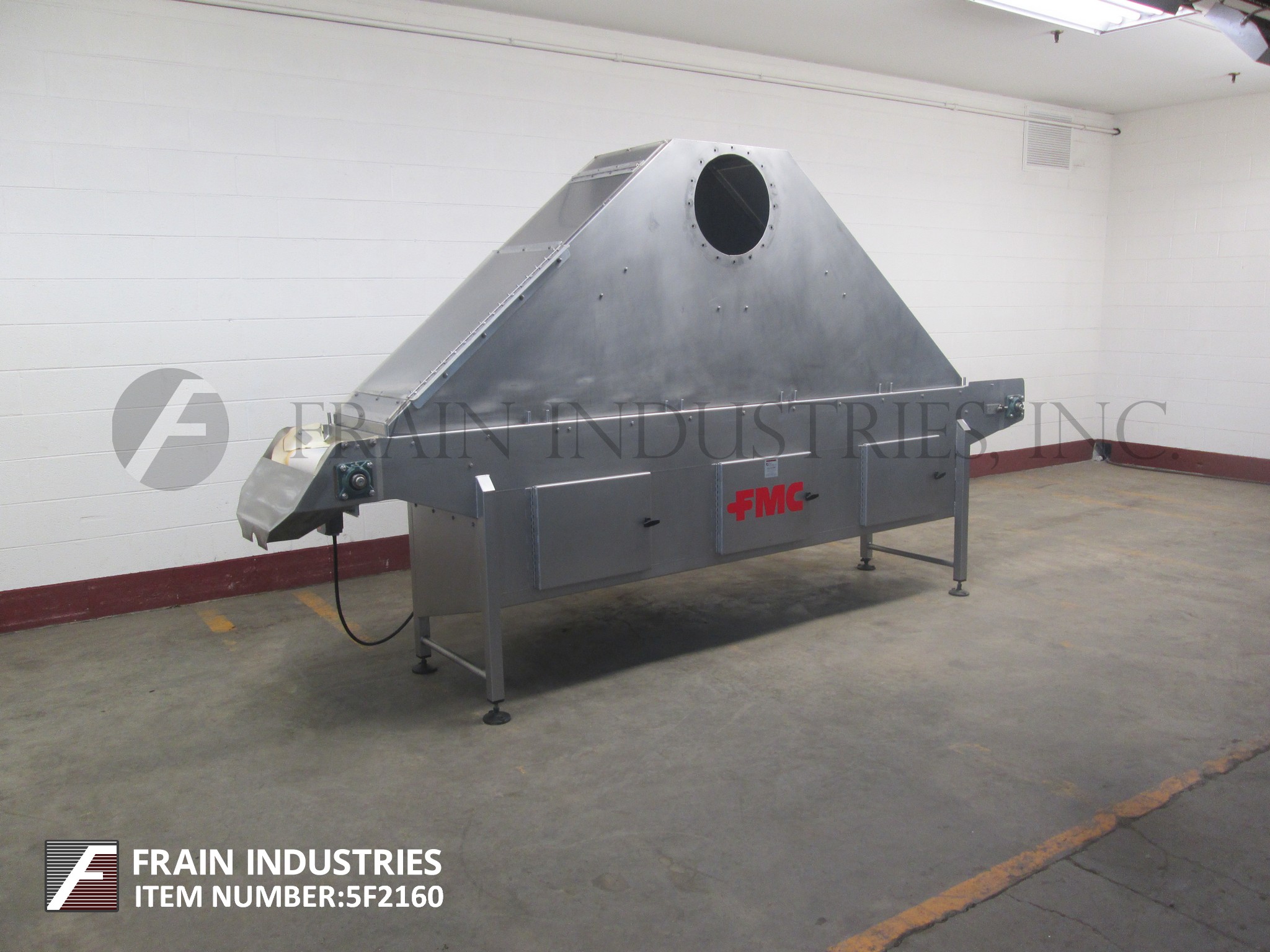

FMC, 20" Wide x 144" Long, stainless steel, poly mesh belt, cooling tunnel. Equipped with a hooded top cover, 4" high product containment rails, and a 5" wide x 10" long discharge. Mounted on a hollow stainless steel frame with height adjustable legs. Requires air handling package. Air is blown in through bottom 16"ID port, passes through a filter box and exhausts through 16" ID port on top hood.
OAD: 157" L x 41" W x 82" H
