Metal detecting conveyors are metal detecting units or heads that have been integrated with a plastic conveyor belt running through the metal detecting head to carry product through the metal detector.
Often metal detectors with conveyors are designed with a mechanism to reject or discharge products or packages in which metal has been detected. Metal detectors can be designed with a number of different reject mechanisms, including mechanical pusher arms, pneumatic air blow-offs, conveyor stops, drop noses, and diverter gates.
Lock, Model Insight 3F/HF HDE, automatic, in line, stainless steel, three frequency, metal detector with number of product per minute – depending on materials and application. Working Aperture: 10½" in Height; 5.25" in Width. Equipped with 4" wide x 60" long white flex link product conveyor with push arm reject, variable speed. Sensitivities: depending on product, container and enviorment being run in. Touch pad controls with display. Mounted on (4) leg base frame.
OAD: 60"L x 36"W x 58"H

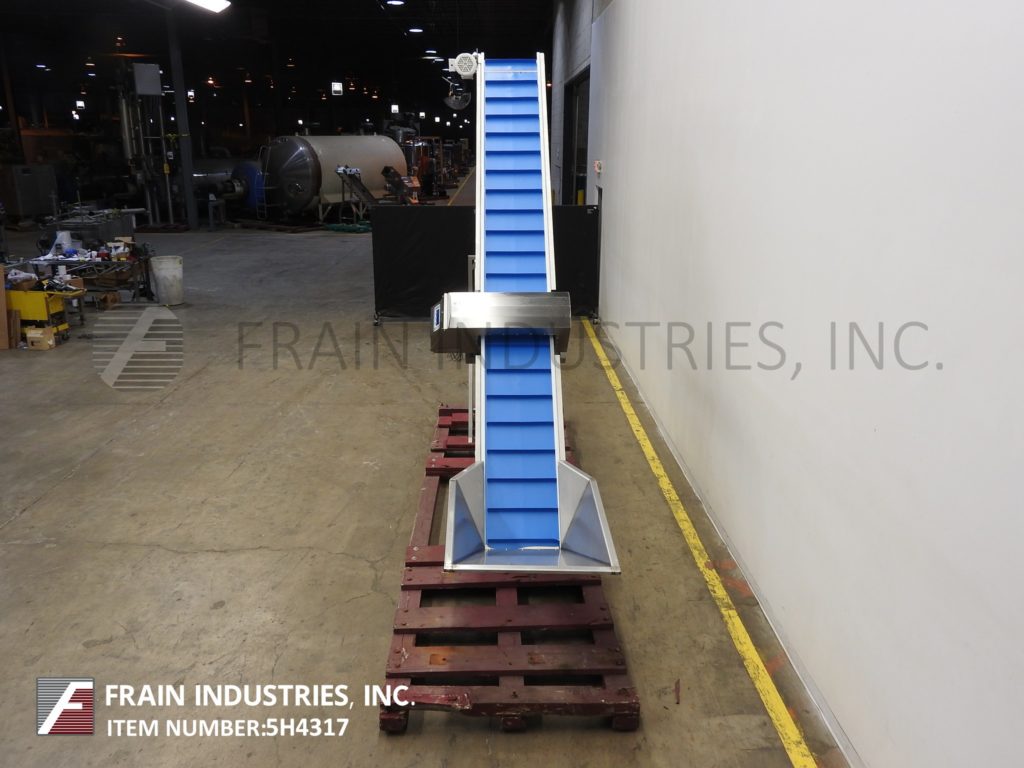

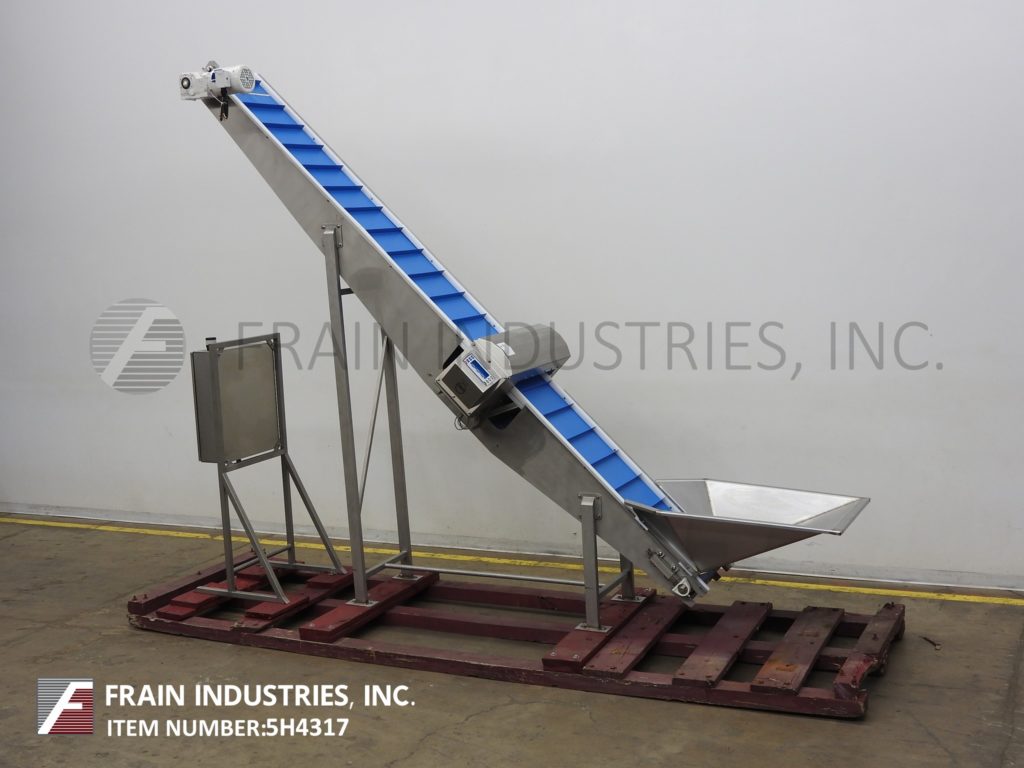

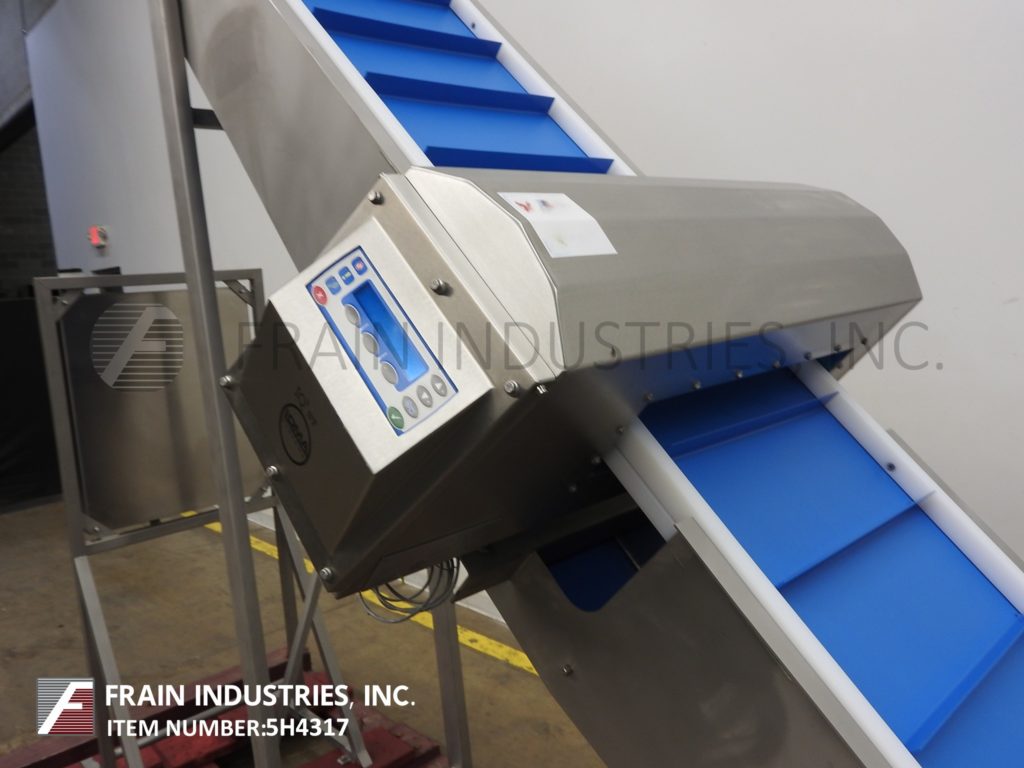

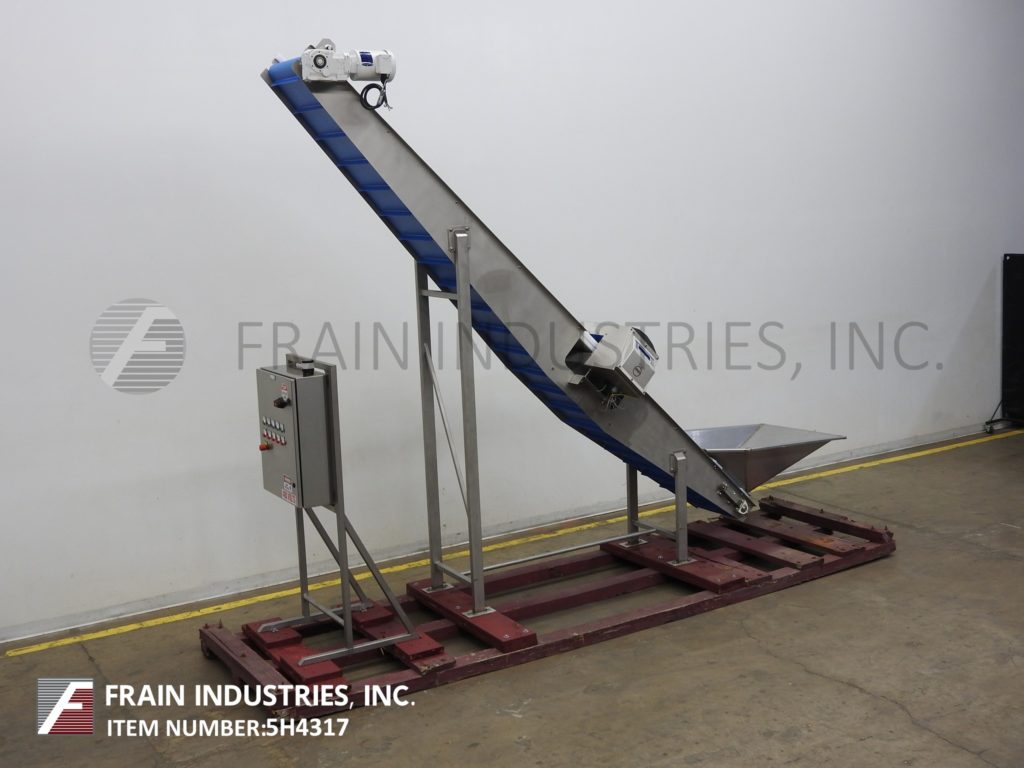

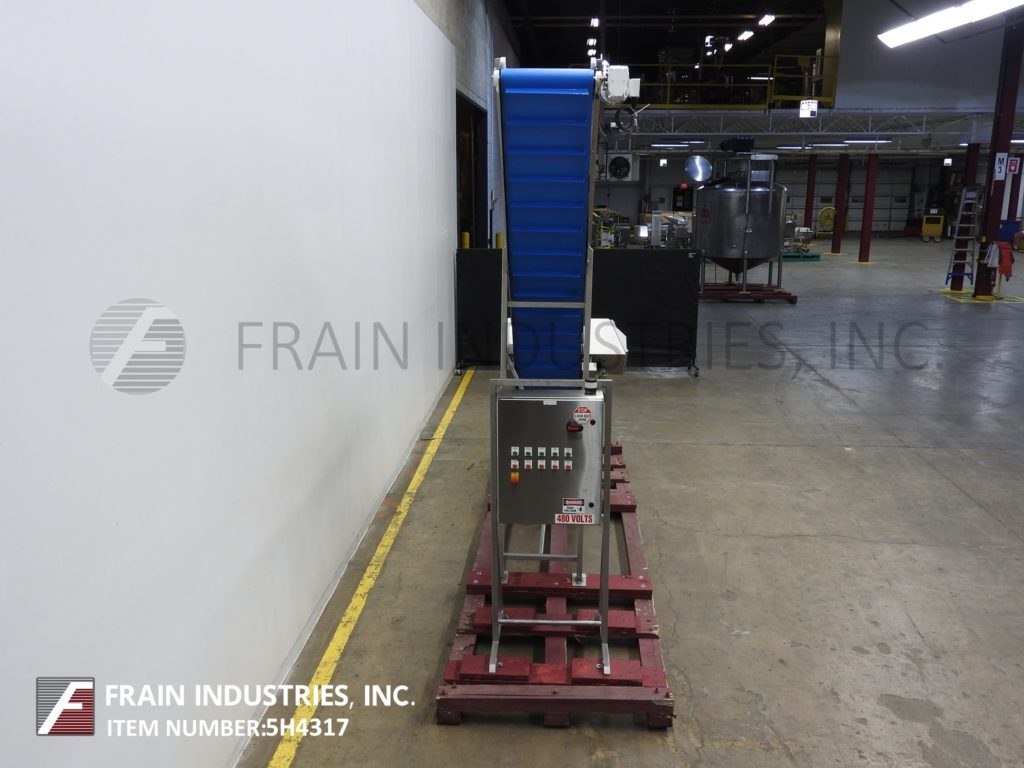

Loma, Model IQ3, automatic conveyor through metal detector. Total Aperture: 6" in Height; 21¾" in Width. Working Aperature: 3¾" in Height; 18" in Width. Equipped with a 35" wide x 40" long x 20" deep hopper, 18" wide cleated inclined belt conveyor with 1½" high cleats set on 8" centers and 150" discharge height. Sensitivities: depending on application and enviroment being run in. Control panel has touch pad operator interface and push button start / stop. Mounted on base frame with casters.
OAD: 160"L x 36"W x 150"H

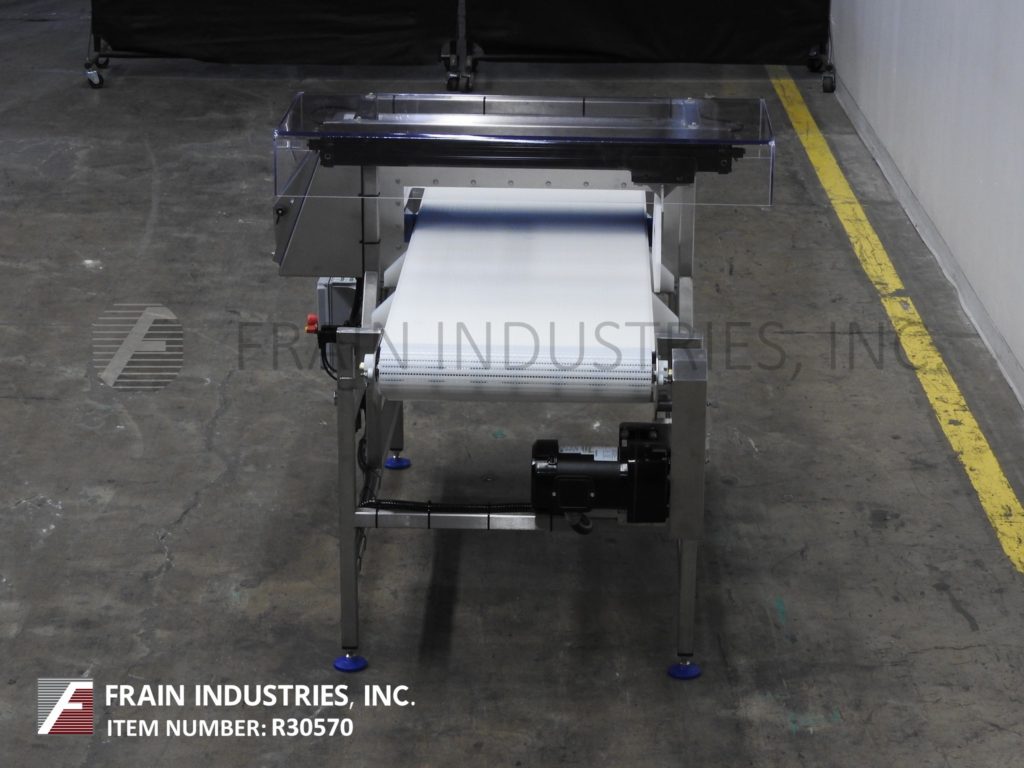

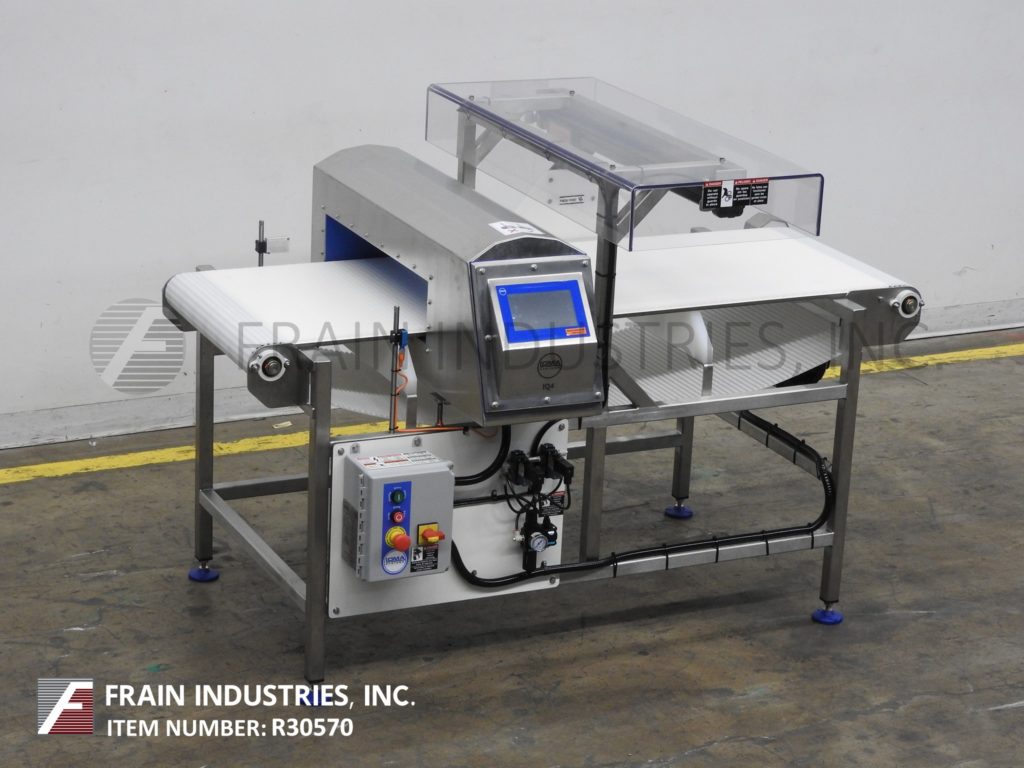

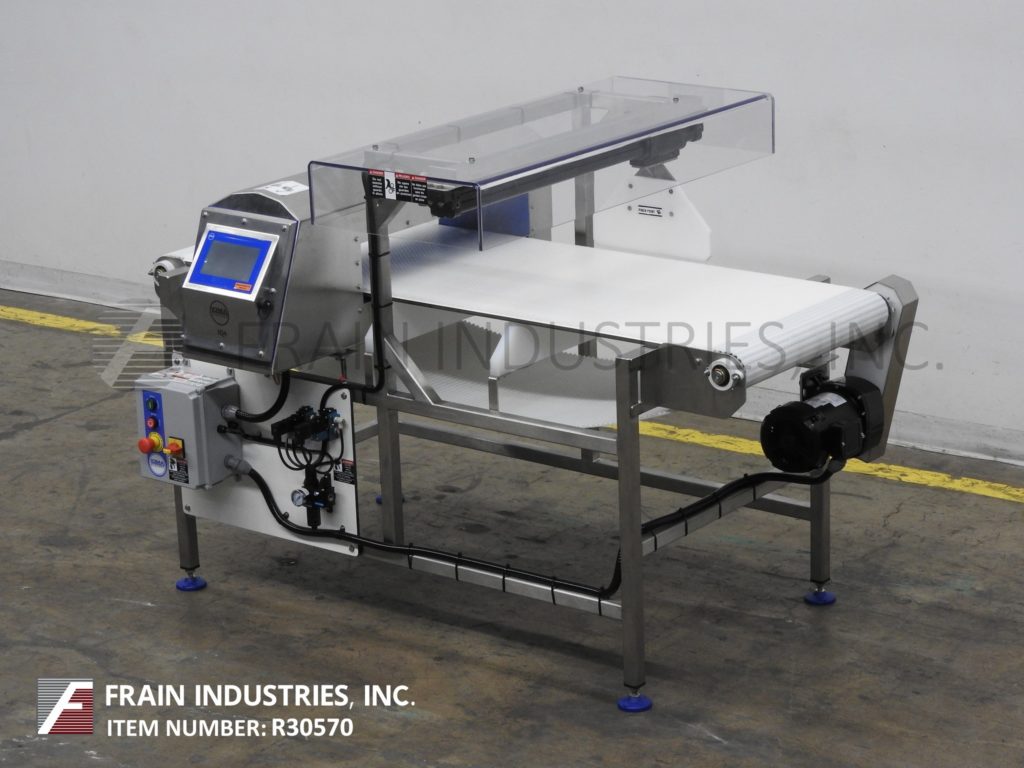

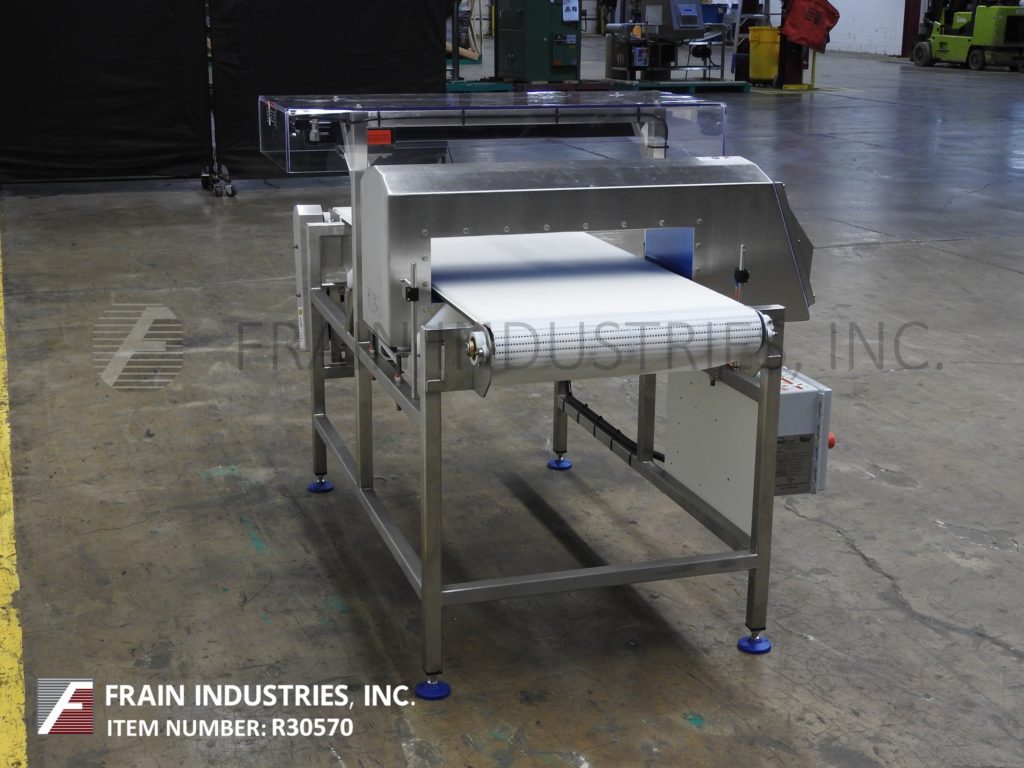

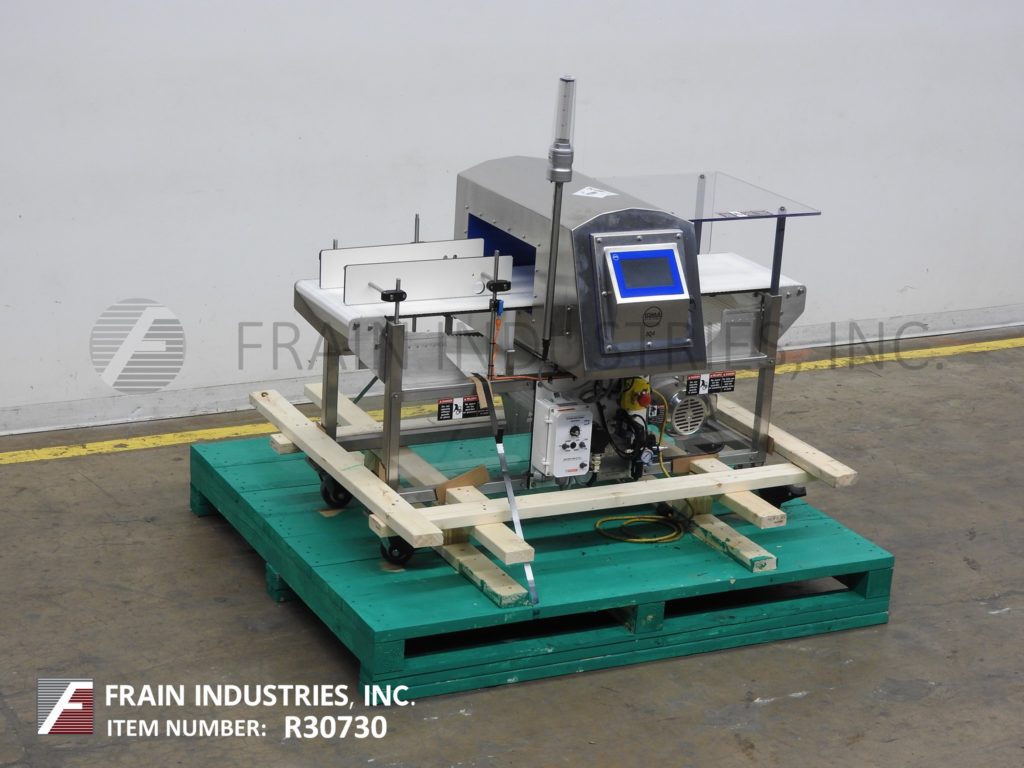

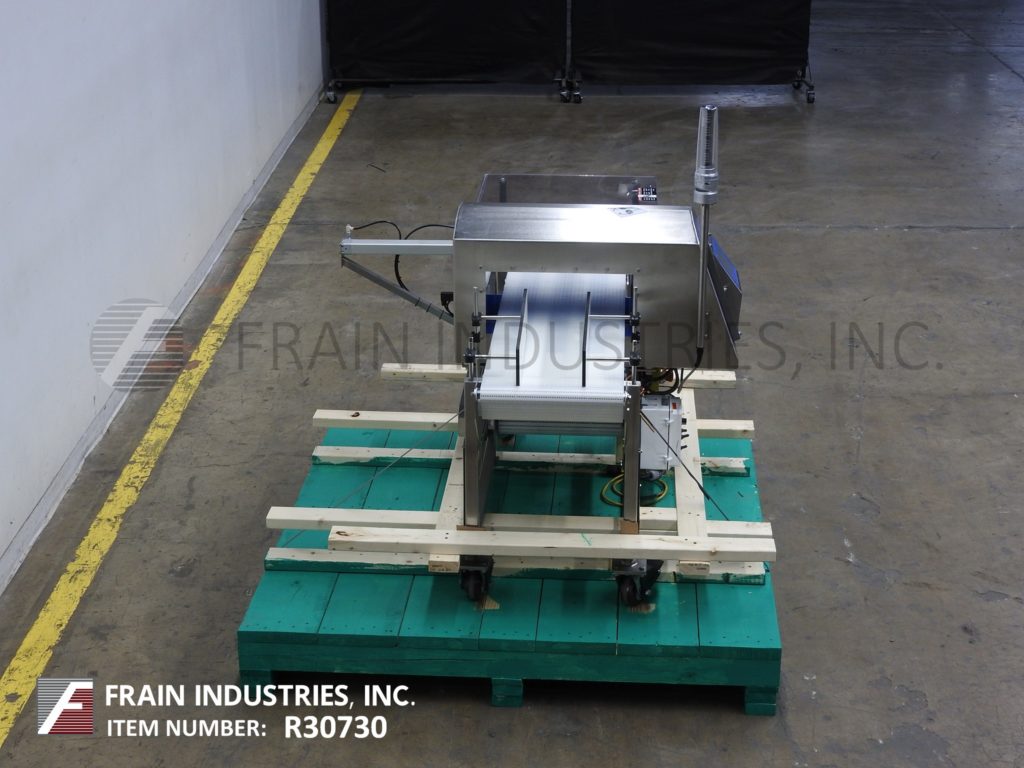

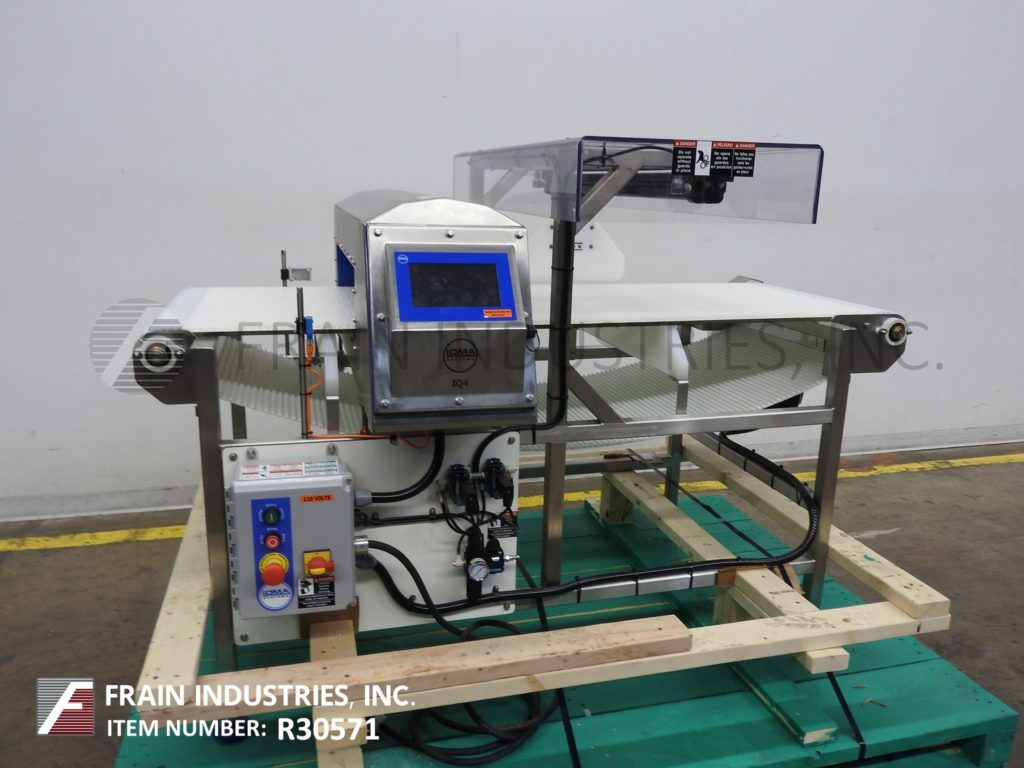

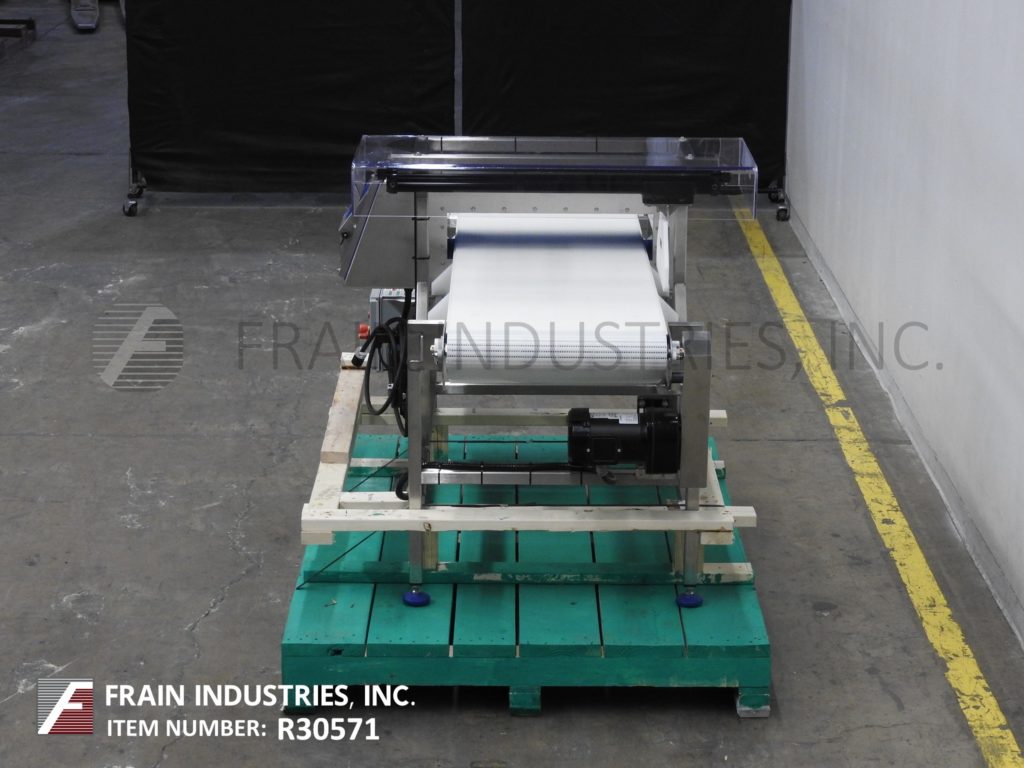

Loma, Model IQ4, automatic, in line, 304 stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and safety guarding. Touch pad controller with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg base stainless steel frame with locking casters and statis light bar.
OAD: 60" L x 54" W x 56" H

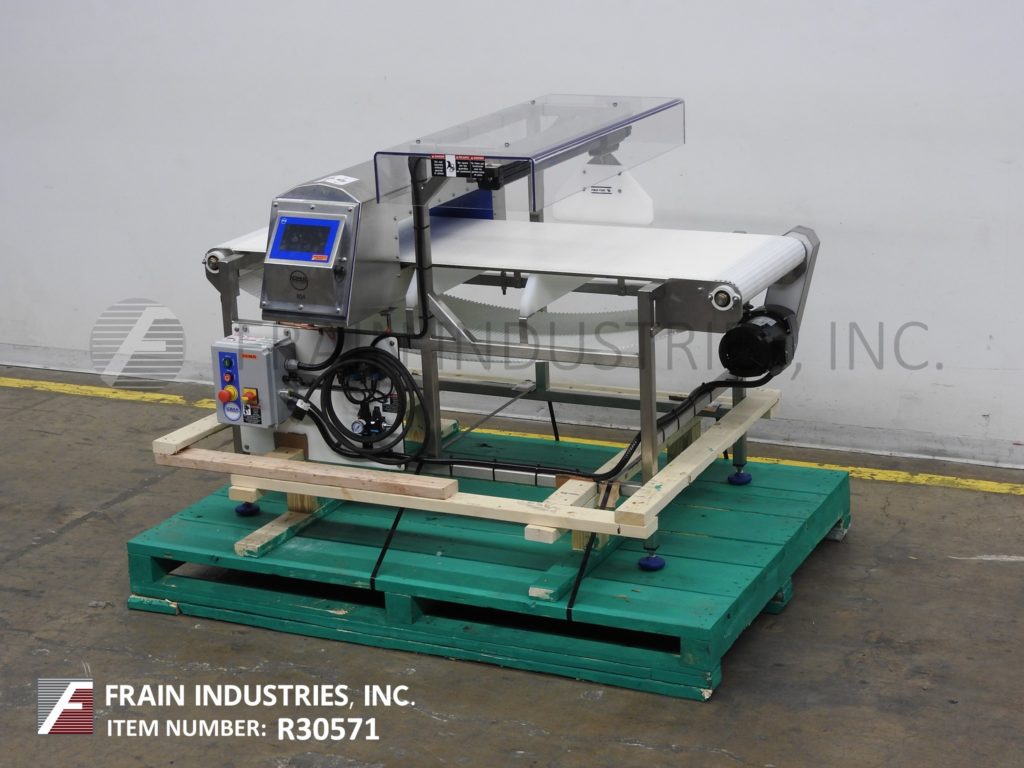

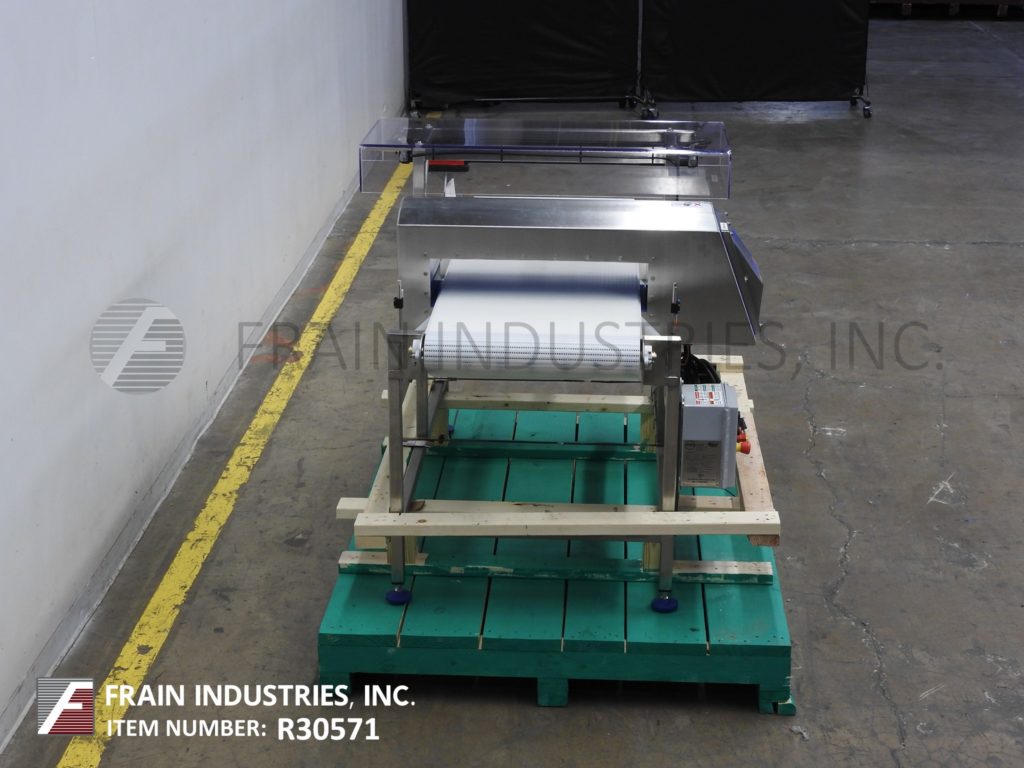

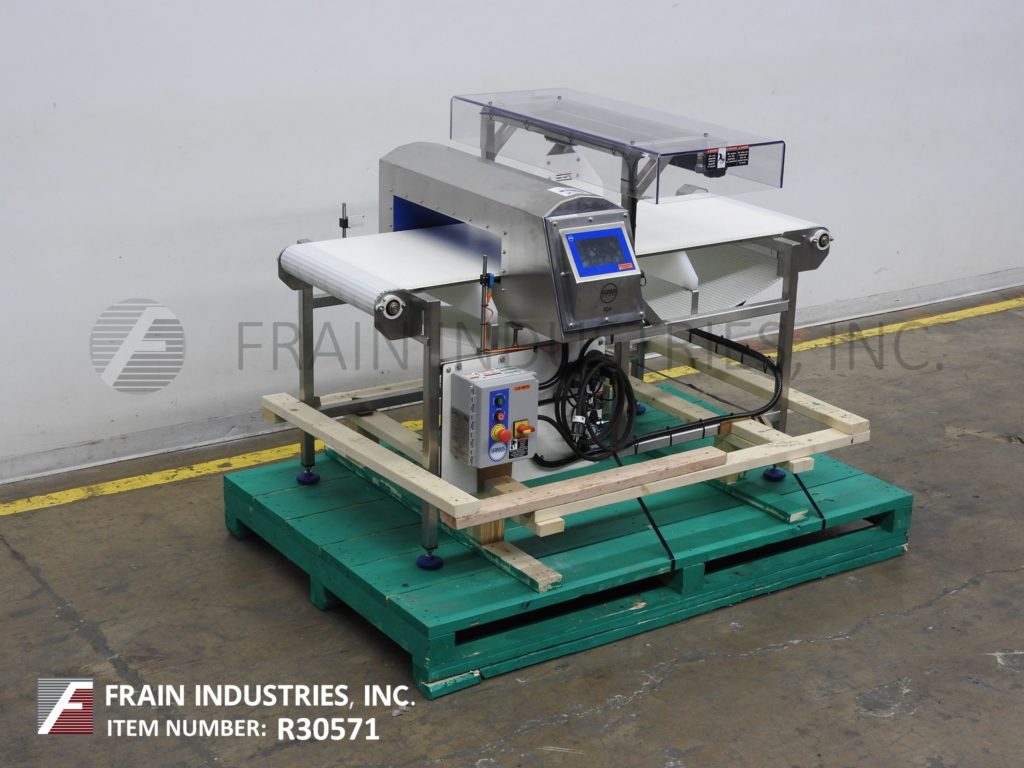

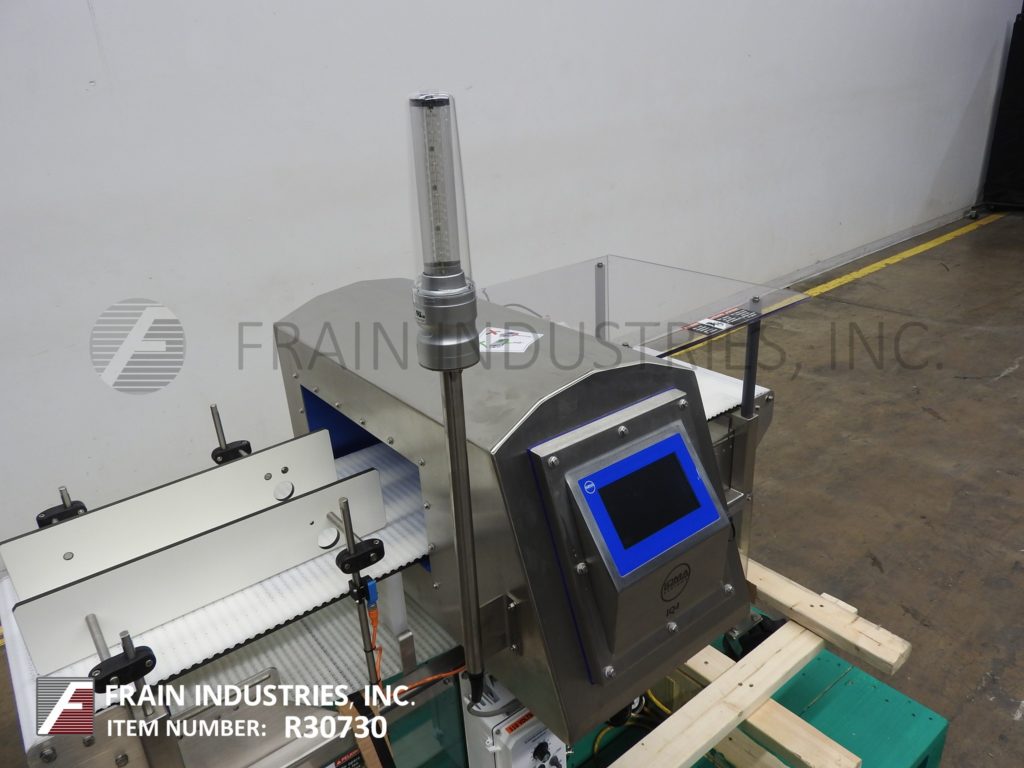

Loma, Model IQ4, automatic, in line, 304 stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and safety guarding. Touch pad controller with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg stainless steel base frame with locking casters and statis light bar.

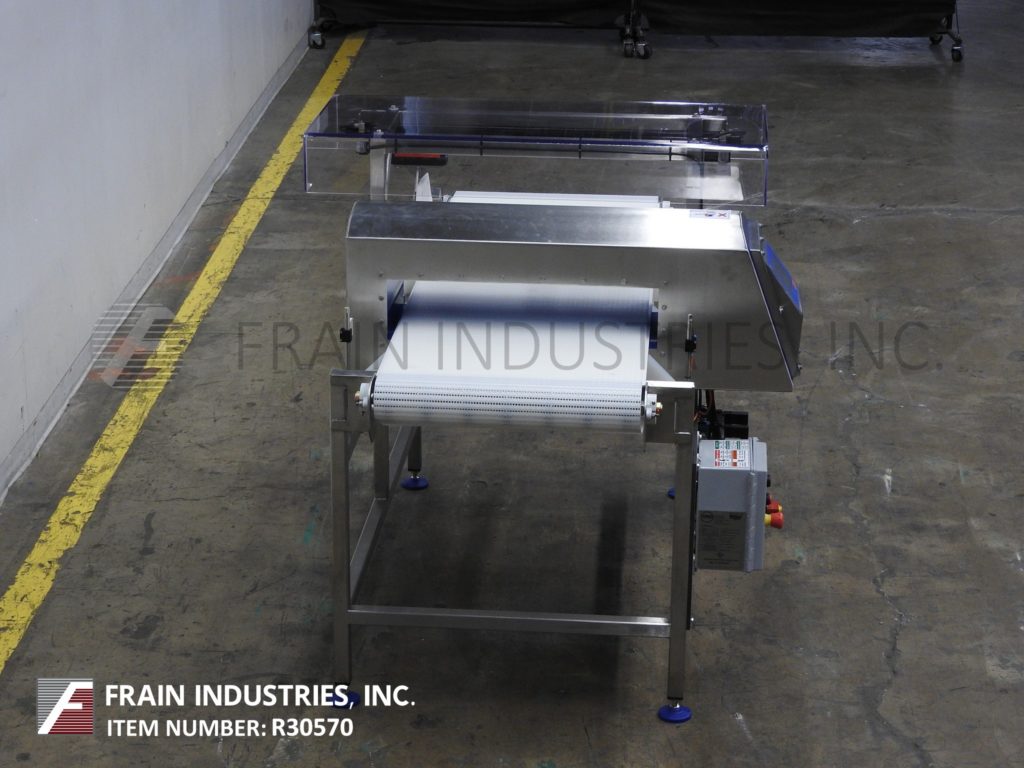

Loma, Model IQ4, automatic, in line, stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and variable speed controls. Sensitivites: depending on product, container and environment being run in. Touch pad controls with display. Mounted on (4) leg base frame.
OAD: 60"L x 54"W x 56"H
Safeline, Model STD, automatic conveyor through metal detector. Aperture: 3" in Height; 32½" in Width. Equipped with 30" wide cleated inclined Intralox belt conveyor with 1½" high cleats set on 6" centers with a 15" infeed height and mechanical diverting chute reject with 44" ground clearance and collection bin. Sensitivities: depending on application and enviroment being run in. Control panel has touch pad operator interface and push button start / stop. Mounted on base frame with casters.
OAD: 103"L x 51"W x 72"H
Safeline, Model PowerPhase Plus, automatic conveyor through metal detector with number of product per minute – depending on materials and application. Aperture: 2¼" in Height; 32¼" in Width. Equipped with 30" wide cleated inclined Intralox belt conveyor with 1½" high cleats set on 10" centers with an 8" infeed height and mechanical diverting chute reject with collection bin and 36" ground clearance. Sensitivities: depending on application and enviroment being run in.Control panel has touch pad operator interface and push button start / stop. Mounted on base frame with casters and lexan guarding.
OAD: 114"L x 57"W x 71"H
Safeline, Model STD, automatic conveyor through metal detector with number of product per minute – depending on materials and application. Aperture: 3½" in Height; 32½" in Width. Equipped with 30" wide cleated inclined Intralox belt conveyor with 1½" high cleats set on 7½" centers with a 19" infeed height and mechanical diverting chute reject with collection bin. Sensitivities: depending on product, container and enviorment being run in. Control panel has touch pad operator interface and push button start / stop. Mounted on base frame with casters and lexan guarding.
OAD: 110"L x 58"L x 78"H
Safeline, Model STD, automatic metal detector. with number of product per minute – depending on materials and application. Working Aperture: 7½" in Height; 5" in Width. Equipped with a 12" long x 1" wide dual side belt transfer infeed conveyor, Model SL2000 52" long x 4" wide Intralox conveyor, system with stop belt reject, 12" long x 1" wide dual side belt transfer discharge conveyor. Sensitivities: depending on product, container and enviorment being run in. Touch pad operator interface with visual display. Mounted on stainless steel frame with leveling pads.
OAD: 84"L x 31"W x 48"H
Safeline, model Power Phase Pro, automatic, conveyor through, metal detector with number of product – depending on materials and application.Useable Aperture: 2¾" in Height; 17½" in Width. Equipped with Model SL2000 66" long x 18" wide table top conveyor system, 2" high fixed rails, retracting nose reject, 34"H discharge Sensitivities: depending on product, container and enviorment being run in. Touch pad operator interface. Mounted on stainless steel frame with leveling pads.
OAD: 73"L x 41"W x 62"H
