Metal detecting heads are fully capable metal detecting units. Metal detector heads are not designed to move product through the metal detecting field. However, metal detecting heads can be integrated to conveyor systems or other types of conveying systems with relative ease.

When integrating a metal detector head to a product conveying system, it should be remember that the electro-magnetic field generated by the metal detector extends beyond the metal detector. Therefore, to avoid detecting metal in the components of the conveyor system, careful consideration should be paid to the materials of construction for the conveying system.

Contact Us

Head Only Equipment In Stock

Safeline Metal Detector Head Only PPH

  • Manufacturer: Safeline
  • Model Number: PPH
  • Frain Number: 5H4696

Safeline, Model PPH metal detector. Equipped with 3" high and 58" wide aperture. Sensitivities: depending on product, container and enviorment being run in.

OAD: 79"L x 64"W x 48"H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only INSIGHT

Lock Insight compact drop thru metal detector. Equipped with 8" diameter by 8" deep aperture and stainless steel control panel with touch pad controls.
Sensitivities: depending on product, container and enviorment being run in.

OAD: Head – 18"L x 17"W x 8"H
Controls – 7"L x 13"W x 17"H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only INSIGHT

Lock Insight compact drop thru metal detector. Equipped with 8" diameter by 8" deep aperture and stainless steel control panel with touch pad controls.
Sensitivities: depending on product, container and enviorment being run in.

OAD: Head – 18"L x 17"W x 8"H
Controls – 7"L x 13"W x 17"H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only METALCHECK 30 MXE

Lock Model Metalcheck 30 metal detector head with 10" Wide x 4" High,aperature. Sensitivities: depending on product, container and enviorment being run in. Equipped with a touch pad controller with a LED display.

OAD: 18" L x 24" W x 16" H

Get a Free Quote Call: 630-629-9900

Safeline Metal Detector Head Only 63 X 3

  • Manufacturer: Safeline
  • Model Number: 63 X 3
  • Frain Number: 5F4087

PART OF COMPLETE LINE

Safeline Model Signature Series metal detector head. Equipped with useable aperture of 63" in Width; 3" in Height with sensitivity ratings of 1.0mm ferrous; 1.1mm non-ferrous, 1.5mm stainless steel depending on product being run and control module with touch pad controller and readout.

OAD: 84" L x 12" W x 15" H

Get a Free Quote Call: 630-629-9900

Loma Metal Detector Head Only SUPERSCAN MICRO ISC

  • Manufacturer: Loma
  • Model Number: SUPERSCAN MICRO ISC
  • Frain Number: 5F4726

Loma Model Superscan, stainless steel metal detector head. Aperture: 3" in Height; 18" in Width sencitivites depending on materials and application. Equipped with a touchpad controller with visual display. Mounted on a stainless steel frame with height adjustable legs. Metal detector is set on an angle with a current infeed height of 40" and a current discharge height of 43"

OAD: 28" L x 42" W x 51" H

Get a Free Quote Call: 630-629-9900

Safeline Metal Detector Head Only STD16X3-3/4

  • Manufacturer: Safeline
  • Model Number: STD16X3-3/4
  • Frain Number: 5F9512

Safeline Model STD head only metal detector. Total Aperure: 16" in Width; 3-3/4" in Height, Useable Aperture: 14" in Width; 3" in Height. Sensitivity ratings: 1.0 mm ferrous; 1.1 mm non-ferrous; 1.5 mm stainless steel – depending on materials and application. Equipped with touchpad controller and visual display.

OAD: 34" L x 12" W x 15" H Metal Detector
9" L x 7" W x 12" H Controller

Get a Free Quote Call: 630-629-9900

Safeline Metal Detector Head Only 78 X 3

  • Manufacturer: Safeline
  • Model Number: 78 X 3
  • Frain Number: 5F0066

Safeline metal detector head. Useable Aperture: 78" in Width; 3" in Height. Sensitivity ratings: 1.2 mm ferrous; 1.32 mm non-ferrous, 1.8 mm stainless steel depending on materials and application. Equipped with touchpad controls and a visual display.

OAD: 100" L x 12" W x 15" H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only INSIGHTCOMPACT

Lock Insight Compact metal detector. Equipped with 8" diameter by 8" deep aperture and stainless steel control panel with touch pad controls. Sensitivity ratings: 1.2mm ferrous; 1.4mm non-ferrous; 1.6mm stainless steel depending on materials and application.

OAD: Head – 18"L x 17"W x 8"H
Controls – 7"L x 13"W x 17"H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only INSIGHT

Lock Insight Compact metal detector. Equipped with 8" diameter by 8" deep aperture and stainless steel control panel with touch pad controls. Sensitivity ratings: 1.2mm ferrous; 1.4mm non-ferrous; 1.6mm stainless steel depending on materials and application.

OAD: Head – 18"L x 17"W x 8"H
Controls – 7"L x 13"W x 17"H

Get a Free Quote Call: 630-629-9900

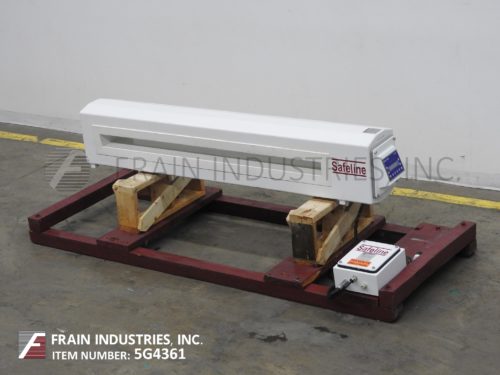

Safeline Metal Detector Head Only PPH

  • Manufacturer: Safeline
  • Model Number: PPH
  • Frain Number: 5G4361

Safeline, Model PPH metal detector. Sensitivity rating: 1.5mm Ferrous; 1.5mm Non-Ferrous; 2.0mm Stainless Steel – depending on materials, application, environment and machine configuration. Equipped with a 3"H and 58"wide aperture.

OAD: 79"L x 64"W x 48"H

Get a Free Quote Call: 630-629-9900

Lock Inspection Systems Metal Detector Head Only HDS

Lock Model HDS metal detector head. Useable aperture 64" in wide x 3-1/2" in Height. Sensitivities: depending on product, container and enviorment being run in.

OAD: 80" L x 21" W x 19" H

Get a Free Quote Call: 630-629-9900
