Cornell Machines

Cornell Mixer Paste Horizontal D-16

• Manufacturer: Cornell
• Model Number: D-16
• Frain Number: 5J5643

Cornell, Model D16, 304 stainless steel, Versator and vacuum pump. Rated from 1 to 20 gallons of product per minute – depending on materials and application. Equipped with 16" ID product rotating disc, 1" Tri-clamp infeed, 1½" Tri-clamp discharge, 2" Tri-clamp vacuum port. Boltdown door has 4" OD sight port. Versator powered by 7½ Hp, vacuum pump powered by 7½ hp drive. Mounted on portable base with castors.

OAD: 71"L x 61"W x 70"H

Cornell Mixer Paste Horizontal D8

• Manufacturer: Cornell
• Model Number: D8
• Frain Number: 5J5639

Cornell, Model D-8, 316 stainless steel, variable speed, versator. Rated from ¼ to 2 gallons per minute and disc rotation from 2000 to 6000 rpm – depending on materials and application. Equipped with 8" OD disc and has ¾" ID Tri-Clamp product in / outlet, top vacuum port, and bottom drain, clear glass quick release cover. Product flows through a film-forming ring out and over the surface of the rotating disc at which time the dispersion / deaeration action occurs. Control panel has mixer and vacuum controls with e-stop. Mounted on painted cart.

OAD: 50"L x 31" W x 41" H

Cornell Mixer Paste Horizontal D16

• Manufacturer: Cornell
• Model Number: D16
• Frain Number: R40440

Cornell, Model D16, 304 stainless steel, Versator and vacuum pump. Rated from 1 to 20 gallons of product per minute – depending on materials and application. Equipped with 16" ID product rotating disc, 1" Tri-clamp infeed, 1½" Tri-clamp discharge, 2" Tri-clamp vacuum port. Boltdown door has 4" OD sight port. Versator powered by 7½ Hp, vacuum pump powered by 7½ hp drive. Mounted on portable base with castors.

OAD: 96"L x 53"W x 59"H

Cornell Mixer Paste Horizontal D8

• Manufacturer: Cornell
• Model Number: D8
• Frain Number: R37000

Cornell, Model D-8, Variable speed "Versator". Rated from ½ to 2 gallons per minute and disc rotation from 2000 to 6000 rpm – depending on materials and application. Equipped with 6" diameter disc and has ¾" ID / 1" OD Tri-Clamp product in / outlet, top vacuum port, and bottom drain. Product flows through a film-forming ring out and over the surface of the rotating disc at which time the dispersion / deaeration action occurs. Control panel has mixer and vacuum controls with e-stop. Mounted on stainless steel frame.

Commonly used for dispersion, and deaeration for food, cosmetic, pharmaceutical and chemical applications. Includes 316 stainless steel contact parts, quick release cover.

OAD: 36" L x 30" W x 72" H

Cornell Mixer Paste Horizontal D26 Cornell Versator

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: 5D7409

Cornell D26 versator. Equipped with 26" disc, quick release cover, two 4" diameter view ports, vacuum system, SIHI vacuum pump, filter, recirculation oil pump for bearings. Carbon steel contact parts. 2" ID inlet and outlet

OAD: 84"L x 76"W x 77"H

Optional: Cornel D8 to run your lab/R&D testing before running your full batch, borrow short term. Item number R20671 Cornel D8, self contained vacuum pump, filter, controls.

Cornell Mixer Paste Horizontal D16

• Manufacturer: Cornell
• Model Number: D16
• Frain Number: R37030

Cornell, Model D16, Variable speed "Versator" rated from 1 to 20 gallons per minute – depending on materials, application and machine configuration. 316 stainless steel contact parts (No. 4 Polish). Equipped with 16" ID disc, rotation rated from 1200 to 3220 rpm, with 2" OD / 1½" ID Tri-Clamp side chamber in feed and discharge product ports, 2½" OD / 2" ID Tri-Clamp top vacuum port, pressure gauge and 2" OD / 1½" ID Tri-Clamp bottom drain. Clamp down cover with 4" ID sight ports and 7½ Hp motor drive with variable speed gear reducer and pressure guage. Mounted on a heavy duty base.

Product flows thru a film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used for despersion and deaeration of food, cosmetic, pharmaceutical and chemical products.

OAD: 72" L x 48" W x 60" H

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: 5G6920

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials, application and machine configuration. Equipped with a 26" diameter product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 3½" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 148H-9 2 hp vacuum system with (2) 1¾" NPT fittings. Mounted on a 72" long x 49" wide base platform frame.

Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 72"L x 52"W x 75"H

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: 5H7170

Cornell, Model D26, "Versator", deaerator, rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials and application. Equipped with 26" OD product rotating disc, (2) 2" ID flanged side chamber product charge and discharge ports, (1) 2½"OD / 2"ID Tri-clamp top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has 4" ID front sight port, 25 Hp (3) belt to motor main drive. Mounted on 66" long x 42" wide platform base.
Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 66"L x 42"W x 65"H

Cornell Mixer Paste Horizontal D16

• Manufacturer: Cornell
• Model Number: D16
• Frain Number: R32490

Cornell, Model D16, "Versator" with mechanical drive. Rated from 1 to 20 gallons of product per minute – depending on materials and application. Polished sanitary 316 stainless steel contact parts. Equipped with 16" ID product rotating disc, with (2) 2" OD / 1½" ID Tri-Clamp side chamber in feed and discharge product ports, (1) 2½" OD / 2" ID top vacuum port, pressure gauge and 2"OD / 1½"ID Tri-Clamp bottom drain. Swing open clamp down door has 4" OD sight port and 7½ Hp motor drive with variable speed gearbox for an output of 1313 to 3940 rpm.

Operation: Product flows thru film forming ring and then over the surface of rotating disc where the dispersion, deaeration or defoaming action occurs and removal of entrapped air, foam, or gas from liquids under high vacuum.

OAD: 58"L x 26"W x 40"H

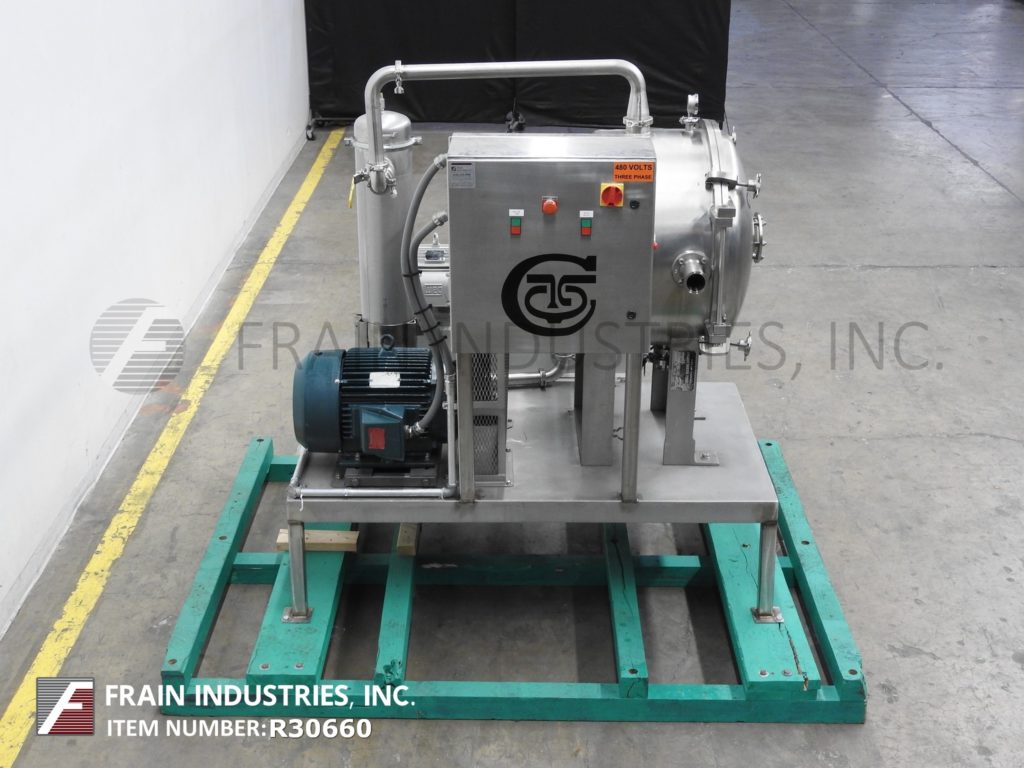

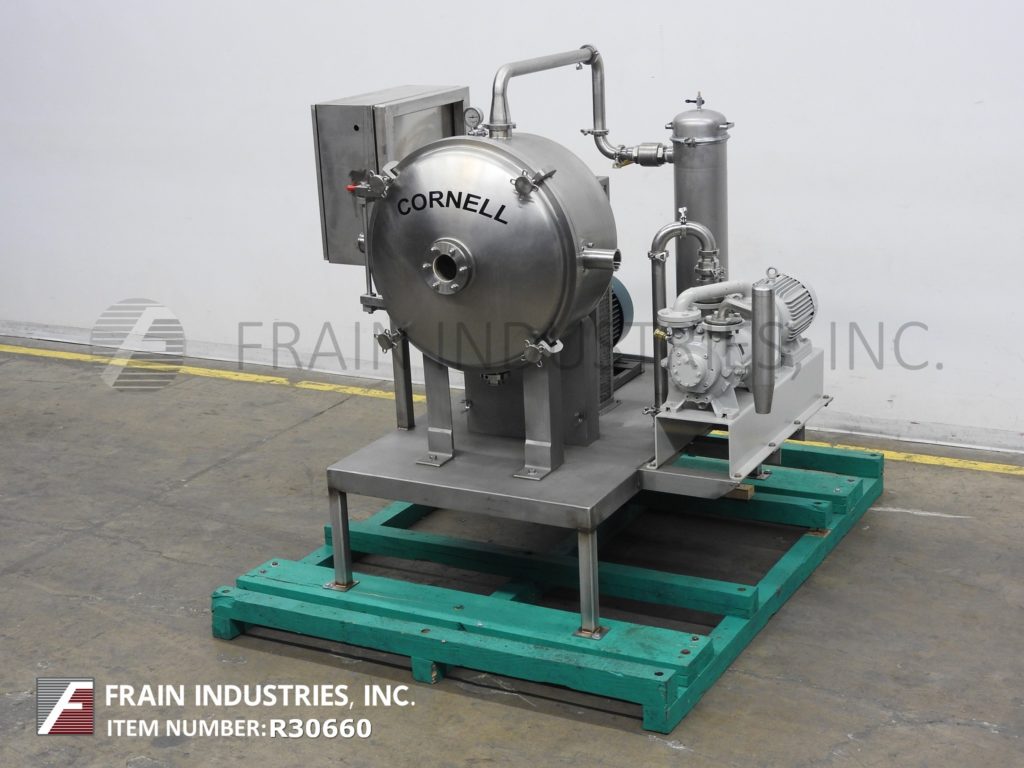

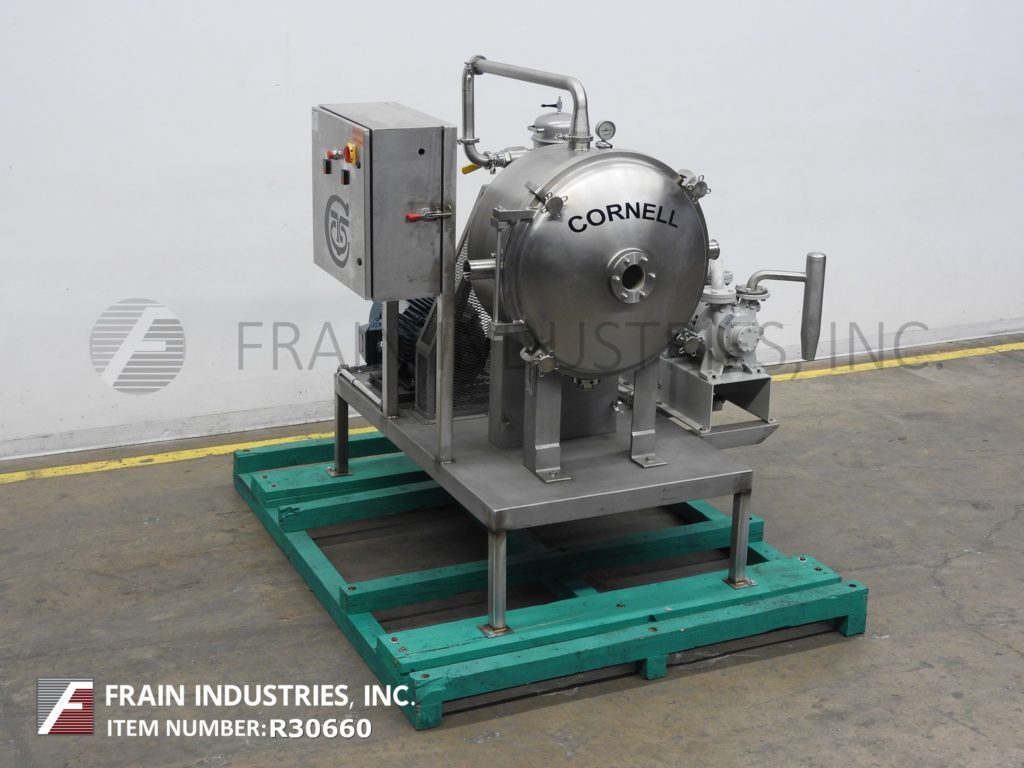

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: R30660

Cornell Model D26 "Versator" rated from 5 to 125 gallons of product per minute – depending on materials and application. All stainless steel contact parts. Equipped with 26" ID product rotating disc, with (2) 2-1/2" OD / 2-1/4 ID side chamber in feed and discharge product ports, (1) 3-3/4" OD / 3-1/2" ID top vacuum port, with pressure gauge and 2" OD bottom drain. Swing open clamp down door has 7" OD, flanged front port with (6) 3/4" bolts on 2-3/4" centers and 3-3/4" OD sight port and 25 Hp belt to motor drive with cage style safety guarding. Mounted on 61" long x 40" wide painted platform style base frame.
Operation: Product flows thru film forming ring, out and then over the surface of rotating disc where the dispersion, deaeration or defoaming action occurs.

OAD: 72" L x 67" W x 72" H

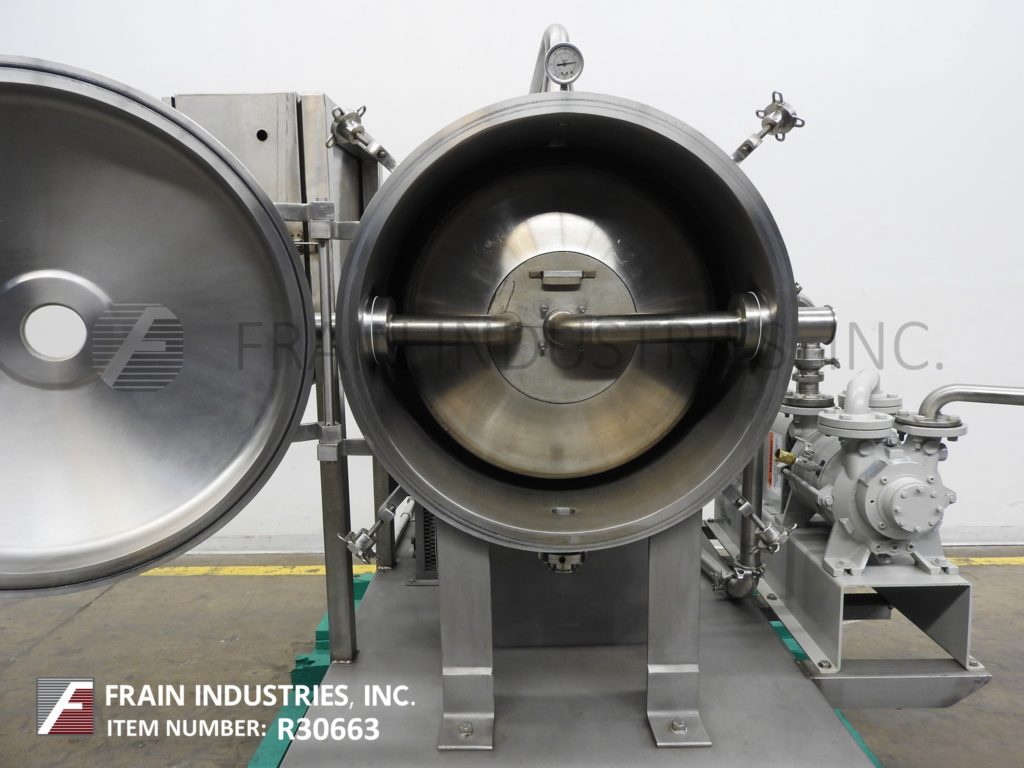

Cornell Mixer Paste Horizontal D26

• Manufacturer: Cornell
• Model Number: D26
• Frain Number: R30663

Cornell Model D26 "Versator" rated from 5 to 125 gallons of product per minute – depending on materials and application. All stainless steel contact parts. Equipped with 26" ID product rotating disc, with (2) 2-1/2" OD / 2-1/4 ID side chamber in feed and discharge product ports, (1) 3-1/4" OD / 3" ID top vacuum port, with pressure gauge and 2" OD bottom drain. Swing open clamp down door has 7" OD, flanged front port with (6) 3/4" bolts on 3" centers and 3" OD sight port with 25 Hp belt to motor drive. Side mounted 40" High x 8" OD product tank with 14" x 14" x 24" conical product feed hopper system with independent motor drive. Control panel has main machine and vacuum on / off switches. System is mounted on 72" long x 70" wide platform style frame.
Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion, deaeration or defoaming action occurs.

OAD: 72" L x 70" W x 76" H

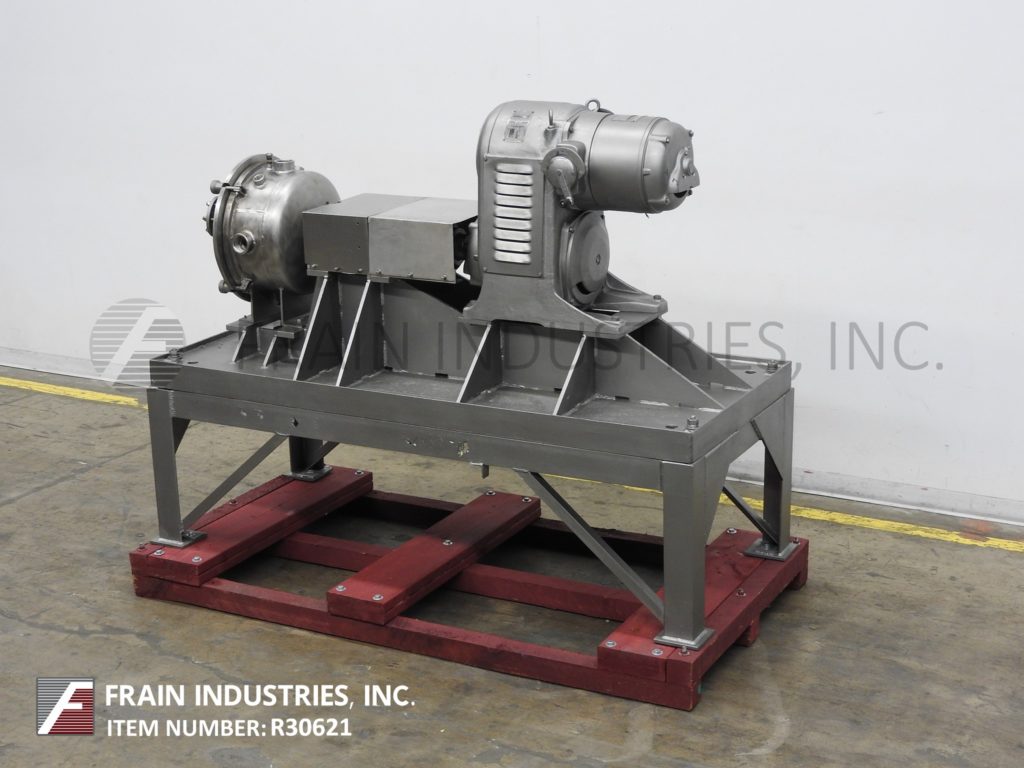

Cornell Mixer Paste Horizontal D16

• Manufacturer: Cornell
• Model Number: D16
• Frain Number: R30621

Cornell, Model D16, Variable speed "Versator" rated from 1 to 20 gallons per minute – depending on materials, application and machine configuration. Equipped with 16" ID disc, rotation rated from 1200 to 3220 rpm, with (2) 2" NPT side chamber in feed and discharge product ports, (1) 2" NPT top vacuum port, pressure gauge and (1) 1½" NPT bottom drain.Clamp down cover with (2) 3" ID sight ports and 5 Hp motor drive with variable speed gear reducer. Mounted on a heavy duty painted base. Product flows thru a film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used for despersion and deaeration of food, cosmetic, pharmaceutical and chemical products.

OAD: 84"L x 38"W x 65"H
