Cornell Mixer Paste Horizontal D26

  Back to All Equipment

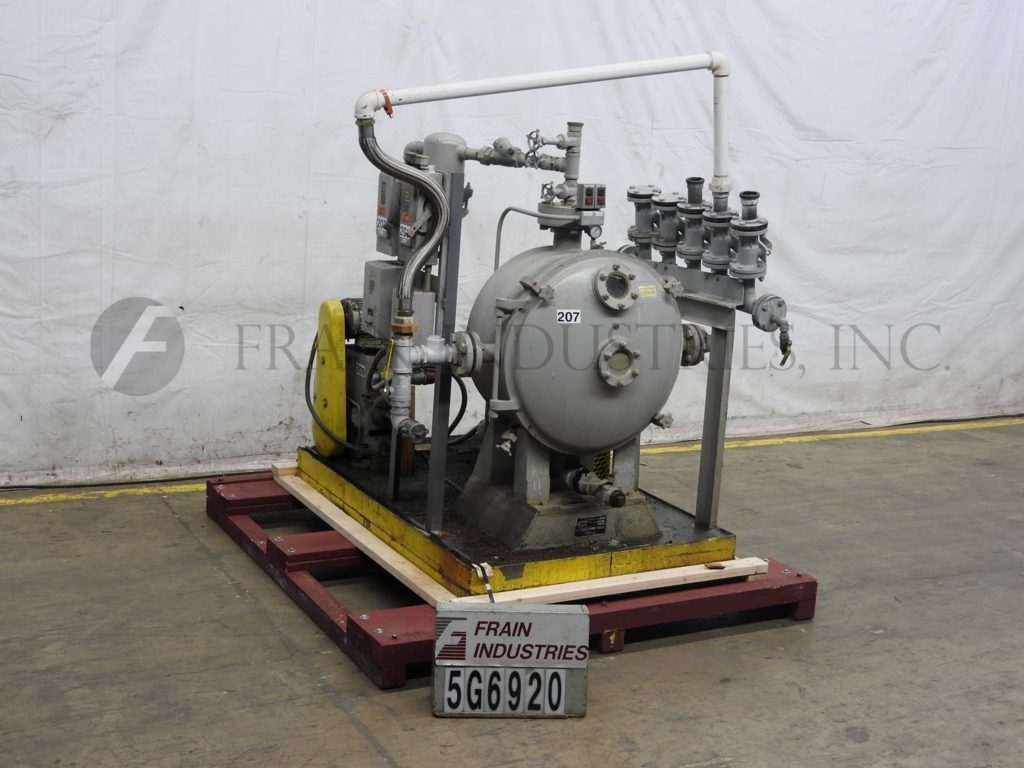

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials, application and machine configuration. Equipped with a 26" diameter product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 3½" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 148H-9 2 hp vacuum system with (2) 1¾" NPT fittings. Mounted on a 72" long x 49" wide base platform frame.

Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.

OAD: 72"L x 52"W x 75"H
