Frain Industries carries several types of mixers covering numerous process stages including comminution, mixing, drying, agglomeration, classification, weighing, and metering. Additionally, mills are capable of aeration, deaeration, emulsification, general pre-milling, processing, homogenization, particle size reduction, paste mixing, vacuum mixing, and whipping.
The Frain engineering team can design a paste mixing solution based on your final product, volume, and integration requirements. Contact us today to discuss you paste mixing needs.
Frain Industries carries used paste mixers from many OEM’s including E.T. Oakes, Asser Oakes & Bollin Dale Engineering, Design Integrated Technology, Inc. (DIT), Kady® International, Ross, Cornell, Peerless Food Equipment, Votator, Reitz, Komline- Seider, Hosokawa Micron, Mars Mineral, Aeration Mixer BM, FEECO, Scott Equipment Company, Readco, Munson, Process Control Corporation, Patterson-Kelley, and many others.

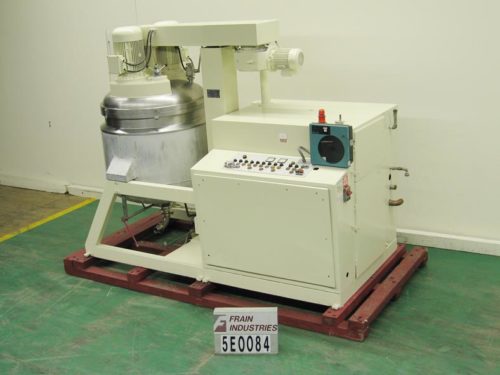

700 Liter, 304 stainless steel processing vessel. Fully jacketed, Jacket rated to 45 psi and vacuum rated. Three independent mixing / blending devices: side wall scraper, high shear disperser and an adjustable homogenizer / colloid mixer. Dome top with lock down cover and pneumatic lift , 9" diameter port, 5-1/2" diameter sight port, and 2-1/2" top inlet. Dish bottom with 3-1/2" diameter center bottom discharge at 16" floor clearance. Control panel for disperser, colloid homogenizer mill and side scraper.
OAD: 128" L x 65" W x 94" H

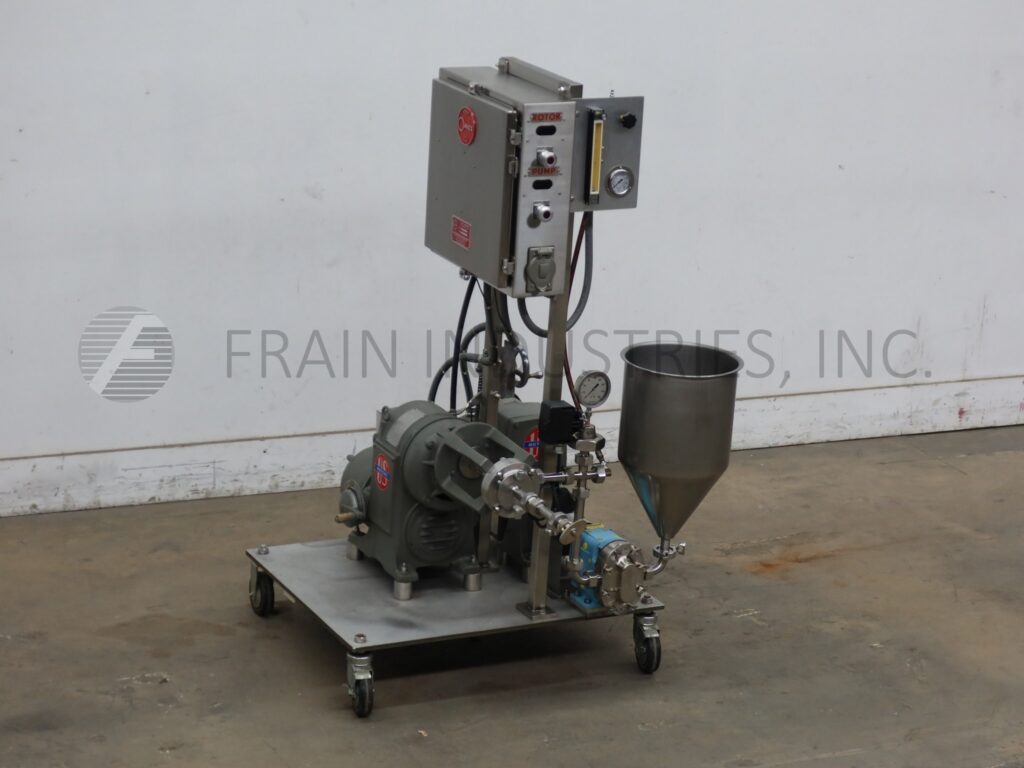

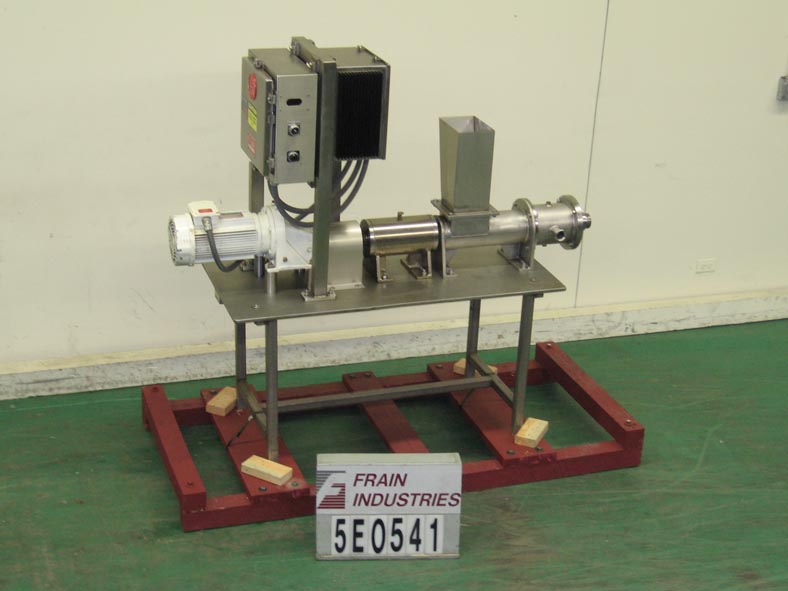

Oakes, stainless steel continuous mixer/blender combination with throughputs of 50 to1000 lbs per hour, filling up to 40% dry material – depending on materials, application and machines configuration. Equipped with Oakes feeder and has 16-1/2" x 16- 1/2" feed throat, 1-3/4" OD screw shaft with 2-3/4" product discharge. Blender has 8-1/2" L x 6" W x 13- 1/4" D feed throat, 2" OD shaft, 2" threaded inlet, 1- 1/2" threaded outlet, 6" diameter disc and a AC tech variable speed motor drive. Mounted on (4) leg frame.
OAD: 70" L x 56" W x 72" H

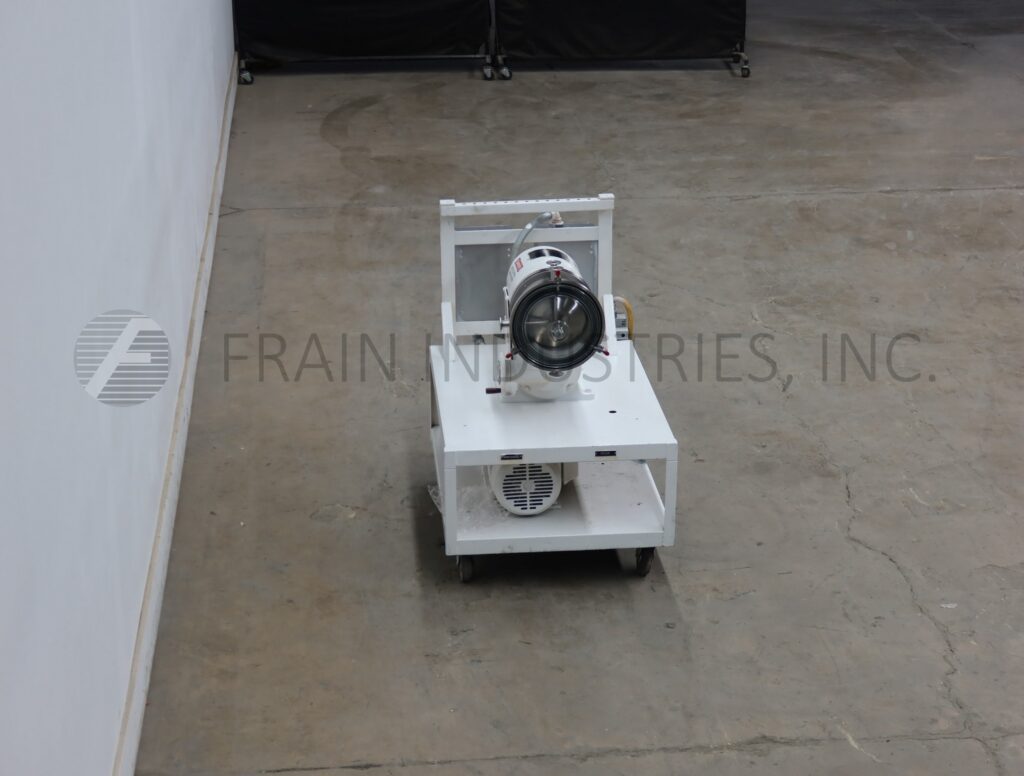

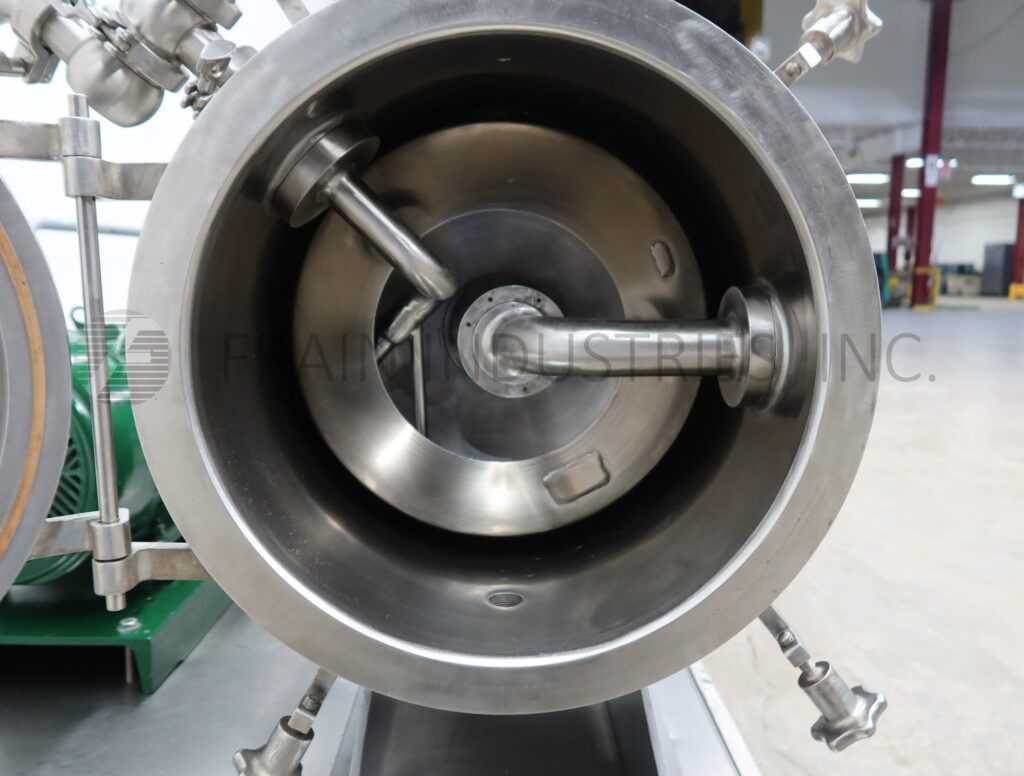

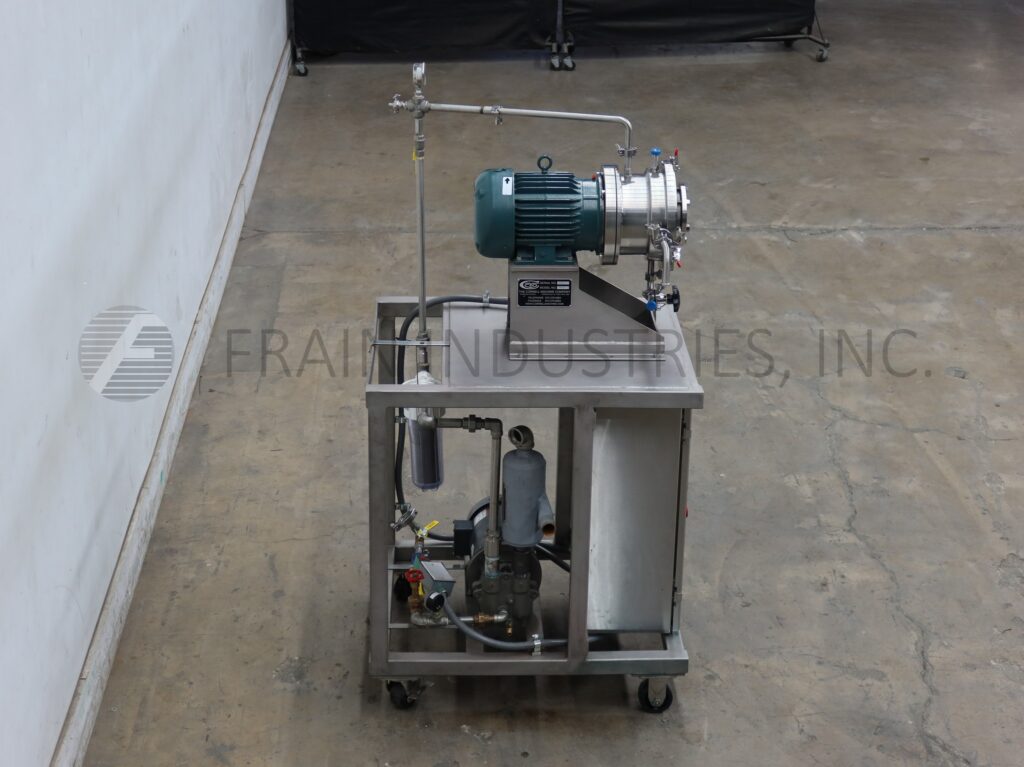

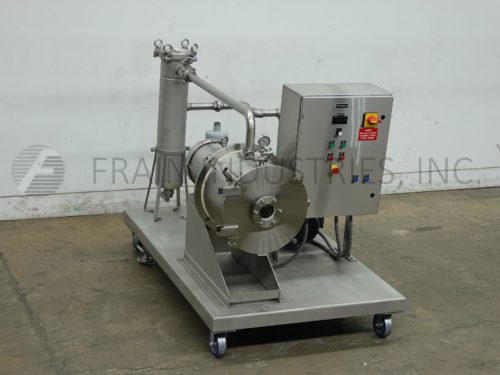

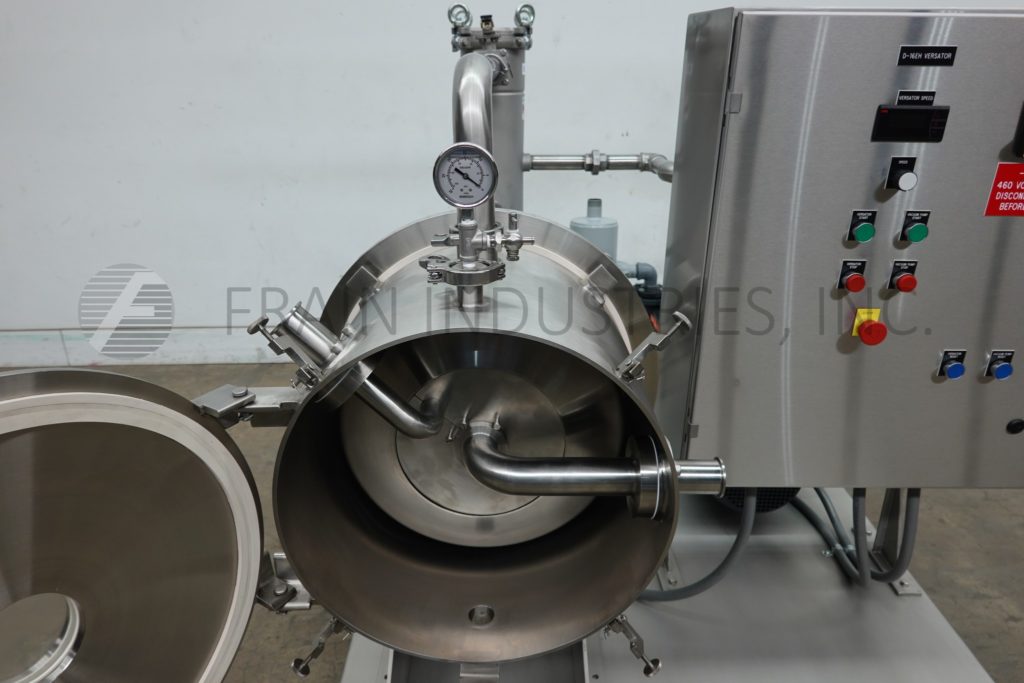

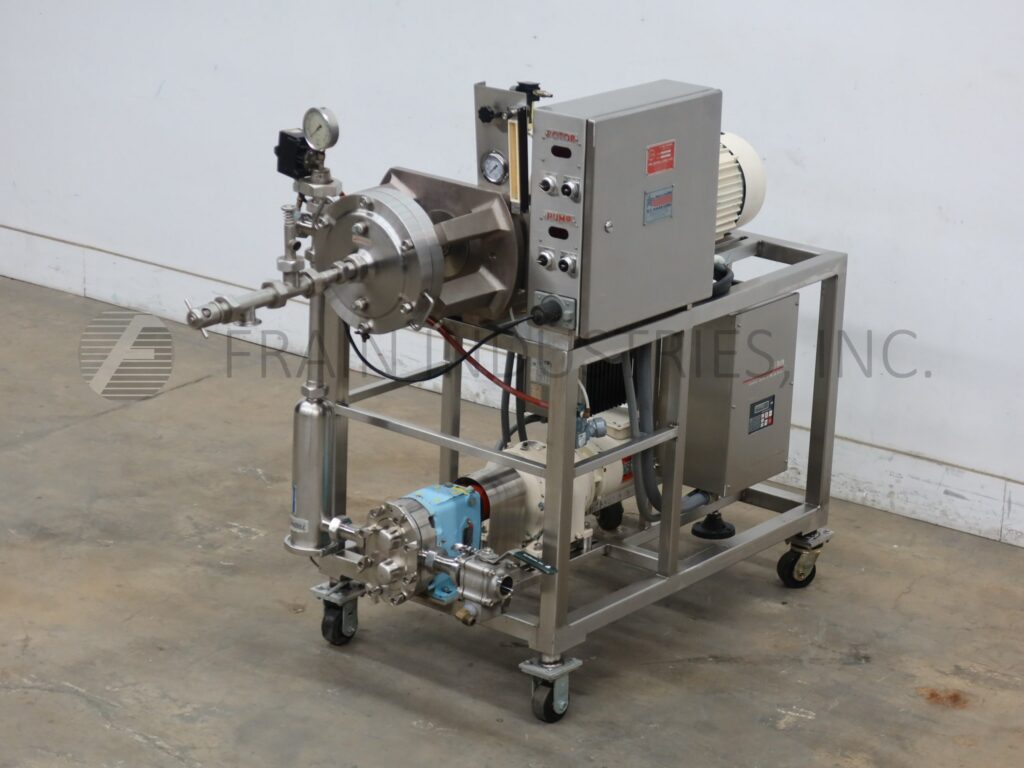

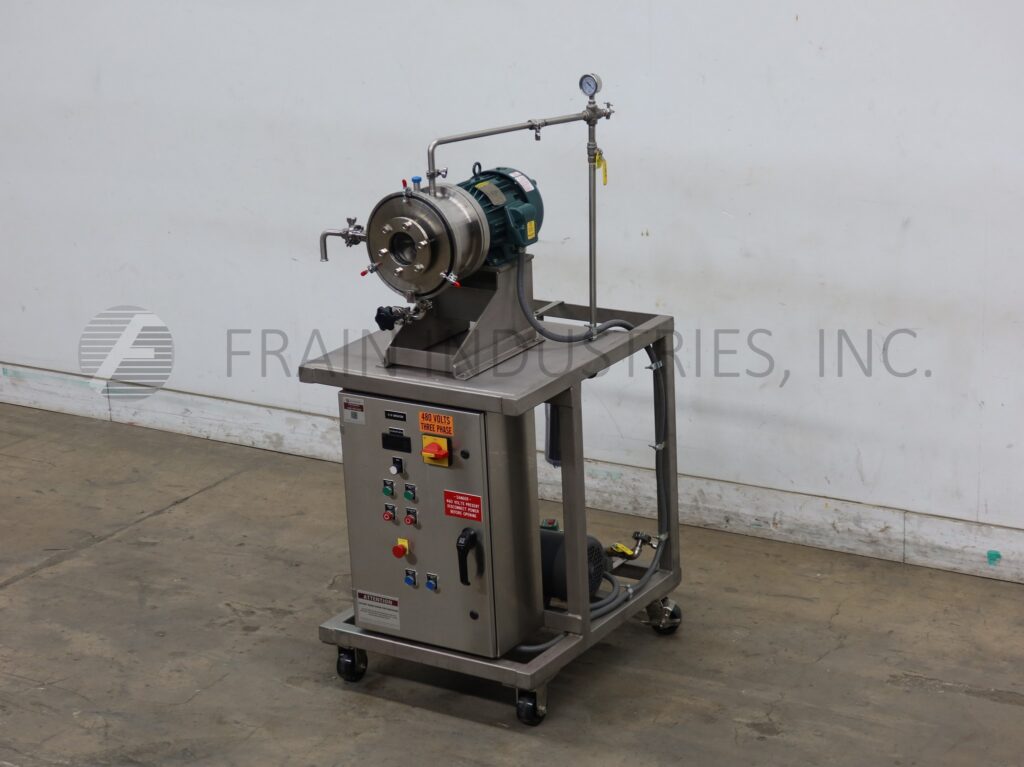

Cornell, Model D16, Variable speed "Versator" rated from 1 to 20 gallons per minute – depending on materials, application and machine configuration. 316 stainless steel contact parts (No. 4 Polish). Equipped with 16" ID disc, rotation rated from 1200 to 3220 rpm, with 2" OD / 1½" ID Tri-Clamp side chamber in feed and discharge product ports, 2½" OD / 2" ID Tri-Clamp top vacuum port, pressure gauge and 2" OD / 1½" ID Tri-Clamp bottom drain. Clamp down cover with 4" ID sight ports and 7½ Hp motor drive with variable speed gear reducer and pressure guage. Mounted on a heavy duty base.
Product flows thru a film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used for despersion and deaeration of food, cosmetic, pharmaceutical and chemical products.
OAD: 72" L x 48" W x 60" H

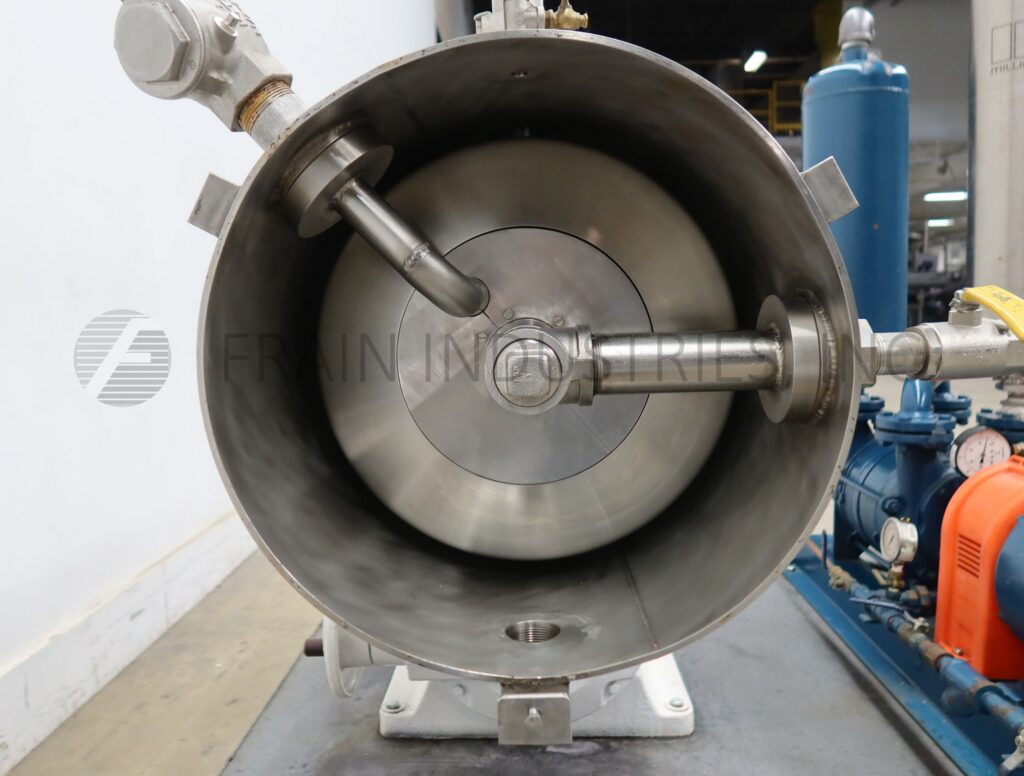

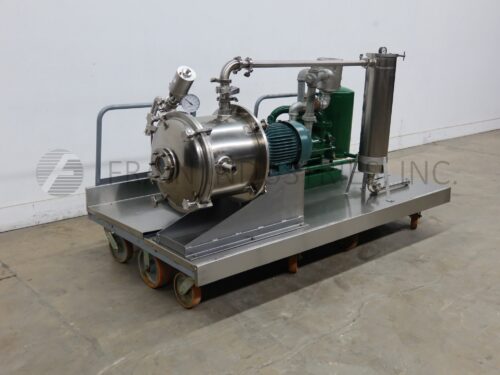

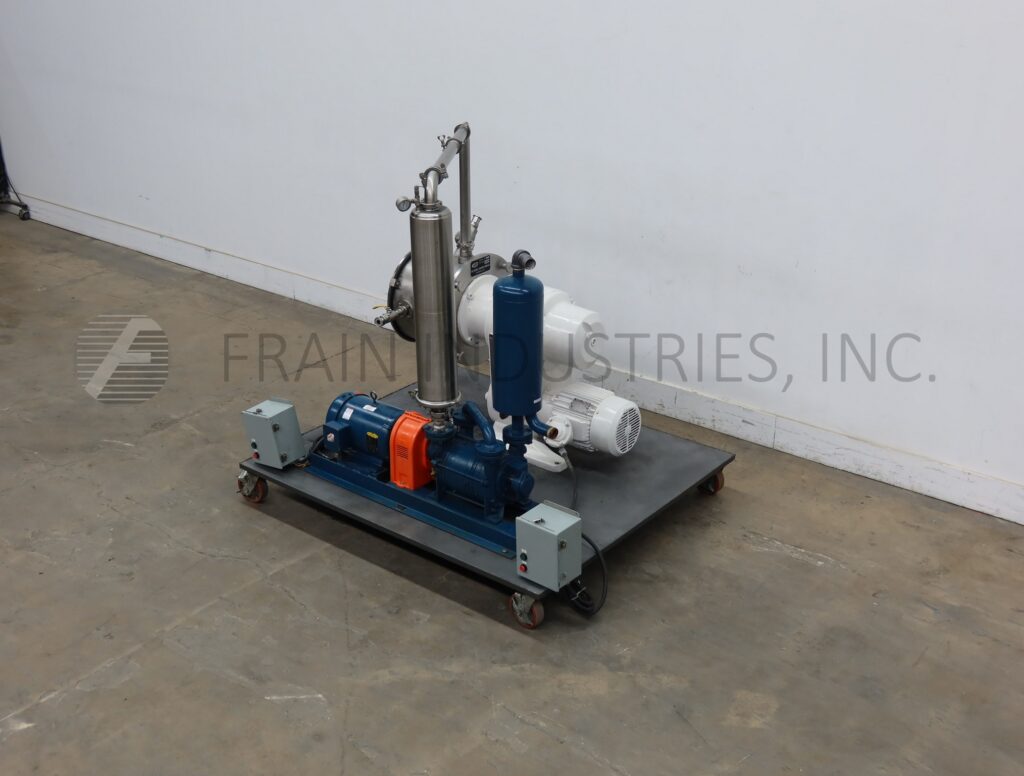

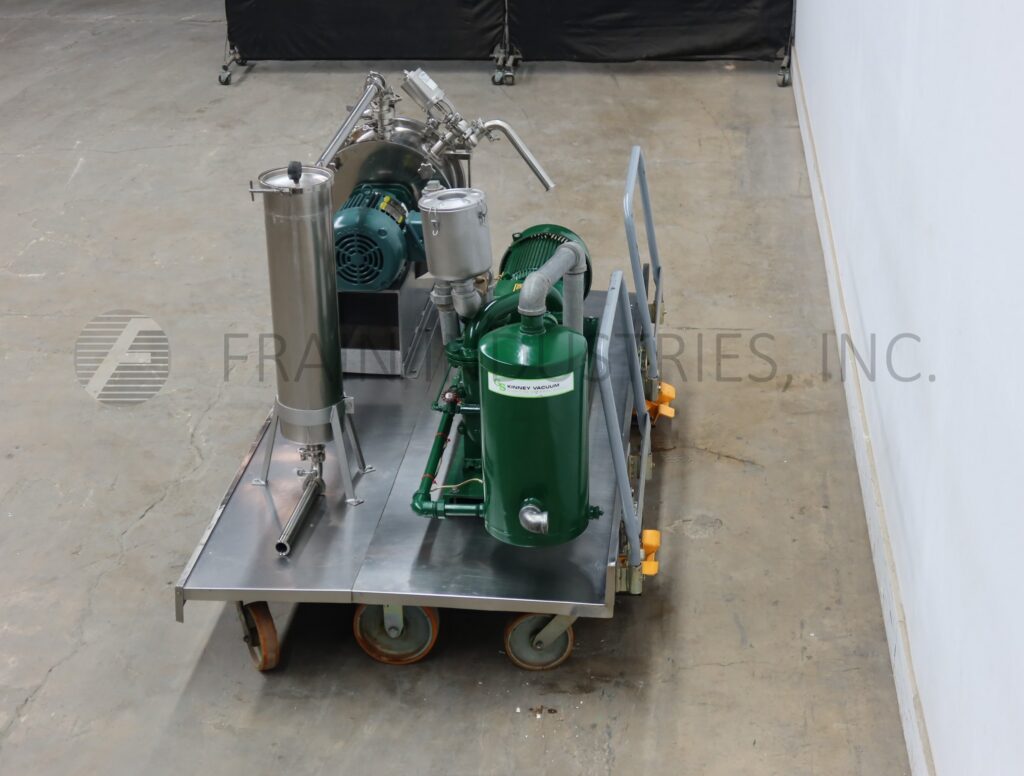

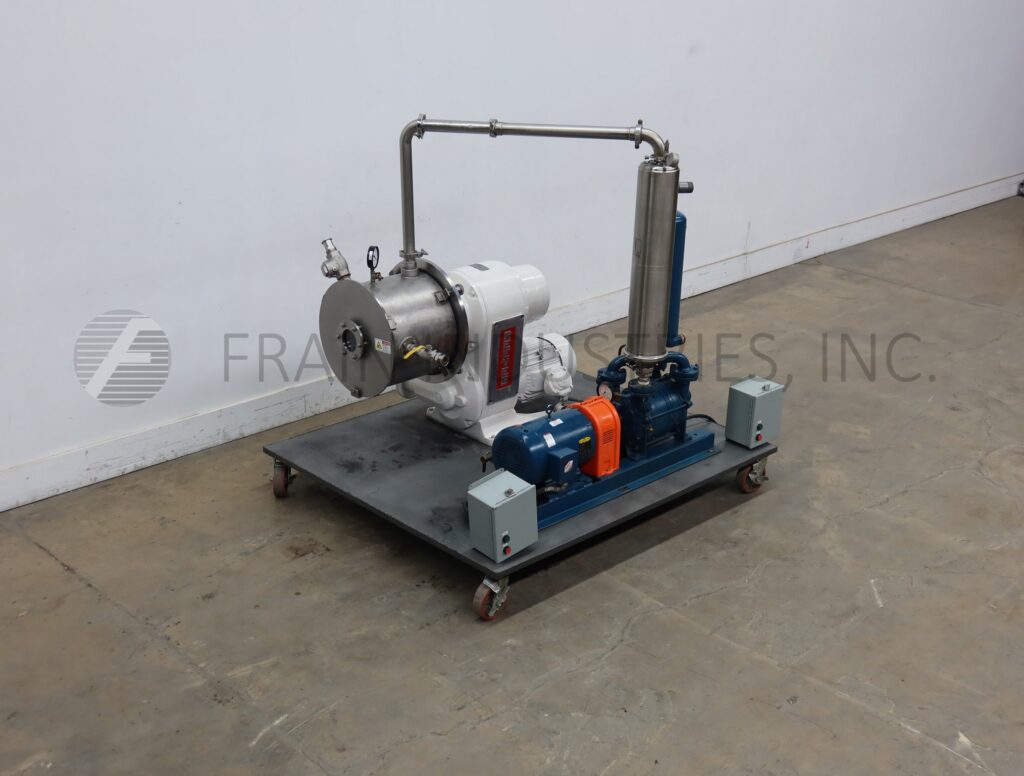

Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials, application and machine configuration. Equipped with a 26" diameter product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 3½" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 148H-9 2 hp vacuum system with (2) 1¾" NPT fittings. Mounted on a 72" long x 49" wide base platform frame.
Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.
OAD: 72"L x 52"W x 75"H

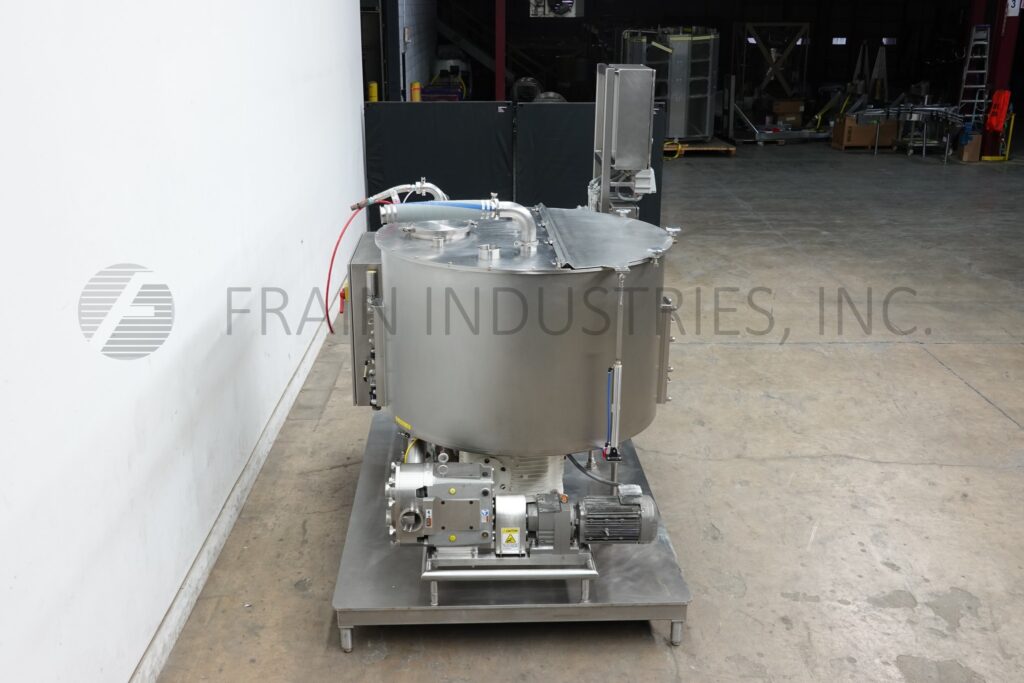

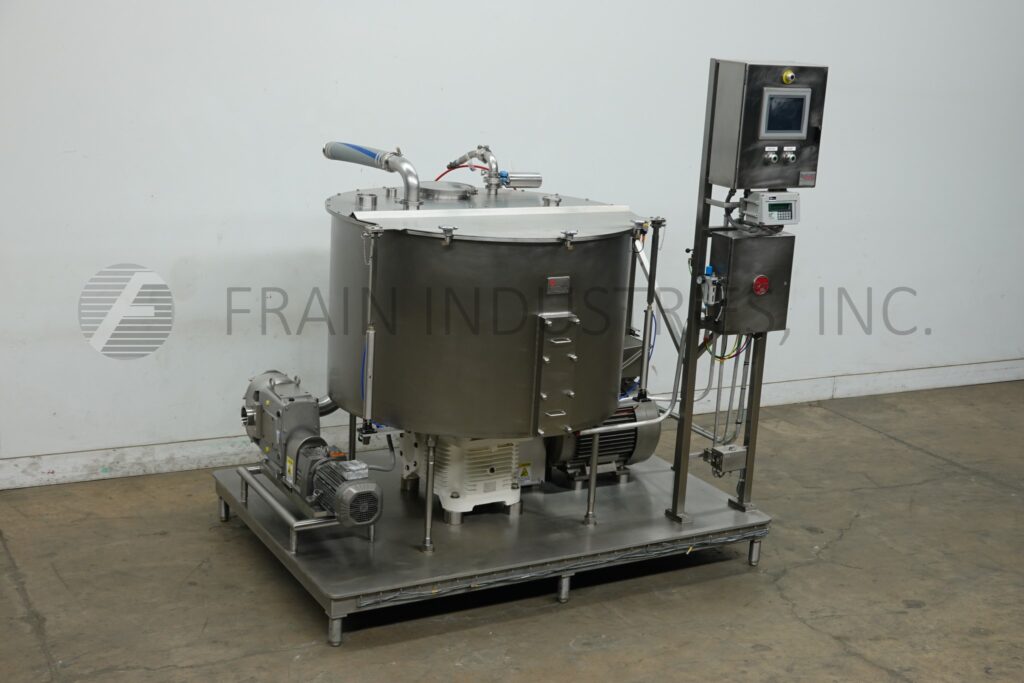

Oakes Model 60SMV751, Stainless steel, continous motion, slurry mixer and transfer system rated up to 440 gallons or 2,000 lbs of product per load with 15 minutes or less mix times – depending on materials, application and machine configuration. Equipped with 60" ID x 36" straight wall stainless steel product mix tank with pnuematic flip up cover and magnetic safety switch with (2) stationary pull out stator assemblies one each side and inner rotating mixing blades with bottom platform mounted motor drive. Waukesha Model 200U1PD transfer pump has 4½" OD / 4" ID inlet / outlets ports with twin wing rotors, O-Ring seals, 10 Hp motor drive to ensure quick and total transfer of product and now mixer is ready to receive another batch. Control panel has A/B controller and panel view with digital readout, rotor, pump and e-stop push button controls. A/C starter package and A/B poweflex VFD. Mounted on 102" long x 79" wide stainless steel platform with legs.Ideal for icing, frosting, slurries and more.
OAD: 104" L x 79" W x 108" H

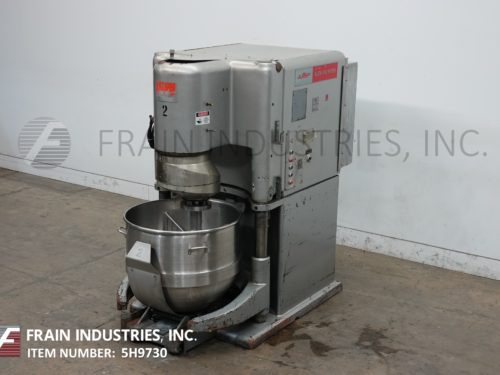

Hobart, Model HL600, planetary floor mixer, rated up to 60 quart maximum capacity, per batch with pounds of product per hour – depending on materials, application and operator dexterity. Equipped with stainless steel contact parts, 4-speed, 2.7 Hp motor drive with gear driven transmission and smart timer, electric power bowl lift, stainless steel 60 quart bowl with type "B" beater bar and mixer bowl splash cover with bowl guard and bowl trolley with casters. Controller has push button start, stop and bowl lift controls with Metallic Gray hybrid powder coat finish. Mounted on (4) leg frame.
OAD: 42"L x 24"W x 62"H

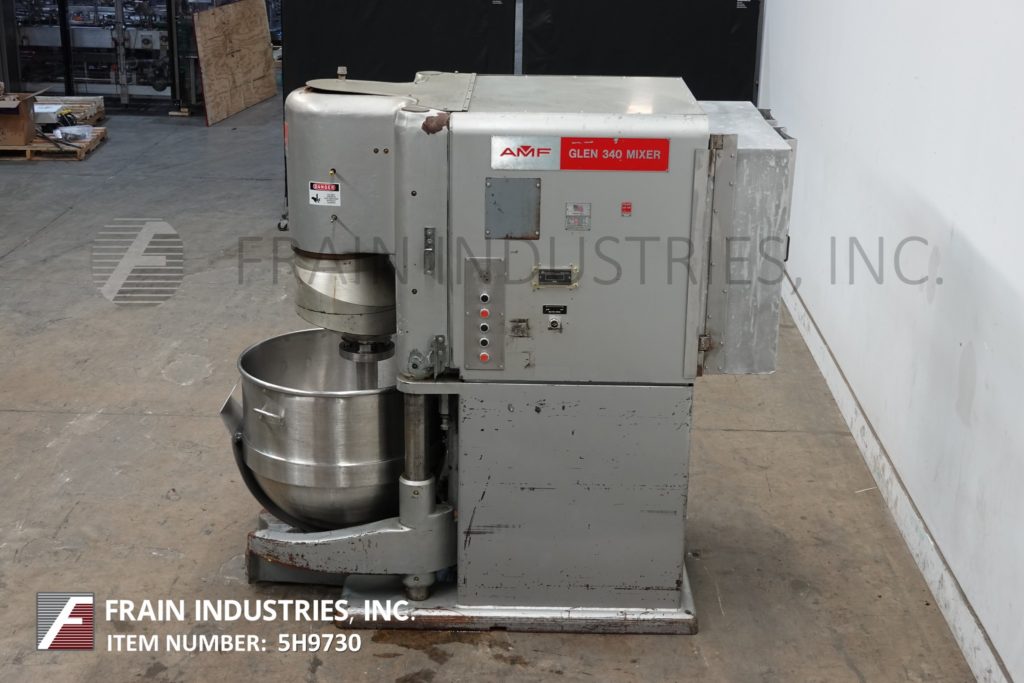

Amf Glen, Model 74-36, dough mixer – with pounds of product per hour – depending on materials, application and operator dexterity. Equipped with four wing beater agitation, 340 qt bowl, variable speed gearbox, timer dial, push button start/stop and push button bowl up / bowl down.
OAD: 85"L x 51"W x 82"H
Hobart, Model HL1400-2STD, mixer. Rated up to 140 quart maximum capacity, per batch with pounds of product per hour – depending on materials, application and operator dexterity. Equipped with stainless steel contact parts, 4-speed plus, stirring clutch controls, 5 Hp motor drive with gear driven transmission and 50 minute smart timer, power bowl lift, stainless steel 140 quart bowl and mixer bowl splash cover with bowl guard and bowl trolley with casters. Controller has push button start, stop and hydraulic bowl lift controls with Metallic Gray hybrid powder coat finish. Mounted on (4) leg frame.
OAD: 48"L x 32"W x 68"H
Stephan Machinery, Model TK150, 150 liter or 39 gallon drum capacity, horizontal mixer rated up to 800 kg of product per hour – depending on materials and application. All stainless steel contact parts. Filling volumes of 30 litres minimum and 100 litres maximum. Chamber dimensions: 22" in Length x 20" in Width x 23" in Depth, with single arm mixing bar. steam injection port, 23" ID hinged swing open lock down front cover with side scrape attachment and 16" x 12" top lock down cover. Control panel has mixing, emptying, closed, start, open, mixing baffle, discharge slide and stop push buttons controls with e-stop. Mounted on painted frame with locking casters.
OAD: 80" L x 36" W x 48" H

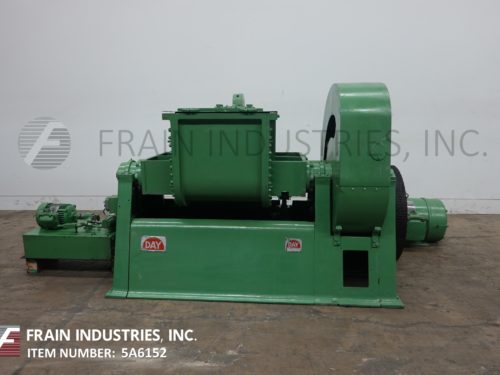

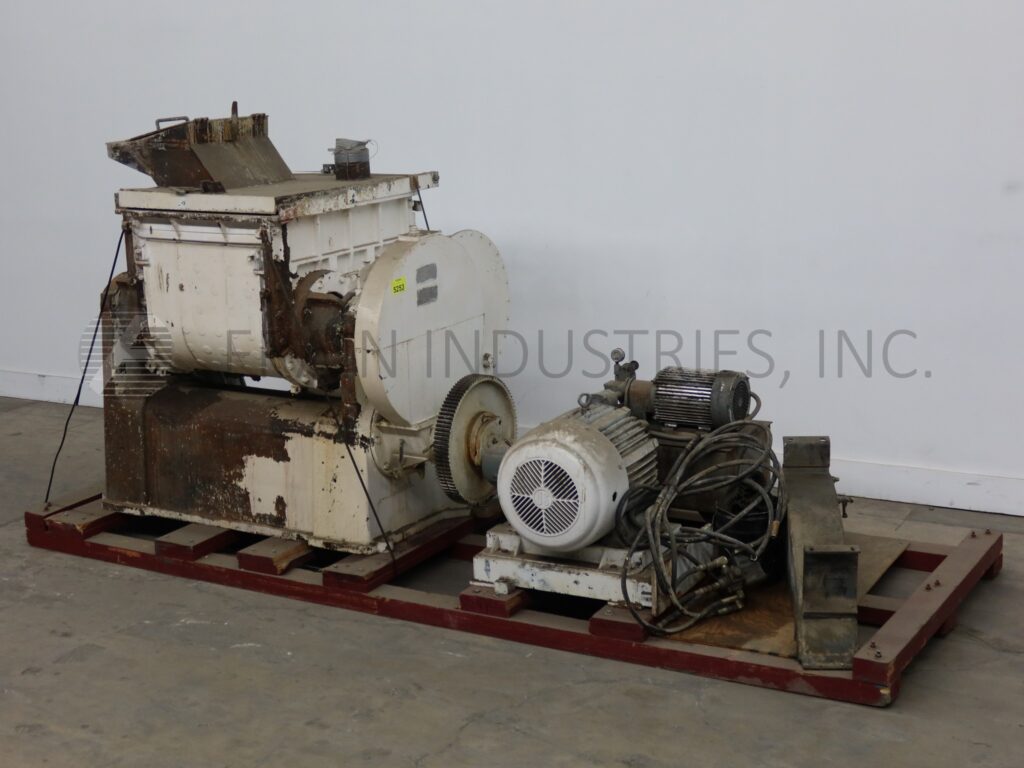

Double sigma mixer. 35 Gallon working capacity (65gl Total capacity). Tangential blade mixer, tilt discharge. Carbon steel contact parts.Vessel dimensions: 28" in Length; 24" in Width; 24" in Depth.
OAD: 64" W x 90" L x 96" H

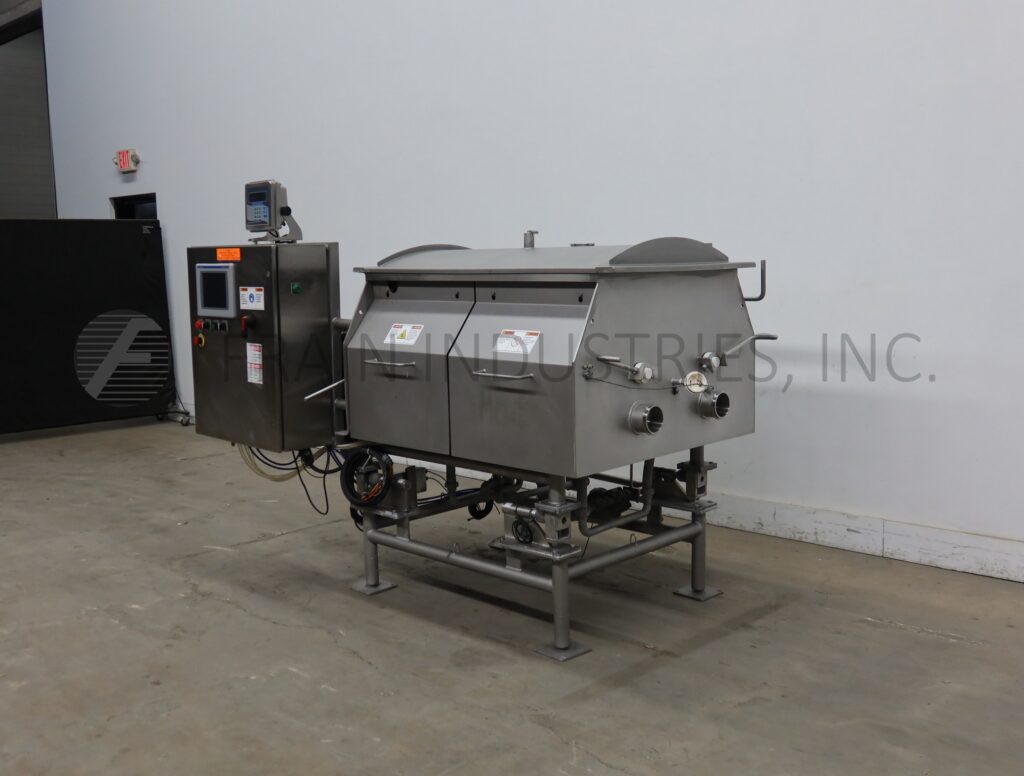

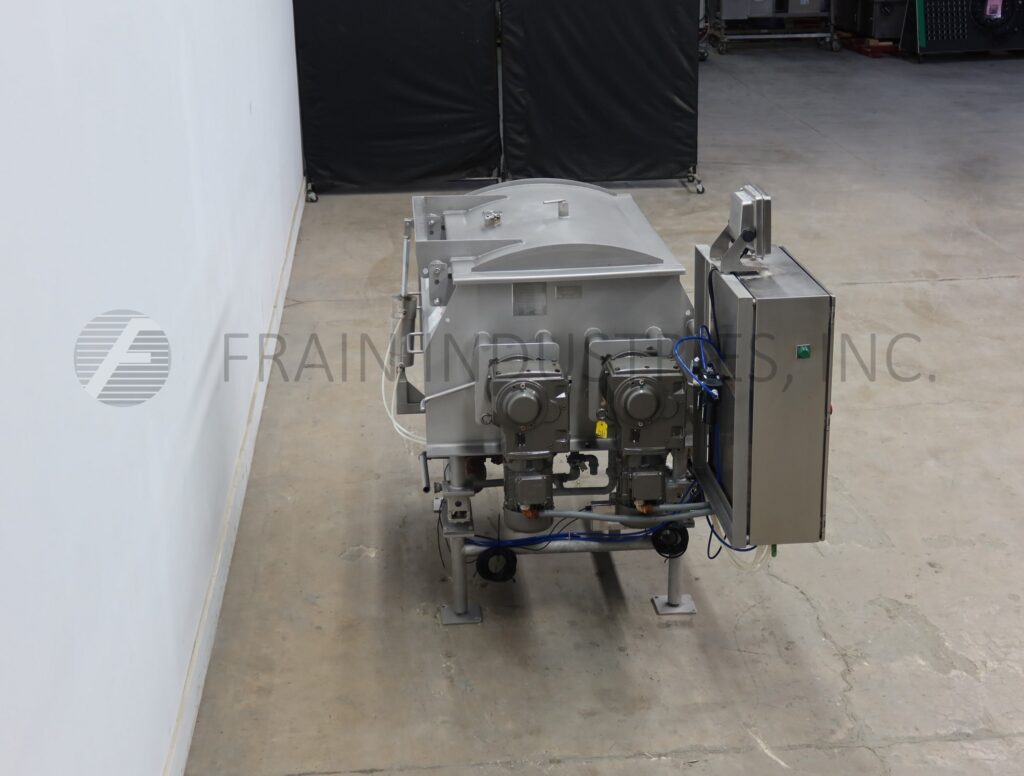

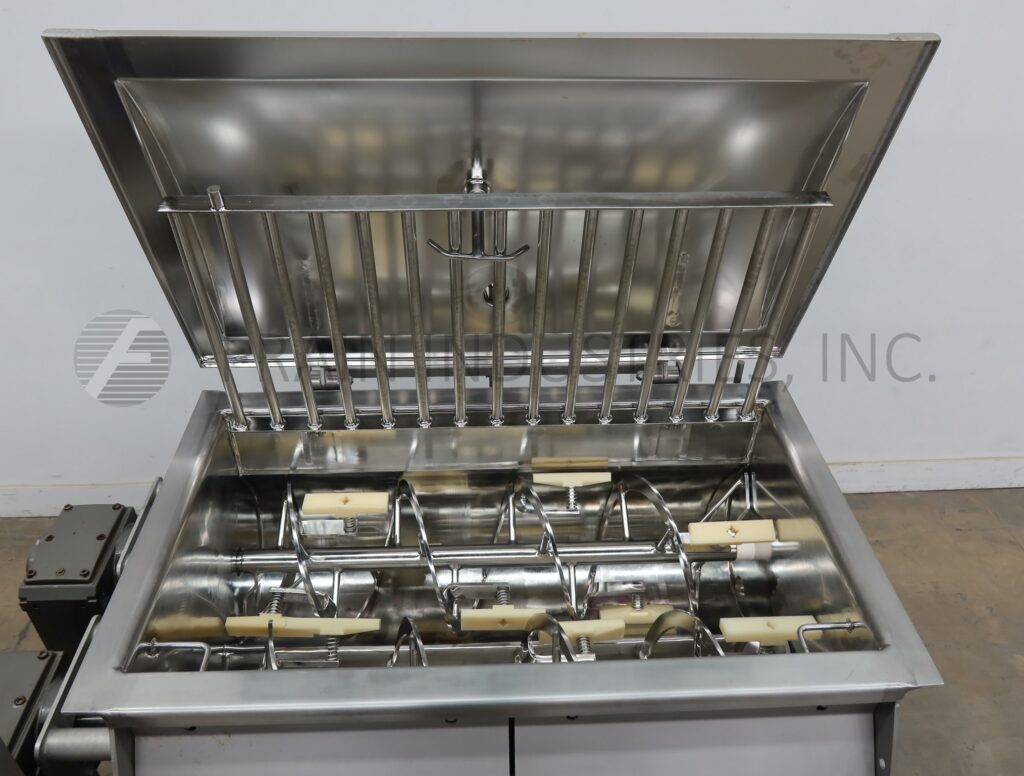

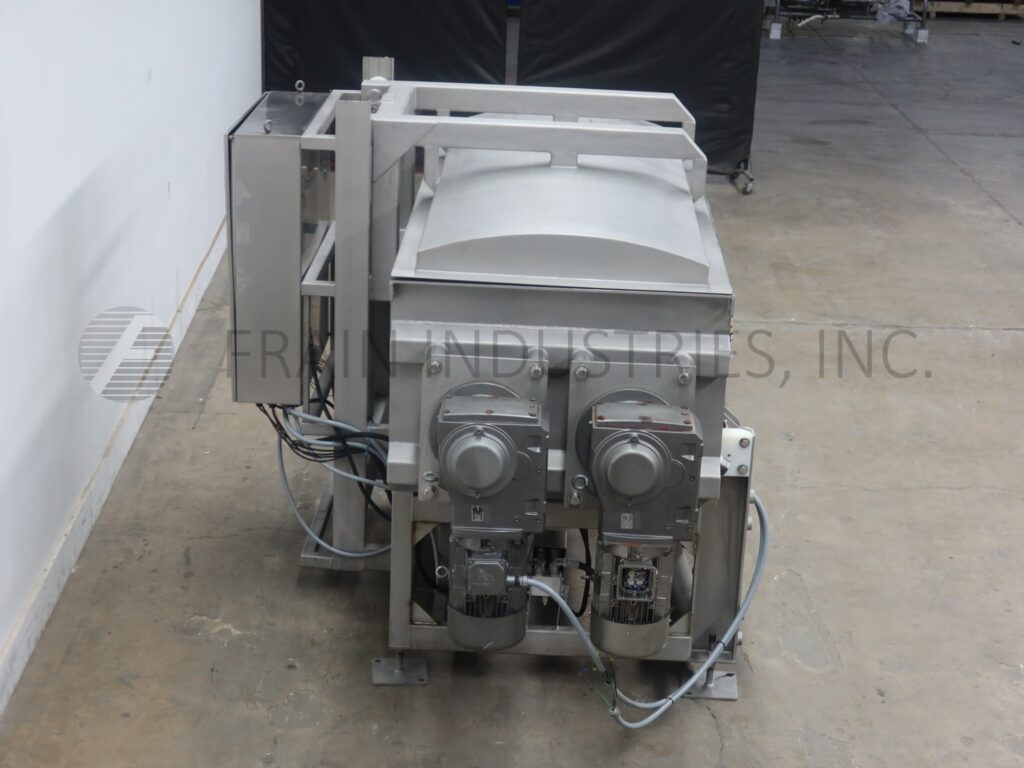

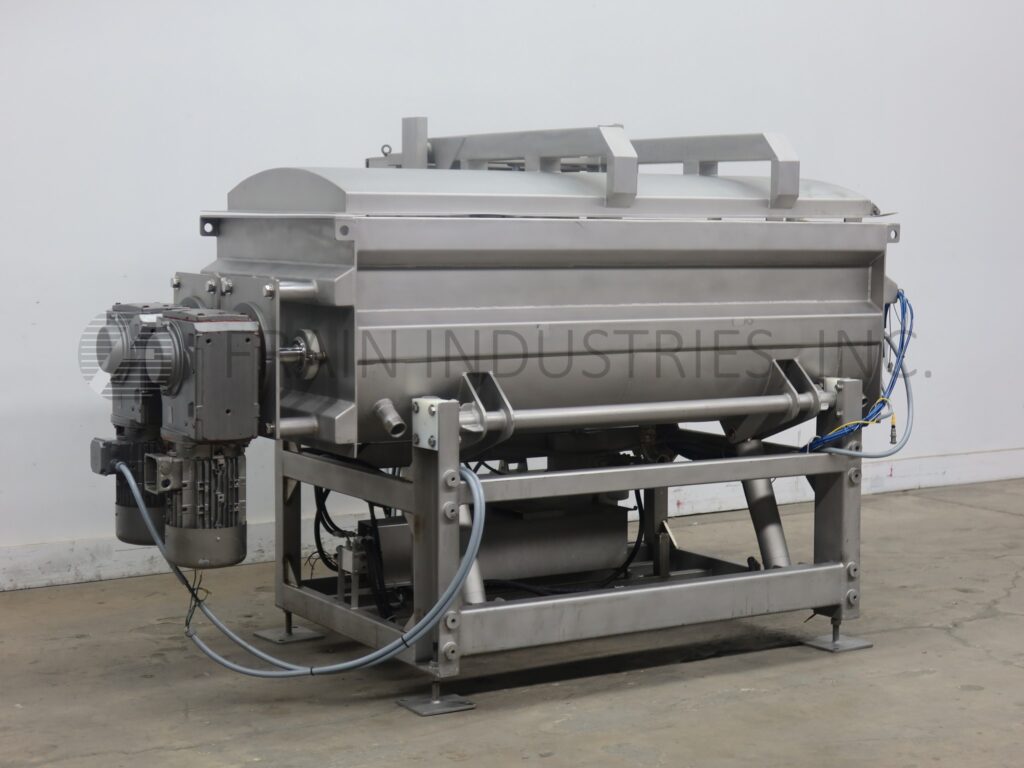

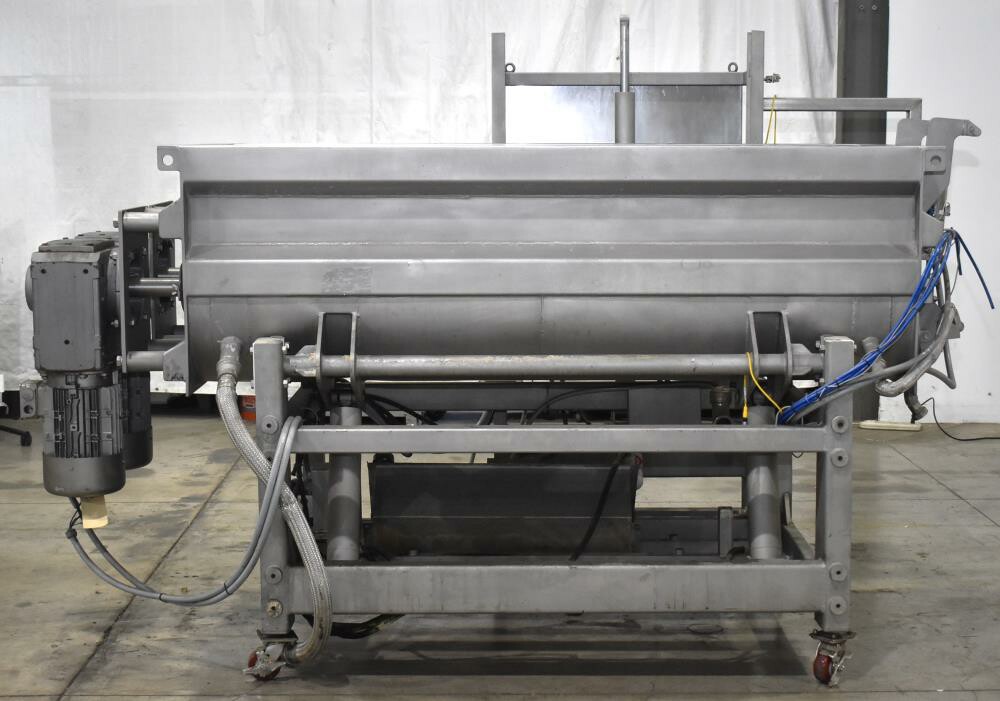

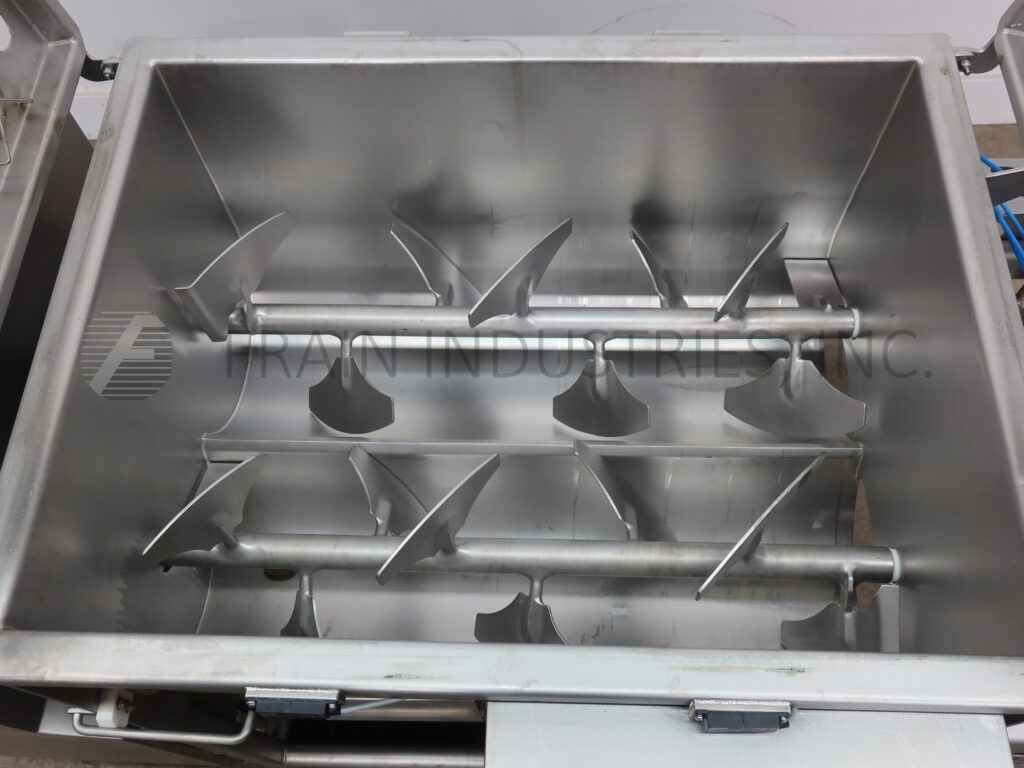

Reitz, Model RS-15-K5203, 22 ft³ total, (15 ft³ workable), twin screw mixer with amount of product per hour – depending on material and application. All stainless steel contact parts. Inner mixing chamber dimensions of: 42" in Length; 30" in Width; 19" in Depth. Equipped with lift up cover, (2) 14½" OD screw mixing shafts independently powered by 2 Hp motor drives, with (2) 11½" wide x 4½" high end discharges with pneumatic covers and 25" ground clearance.
OAD: 80"L x 47"W x 60"H
