Used Disperser Equipment
The disperser liquid type of batch mixer uses intense dispersion mixer blades that are lowered into the liquid and then energized for mixing and dispersion of the materials in the solutions. Liquid disperser vertical mixers can approach near emulfication and can handle very thick materials upon completion of the mixing. Liquid disperser mixers are also capable of handling chemical reactions and can be in closed tanks that can maintain an inert gas atmosphere.
Disperser Equipment In Stock
- Manufacturer: Arde Barinco
- Model Number: C530435RD45BLD
- Frain Number: 5D9751
Reversible high shear mixer rated to 1730 gpm. All S/S contact parts, 45" L x 1 3/4" diameter shaft with a 6" rotor stator head. Equipped with air over hydraulic lift to raise and lower mixer. Capable of handing up to a 44′ diameter vessel.
Hitachi J300 IGBT Inverter, RPM display and 30 Hp drive.
OAD: 85" L x 53"W x 80"HGet a Free Quote Call: 630-629-9900

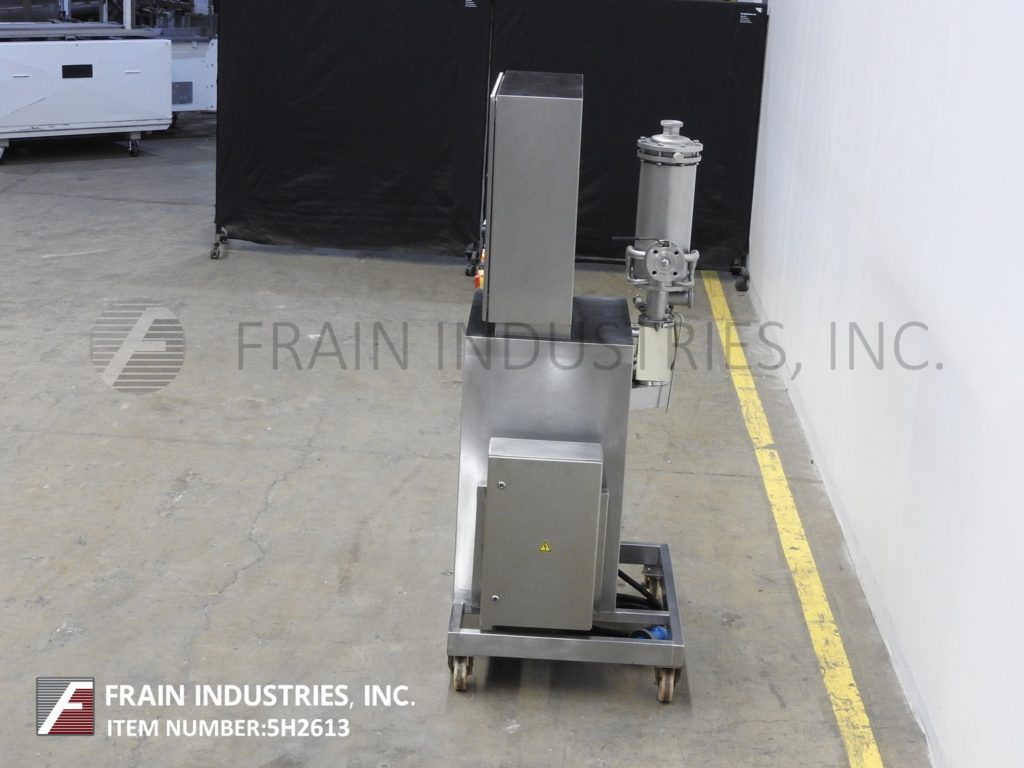

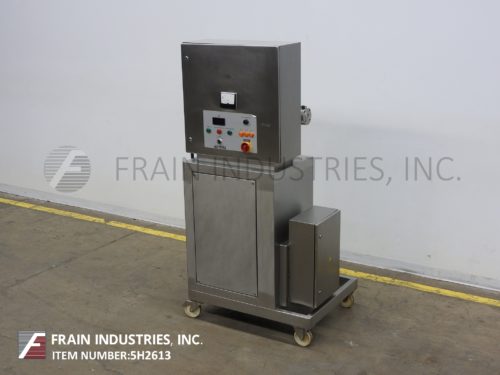

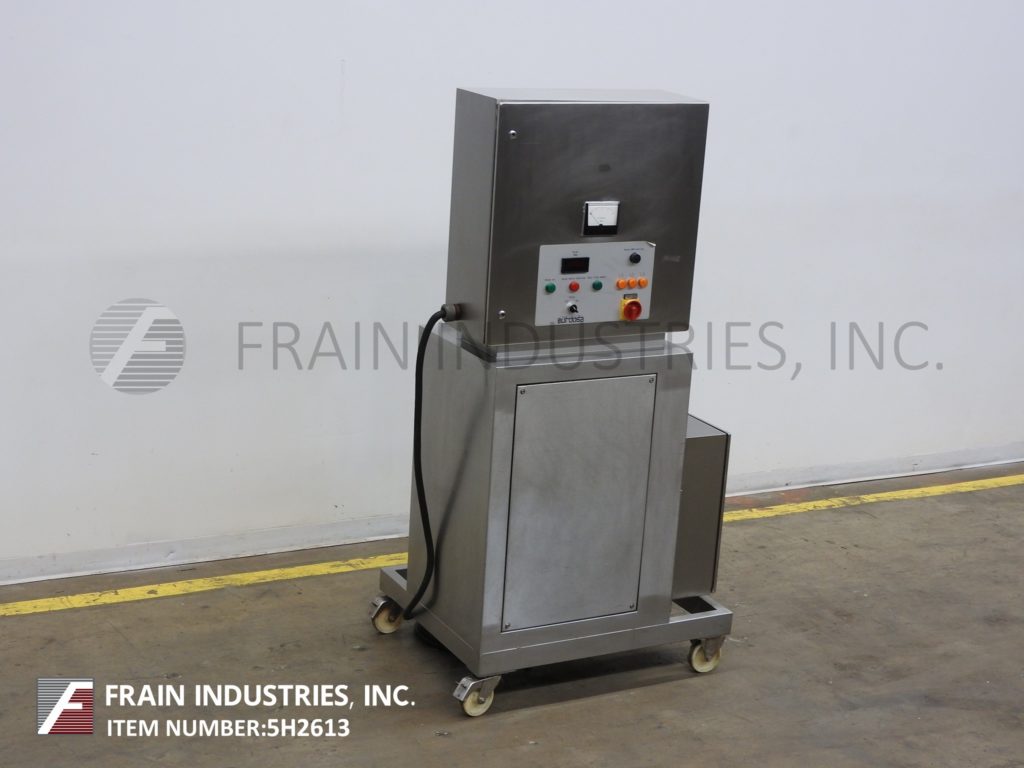

- Manufacturer: Burdosa / Burtech
- Model Number: GR80
- Frain Number: 5H2613
Burdosa, Model GR80, inline, continuous, dynamic loop mixer. Rated from 60 to 92 gallons per minute – depending on materials, application and machine configutation. Equipped with an 8" OD x 16" long mixing chamber with a low pressure jacket, 3"OD / 2"ID seated bevel style primary charge port, 5½"OD / 1½"ID circular flange style secondary charge port and 3"OD / 2"ID seated bevel style discharge port. Mixer rotor powered by a 5.3 hp drive with variable speed controls.
OAD: 40"L x 32"W x 80"HGet a Free Quote Call: 630-629-9900

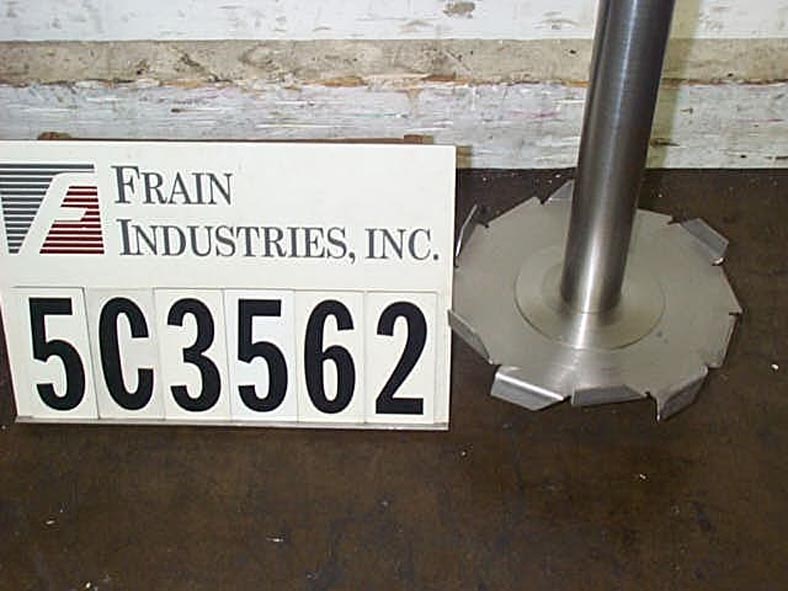

- Manufacturer: Reynolds
- Model Number: PK-1470
- Frain Number: 5C3562
High speed disperser, hydraulic driven with stainless steel (49" long) shaft with 12” diameter saw tooth mixing blade. Speed range to 1800 rpm. Shaft lift of 48”. Equipped with a 20 hp hydraulic power pack.
OAD: 7’L x 2’W x 7’HGet a Free Quote Call: 630-629-9900

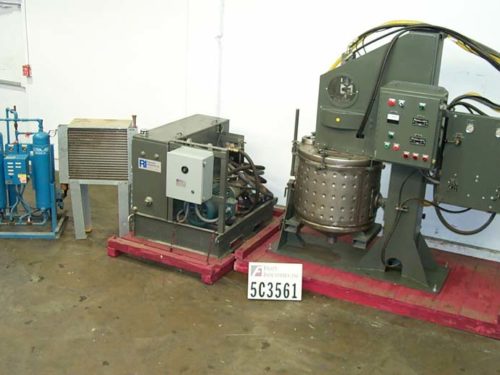

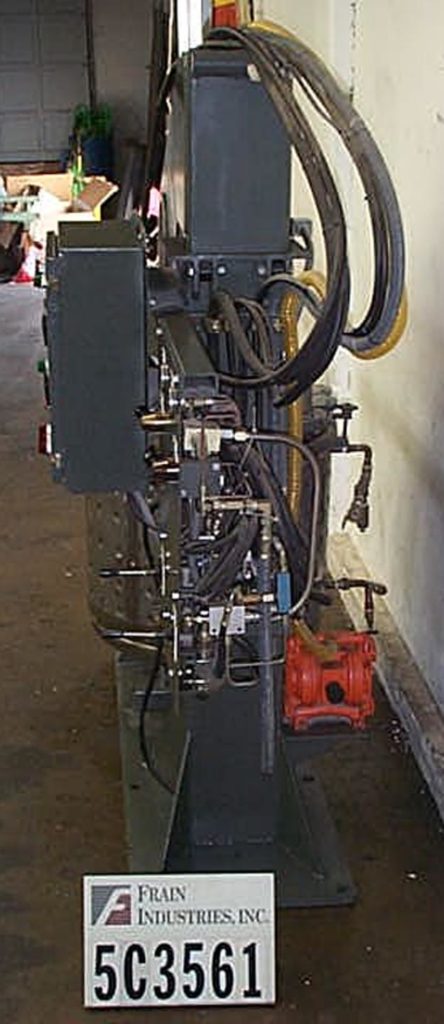

- Manufacturer: Reynolds
- Model Number: PK1538
- Frain Number: 5C3561
High-speed dual action dispersion mixer with a 36” hydraulic lift. Has a stainless steel shaft and 10” saw tooth disperser blade with a rpm range of 0-2290. Also has an attached 50 gallon stainless steel dimple jacketed tank rated at 15psi with a 3” center bottom discharge, low-speed bi-directional sweep/scrape agitator set at 0-100rpm’s. Tank is set to tilt in 15 degree increments to a total of 120 degrees. Has multiple product ports and re-circulating powder pump as well as a dust collection port. Equipped with a 20hp motor with a 21 gpm pump. Motor mounted on base with 85 gallon re-circulating oil reservoir and all necessary valves.
OAD 7’L x 6’W x 7’HGet a Free Quote Call: 630-629-9900
- Manufacturer: Silverson
- Model Number: GX15
- Frain Number: 5G5822
Silverson Model GX15, high speed, high shear, drop in container, batch mixer, rated from 0 to 3600 rpm with number of lbs of product per hour – depending on materials and application. All 316 stainless steel contact parts and can handle both high and low viscosities product with interchangeable work heads available for all models currently has a general purpose disintegrating head on it. Equipped with 48" long x 1-1/2" OD shaft, and 6-1/2" OD general purpose disintegrating head with additional 6" OD upthrust propeller and 32" OD container down thrust splash guard with flip up view port. Mounted on manually operated, hoist with casters for mobility, which will raise the bottom of the mixing head in / out of mixing vessel has 15 Hp motor drive and control panel with start / stop switch. Used for mixing, homogenizing, dispersing and emulsifying of many different types of products and many different industries.
OAD: 55" L x 48" W x 84" HGet a Free Quote Call: 630-629-9900
