Liquefiers are liquid mixers that are designed to mix solids and semi-solids into a liquid. Liquefiers use agitation of a liquid to dissolve solids or semi-solids into solution. To properly dissolve solids and semi-solids into liquids, liquefiers are to create the largest amount of turbulence within the liquid mixture within the liquefier. Liquefiers are often designed with a rectangular shaper to reduce the vortex effect of the liquid. Circular liquefiers are designed with baffles to prevent the liquid mass from creating a vortex within the liquefier. Some liquefiers are designed with side scrape to sweep the sides of a circular liquefier and return the product from the side of the liquefier to the mixture.

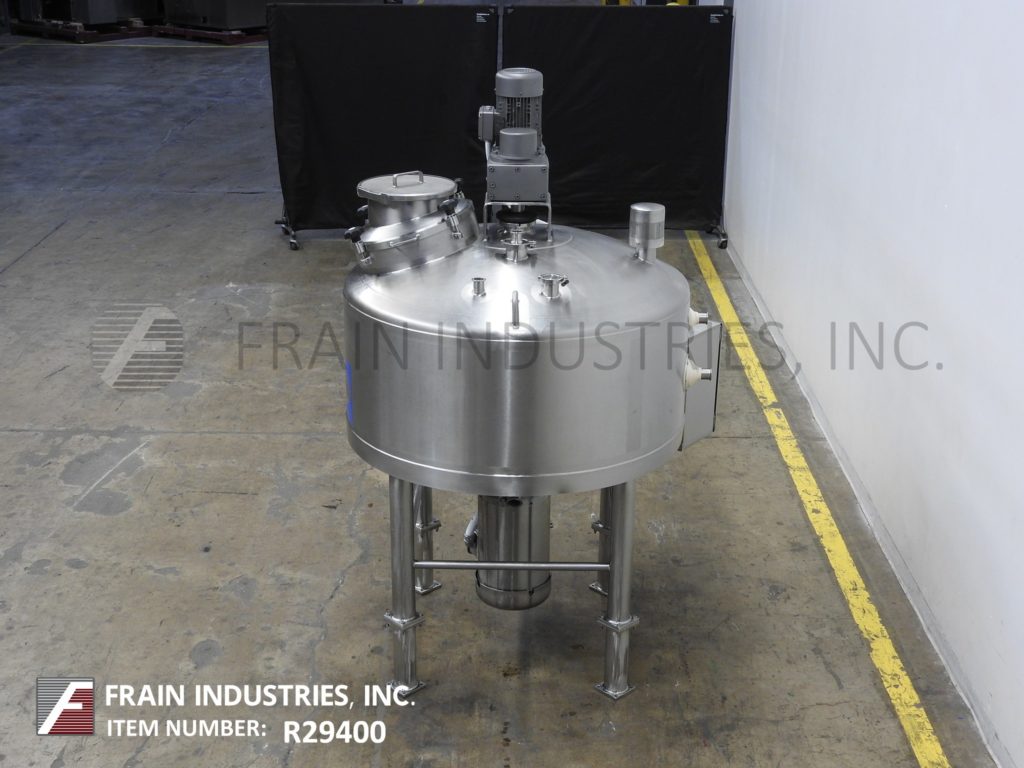

Breddo, Model LOR, 100 gallon 304 stainless steel single wall liquefier. Chamber dimensions: 43" diameter with 18" straight wall. Equipped with 24" OD top man way with flip up bolt down cover, bottom 6 hole / 3 wing general purpose impeller powered by a 40 hp drive, 3-3/4" OD / 3" ID Tri-clamp side bottom discharge and 17" floor clearence. Mounted on (6) leg frame.
Top Access:(1) 2"OD / 1-1/2"ID Tri-Clamp(3) 3"OD / 2-1/2"ID Tri-Clamp
OAD: 71"L x 41"W x 67"H (Tank Assembly) 12"L x 31"W x 59"H (Control Cabinet)

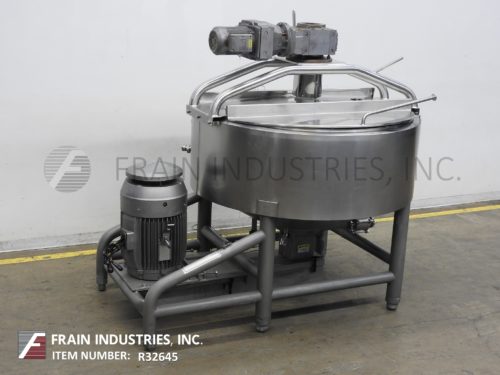

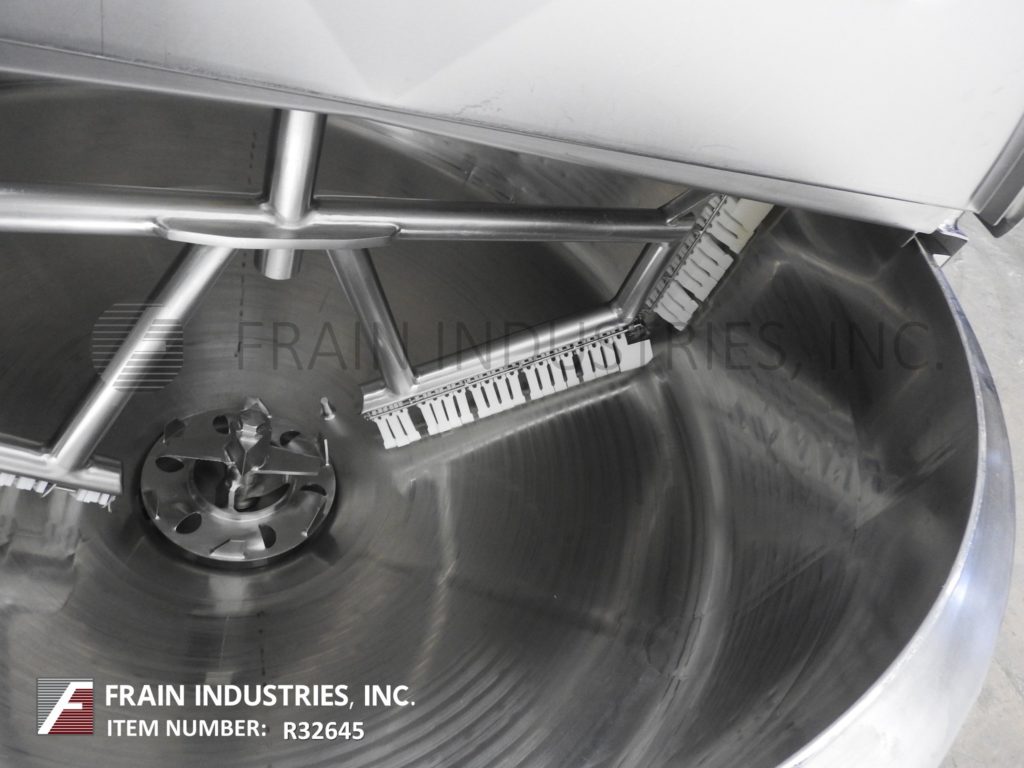

Breddo Model LORWSS, 300 gallon, stainless steel, high shear, jacketed, liquefier with amount of product per hour – depending on materials and application. Vessel dimensions of: 60" 0D x 24" straight wall x 28" cone bottom. Flat top with bridge mounted side and bottom scrape surface agitator, dual hinged flip top covers with safety grate and (1) 4-1/2" OD (2) 2" OD sanitary top ports. Side and bottom jacket rated MAWP of 125 psi @ 400°F and MDMT of 0°F @ 125 psi with (2) side and (2) bottom 2" OD threaded jacket ports. Interior has bottom 6 hole / 3 wing impeller with 75 Hp side mounted motor drive. Cone bottom has 3-1/2" OD side bottom discharge with 20" floor clearance. Mounted on (6) stainless steel leg frame.
OAD: 100" L x 68" W x 83" H

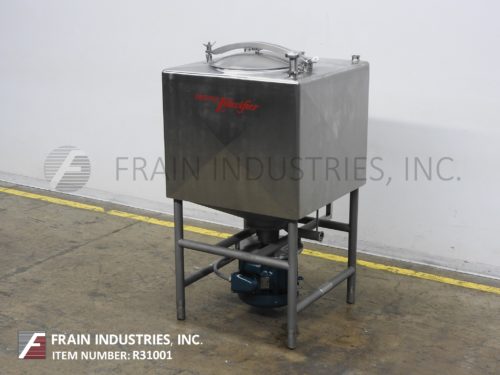

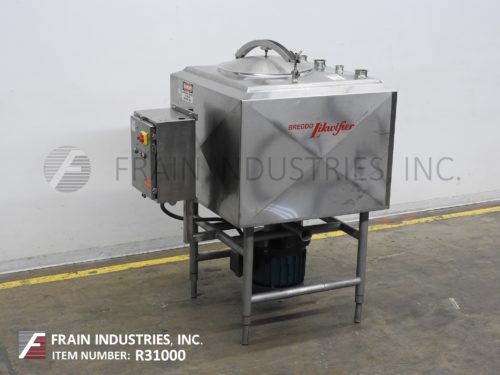

Breddo Model LDT, 200 gallon, stainless steel, high shear, side wall jacketed liquefier with amount of product per hour – depending on materials and application. Square chamber dimensions of: 38" long x 38" wide x 28" straight wall. Flat top has 20" ID top man way with flip up clamp down cover and (2) 2-1/2" OD 2" ID sanitary top ports. Side jacket rated to 90 psi, Interior bottom has 6 hole / 3 wing impeller with 25 Hp direct bottom mounted motor drive and control panel with start, stop and e-stop. Cone bottom has 4" OD, 3-1/2" ID sanitary side bottom discharge with 37" ground clearance. Mounted on (4) leg stainless steel frame.
OAD: 38" L x 38" W x 71" H
Heritage, BCast Stainless Products, Model 300 gallon, stainless steel, high shear, single wall liquefier, with gallons of product per hour – depending on materials and application. 316 stainless steel contact parts, 304 stainless steel outer shell and legs. Vessel dimensions: 48" x 48" ID x 28" straight wall x 24" cone bottom. Dome top has 24" OD manway with hinged flip top cover and sanitary top ports with CIP system. Interior bottom 6 hole / 3 wing impeller with 60 Hp side mounted motor drive. Cone bottom with thermowell and 2-1/2" OD side bottom discharge with start, stop, e-stop push button controls. Mounted on (6) leg stainless steel frame.
OAD: 83" L x 51" W x 73" H

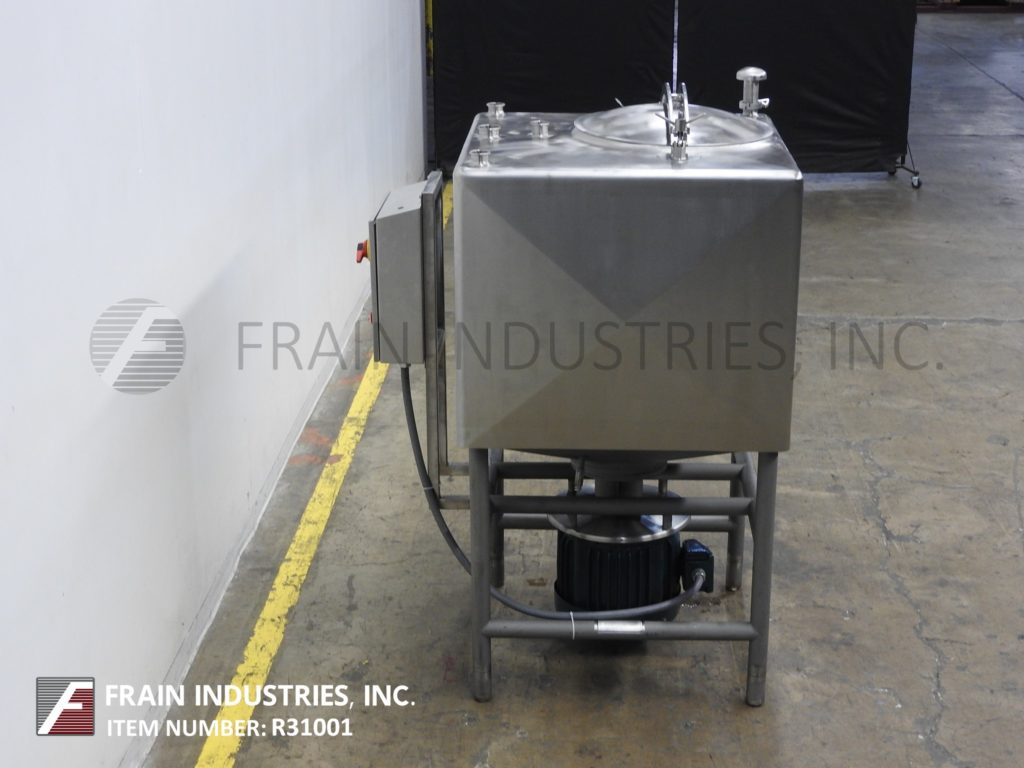

Breddo Model LDTW, 200 gallon, stainless steel, high shear, side wall jacketed liquefier with amount of product per hour – depending on materials and application. Square chamber dimensions of: 38" long x 38" wide x 32" straight wall. Flat top has 22" OD top man way with flip up bold down cover and (3) 3-1/2" OD, 3" ID, (1) 2-1/2" OD, 2"ID, (1) 2"OD, 1-1/2" ID sanitary top ports. Bottom cone jacket with pressure tested at 120psi, with (3) 1-5/8" OD, 1-1/4" ID jacket ports and interior bottom 6 hole / 3 wing impeller with 25 Hp direct bottom mounted motor drive. Cone bottom has 1-5/" OD, 1-1/4" ID" OD sanitary side bottom discharge with 24" ground clearence. Mounted on (4) leg stainless steel frame. Remote control panel with start, stop, e-stop push buttom controls. Mounted on 36" x 36" stainless steel frame with locking casters.
OAD: 44" L x 44" W x 72" H Liquifer 36" L x 36" W x 60" H Control Panel
Breddo, Model LDD, 50 gallon, stainless steel, bottom direct drive, single wall liquefier with gallons of product per hour – depending on materials and application. Outer chamber dimensions of: 24" long x 24" wide x 24" straight wall. Equipped with 18" ID top man way with flip up, clamp down cover and bottom 6 hole / 3 wing general purpose impeller with 7.5 Hp bottom direct motor drive. Cone bottom has 2-1/2" OD / 2" ID sanitary side bottom discharge with clamp on 3-1/2"OD / 2-3/4"ID sanitary port with 22" floor clearence. Mounted on stainless steel (4) leg tubular frame.
Top Access Ports:(2) 2-1/2 "OD / 2"ID Sanitary Tri-Clamp
OAD: 24" L x 24" W x 59" H
Breddo, Model LDT, 50 gallon 316 stainless steel single wall liquefier. Chamber dimensions: 24" long x 24" wide with 22" straight wall. Equipped with 18" OD top man way with flip up bolt down cover and safety grid, bottom 6 hole / 3 wing general purpose impeller, 2½" OD / 2" ID Tri-clamp side bottom discharge with butterfly valve and 23" floor clearence. Mounted on (4) leg frame.
Top Access:(1) 3½"OD / 3"ID Tri-Clamp(3) 2½"OD / 2"ID Tri-Clamp
OAD: 31"L x 25"W x 60"H

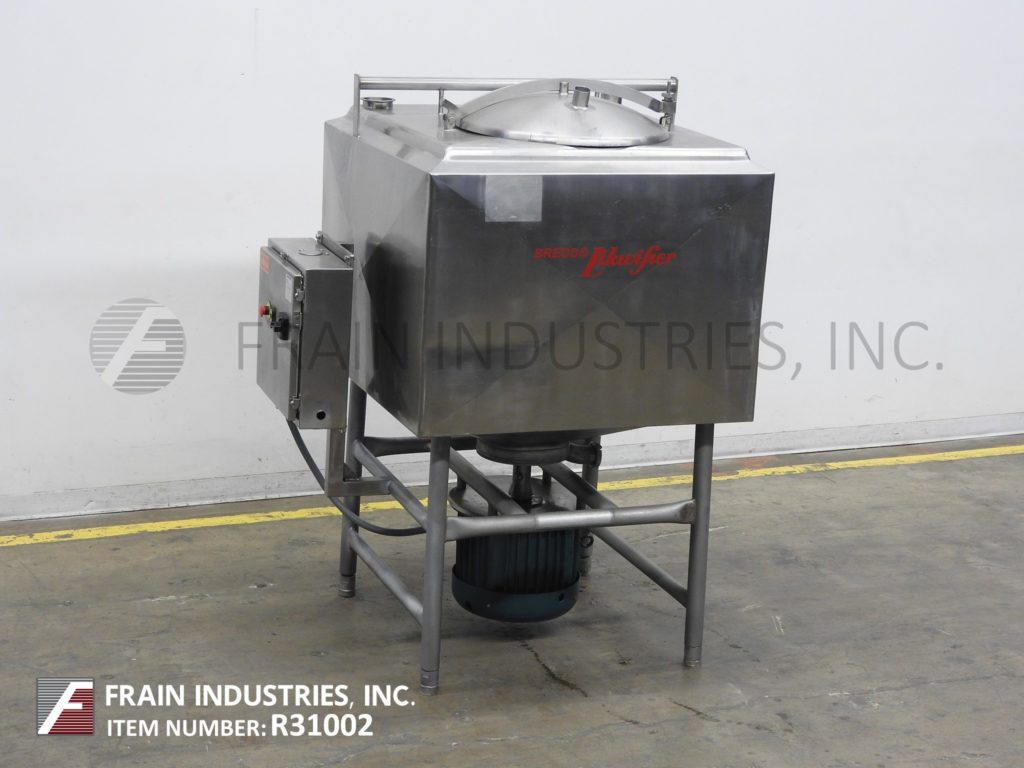

Breddo Model LDT, 200 gallon, stainless steel, high shear, single wall liquefier with amount of product per hour – depending on materials and application. Square chamber dimensions of: 39" long x 39" wide x 32" straight wall. Flat top has 20" OD top man way with flip up bold down cover and (5) 2-1/2" OD 2" ID sanitary top ports with single CIP spray ball. 12" OD Interior bottom 6 hole / 3 wing impeller with 25 Hp direct bottom mounted motor drive. Cone bottom has 3" OD, 2-1/4" ID sanitary side bottom discharge with 29" ground clearence. Control panel with start, stop and e-stop push button controls. Mounted on (4) leg stainless steel frame.
OAD: 42" L x 42" W x 76" H
Breddo, Model LDT, 50 gallon 304 stainless steel single wall liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 24" x 24" x 24" straight wall. Equipped with 18" diameter top man way with flip up bolt down cover, (2) 2½" OD / 2" ID tri-clamp style top inlet ports, bottom 6 hole / 3 wing general purpose impeller and bottom 15 Hp bottom motor drive, 3" OD / 2½" ID Tri-clamp side bottom discharge with 23" floor clearence. Control panel has start and e-stop controls. Mounted on stainless steel (4) leg tubular frame.
OAD: 34"L x 25"W x 60"H
Breddo, Model LDT, 50 gallon 304 stainless steel single wall liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 24" x 24" x 24" straight wall. Equipped with 18" diameter top man way with flip up bolt down cover, (2) 2½" OD / 2" ID tri-clamp style top inlet ports, bottom 6 hole / 3 wing general purpose impeller, with bottom 10 Hp motor drive, 3" OD / 2½" ID Tri-clamp side bottom discharge with 21" floor clearence. Mounted on stainless steel (4) leg tubular frame.
OAD: 35"L x 31"W x 60"H
Walker, Model MT-201, 100 gallon 316L stainless steel insulated liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 46" diameter x 32" deep with 19" straight wall. Equipped with 21" OD top man way with flip up bolt down cover, scrape agitation powered by 2 Hp motor drive, 6½" adjustable baffle, Thermowell, CIP spray balls, side and bottom jacketed, 10" OD bottom 6 hole / 3 wing general purpose impeller powered by 20 Hp motor drive and 3" OD / 2½" ID Tri-clamp side bottom discharge with 24" floor clearence. Mounted on stainless steel (4) leg tubular frame.
Top Access:(1) 3½"OD / 3"ID Tri-clamp(1) 2½"OD / 2"ID Tri-clamp(1) 2"OD / 1½"ID Tri-clamp
Jacket Access:(4) 2"OD / 1½ID Tri-clamp
Nat’l Brd:6572MAWP:150 PSI @ 338°FMDMT:-20°F @ 150 PSI
15,000 cps Max with Side Scrape Attachment
OAD: 56"L x 55"W x 86"L
