Liquefiers are liquid mixers that are designed to mix solids and semi-solids into a liquid. Liquefiers use agitation of a liquid to dissolve solids or semi-solids into solution. To properly dissolve solids and semi-solids into liquids, liquefiers are to create the largest amount of turbulence within the liquid mixture within the liquefier. Liquefiers are often designed with a rectangular shaper to reduce the vortex effect of the liquid. Circular liquefiers are designed with baffles to prevent the liquid mass from creating a vortex within the liquefier. Some liquefiers are designed with side scrape to sweep the sides of a circular liquefier and return the product from the side of the liquefier to the mixture.

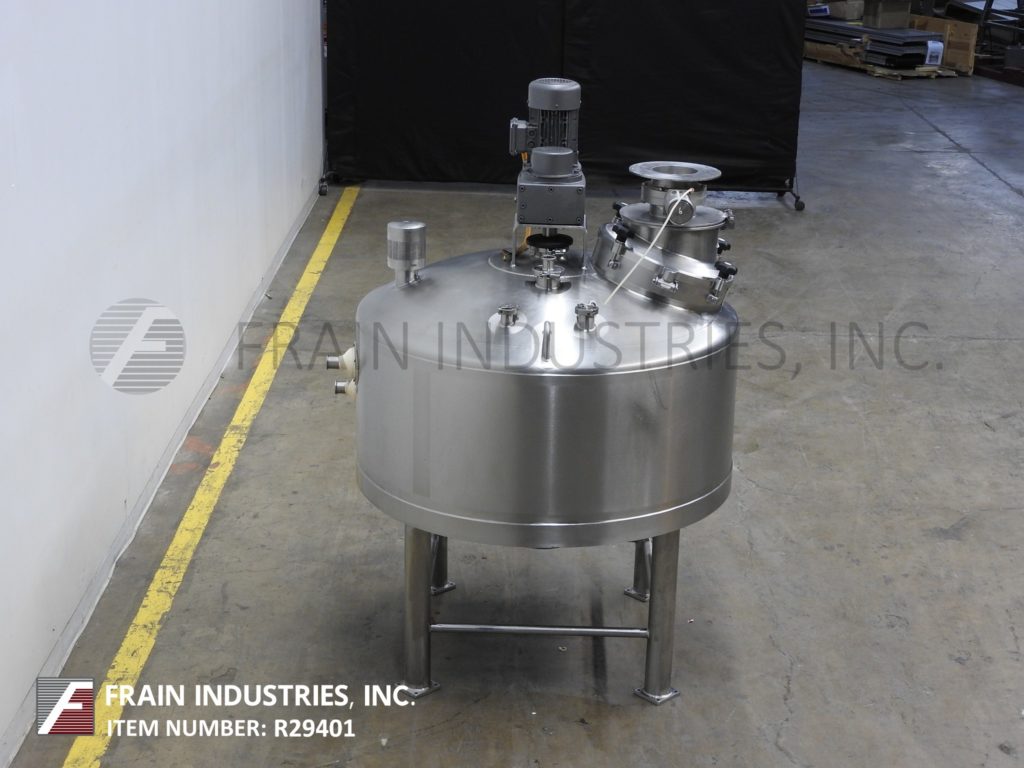

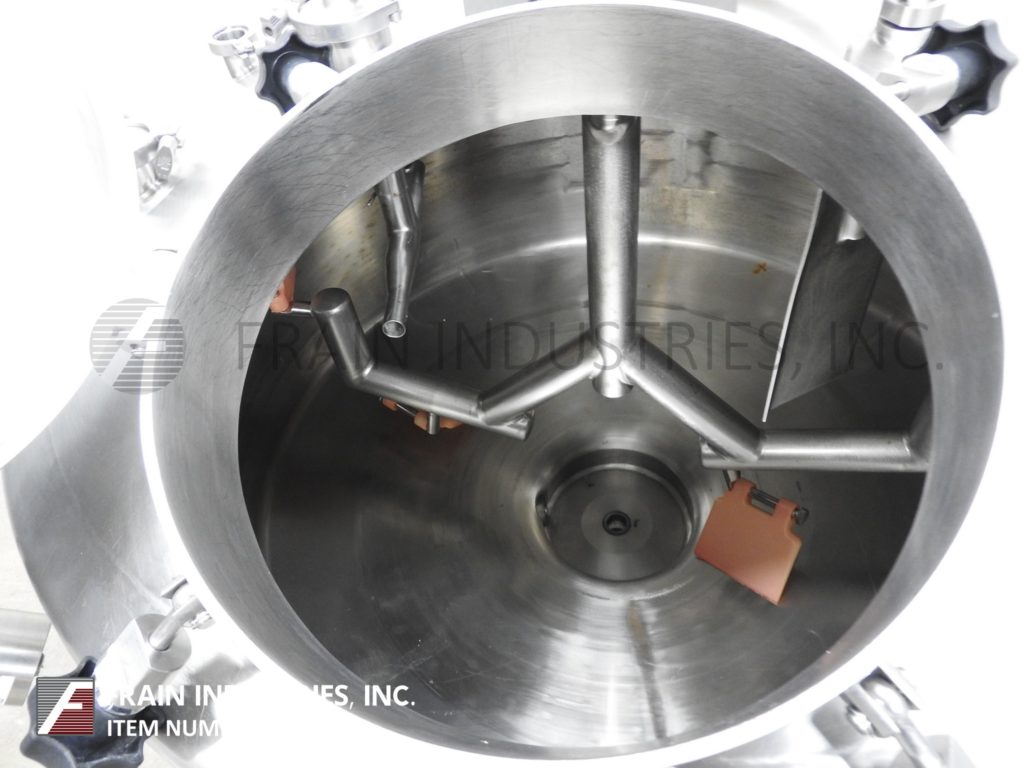

Walker, Model MT-201, 100 gallon 316L stainless steel insulated liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 46" diameter x 32" deep with 19" straight wall. Equipped with 21" OD top man way with flip up bolt down cover, scrape agitation powered by 2 Hp motor drive, 6½" adjustable baffle, Thermowell, CIP spray balls, side and bottom jacketed, 10" OD bottom 6 hole / 3 wing general purpose impeller powered by 20 Hp motor drive and 3" OD / 2½" ID Tri-clamp side bottom discharge with 24" floor clearence. Mounted on stainless steel (4) leg tubular frame.
Top Access:(1) 3½"OD / 3"ID Tri-clamp(1) 2½"OD / 2"ID Tri-clamp(1) 2"OD / 1½"ID Tri-clamp
Jacket Access:(4) 2"OD / 1½ID Tri-clamp
Nat’l Brd:6572MAWP:150 PSI @ 338°FMDMT:-20°F @ 150 PSI
15,000 cps Max with Side Scrape Attachment
OAD: 56"L x 55"W x 86"L
APV, 50 gallon, 304 stainless steel, single wall, high shear liquefier with amount of product per hour – depending on materials and application. Vessel dimensions of: 26" long x 26" wide x 20" straight wall. Equipped with 18" OD man way with flip top bolt down cover, bottom 10" OD 6 hole / 3 wing impeller and side mounted 7½ Hp motor drive. Cone bottom has 3" OD / 2½" ID side bottom discharge with 25" ground clearence. Control panel with push button start / stop control and variable speed control.
OAD: 68"L x 38"W x 75"H
Breddo Model LORWWSS, 100 gallon, 316L stainless steel, two zone jacketed, liquefier with amount of product per hour – depending on materials and application. Interior dimensions: 48" diameter x 15" straight wall x 11" long cone. Equipped with hinged top covers, 8-1/2" product inlet with pneumatic slide gate, side and bottom scrape agitation with bottom 6 hole / 3 wing impeller and 50 Hp side bottom mounted motor drive. Full jacket rated at 125psi @ 400 deg f with 1-3/4" inlet / outlets, Cone bottom has 2-3/4" center bottom discharge and butterfly valve with 16-1/4" discharge height and control Panel with VFD and start, stop, e-stop controls. Mounted on (4) leg frame. National Board #21333
OAD: 84" L x 64" W x 66" H
APV Crepaco, 100 gallon, 304 stainless steel, high shear, jacketed liquefier with gallons of product per hour – depending on materials and application. Chamber dimmensions: 40" in Length; 40" in Width; 16" straight wall. Equipped with 24" x 24" manway with flip top cover, high shear 6 hole / 3 wing impeller driven by side bottom 25 Hp motor drive. Cone bottom with 2½"OD / 2"ID Tri-Clamp discharge port with 18" floor clearence. Mounted on stainless steel tubular base frame.
Top Access:(1) 3½"OD / 3"ID Tri-Clamp(4) 2½"OD / 2" ID Tri-Clamp(1) 2"OD / 1½"ID Tri-Clamp
Jacket Access:(2) 1" NPT(1) ¾" NPT
MAWP: 95 psi @ 350°FMDMT: -20°F @ 95 psi
OAD: 62.5"L x 48"W x 55"H

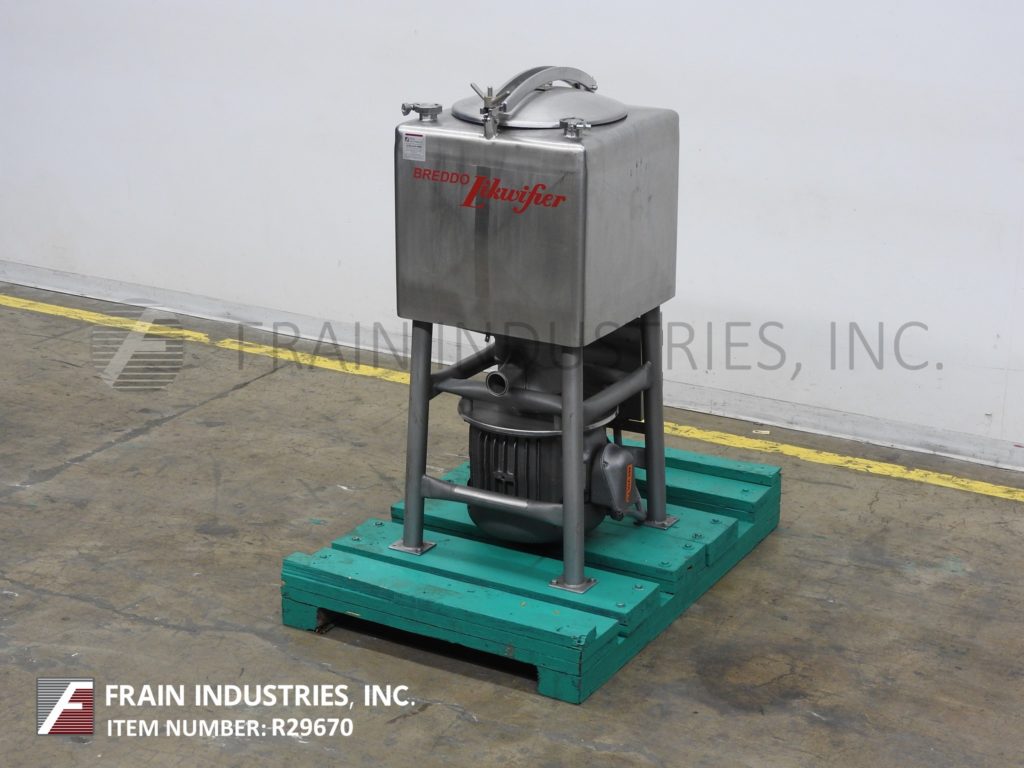

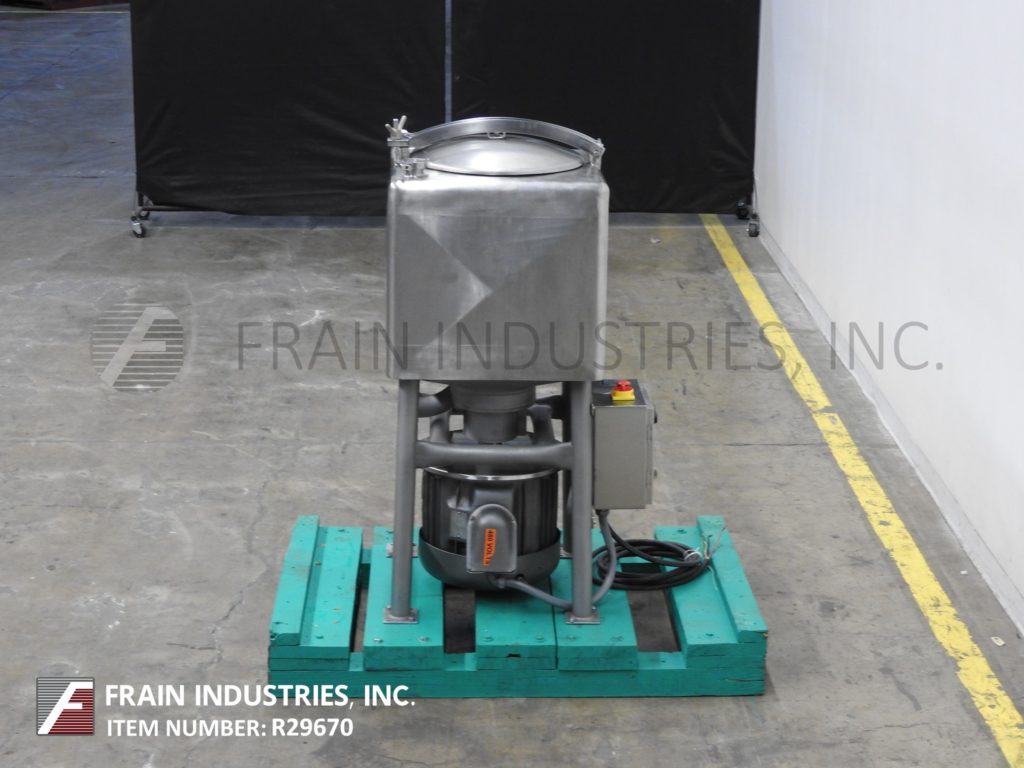

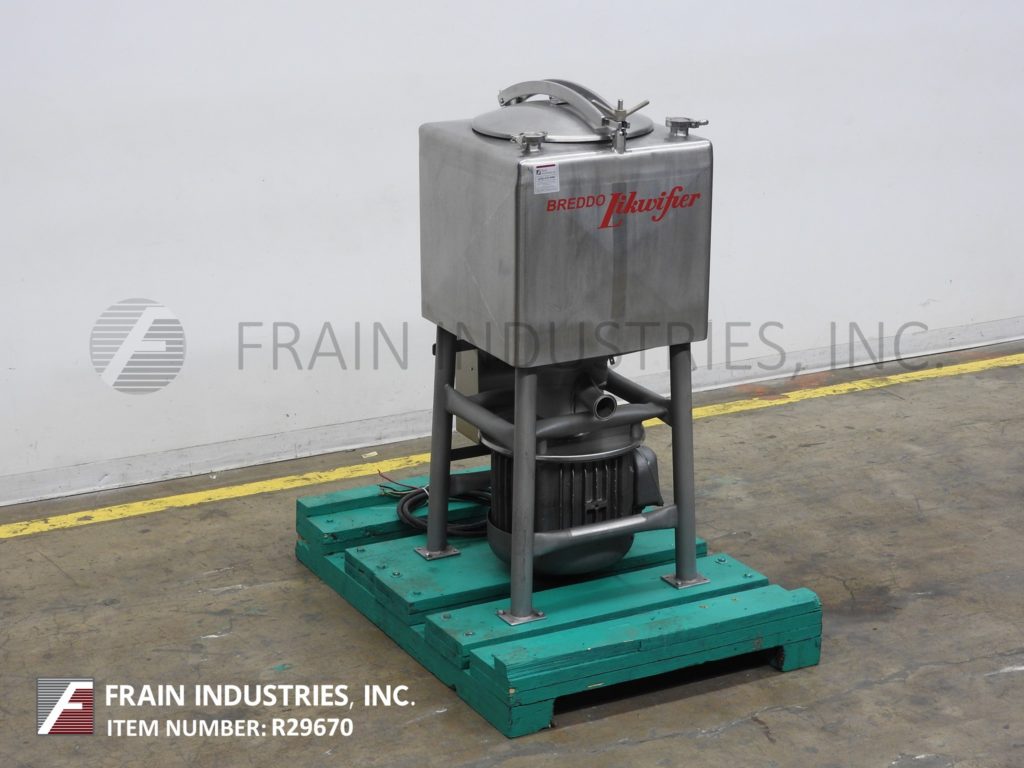

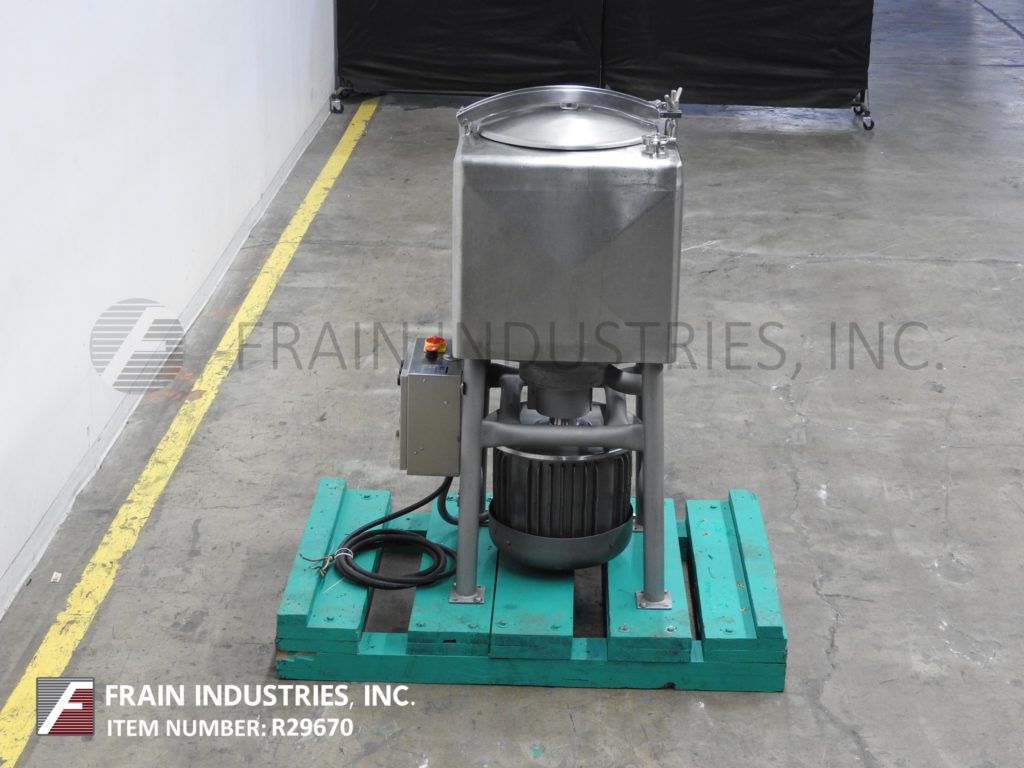

Breddo, Model LDT, 50 gallon, 304 stainless steel, single wall liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 25" x 25" x 22" straight wall. Equipped with 18" diameter top man way with flip up bolt down cover, (2) 2½" OD / 2" ID tri-clamp style top inlet ports, bottom 6 hole / 3 wing general purpose impeller with bottom 10 Hp motor drive. 3" OD / 2½" ID Tri-clamp side bottom discharge with 28" ground clearence. Mounted on stainless steel (4) leg tubular frame with casters.
OAD: 32" L x 28" W x 66" H

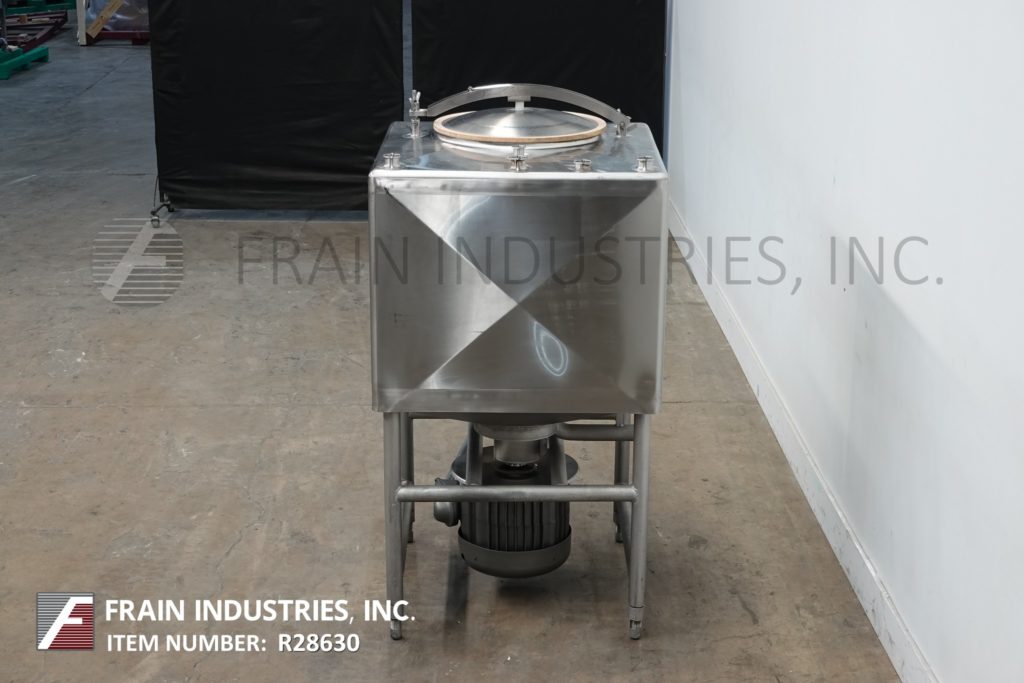

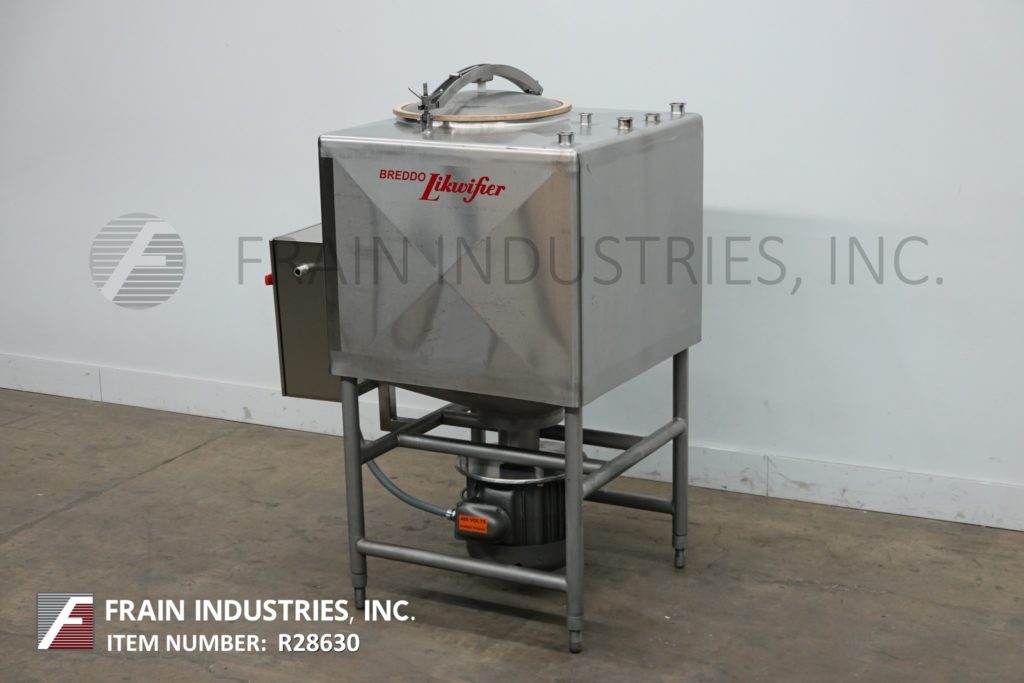

Breddo, Model LDT, 50 gallon 304 stainless steel single wall liquefier. Chamber dimensions: 24" x 24" with a 22" straight wall. Equipped with an 18" diameter top man way with flip up bolt down cover, bottom 6 hole / 3 wing general purpose impeller and 3" OD / 2½"ID Tri-Clamp side bottom discharge with 29" floor clearence with bottom 10 Hp motor drive. Mounted on stainless steel (4) leg tubular frame.
OAD: 34"L x 26"W x 82"H
Walker Model Liqui-Mixer, 750 gallon, 316L stainless steel construction high shear, jacketed liquefier with number of gallons of product per hour – depending on materials and application. Chamber dimensions: 63" in Length; 63" in Width; 47" straight wall; 27" sloped cone bottom. Equipped with 18" ID manway with flip top bolt down cover and 62" wide flip top cover. Cone bottom with 12" OD high shear 6 hole / 3 wing impeller and 3½" OD sanitary center bottom discharge port with 36" floor clearence and control box with start / stop push bottons. Mounted on stainless steel tubular base frame.
Top Ports:(3) 3½" OD / 3" ID Tri-clamp(3) 2½" OD / 2" ID Tri-clamp(2) 2" OD / 1½" ID Tri-clamp(1) 3" OD open vent
Jacket Access:(2) 2" NPT
MAWP: 40 PSI @ 250°F MDMT: -20°F @ 40 PSI
OAD: 99" L x 72" W x 106" H
Walker, Model MT-101, 100 gallon 316L stainless steel insulated liquefier with amount of product per hour – depending on materials and application. Chamber dimensions: 46" diameter x 32" deep with 19" straight wall. Equipped with 21" OD top man way with flip up bolt down cover, scrape agitation powered by 2 Hp motor drive, 6½" adjustable baffle, Thermowell, CIP spray balls, side and bottom jacketed, with 10" OD bottom 6 hole / 3 wing general purpose impeller powered by 20 Hp motor drive and 3" OD / 2½" ID Tri-clamp side bottom discharge with 24" floor clearence. Mounted on stainless steel (4) leg tubular frame.
Jacket Access:(4) 2"OD / 1½"ID Tri-clamp
Nat’l Brd:6571MAWP:150 PSI @ 338°FMDMT:-20°F @ 150 PSI
Cherry Burrell, 75 gallon 304 stainless steel, single wall liquefier. Chamber dimensions: 35" x 35" with 20" straight wall. Equipped with 24" OD top man way with flip up bolt down cover, bottom 6 hole / 3 wing general purpose impeller and 2½" OD / 2" ID sanitary side bottom discharge with 18" floor clearence, bottom side mounted 15 Hp motor drive. Mounted on stainless steel (4) leg tubular frame.
Top Access:(2) 2½"OD / 2"ID Tri-Clamp(1) 1"OD / ¾"ID Tri-Clamp(1) 3" OD Open Vent
OAD: 60"L x 35"W x 60"H

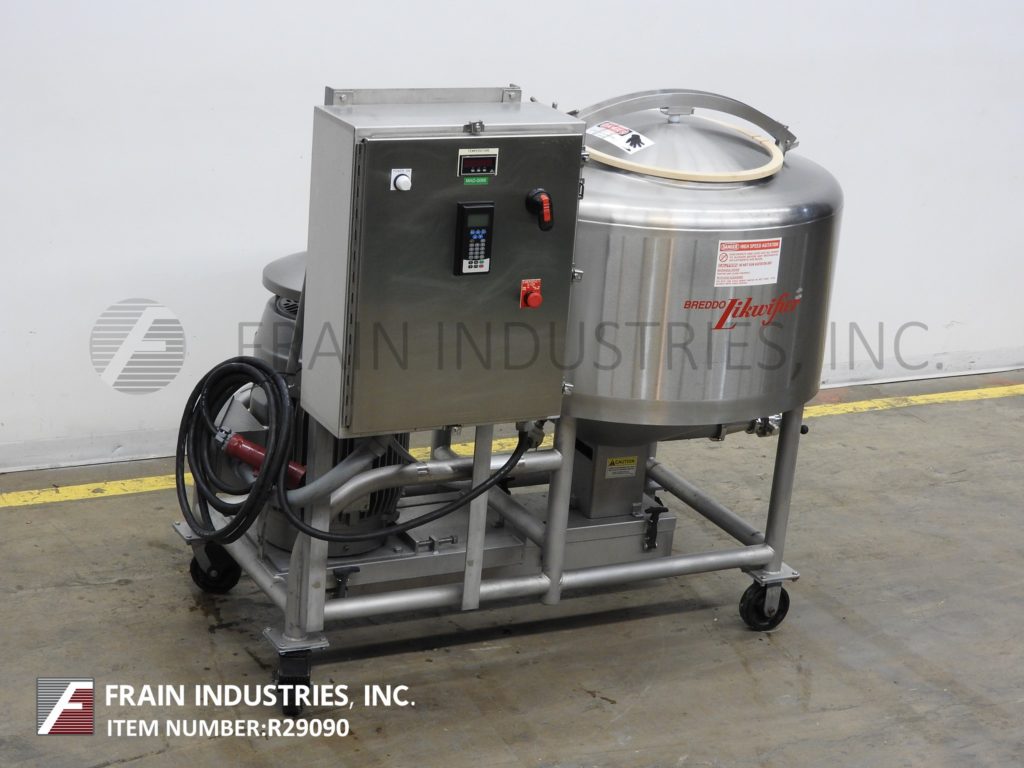

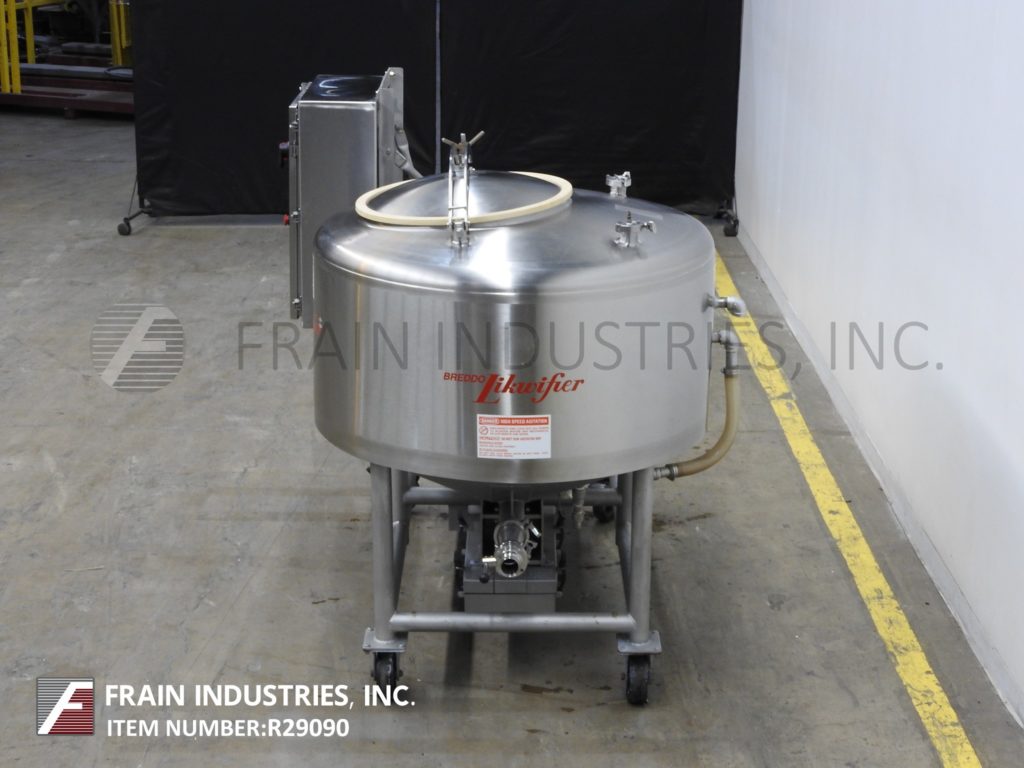

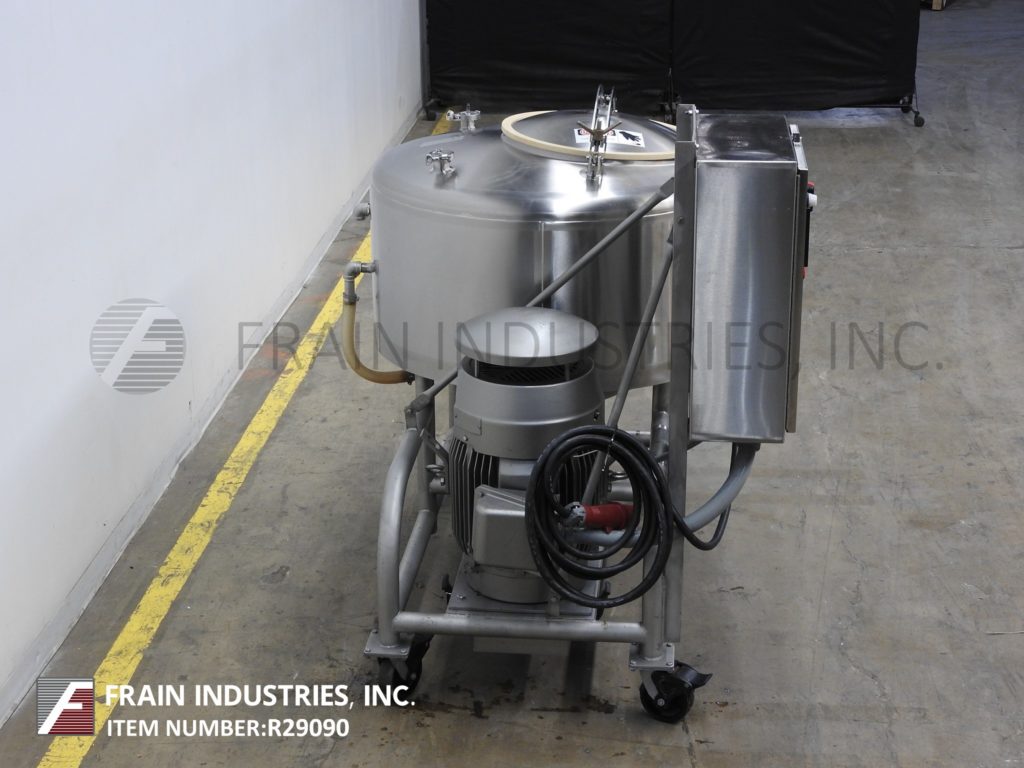

Breddo Model LOR, 100 gallon, stainless steel, jacketed, high shear liquefier with amount of product per hour – depending on materials and application. Equipped with 42" ID x 21" straight wall with 22" OD man way with flip top bolt down cover, (2) 2-1/4" OD threaded top sanitary ports. Full side and bottom jacket rated to 125 psi and has a temp rating up to 350 Deg F with (3) 2-1/2" OD threaded jacket ports. Bottom 10" OD 6 hole / 3 wing impeller with inside baffle and side mounted 50 Hp motor belt drive with bottom belt guarding and latch handles. Cone bottom has 2-1/2" OD / 2" ID side bottom butterfly discharge valve with 23" ground clearence. Control panel has a A/B Powerflex vari freqency controller with touchpad and temperature controls, start and e-stop push buttons. Mounted on stainless steel tubular style frame with casters.
OAD: 77" L x 60" W x 66" H
Breddo, Model LDT, 200 gallon 304 stainless steel liquefier. Chamber dimensions: 40" x 40" with 33" straight wall. Equipped with 24" OD top man way with flip up bolt down cover, (1) CIP spray ball supplied by a 2"OD / 1½"ID Tri-clamp fitting, bottom 6 hole / 3 wing general purpose impeller and 3" OD / 2½" ID sanitary side bottom discharge with 24" floor clearence, bottom 25 Hp motor drive. Mounted on stainless steel (4) leg tubular frame.
Top Access:(5) 2½"OD / 2"ID Tri-Clamp
OAD: 40"L x 40"W x 75"H
Breddo, Model LDDW, 250 gallon 304 stainless steel jacketed and insulated liquefier. Chamber dimensions: 45" x 45" with a 32" straight wall. Equipped with a 23" x 23" top man way with flip up cover, CIP spray ball supplied by a 2"OD / 1¼"ID Tri-clamp fitting, bottom 6 hole / 3 wing general purpose impeller, 2½" OD/2"ID Tri-Clamp side bottom discharge with 34" floor clearance and bottom two speed 25/12 Hp motor drive. Mounted on stainless steel (4) leg tubular frame.
Top Access:(1) 2½"OD / 2"ID – Tri-clamp(2) 2"OD / 1¼"ID – Tri-clamp
Jacket Rating:90 PSI @ 350 F
Jacket Access:(2) 1½" NPT
OAD: 59"L x 52"W x 90"H
