Walker Mixer Liquid Liquefier 750 GAL,LIQUI-MIXER

  Back to All Equipment

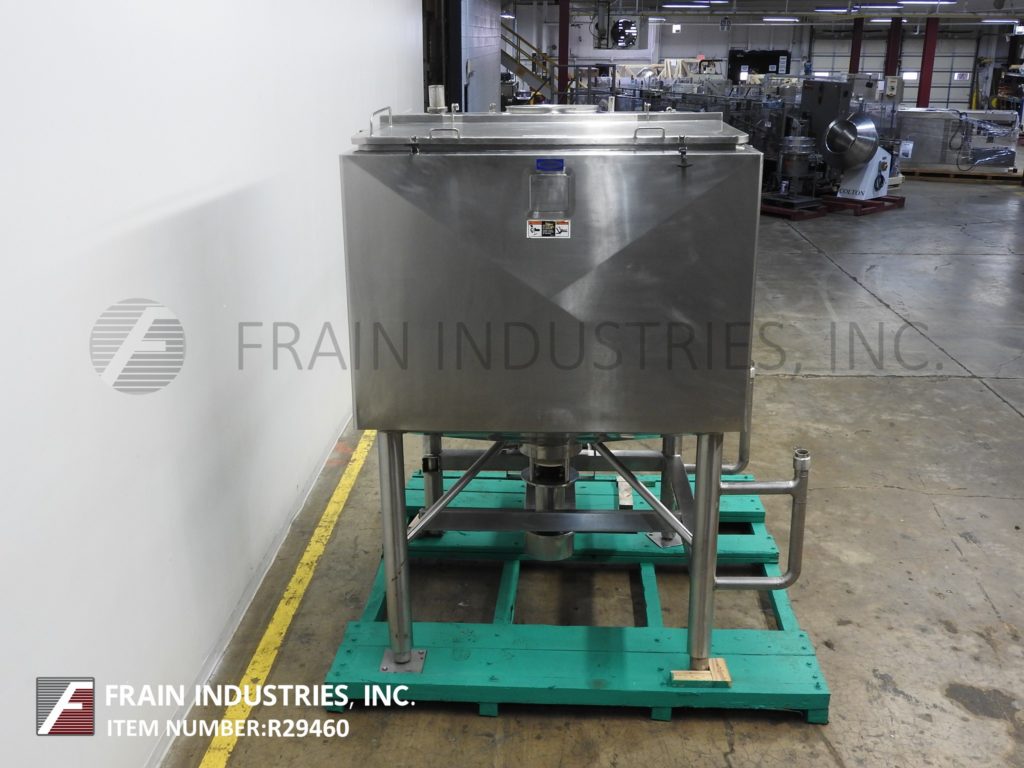

Walker, Model Liqui-Mixer, 750 gallon, 316L stainless steel construction high shear, jacketed liquefier with number of gallons of product per hour – depending on materials and application. Chamber dimensions: 63" in Length; 63" in Width; 47" straight wall; 27" sloped cone bottom. Equipped with 18" ID manway with flip top bolt down cover and 62" wide flip top cover. Cone bottom with 12" OD high shear 6 hole / 3 wing impeller and 3½" OD sanitary center bottom discharge port with 36" floor clearence and control box with start / stop push bottons. Mounted on stainless steel tubular base frame.

Top Ports:
(3) 3½" OD / 3" ID Tri-clamp
(3) 2½" OD / 2" ID Tri-clamp
(2) 2" OD / 1½" ID Tri-clamp
(1) 3" OD open vent

Jacket Access:
(2) 2" NPT

MAWP: 40 PSI @ 250°F
MDMT: -20°F @ 40 PSI

OAD: 99" L x 72" W x 106" H
