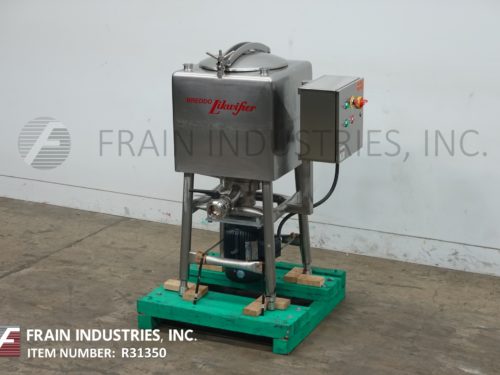

Photo of Breddo Mixer Liquid Liquefier LOR
Thumbnail of Breddo Mixer Liquid Liquefier LOR Thumbnail of Breddo Mixer Liquid Liquefier LOR Thumbnail of Breddo Mixer Liquid Liquefier LOR Thumbnail of Breddo Mixer Liquid Liquefier LOR

Breddo Mixer Liquid Liquefier LOR

  Back to All Equipment
Get a Free Quote

Breddo, Model LOR, 100 gallon 304 stainless steel single wall liquefier. Chamber dimensions: 43" diameter with 18" straight wall. Equipped with 24" OD top man way with flip up bolt down cover, bottom 6 hole / 3 wing general purpose impeller powered by a 40 hp drive, 3-3/4" OD / 3" ID Tri-clamp side bottom discharge and 17" floor clearence. Mounted on (6) leg frame.

Top Access:
(1) 2"OD / 1-1/2"ID Tri-Clamp
(3) 3"OD / 2-1/2"ID Tri-Clamp

OAD: 71"L x 41"W x 67"H (Tank Assembly)
12"L x 31"W x 59"H (Control Cabinet)
