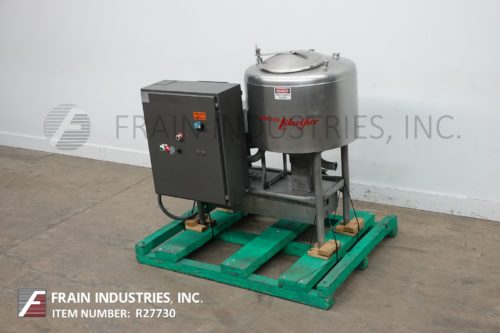

Photo of Breddo Mixer Liquid Liquefier LOR

Breddo Mixer Liquid Liquefier LOR

  Back to All Equipment

Breddo Model LORW, 50 gallon, 316L stainless steel high shear, jacketed liquefier with amount of product per hour – depending on materials and application. Equipped with 32" ID x 20" straight wall with 13" sloped bottom, 18" ID man way with flip top bolt down cover, (2) 2-1/2" OD / 2" ID and (1) 2"OD / 1-1/2" ID top sanitary ports. Low pressure jacket with (2) 2" OD / 1-1/2" ID threaded jacket ports and side temperature gauge with 10" OD bottom 6 hole / 3 wing impeller and side mounted belt motor drive. Cone bottom has 3" OD / 2-1/2" ID side bottom discharge with 25" ground clearance. Control panel has speed pot dial, mixer start, stop and e-stop push buttons. Mounted on tubular style base frame.

OAD: 48" L x 36" W x 64" H
