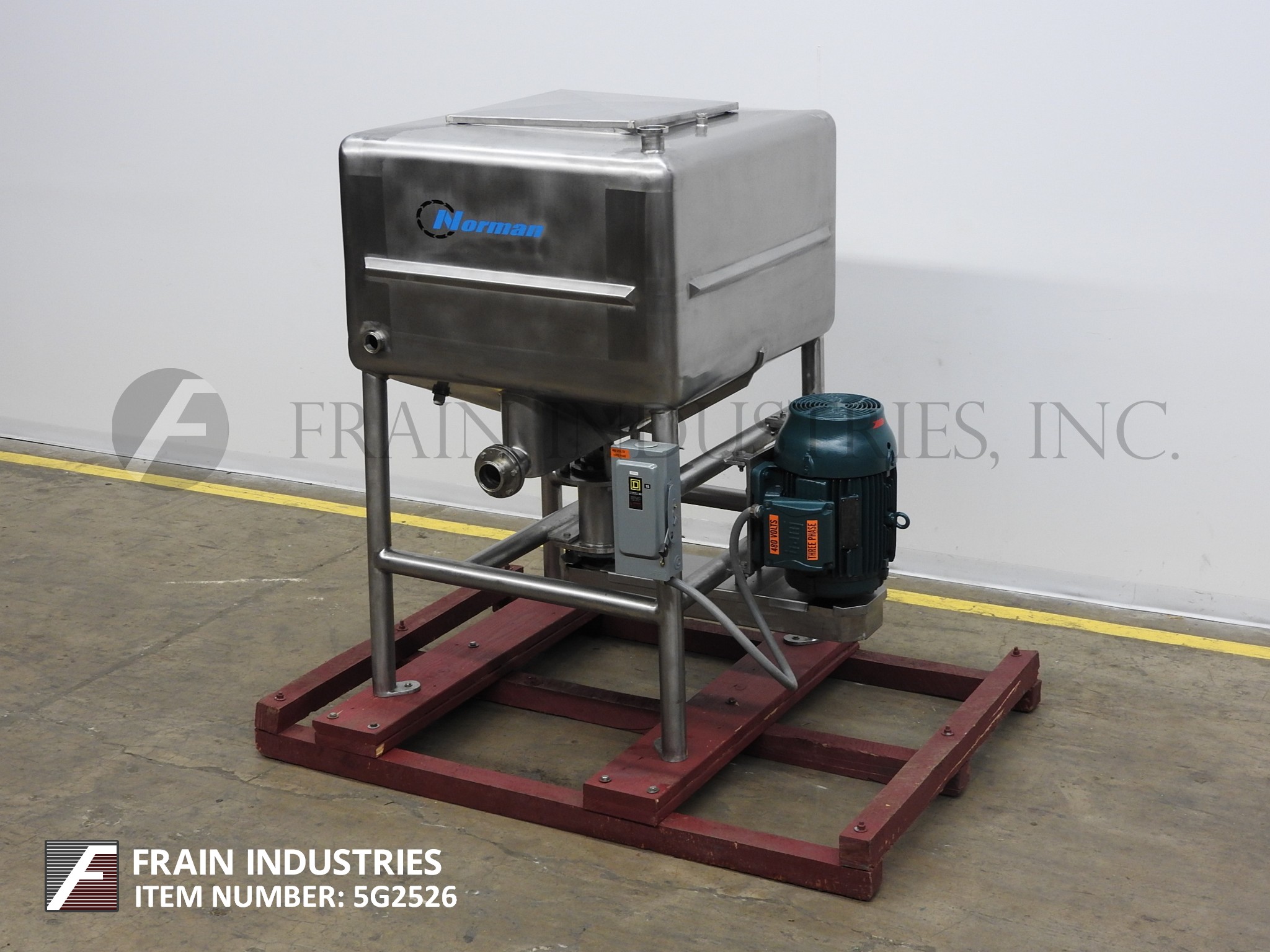

Photo of Norman Mixer Liquid Liquefier BDSL200

Norman Mixer Liquid Liquefier BDSL200

  Back to All Equipment

Norman 200 gallon, 304 stainless steel, high shear, single wall, rectangular shape liquefier. Chamber dimmensions: 42" in Length; 42" in Width; 26" straight wall; 18" sloped cone bottom with 36" total depth. Equipped with 24" x 24" ID top manway and (1) 2-1/2" ID sanitary, (1) 1" ID threaded top ports. (1) 2-1/2" OD sanitary side port, and (1) 1" ID threaded bottom port. Cone bottom, 6 hole / 3 wing high shear impeller and 3-1/2" OD sanitary side bottom discharge port with 31" floor clearence, 25 Hp side mounted belt driven motor drive and mounted on (4) leg stainless steel tubular base frame.

OAD: 63" L x 48" W x 69" H
