Home » Mixers - Paste Mixing » Horizontal
Mixer Paste Horizontal are heavy duty batch mixers with a variety of mixer blades from Z Sigma type to double or single bars used in the preparation of paste type of stiff products mixers are equipped with jackets for temperature controls for cooking or cooling. Product is measured and dumped into the top of the horizontal paste mixer with closable lids. Horizontal paste mixer systems are designed to rotate the mixer body to facilitate product removal and dumping. Another version of the horizontal paste mixer is a continuous mixer where products are metered continuously into the mixer and the products for stiff and difficult to handle paste type of products are formed and conveyed along.
3 Cubic foot, 316 stainless steel, continuous horizontal mixer / dryer / heater / cooler. Chamber dimensions: 96" in Length: 12" in Width; 17" in Depth. Equipped with a pair of 4" diameter by 96" long counter rotating stainless steel hollow shafts paddle agitators. Jacketed chamber and shafts rated to 150psi @ 366°F. Able to utilize temperature transfer medium of: steam; oil; thermal fluid; water; glycol. Features 1-3/4" and 7" diameter sanitary top inlets, (2) 4-3/4" diameter top side inlets, 6" long x 6" wide end bottom discharge, e-stop, (4) removeable top mounted Lexan panels. Powered by 5 hp motor. Volumes / rates dependent on materials, application and machine configuration.
OAD: 160" L x 24"W x 34" H
3 cu ft, 316 stainless steel, horizontal, mixer, dryer, heater, cooler with volumes per hour – depending on materials and application. Equipped with 96" Long x 12" Wide x 17" Deep mixing chamber with 4" OD x 96" Long dual counter rotating stainless steel hollow shafts with hollow intermeshing paddles. Full jacket and hollow shafts and paddles rated to 100psi @ 250°F, the hollow dual counter rotaing shafts and paddles are used for precise control of temperature, heat transfer, residence time, and high thermal efficiency. Heat transfer medium, of steam, oil, thermal fluid, water, or glycol is isolated from the process mass. 1-3/4" and 7" diameter sanitary top inlets, (2) 4-3/4" diameter top side inlets, 6" long x 6" wide end bottom discharge, e-stop, (4) removeable top mounted lexan panels and powered by 5 hp UL motor drive.
OAD: 157" L x 31" W x 37" H
Oakes, stainless steel continuous mixer/blender combination with throughputs of 50 to1000 lbs per hour, filling up to 40% dry material – depending on materials, application and machines configuration. Equipped with Oakes feeder and has 16-1/2" x 16- 1/2" feed throat, 1-3/4" OD screw shaft with 2-3/4" product discharge. Blender has 8-1/2" L x 6" W x 13- 1/4" D feed throat, 2" OD shaft, 2" threaded inlet, 1- 1/2" threaded outlet, 6" diameter disc and a AC tech variable speed motor drive. Mounted on (4) leg frame.
OAD: 70" L x 56" W x 72" H
Cornell, Model D16, Variable speed "Versator" rated from 1 to 20 gallons per minute – depending on materials, application and machine configuration. 316 stainless steel contact parts (No. 4 Polish). Equipped with 16" ID disc, rotation rated from 1200 to 3220 rpm, with 2" OD / 1½" ID Tri-Clamp side chamber in feed and discharge product ports, 2½" OD / 2" ID Tri-Clamp top vacuum port, pressure gauge and 2" OD / 1½" ID Tri-Clamp bottom drain. Clamp down cover with 4" ID sight ports and 7½ Hp motor drive with variable speed gear reducer and pressure guage. Mounted on a heavy duty base.
Product flows thru a film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used for despersion and deaeration of food, cosmetic, pharmaceutical and chemical products.
OAD: 72" L x 48" W x 60" H
Cornell Model D26, "Versator", deaerator, with vacuum system rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials, application and machine configuration. Equipped with a 26" diameter product rotating disc, (2) 2" NPT side chamber product charge and discharge ports, (1) 1½" NPT top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has (2) 7¼" OD / 3½" ID front flanged sight ports, 15 Hp (4) belt to motor main drive with safety guarding and Stokes Model 148H-9 2 hp vacuum system with (2) 1¾" NPT fittings. Mounted on a 72" long x 49" wide base platform frame.
Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.
OAD: 72"L x 52"W x 75"H
Stephan Machinery, Model TK150, 150 liter or 39 gallon drum capacity, horizontal mixer rated up to 800 kg of product per hour – depending on materials and application. All stainless steel contact parts. Filling volumes of 30 litres minimum and 100 litres maximum. Chamber dimensions: 22" in Length x 20" in Width x 23" in Depth, with single arm mixing bar. steam injection port, 23" ID hinged swing open lock down front cover with side scrape attachment and 16" x 12" top lock down cover. Control panel has mixing, emptying, closed, start, open, mixing baffle, discharge slide and stop push buttons controls with e-stop. Mounted on painted frame with locking casters.
OAD: 80" L x 36" W x 48" H

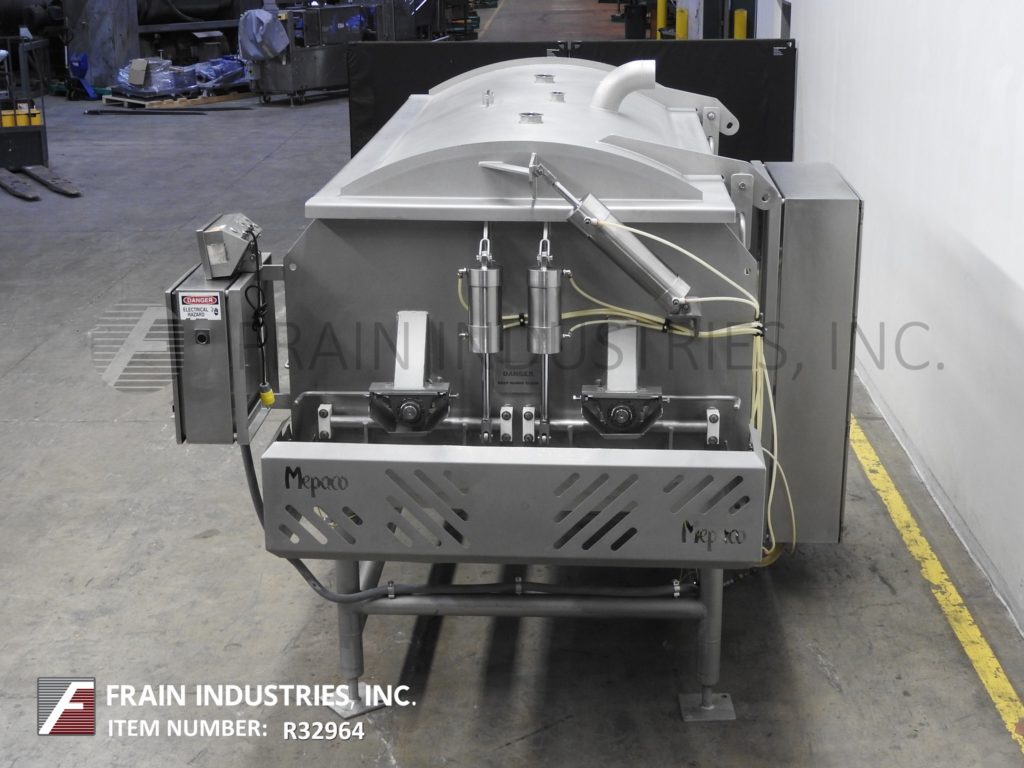

Mepaco, Model 170, T304 stainless steel, 1/2 steam dimple jacketed, dual trough, therma blend cooker, rated to 5000 pounds of product of per batch with amounts per hour – depending on materials and application. Trough dimensions: 102" in Length; 27" in Width; 36" in Depth each trough and set on 27" centers. Equipped with pnuematic lift up top cover and safety grid, double overlapping non-scraping ribbons with steam injection agitaor shafts, powered by (2) 10 Hp motor drives, with safety shrouds, 1/2 dimple steam jacket with MAWP: 90psi @ 375 Deg F and MDMT -20 Deg F @ 90psi with (4) 1-1/2" jacket ports (2) each side and shroud safety guarding has dual pneumatic end gate flip up discharges with 40" ground clearance. Control panel has Allen Bradley PLC, controller with Allen Bradley PanelView touchscreen controls and push button e-stop. Mounted on heavy duty stainless steel frame with leveling legs. ASME Coded and National Board # 2618
OAD: 144" L x 90" W x 89" H

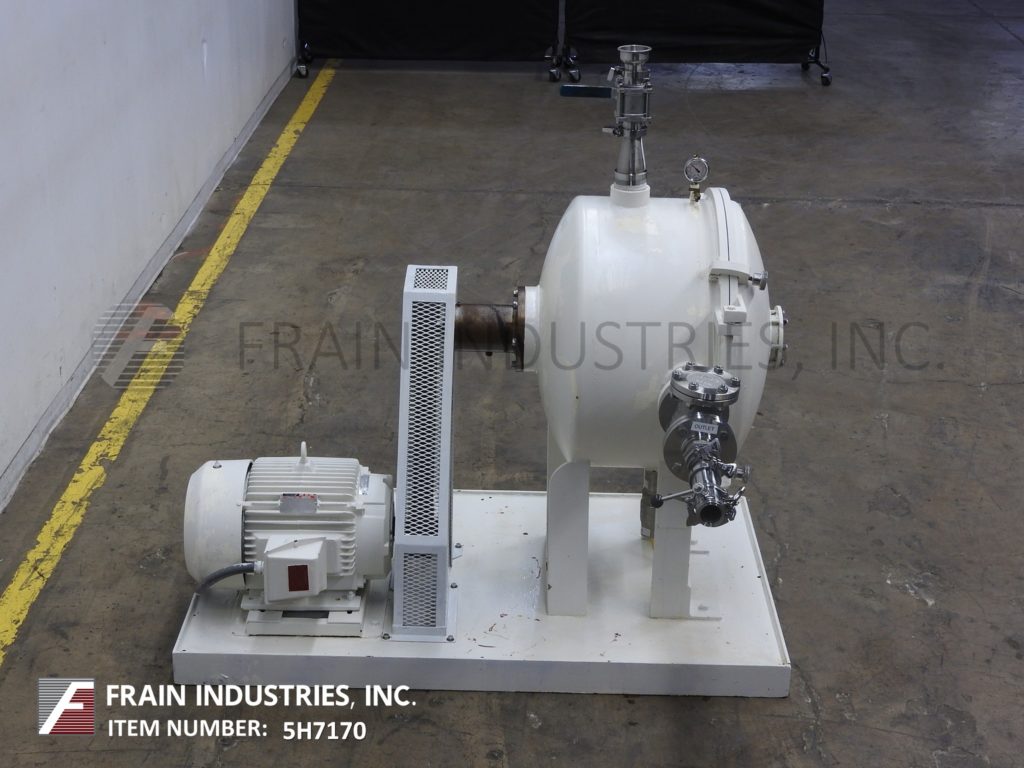

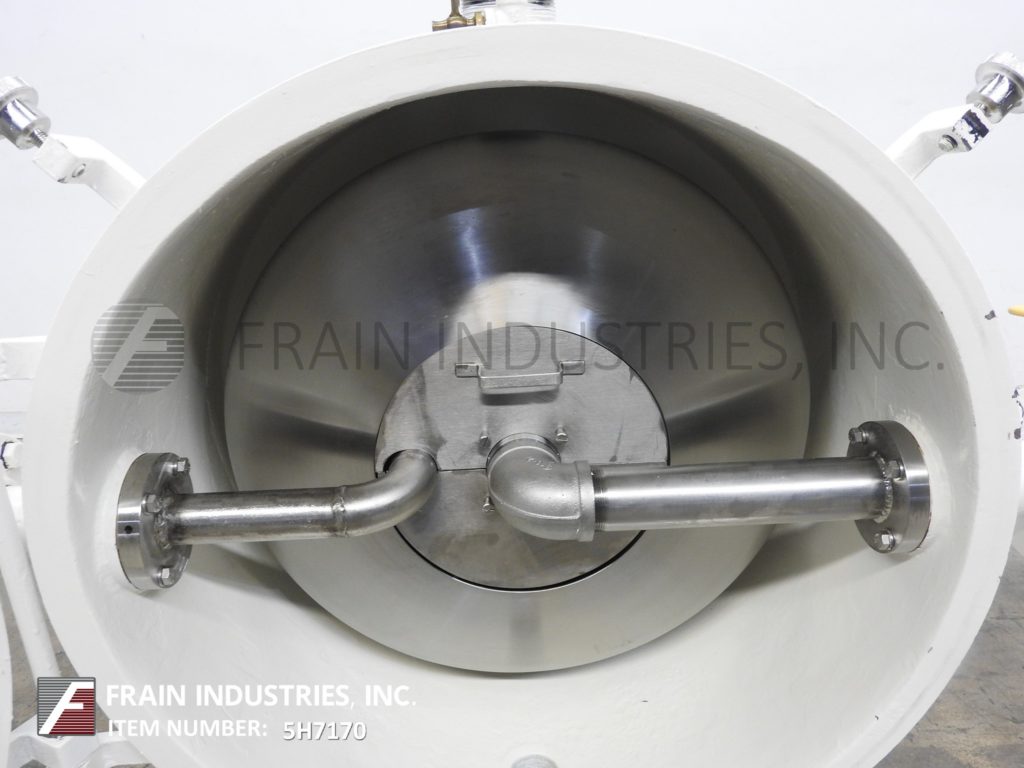

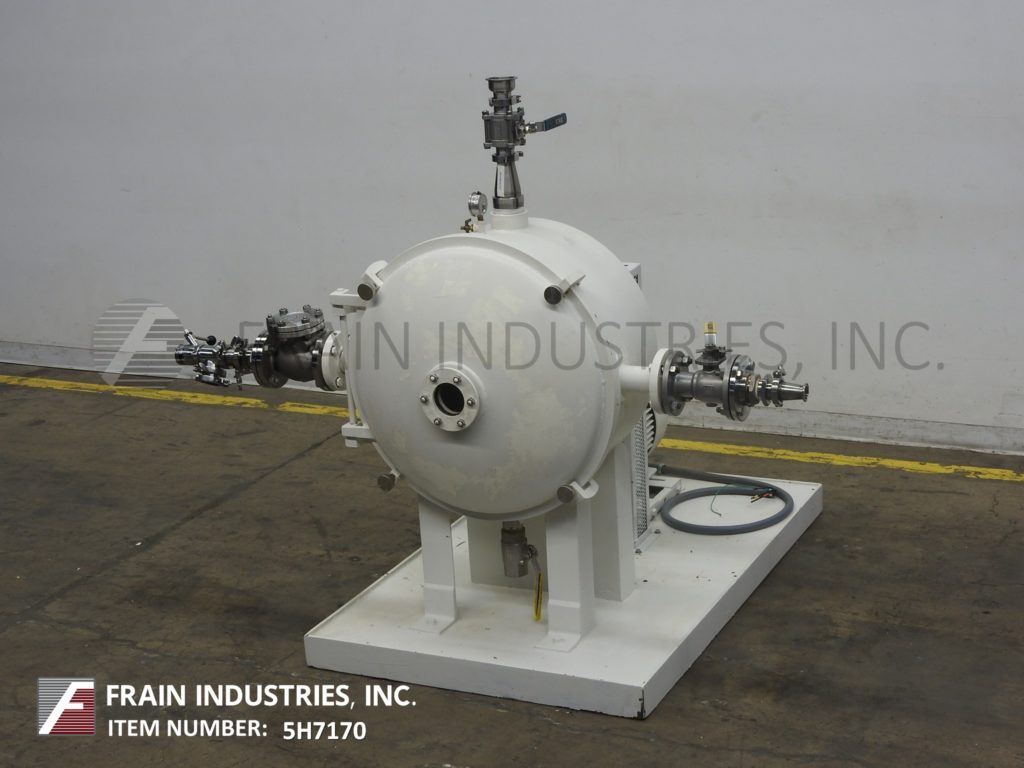

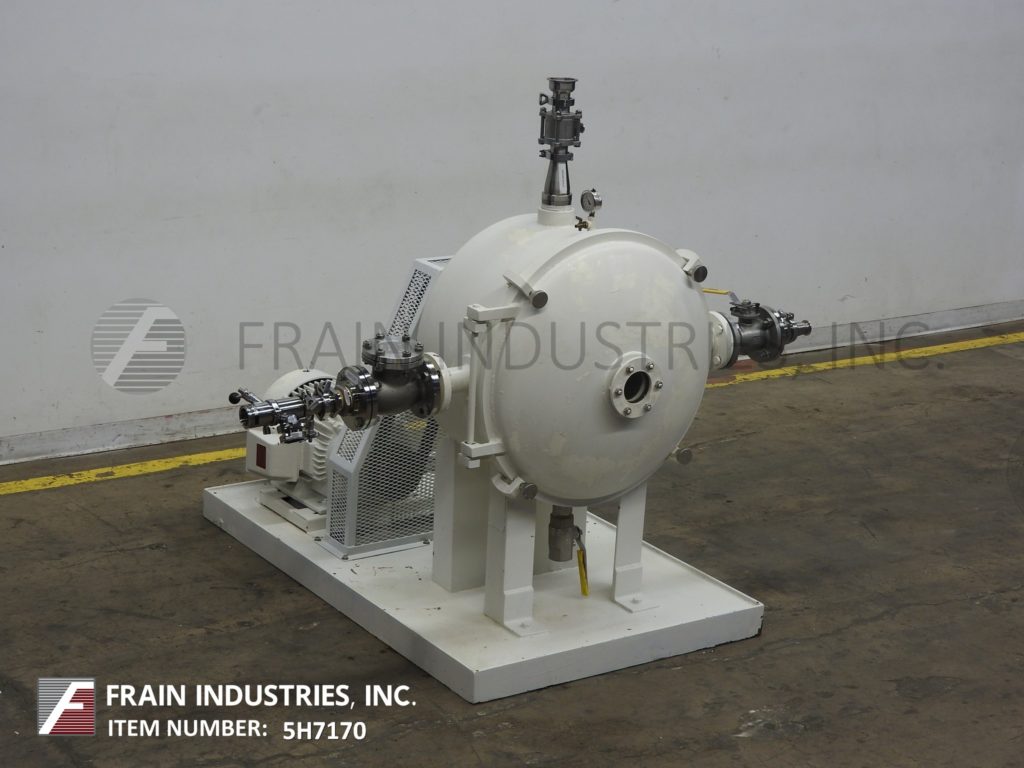

Cornell, Model D26, "Versator", deaerator, rated from 5 to 125 gallons and 1000 to 3200 rpm per minute – depending on materials and application. Equipped with 26" OD product rotating disc, (2) 2" ID flanged side chamber product charge and discharge ports, (1) 2½"OD / 2"ID Tri-clamp top vacuum port, pressure gauge and 2" NPT bottom drain. Swing open bolt down door has 4" ID front sight port, 25 Hp (3) belt to motor main drive. Mounted on 66" long x 42" wide platform base.Operation: Product flows thru film forming ring out and then over the surface of rotating disc where the dispersion and deaeration action occurs, used in food, cosmetic, pharmaceutical and chemical applications.
OAD: 66"L x 42"W x 65"H

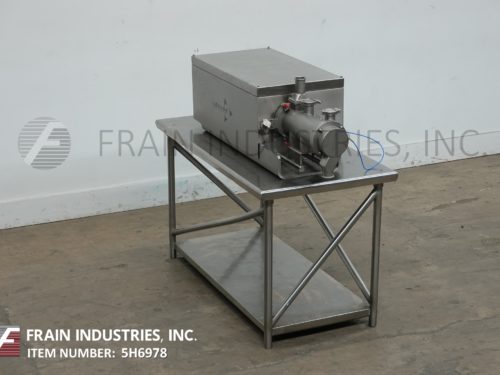

Lodige, Model KM5, 0.14 ft³, stainless steel mixer. Chamber dimensions: 4¾" diameter x 14" long. Equipped with (28) plows on 2½" diameter shaft, flush mount sensor and 2½" OD / 2"ID triclamp charge and discharge with 36" ground clearance. Mounted on a 60" long x 30" wide stainless steel table.
OAD: 65"L x 30"W x 52"H
Votator, Model CR-6, stainless steel jacketed paste mixer rated up to 65 cubic inches volume with gallons per minute – depending on materials, application and machine configuration. Continuous mixing, blending, dispersing and whipping. Equipped with 5½" OD rotor, 1½" OD / 1" ID seated bevel style inlet and 1½" OD / 1" ID seated bevel discharge with 21" ground clearance. Powered by 5 Hp motor drive with variable speed gearbox.
OAD: 40"L x 20"W x 28"H

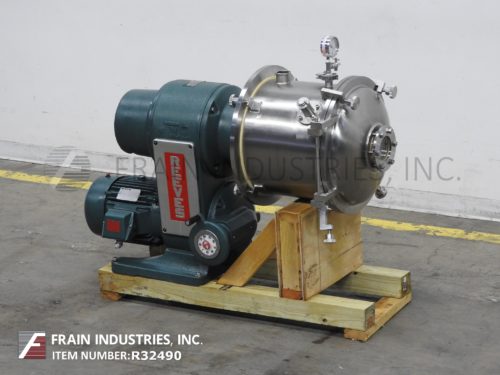

Cornell, Model D16, "Versator" with mechanical drive. Rated from 1 to 20 gallons of product per minute – depending on materials and application. Polished sanitary 316 stainless steel contact parts. Equipped with 16" ID product rotating disc, with (2) 2" OD / 1½" ID Tri-Clamp side chamber in feed and discharge product ports, (1) 2½" OD / 2" ID top vacuum port, pressure gauge and 2"OD / 1½"ID Tri-Clamp bottom drain. Swing open clamp down door has 4" OD sight port and 7½ Hp motor drive with variable speed gearbox for an output of 1313 to 3940 rpm.
Operation: Product flows thru film forming ring and then over the surface of rotating disc where the dispersion, deaeration or defoaming action occurs and removal of entrapped air, foam, or gas from liquids under high vacuum.
OAD: 58"L x 26"W x 40"H

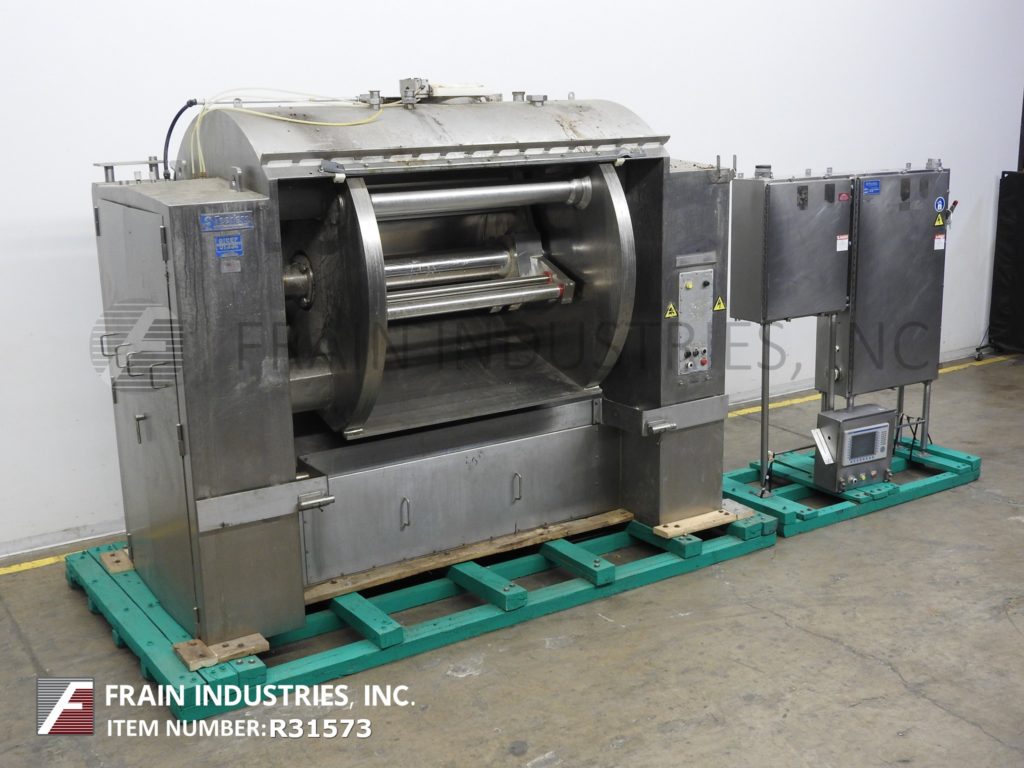

Peerless Model HS24FD, high speed, (3) roll bar, dough mixer rated up to 2400 lbs or 1090 kgs of product per batch with total pounds of product per hour – depending on materials and application. Designed to BISSC standards with stainless steel exterior, bowl sheet, bowl ends, triple-roller bar, jackted for glycol max 235 PSI, agitators and canopy all for sanitation purposes. Equipped with tilt style mixing bowl and has internal dimensions of: 56" in Length; 52" in Width; 54" in Depth. (3) 46" long x 3-1/2" OD Outer and (3) 46" long 2" OD solid inner stainless steel fabricated roller bars, with hydraulic tilt mechanism up to 120 Deg forward and top pneumatic butterfly valve flour gate and (2) liquid inlets with flour dust vent and 125 Hp motor drive. Remote control panel has PLC controller with touch pad and panelview, power and mixer on, raise / lower bowl, mixer jog, mixer start, stop with e-stop push button controls. Mounted on heavy duty stainless steel bolt down frame. Ideal for mixing breads, rolls, buns, flour tortillas, croissants, bagels, pizza and english muffins.
OAD: 144" L x 60" W x 92" H
