Home » Mixers - Paste Mixing » Single Arm
Magna, Model 300L-2D1, 304 stainless steel single arm sigma style mixer. Working capacity of 10½ ft³ (480 lbs) and chamber dimensions of : 28" in Length; 28" in Width; 32" in Depth. Equipped with sigma mix arm, 15 / 7½ HP dual speed drive and motorized tilt discharge. Control panel has touch screen controller and e-stop. Mounted on heavy duty stainless steel frame. Used for gentle, thorough mixing of heavy breads, cookie dough and specialty products.
OAD: 70"L x 35"W x 68"H

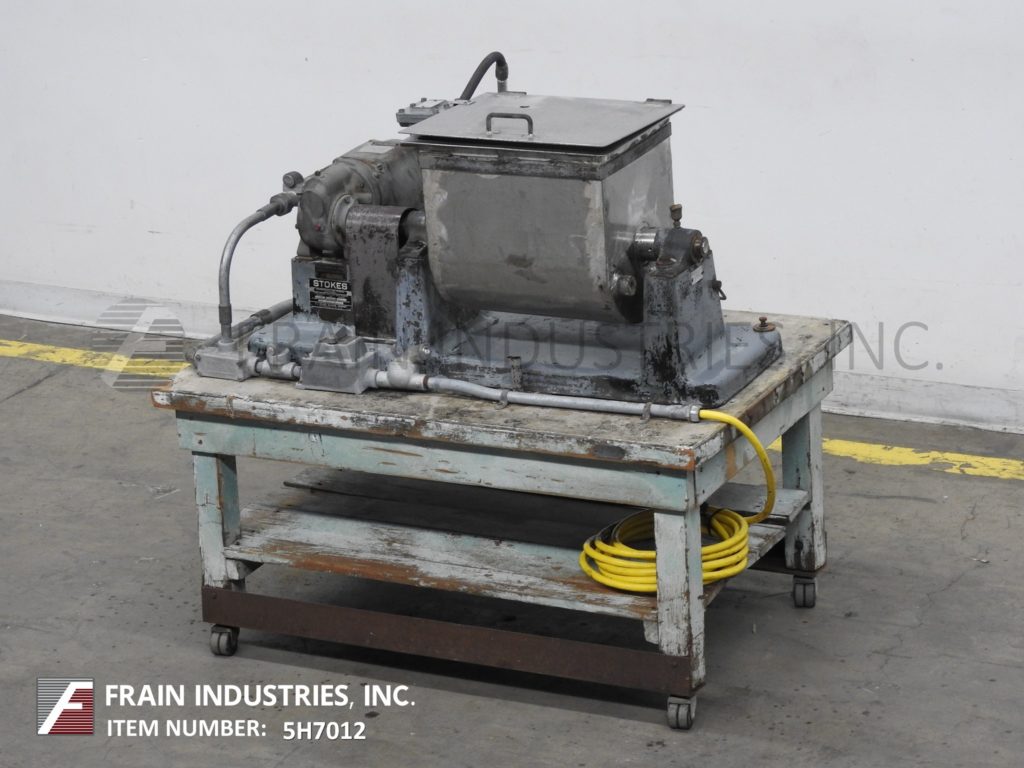

Stokes, 1.3 ft³, 316 stainless steel single sigma mixer with pounds of product per hour – depending on materials and application. Chamber dimmensions: 15" in Length x 12" in Width x _15" in Depth with flip top cover, 2" OD center shaft with 1½" wide x ¾" thick single ribbons powered by a ¼ hp drive. Mounted on a push cart base with tilt discharge and 24" floor clearence.
OAD: 48"L x 30"W x 45"H
Stokes single arm, 304 stainless steel, sigma style mixer with working capacity of up to 4.7 ft³. Chamber dimensions: 27" in Length; 22" in Width; 27" in Depth, Equipped with single sigma mix arm, hinged cover, 3 hp motor drive and hand crank tilt discharge. Control panel with push button start / stop.
OAD: 60"L x 30"W x 60"H
Patterson, 17 cu ft (130 gallon) working, 316 stainless steel, single arm mixer. Inside bowl dimensions: 36" Long x 33" Wide x 34" Deep. Equipped with flip top cover and tilting discharge. Dual speed: HI / LO. Equipped with power tilt.
OAD: 104" L x 54" W x 88" H
4.7 cu ft, This 4.7 Cu Ft (36 Gals) Working Capacity Unit Complete With 2-1/4" Horizontal Shaft With 22" Dia X 27"L X 28" Deep Chamber. All 304 S/S Contact Parts. Belt Driving Mechanism Is Enclosed Protecting All Parts From Dust. Push Botton Start/Stop Contol With Jog Botton For Control Of The Agitator When Dumping. A Tilt Style Base Mounted Unit.
OAD: 53" L x 32" W x 56" H
