The process for vertical paste type mixers are usually a batch operation where materials are fed into the mixer along with appropriate liquids and allowed to mix for the consistency required for making the products.
Materials are discharged out of the bottom of the mixer and pumps are used to facilitate removal of this normally stiff products. There are also vertical paste mixers that can be used in a continuous manner to enable dry powders to be metered into the mixer and the appropriate liquids are also metered into the mixer to achieve the required consistency.
700 Liter, 304 stainless steel processing vessel. Fully jacketed, Jacket rated to 45 psi and vacuum rated. Three independent mixing / blending devices: side wall scraper, high shear disperser and an adjustable homogenizer / colloid mixer. Dome top with lock down cover and pneumatic lift , 9" diameter port, 5-1/2" diameter sight port, and 2-1/2" top inlet. Dish bottom with 3-1/2" diameter center bottom discharge at 16" floor clearance. Control panel for disperser, colloid homogenizer mill and side scraper.
OAD: 128" L x 65" W x 94" H
Oakes Model 60SMV751, Stainless steel, continous motion, slurry mixer and transfer system rated up to 440 gallons or 2,000 lbs of product per load with 15 minutes or less mix times – depending on materials, application and machine configuration. Equipped with 60" ID x 36" straight wall stainless steel product mix tank with pnuematic flip up cover and magnetic safety switch with (2) stationary pull out stator assemblies one each side and inner rotating mixing blades with bottom platform mounted motor drive. Waukesha Model 200U1PD transfer pump has 4½" OD / 4" ID inlet / outlets ports with twin wing rotors, O-Ring seals, 10 Hp motor drive to ensure quick and total transfer of product and now mixer is ready to receive another batch. Control panel has A/B controller and panel view with digital readout, rotor, pump and e-stop push button controls. A/C starter package and A/B poweflex VFD. Mounted on 102" long x 79" wide stainless steel platform with legs.Ideal for icing, frosting, slurries and more.
OAD: 104" L x 79" W x 108" H
Amf Glen, Model 74-36, dough mixer – with pounds of product per hour – depending on materials, application and operator dexterity. Equipped with four wing beater agitation, 340 qt bowl, variable speed gearbox, timer dial, push button start/stop and push button bowl up / bowl down.
OAD: 85"L x 51"W x 82"H

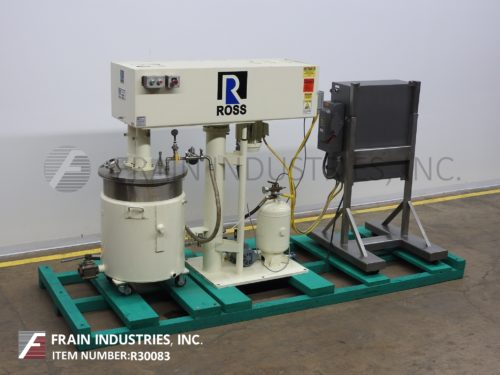

Ross Model CDA50 vertical jacketed mixer with gallons of product per hour – depending on materials and application. 304 stainless steel with 65 gallon total and 50 gallon working capacities. Equipped with full vacuum up to 29.50 Hg, jacketed pressure rated up to 100 psi. with variable high speed, independently driven, high speed hear homogenizing and scrape surface agitation. Has 3-1/4" sight port, temperature probe and 2" ball valve discharge and vacuum pump. Start, stop and e-stop push button controls.
OAD: 92" L x 36" W x 74" H

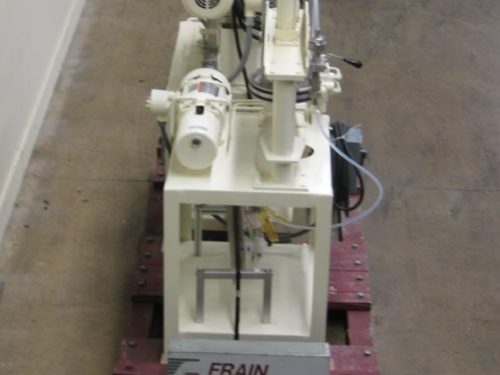

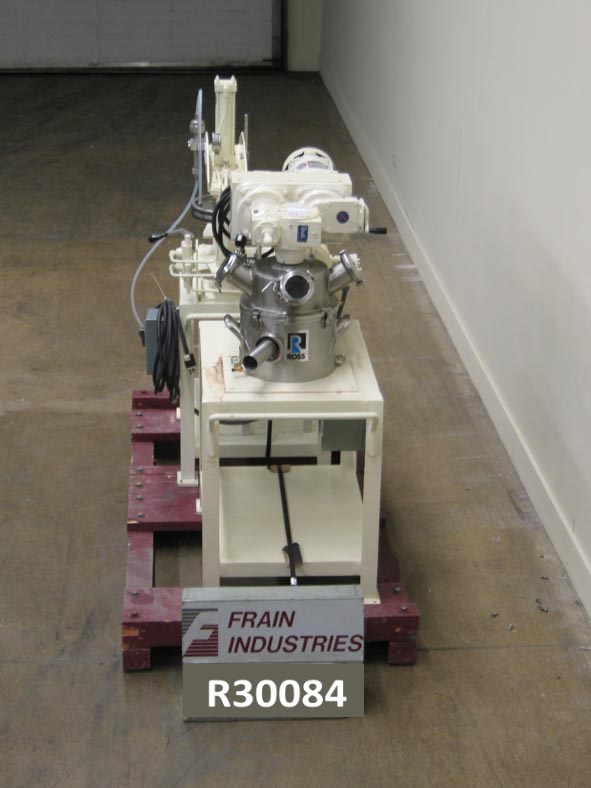

Ross Model LDM2, 2 gallon, jacketed, double planetary mixer with orbital speeds from 20 to 100 rpm and pounds of product per hour – depending on materials and application. Equipped with 100 psi steam jacket and vacuum cover rated up to 29" Hg vacuum, model DS-2 hydraulic discharge press, (2) 3/4" ID threaded vacuum ports, vacuum gauge, (2) 3" inlets/sight glasses, safety switch, temperature probe and Sterling variable speed gear reducer. Mounted on base frame with casters.
OAD: 42" L x 22" W x 56" H

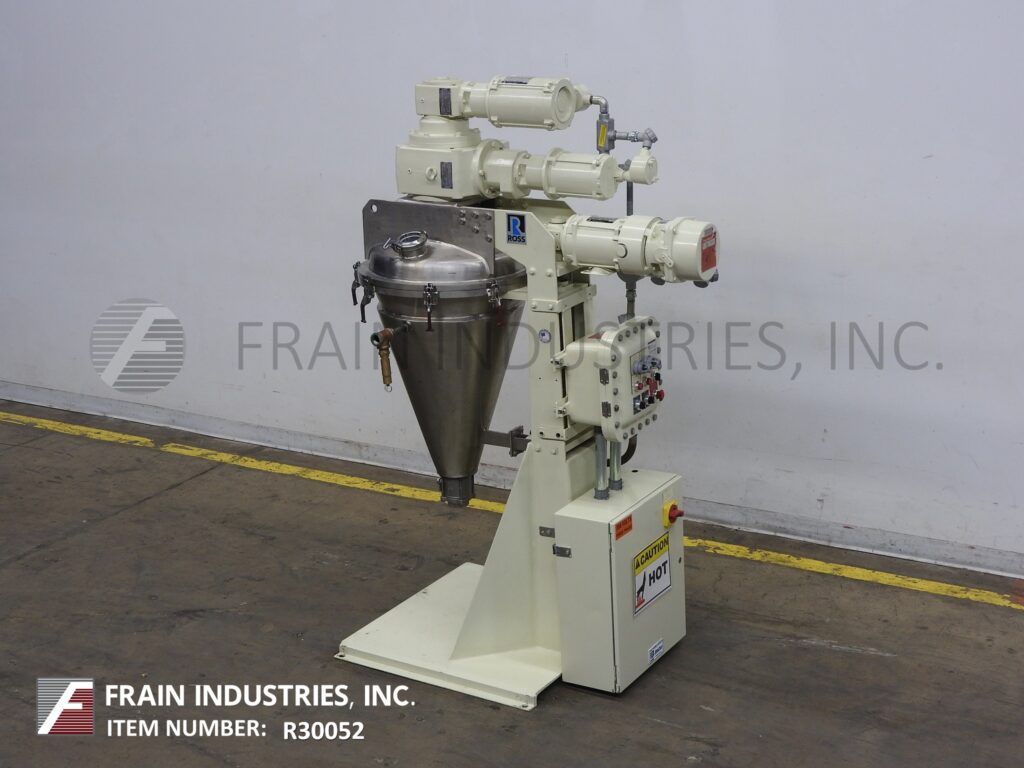

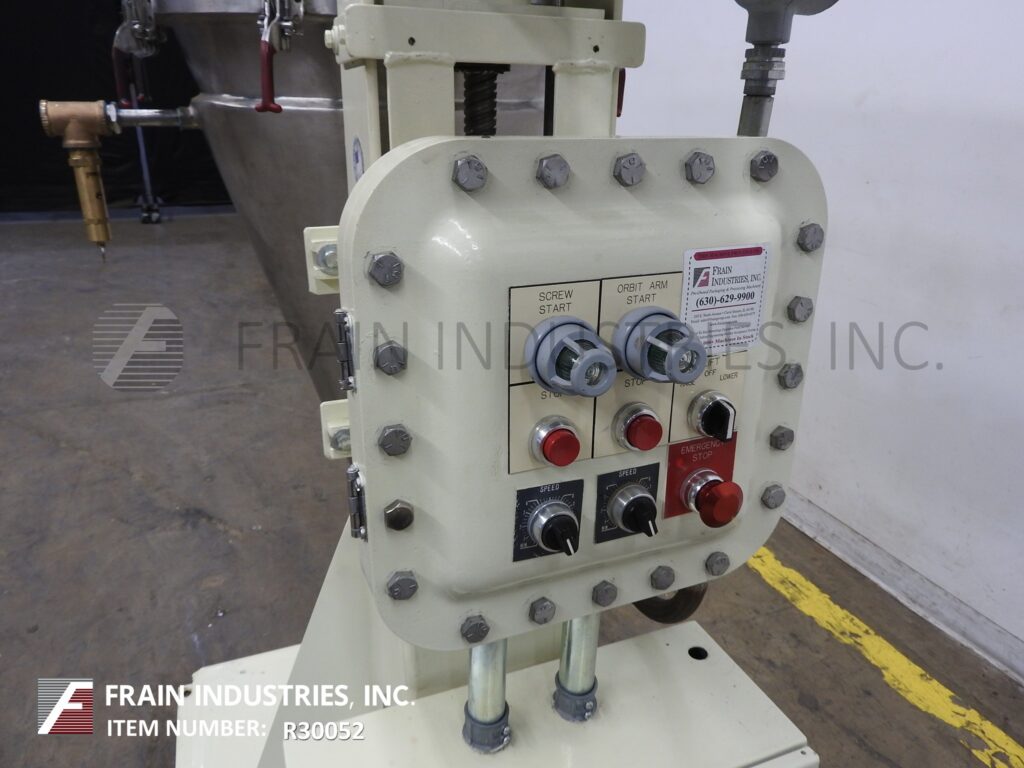

Ross, Model VB-001, 1 ft³, 304 stainless steel, jacketed and vacuum rated, vertical cone blender. Vessel dimensions: 22" top diameter; 29" deep cone. Equipped with a clamp down cover, electric cone lift powered by a ½ hp drive, (1) 3¾"OD / 3"ID I-Line style charge port, (1) 2¾"ID sight glass, dual action Nauta mixer with .33 hp arm drive / ½ hp screw drive and 2" NPT bottom discharge valve with 17" clearance (with cone in the up position). Control panel with independent push button start / stop and variable speed control dials for orbital arm and screw and a raise / off / lower switch for the lift.
Jacket: 15 PSIGVacuum: 29.5 HG
OAD: 53"L x 36"W x 80"H

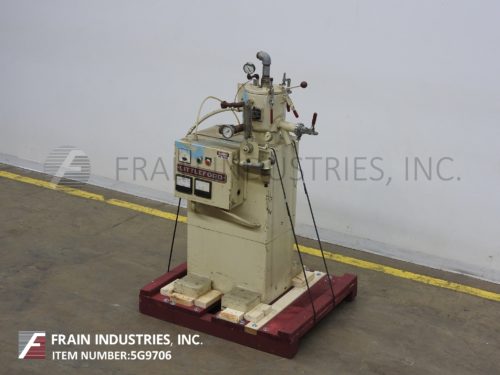

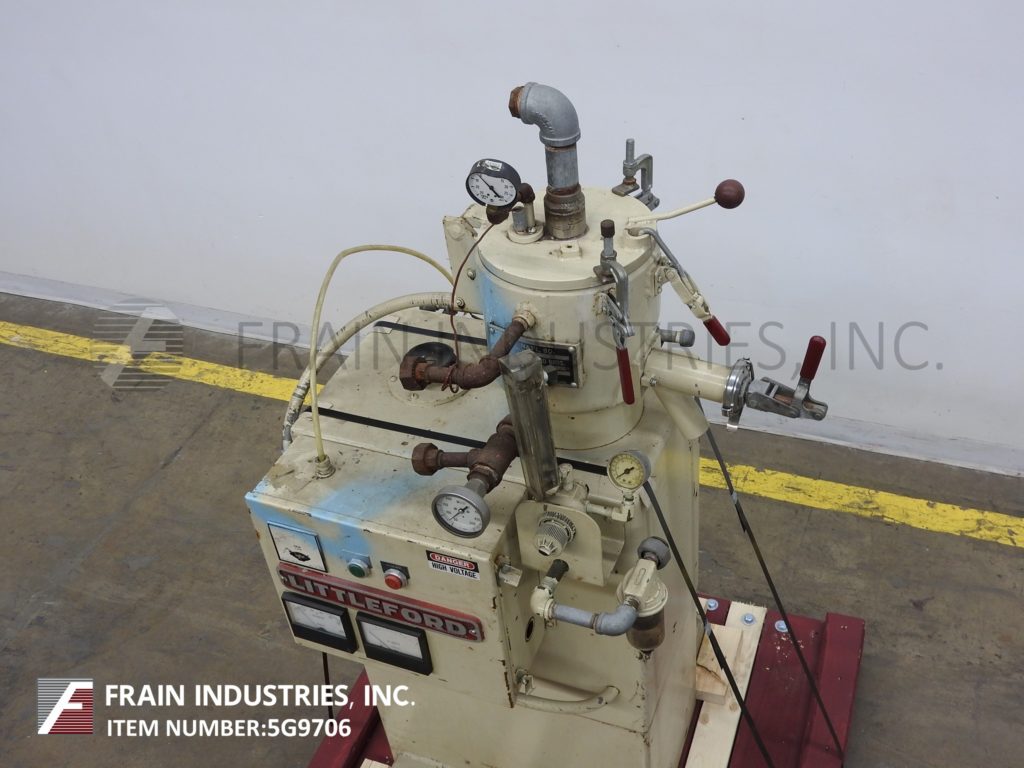

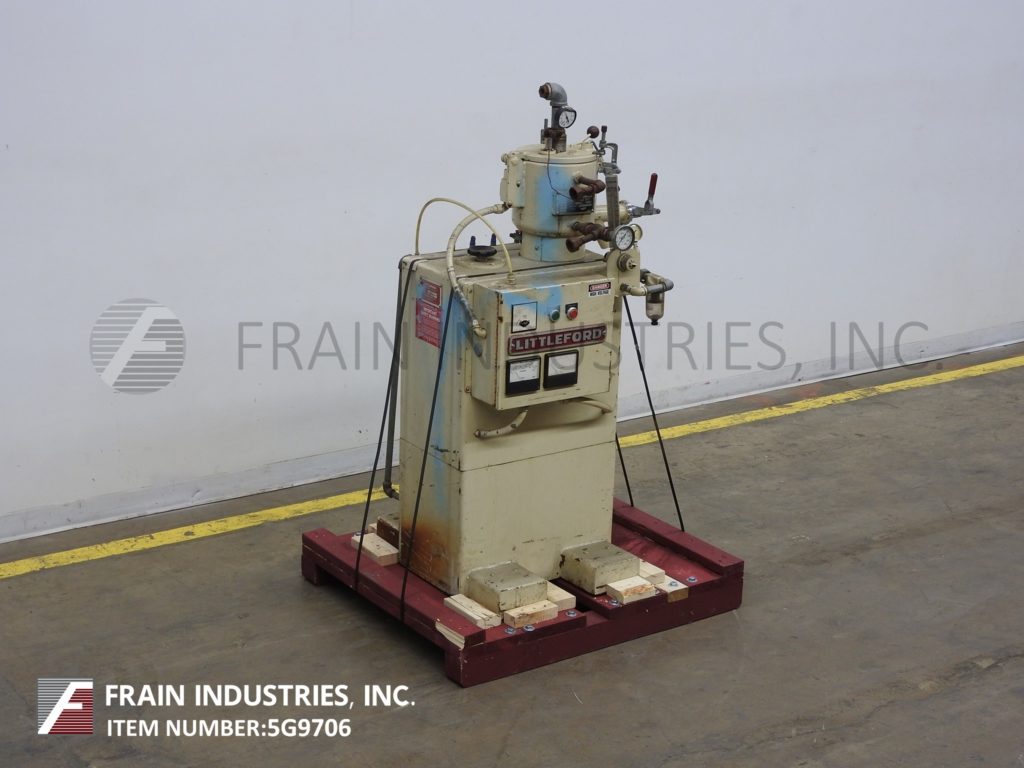

Littleford, Model W-10, high intensity ¼ ft³ working capacity lab mixer with number of pounds of product per hour – depending on materials and application. Equipped with stainless steel contact parts, jacketed bowl 9" diameter x 8½" deep,hinged top cover with spray nozzle, 2 tier blade, 1½" diameter outlet with manual plug valve and 41" ground clearance and driven by 3 hp motor. Control panel with push button start / stop and variable speed adjustment.
MAWP: 125 PSI @ 400°F
OAD: 35"L x 26"W x 62"H

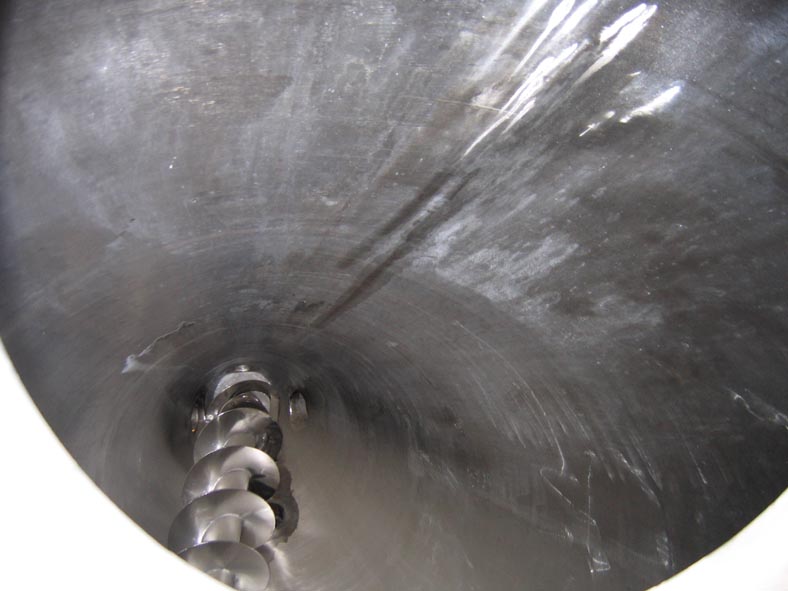

J H Day Model NAUTA MBX1225, 122.5 cu ft, 304 stainless steel, 3 zone, dimple jacketed Nauta mixer. with pounds of product per hour – depending on materials and application. Cone shaped vessel: 90" top OD and 10" bottom OD and 136" straight wall. Equipped with 24" OD bolt down manway, with (1) 5" OD and (1) 7" OD sight ports, (2) top mounted separte drive motors. 3 Hp drive for the arm, 20 Hp drive for the 14" OD main mixing auger screw with standard universal joint and has (3) intermixing actions: (1) turning on its axis, (2) orbiting the tank and (3) spiralling the material upward. Has a dimple jacket rated to 125 psi at 350 Deg F, with vacuum. Desined for mixing viscous product, with viscosities from 100,000 to 300,000 centipoise and densities from 1.3 to 3.6 grams per cc.(3) 3 Hp self-powered "Lumpbreakers" mounted near the bottom of cone that draw product from tank across impellor and back into mixing screw with Sihi vacuum system.
OAD: 97" OD x 148" High
Triple action, knead arm mixer rated to 250 lb capacity batches. Heavy duty cast frame construction has 12" long x 1 1/2" diameter stainless steel dual arm agitators with a 27" diameter x 18" deep stainless steel removable mixing bowl mounted on casters. Mixer has gentle 3 way agitation motion that insures thorough mixing but without damage to ingredients and can mix just about anything, such as various consistency of doughs for baked goods, salads, meats, fruit cakes, vegetable mixes, soups and many more.
OAD: 42" L x 40" W x 58" H

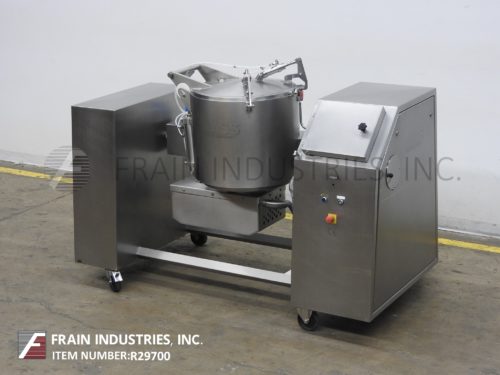

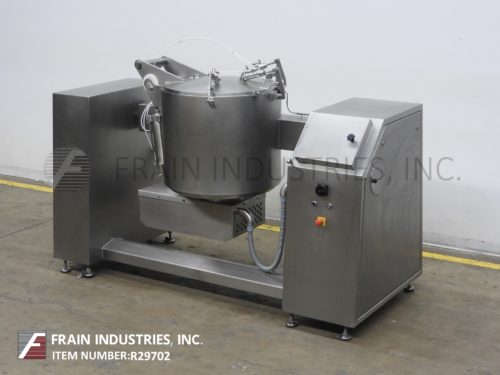

GLASS Model VSM/F 150, 150 liter, stainless steel, vertical, low pressure jacketed vacuum mixer with steam injection. Pounds of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with __" ID x __" Deep stainless steel mixing bowl, with 90° pnuematic tilt, automatic open and close bolt down cover, mixing arm and side wall scrapers with hygienic seals, 5 Hp motor drive and integrated vacuum pump. Control panel has touch panel controller with process data recording and run left / right mixing baffle, motor fast, slow with vacuum on / off switch and stop push button controls. Mounted on stainless steel base frame with casters and leveling legs. Used for conveience foods, delicacies salad dressings and marinates.
OAD: 108" L x 48" W x 62" H

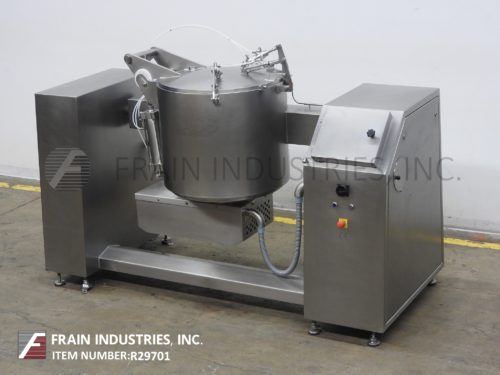

GLASS Model VSM/F 300, 300 liter, stainless steel, vertical, low pressure jacketed vacuum mixer with steam injection. Pounds of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with 29" ID x 29" Deep stainless steel mixing bowl, with 90° pnuematic tilt, automatic open and close bolt down cover, mixing arm, side wall scrapers with hygienic seals, 5 Hp motor drive and integrated vacuum pump. Control panel has touch panel controller with process data recording and run left / right mixing baffle, motor fast, slow with vacuum on / off switch and stop push button controls. Mounted on stainless steel base frame with casters and leveling legs.Used for convience foods, delicacies salad dressings and marinates.
OAD: 90" L x 48" W x 62" H
GLASS Model VSM 300, is a 300 liter, stainless steel, vertical, vacuum mixer and meat marinating machine with pounds of product per hour – depending on materials, application, machine configuration and operator dexterity. Equipped with 30" OD x 28" Deep stainless steel mixing bowl, with 90° tilt, and automatic open and close bolt down lid with bottom mixing arms and side wall scrapers with hygienic seals and low pressure cooling jacket with 1-1/4" OD threaded side jacket ports and 5 Hp motor drive with integrated vacuum pump. Control panel has touch panel operation with process data recording and run left / right mixing baffle, motor fast, slow and stop push button controls with vacuum on / off switch. Mounted on stainless steel base frame with leveling legs.
OAD: 102" L x 48" W x 62" H
