Collette Mixer Paste Vertical GRAL25

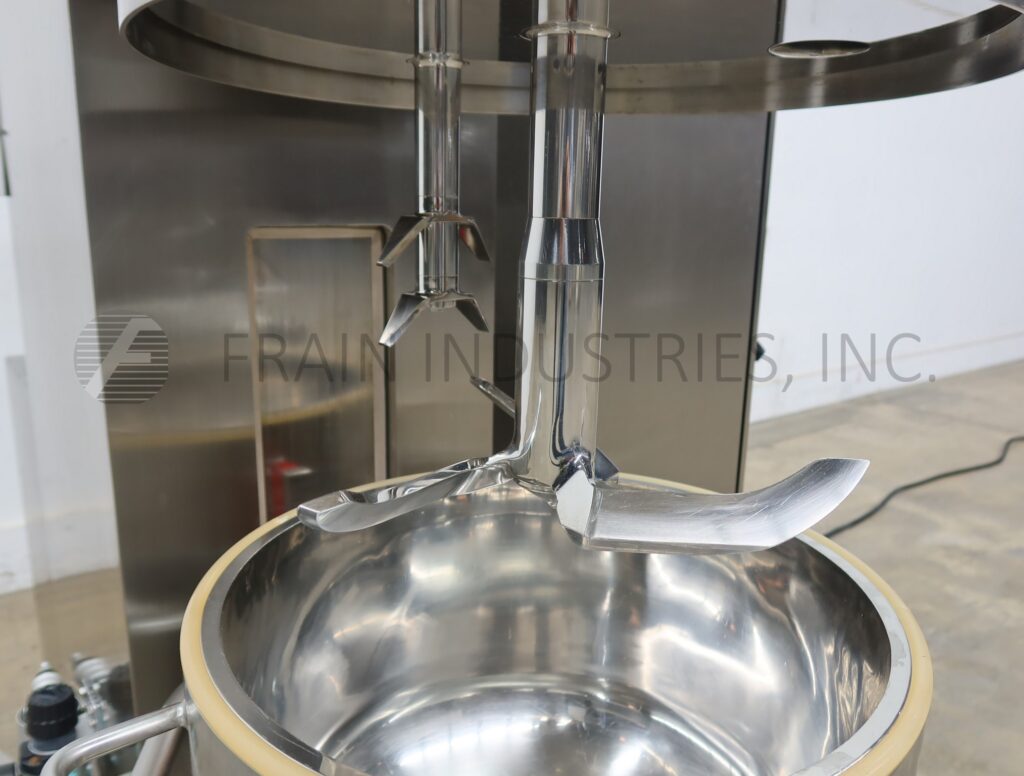

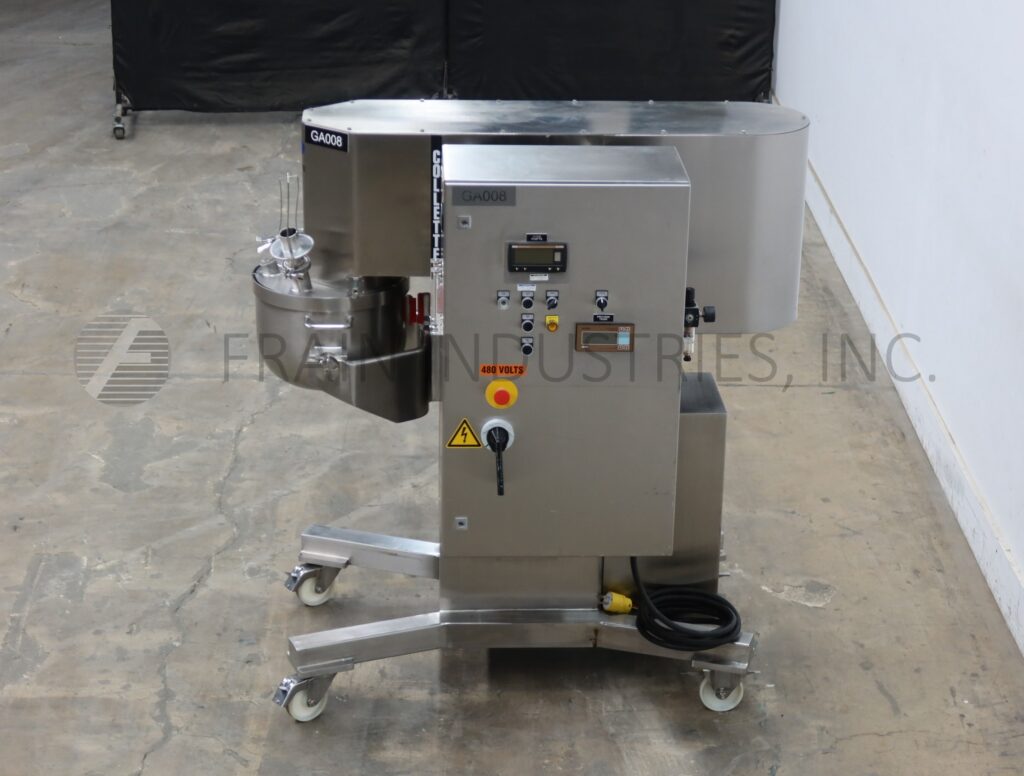

Back to All EquipmentCollette, Model GRAL 25, high speed, high shear 316L stainless steel contact parts, low pressure jacket, removable single pot granualtor. Gross capacity of 27 liters (7.13 gallons) and working capacity of 25 liters (6.6 gallons) per batch. Vessel dimensions: 14½" ID x 10" Deep. Equipped with hydraulic lift up for vessel with a fixed top cover powered by a 1 HP drive, 13" diameter (3) blade anchor style mixer with 6½" long x 1" wide blades powered by a 5 / 3.3 HP dual speed drive, (4) blade high shear mixer powered by a 2 / 1 HP dual speed drive. Control panel with high and low speed, start, stop, jog and hydraulic lift controls with pressure, rpm and temperature gauges.
Top ports:
(1) 3" Tri-clamp
(2) 2" Tri-clamp
(1) ½" Instrumentation port
Jacket Ports:
(2) 1" NPT
OAD: 63" L x 45" W x 64" H
