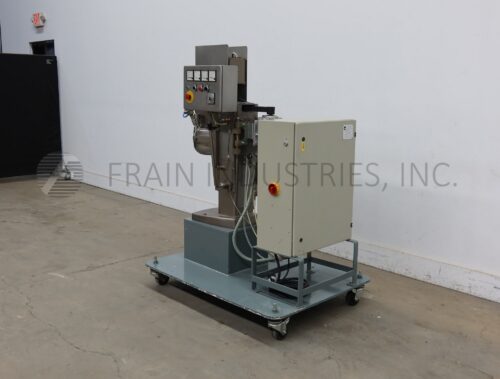

Collette Mixer Paste Vertical GRAL-10
Back to All EquipmentCollete, model GRAL-10, 0.25 ft³, high shear, 304 stainless steel, low pressure jacket, removable vessel, high shear, verticle granulator. Vessel dimensions: 9½" diameter x 7" deep, 7 liter / 1.84 gal working capacity ( 10 liter / 2.64 gal total capacity). Equipped with granulating agitation powered by a 2 hp drive with variable speed gearbox, high shear agitation powered by a 0.8 hp direct drive, Thermo-well, vessel is raised and lowered via hand lever, vessel has a 41" infeed/discharge height. Mounted on painted base with castors.
Top ports:
2" diameter viewport
1¾" diameter x 2" deep funnel
1" Tri-clamp
Jacket ports:
(2) ½" NPT
OAD: 54"L x 40"W x 71"H
