Delkor Machines
Delkor Machines In Stock
Delkor Sealer Case Top Only TSC
- Manufacturer: Delkor
- Model Number: TSC
- Frain Number: 5J0172
Delkor Capstone Series, TSC, Stainless steel, top carton closer and hot melt glue sealer rated up to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 10½" in Length x 1" to 5" in Width x 4" to 7½" in Height currently set with 12 pockets set on 11¾" centers, (4-1/2" long x 4-1/2" wide x 4" deep) case carton carriers on rotary feed conveyor. Capable of handling both corrugated and paper board in a variety of carton styles such as tri-seal, front-flap seal, hooded or hinged cartons, (all with proper change parts). Equipped with Nordson ProBlue hot melt glue system and Siko gages. Control panel has A/B PLC controls with swing arm A/B Panelview Plus 700 HMI and A/B Kinetix 6000 servo motors and A/B Powerflex, with start, stop, reset and e-stop push buttons. Mounted on a stainless steel frame with safety guarding, statis light bar and leveling legs.
OAD: 96" L x 48" W x 64" H
Get a Free Quote Call: 630-629-9900
Delkor Cartoner Semi Triseal TSC
- Manufacturer: Delkor
- Model Number: TSC
- Frain Number: 5J0374
Delkor, Model TSC Tri-seal, stainless steel, carton sealer. Rated from 20 to 80 cycles per minute with number of cartons – depending on materials and application. Carton size range: 3" to 12" in Length; 3" to 11" in Width; 1¼" to 5" in Depth. Equipped with hot melt glue system, 80" long belt infeed and seal section to cleated 90° transfer conveyor set on 10½" centers to 50" long belt discharge and seal section. Control panel has A/B controller with swing arm touch screen HMI and statis light. Mounted on multi-leg frame with cage style safety guarding.
OAD: 112" L x 92" W x 103" H
Get a Free Quote Call: 630-629-9900
Delkor Case Set-Up, Tray Tray Glue TFS
- Manufacturer: Delkor
- Model Number: TFS
- Frain Number: 5J0100
Delkor automatic, dual head, top load, tray former and hot melt glue sealer. Rated up to 80 trays per minute – depending on materials and application. Blank size range: 5" to 25" in length, 7¼" to 22¼" in width. Formed size range: 3" to 14¼" in length, 3" to 20¼" in width, 1" to 7" in height. Equipped with dual blank tray magazine, dual vacuum suction cup recipicating pick-in-place’s, dual mechanical tray forming heads, no tray / no form photo eyes, Nordson hot melt glue system. Control panel has A/B PLC controller and touch screen HMI.
OAD: 126"L x 105"W x 108"H
Get a Free Quote Call: 630-629-9900
Delkor Case Packer Tray Form/Pack SP500I
- Manufacturer: Delkor
- Model Number: SP500I
- Frain Number: R31774
Delkor Model SP500i Spot-Pak, Automatic, stainless steel, flat pad product loader with number of products and flat pads per minute – depending on materials, application and pack pattern. Equipped with 36" long flat pad magazine with single head (6) suction cup recipercating pic place, with 84" long x 22" wide flat pad transfer conveyor. Nordson hot melt glue applicator which applies spots of glue to secure and stablize containers to the flat blank to maintain package integrity during transfer. 96" long x 18" wide flexlink product conveyor, with (2) axis (6) suction cup single head product pick and place loading arm which picks from product conveyor to load the flat blank. Remote control panel has A/B on board touch pad with panelview controller, has start, stop, reset and e-stop push buttons with main and remote mode switch with statis light bar. Mounted on (4) leg adjustable height frame with interlock safety guarding.
OAD: 180" L x 84" W x 82" H Machine
39" L x 16" W x 63" H Control Cabinet
Delkor Case Set-Up, Tray Tray Tuck TL500P
- Manufacturer: Delkor
- Model Number: TL500P
- Frain Number: R31771
Delkor Model TL500P, Flexpack, inline, stainless steel, top load, product loader with number of containers and flat blanks or trays per minute – depending on materials, application and product pack pattern. Flexible packer for nearly any product size and shape including multi-flavor and sleeved products with multi-head configurations. Equipped with 30" long flat pad magazine and single head (3) suction cup, recipercating pic place, 92" long x 23" wide tray conveyor with filght bars set on 16" centers and 72" long x 36" wide flexlink with (4) lanes product conveyor, with dual (2) axis (12) suction cup each, pick and place product loading arms which picks from product conveyor to load the flat blank. Swing arm controller with start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty stainless steel frame with interlock safety guarding and statis light bar.
OAD: 400"L x 100"W x 128"H
Get a Free Quote Call: 630-629-9900
Delkor Case Set-Up, Tray Tray Glue TFM-1201
- Manufacturer: Delkor
- Model Number: TFM-1201
- Frain Number: R31772
Delkor Model TFM-1201, automatic, single head, tray former. Tray size range: 38" maximum blank width and 30" blank length. Equipped with 40" long blank tray magazine, vacuum suction cup recipicating pick-in-place, single mechanical tray forming head, Nordson ProBlue hot melt glue system and hooded seal area with lexan lift-up interlock access safety door. Control panel has A/B controller and A/B touch pad controls, with start, stop cycle, reset, e-stop push buttons and statis light bar. Mounted on heavy duty frame. Speed dependent on materials, application and machine configuration.
OAD: 144" L x 75" H x 104" H
Get a Free Quote Call: 630-629-9900
Delkor Case Set-Up, Tray Tray Tuck TF1504SS
- Manufacturer: Delkor
- Model Number: TF1504SS
- Frain Number: 5H2321
Delkor automatic, dual head, top load, tray former and hot melt glue sealer. Rated up to 80 trays per minute – depending on materials and application. Blank size range: 5" to 25" in length, 7¼" to 22¼" in width. Formed size range: 3" to 14¼" in length, 3" to 20¼" in width, 1" to 7" in height. Equipped with dual blank tray magazine, dual vacuum suction cup recipicating pick-in-place’s, dual mechanical tray forming heads, no tray / no form photo eyes, Nordson hot melt glue system. Control panel has A/B PLC controller and touch screen HMI.
OAD: 135"L x 80"W x 90"H
Get a Free Quote Call: 630-629-9900

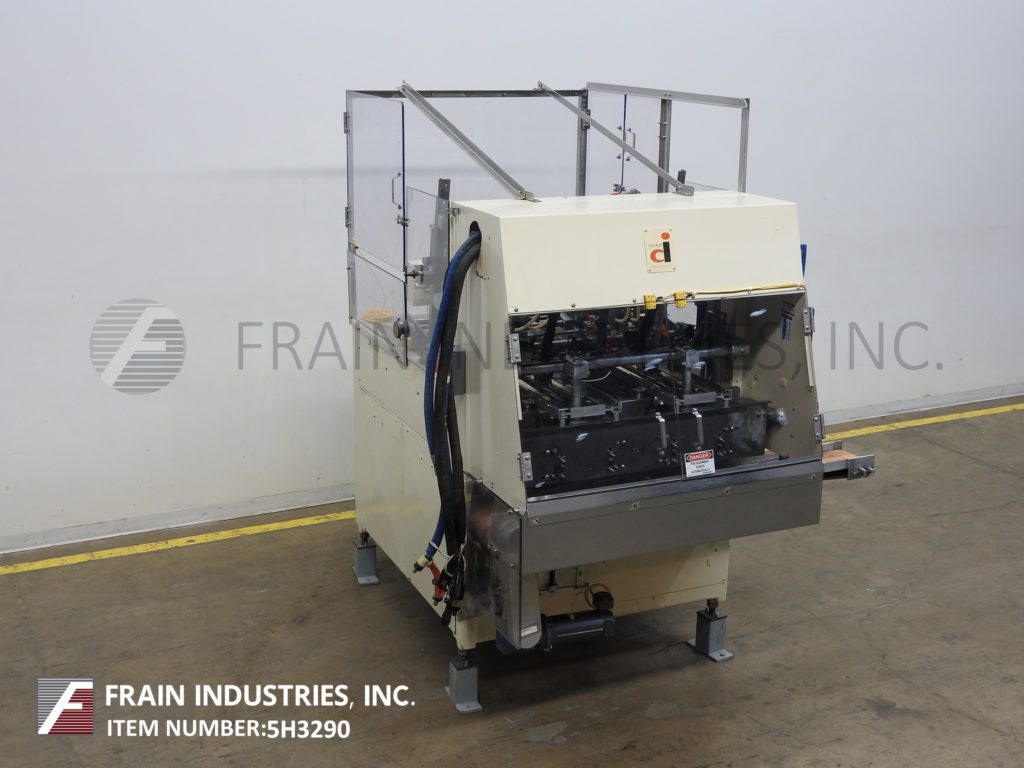

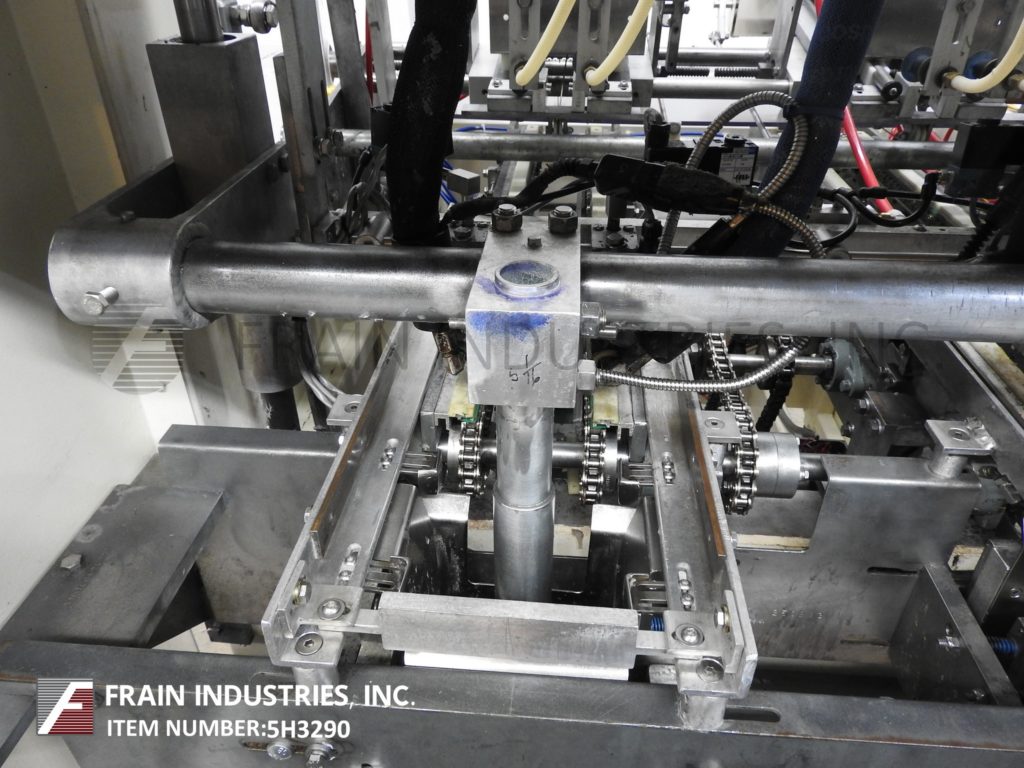

Delkor Case Set-Up, Tray Tray Glue 752
- Manufacturer: Delkor
- Model Number: 752
- Frain Number: 5H3290
Delkor, Model 752, automatic, dual head top load tray former with hot melt glue sealer. Rated from 5 to 60 cycles per minute each head – depending on materials and application. Capable of handling flat blank sizes up to 22" in Length and 30" in Width. Equipped with dual 24" long blank tray magazines, dual vacuum suction cup recipicating pick-in-place’s, dual tray forming heads, 8" wide rubber belt discharge conveyor extending 20" from frame, Nordson hot melt glue system and lexan safety guarding. Control panel with variable speed control, push button start / stop and on / off switches for each pick and place.
OAD: 98"L x 80"W x 92"H
Get a Free Quote Call: 630-629-9900
Delkor Case Set-Up, Tray Tray Tuck TF1504SS
- Manufacturer: Delkor
- Model Number: TF1504SS
- Frain Number: 5H2322
Delkor automatic, dual head, top load, tray former and hot melt glue sealer. Rated up to 80 trays per minute – depending on materials and application. Blank size range: 5" to 25" in length, 7¼" to 22¼" in width. Formed size range: 3" to 14¼" in length, 3" to 20¼" in width, 1" to 7" in height. Equipped with dual blank tray magazine, dual vacuum suction cup recipicating pick-in-place’s, dual mechanical tray forming heads, no tray / no form photo eyes, Nordson hot melt glue system. Control panel has A/B PLC controller and touch screen HMI.
OAD: 135"L x 80"W x 90"H
Get a Free Quote Call: 630-629-9900

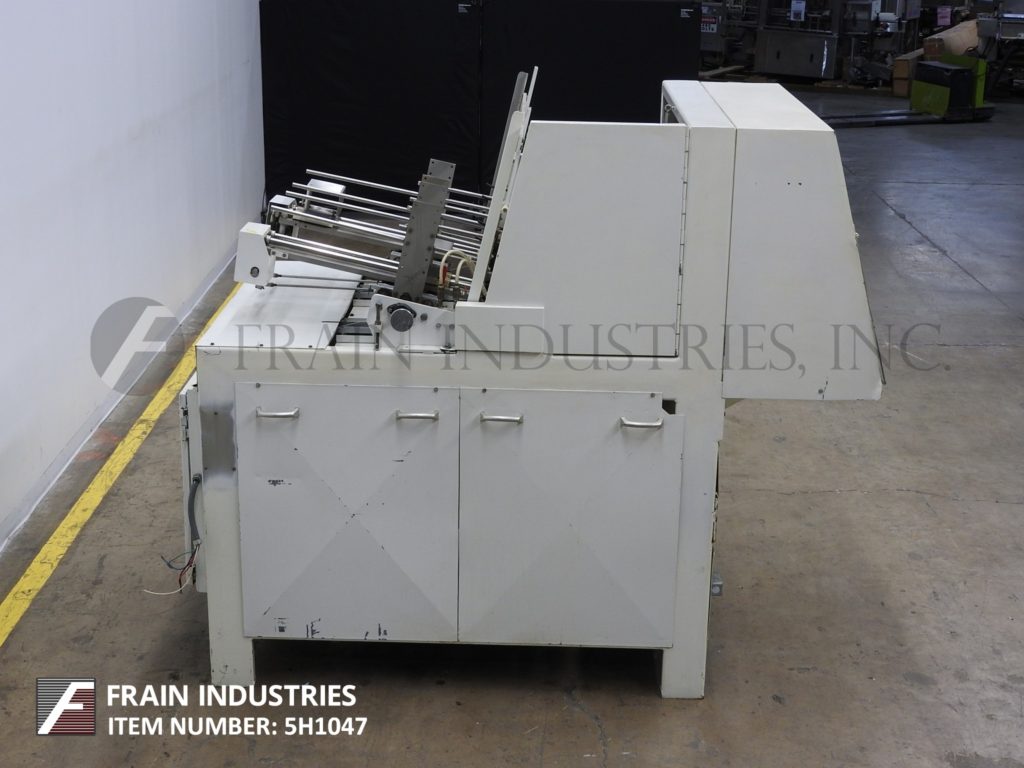

Delkor Case Set-Up, Tray Tray Tuck 751
- Manufacturer: Delkor
- Model Number: 751
- Frain Number: 5H1047
Doboy, Model 751, automatic, single head, tray former. Rated from 10 to 60 trays per minute – depending on materials, application and machine configuration. Tray size range: 4" to 20" in Length; 3" to 12" in Width; 1" to 6" in Height. Equipped with 23" long blank tray magazine, suction cup vacuum recipicating pick-in-place, single mechanical forming head, Nordson hot melt glue system and lexan safety door. Control panel with touch screen HMI. Mounted on (4) leg frame.
OAD: 85"L x 48"W x 88"H
Get a Free Quote Call: 630-629-9900
