Delkor Machines


Delkor Machines In Stock

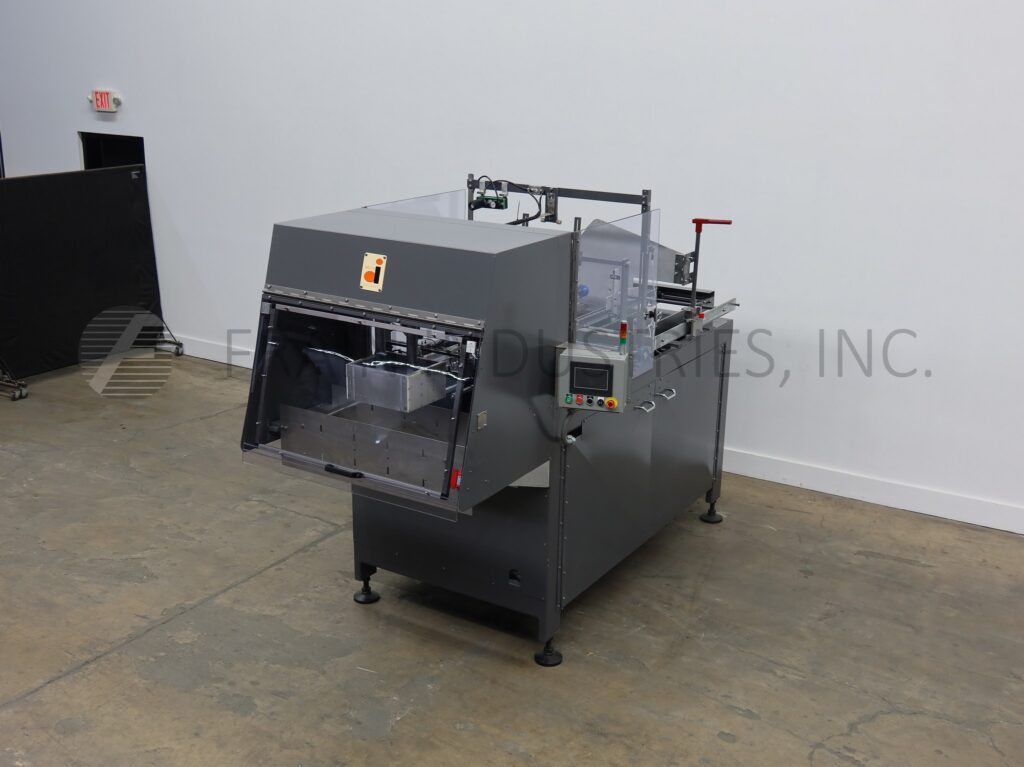

Delkor Case Set-Up, Tray Tray Glue 751

  • Manufacturer: Delkor
  • Model Number: 751
  • Frain Number: 5C8282

Delkor, Model 751, single head, tray former. Tray size range: 12" to 36" in Length; 6" – 26" in Width; 1/2" – 5" in Height. Flat blank size range: 6" to 24" in Width; 15" to 30" in Length. Equipped with 24" long blank tray magazine, reciprocating vacuum pick-in-place, single forming head, Nordson hot melt glue system and Lexan interlocked guarding. AB PLC with touch screen, safety interlocks and E-stop. Speed dependent on materials, application and machine configuration. Change parts required to accommodate size range.

OAD: 113" L x 80" W x 94" H

Get a Free Quote Call: 630-629-9900

Delkor Conveyor Laner 1 TO 4 LANER

  • Manufacturer: Delkor
  • Model Number: 1 TO 4 LANER
  • Frain Number: 5J2665

Delkor, stainless steel 1 to 4 laning conveyor. Equipped with (1) 4"W thru belt and (2) 10"W x 1170"L intralox belts, overhead servo diverting head and 36" infeed and discharge height.

OAD: 170"L x 53"W x 72"H

Get a Free Quote Call: 630-629-9900

Delkor Cartoner Semi Sealer (Semi) 820

  • Manufacturer: Delkor
  • Model Number: 820
  • Frain Number: 5D7363

Automatic, carton top closer/sealer, hot melt, capable of speeds from 40 to 120 cpm – speeds depending on materials and application. Carton size range: (4" – 14")L x (2" – 9")W x (1" – 10")D. Has a lugged chain drive set-on 20" centers. (22"L by 10 3/4"W) carton infeed belt, a random flow automatic retimer, upper/lower controlled transport for square cartons, scales for carton size adjustments, hand crank adjustments for height/width, barrier guarding, electrical interlocks, Nordson hot melt glue system, and a push button control panel with an LED display. Mounted on height adjustable feet.

OAD: 154"L x 54"W x 68"H

Get a Free Quote Call: 630-629-9900

Delkor Conveyor Laner 1 TO 6

  • Manufacturer: Delkor
  • Model Number: 1 TO 6
  • Frain Number: 5J1180

Delkor, stainless steel 1 to 6 laning conveyor. Equipped with (1) 4"W x 172"L and (2) 10"W x 136"L intralox belts, (2) overhead servo diverting heads and 30" to 35" infeed and discharge range.

OAD: 216"L x 64"W x 44"H

Get a Free Quote Call: 630-629-9900

Delkor Sealer Case Top Only TSC

  • Manufacturer: Delkor
  • Model Number: TSC
  • Frain Number: 5J0171

Delkor Capstone Series, TSC, Stainless steel, top carton closer and hot melt glue sealer rated up to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 10½" in Length x 1" to 5" in Width x 4" to 7½" in Height currently set with 12 pockets set on 11¾" centers, (4-1/2" long x 4-1/2" wide x 4" deep) case carton carriers on rotary feed conveyor. Capable of handling both corrugated and paper board in a variety of carton styles such as tri-seal, front-flap seal, hooded or hinged cartons, (all with proper change parts). Equipped with Nordson ProBlue hot melt glue system and Siko gages. Control panel has A/B PLC controls with swing arm A/B Panelview Plus 700 HMI and A/B Kinetix 6000 servo motors and A/B Powerflex, with start, stop, reset and e-stop push buttons. Mounted on a stainless steel frame with safety guarding, statis light bar and leveling legs.

OAD: 96" L x 48" W x 64" H

Get a Free Quote Call: 630-629-9900

Delkor Sealer Case Top Only TSC

  • Manufacturer: Delkor
  • Model Number: TSC
  • Frain Number: 5J0172

Delkor Capstone Series, TSC, Stainless steel, top carton closer and hot melt glue sealer rated up to 150 cartons per minute – depending on materials and application. Carton size range: 3" to 10½" in Length x 1" to 5" in Width x 4" to 7½" in Height currently set with 12 pockets set on 11¾" centers, (4-1/2" long x 4-1/2" wide x 4" deep) case carton carriers on rotary feed conveyor. Capable of handling both corrugated and paper board in a variety of carton styles such as tri-seal, front-flap seal, hooded or hinged cartons, (all with proper change parts). Equipped with Nordson ProBlue hot melt glue system and Siko gages. Control panel has A/B PLC controls with swing arm A/B Panelview Plus 700 HMI and A/B Kinetix 6000 servo motors and A/B Powerflex, with start, stop, reset and e-stop push buttons. Mounted on a stainless steel frame with safety guarding, statis light bar and leveling legs.

OAD: 96" L x 48" W x 64" H

Get a Free Quote Call: 630-629-9900

Delkor Cartoner Semi Triseal TSC

  • Manufacturer: Delkor
  • Model Number: TSC
  • Frain Number: 5J0374

Delkor, Model TSC Tri-seal, stainless steel, carton sealer. Rated from 20 to 80 cycles per minute with number of cartons – depending on materials and application. Carton size range: 3" to 12" in Length; 3" to 11" in Width; 1¼" to 5" in Depth. Equipped with hot melt glue system, 80" long belt infeed and seal section to cleated 90° transfer conveyor set on 10½" centers to 50" long belt discharge and seal section. Control panel has A/B controller with swing arm touch screen HMI and statis light. Mounted on multi-leg frame with cage style safety guarding.

OAD: 112" L x 92" W x 103" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue TFS

  • Manufacturer: Delkor
  • Model Number: TFS
  • Frain Number: 5J0100

Delkor, Model TFS, Automatic, stainless steel, (3) head, tray former. Rated from 10 to 55 cycles per minute with number of trays per minute – depending on materials, application and machine configuration. Welded stainless steel construction. Maximum Blank Size: 18" in Length; 14" in Width. Equipped with (3) 42" long powered blank tray magazines, (2) suction cup vacuum recipicating pick-in-place, (3) mechanical tray forming heads. Control panel has A/B PLC and panelview controller with start, stop, e-stop push button controls and statis light. Mounted on stainless steel frame with lift-up access safety door guarding.

OAD: 126"L x 105"W x 108"H

Get a Free Quote Call: 630-629-9900

Delkor Case Packer Tray Form/Pack SP500I

  • Manufacturer: Delkor
  • Model Number: SP500I
  • Frain Number: R31774

Delkor Model SP500i Spot-Pak, Automatic, stainless steel, flat pad product loader with number of products and flat pads per minute – depending on materials, application and pack pattern. Equipped with 36" long flat pad magazine with single head (6) suction cup recipercating pic place, with 84" long x 22" wide flat pad transfer conveyor. Nordson hot melt glue applicator which applies spots of glue to secure and stablize containers to the flat blank to maintain package integrity during transfer. 96" long x 18" wide flexlink product conveyor, with (2) axis (6) suction cup single head product pick and place loading arm which picks from product conveyor to load the flat blank. Remote control panel has A/B on board touch pad with panelview controller, has start, stop, reset and e-stop push buttons with main and remote mode switch with statis light bar. Mounted on (4) leg adjustable height frame with interlock safety guarding.

OAD: 180" L x 84" W x 82" H Machine
39" L x 16" W x 63" H Control Cabinet

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Tuck TL500P

  • Manufacturer: Delkor
  • Model Number: TL500P
  • Frain Number: R31771

Delkor Model TL500P, Flexpack, inline, stainless steel, top load, product loader with number of containers and flat blanks or trays per minute – depending on materials, application and product pack pattern. Flexible packer for nearly any product size and shape including multi-flavor and sleeved products with multi-head configurations. Equipped with 30" long flat pad magazine and single head (3) suction cup, recipercating pic place, 92" long x 23" wide tray conveyor with filght bars set on 16" centers and 72" long x 36" wide flexlink with (4) lanes product conveyor, with dual (2) axis (12) suction cup each, pick and place product loading arms which picks from product conveyor to load the flat blank. Swing arm controller with start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty stainless steel frame with interlock safety guarding and statis light bar.

OAD: 400"L x 100"W x 128"H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue TFM-1201

  • Manufacturer: Delkor
  • Model Number: TFM-1201
  • Frain Number: R31772

Delkor Model TFM-1201, automatic, single head, tray former. Tray size range: 38" maximum blank width and 30" blank length. Equipped with 40" long blank tray magazine, vacuum suction cup recipicating pick-in-place, single mechanical tray forming head, Nordson ProBlue hot melt glue system and hooded seal area with lexan lift-up interlock access safety door. Control panel has A/B controller and A/B touch pad controls, with start, stop cycle, reset, e-stop push buttons and statis light bar. Mounted on heavy duty frame. Speed dependent on materials, application and machine configuration.

OAD: 144" L x 75" H x 104" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Tuck TF1504SS

  • Manufacturer: Delkor
  • Model Number: TF1504SS
  • Frain Number: 5H2321

Delkor, Model TF-1504SS, Automatic, stainless steel, (4) head, tray former. Rated from 10 to 55 cycles per minute with number of trays – depending on materials, application and machine configuration. Maximum Blank Size: 30" in Length; 50" in Width. Equipped with (4) 43" long powered blank tray magazines, (4) single suction cup vacuum recipicating pick-in-place, (4) mechanical tray forming heads and hooded seal area with lexan lift-up access safety door. Control panel with an A/B PLC and A/B PanelView Plus 700 touch screen display with push button start and stop controls. Mounted on a stainless steel frame with locking casters.

OAD: 135"L x 80"W x 90"H

Get a Free Quote Call: 630-629-9900
