FPEC Machines

FPEC Mixer Ribbon Cooker MC

• Manufacturer: FPEC
• Model Number: MC
• Frain Number: 5J5852

5J5852 FPEC, Model MC, 316 S/S stainless steel, single shaft, jacketed ribbon cooker. Pounds of product per hour – depending on materials and application. Capacity: 100 ft³ total (80 ft³ working). Trough dimensions: 96″ in Length; 50″ in Width; 51″ in Depth. Equipped with rolling top cover, infeed height of 110″ (152″ if mounted on frame), 49″ diameter x ½” thick ribbon, (7) 20″ long x 5″ wide paddles, scrapers, 5″ diameter mixing shaft, (4) steam injection ports fed by ¾” NPTs, 4″ Tri-clamp discharge with 49″ ground clearance (87″ if mounted on frame). Powered by 14¾ Hp drive.

Top ports:
(2) 4″ Tri-clamp
(3) 2½” Tri-clamp

Jacket ports:
(16) 1″ NPT

MAWP (Shell): ATM PSI @ 320°F
MDMT (Shell): -20°F @ ATM PSI

MAWP (Jacket): 90 PSI @ 320°F
MDMT (Jacket): -20°F @ 90 PSI

OAD (without frame): 157″ L x 57″ W x 114″ H
OAD (on frame): 157″ L x 57″ W x 152″ H

FPEC Feeder Auger SCL930

• Manufacturer: FPEC
• Model Number: SCL930
• Frain Number: 5J2710

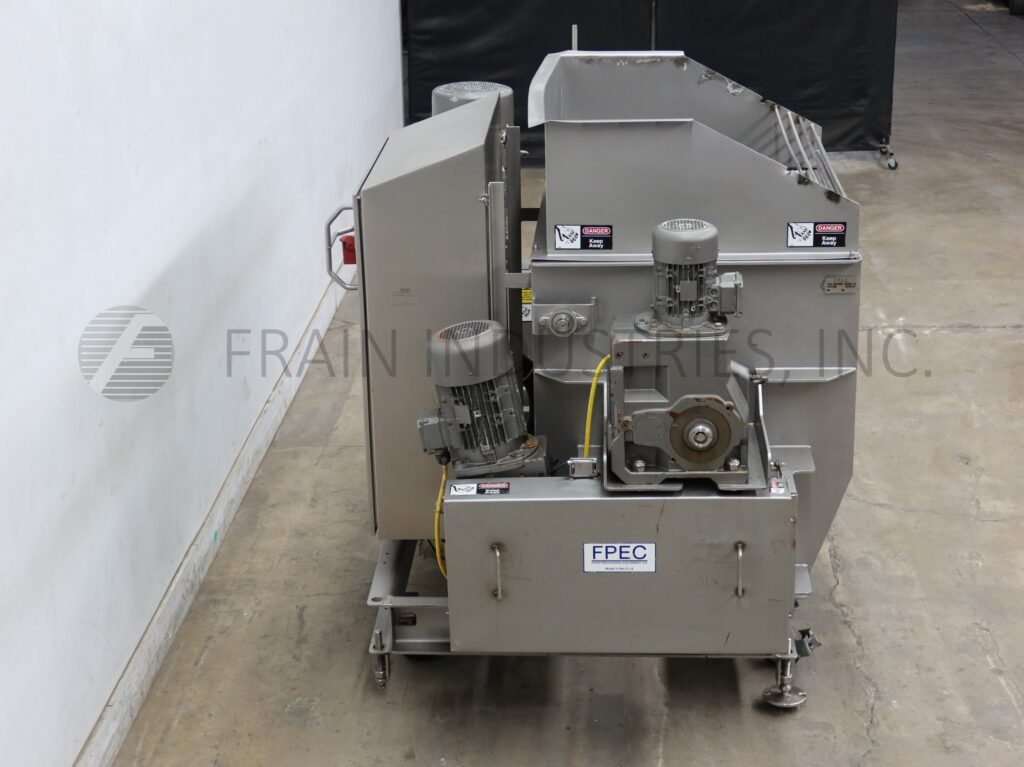

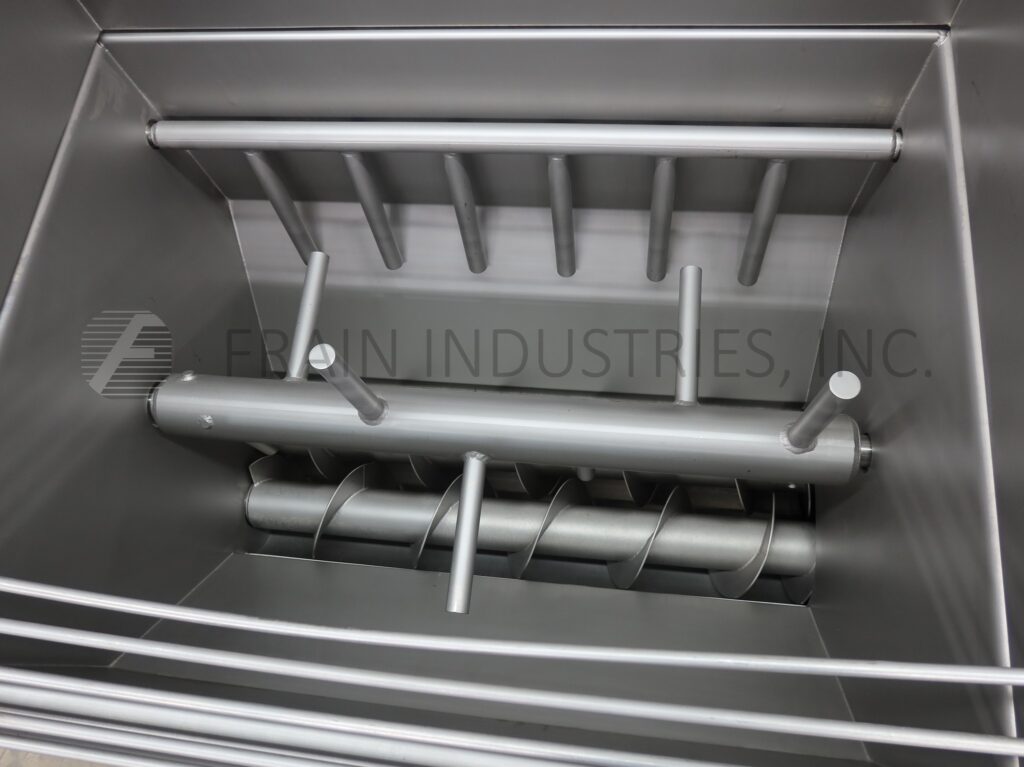

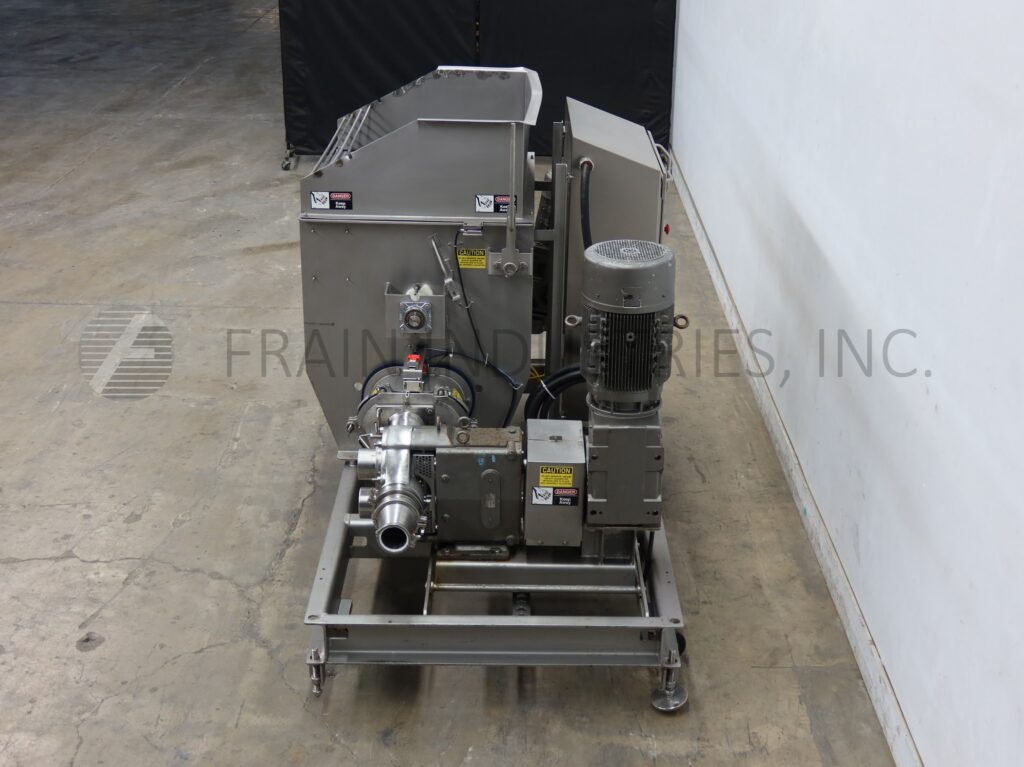

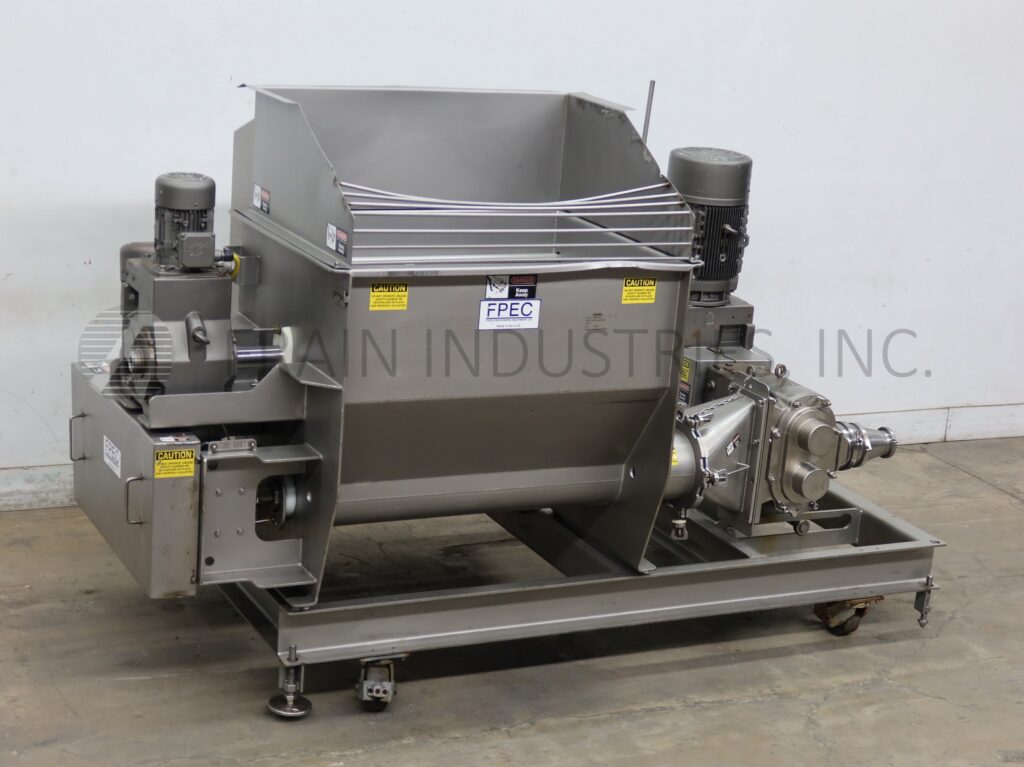

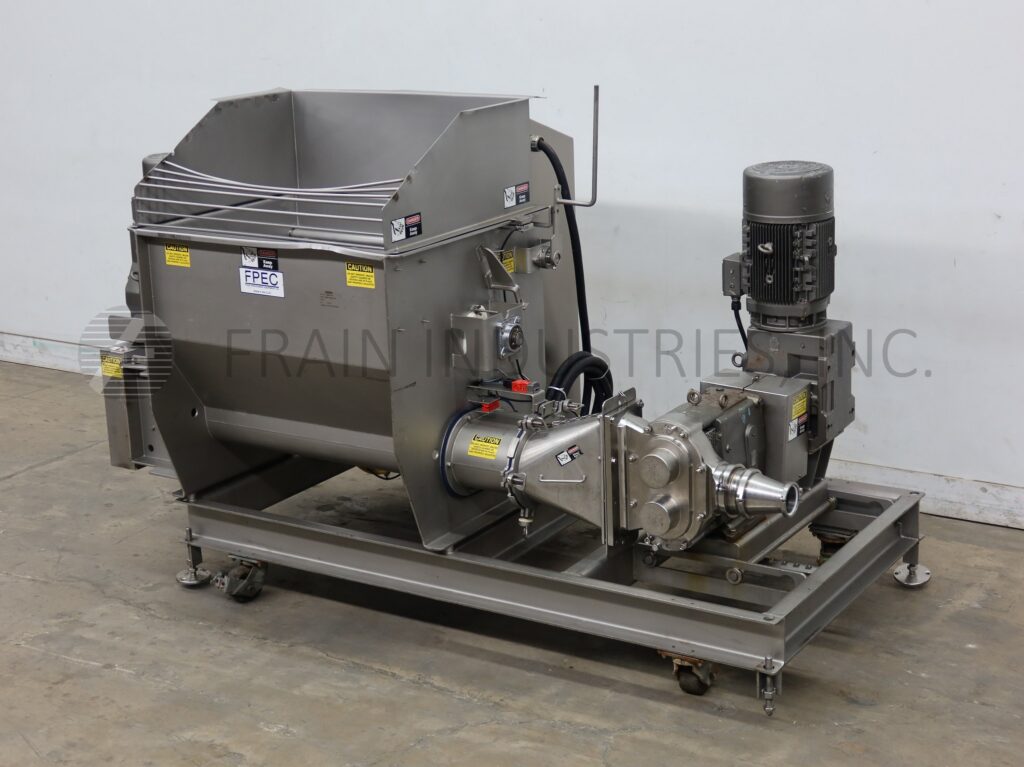

FPEC, Model SCL 930, stainless steel, screw pump feeding system. Equipped with a stainless steel 48" long x 36" wide x 32" deep product hopper with pin bar agitation powered by a 3 hp drive, dual stainless steel feeding screws powered by a 10 hp drive and Waukesha 324 positive displacement pump powered by a 30 hp drive with 4½"OD / 4"ID triclamp style discharge with 25" ground clearance. Mounted on a stainless steel frame. Rates dependant on materials, application and machine configuration.

OAD: 130"L x 65"W x 86"H

FPEC Mixer Paste Horizontal 814

• Manufacturer: FPEC
• Model Number: 814
• Frain Number: 5D7009

80 cubic foot 304 S/S horiontal “U” shaped paste mixer with inner dimensions of 74″(L) x 43″(W) x 49″ deep. Unit has full bolt-on cover with (5) 3 3/4″ ID triclover ports, (2) 2 3/4″ ID triclover ports, (1) 1 3/4″ ID triclover port, and (2) 30″(L) x 15″(H) manway with grating and cover. Equipped with 3″ wide ribbon agitator turning at 24 rpm on a 6″ dia. shaft and a 10 1/2″ ID bolt-down flange side bottom discharge. Unit has brackets for mounting purposes and was last used in a food operation.

OAD: 118″(L) x 54″(W) x 85″(H)

FPEC Feeder Auger SCL930

• Manufacturer: FPEC
• Model Number: SCL930
• Frain Number: R33300

FPEC, Model SCL 930, 22 ft³, stainless steel, screw pump feeding system. Equipped with a stainless steel 36" long x 34" wide x 35" deep product hopper with paddle agitation powered by a 1 hp drive, 9" diameter by 43" long stainless steel feeding screw powered by a 7½ hp drive and Waukesha 134 positive displacement pump powered by a 10 hp drive with 3½"OD / 3"ID seated bevel style discharge with 42" ground clearance. Mounted on a stainless steel frame. Rates dependant on materials, application and machine configuration.

OAD: 68"L x 46"W x 86"H

FPEC Pump Positive SCL930

• Manufacturer: FPEC
• Model Number: SCL930
• Frain Number: R33301

FPEC, Model SCL 930, 22 ft³, stainless steel, screw pump feeding system. Equipped with a stainless steel 36" long x 34" wide x 35" deep product hopper with paddle agitation powered by a 1 hp drive, 9" diameter by 36" long stainless steel feeding screw powered by a 7½ hp drive and Waukesha 224 positive displacement pump powered by a 20 hp drive with 4½"OD / 4"ID Tri-clamp style discharge with 34" ground clearance. Mounted on a stainless steel frame. Rates dependant on materials, application and machine configuration.

OAD: 68"L x 50"W x 80"H
