FPEC Mixer Ribbon Cooker MC

• Manufacturer: FPEC
• Model: MC
• Category: Mixer Powder
• Subcategory: Ribbon S. S.

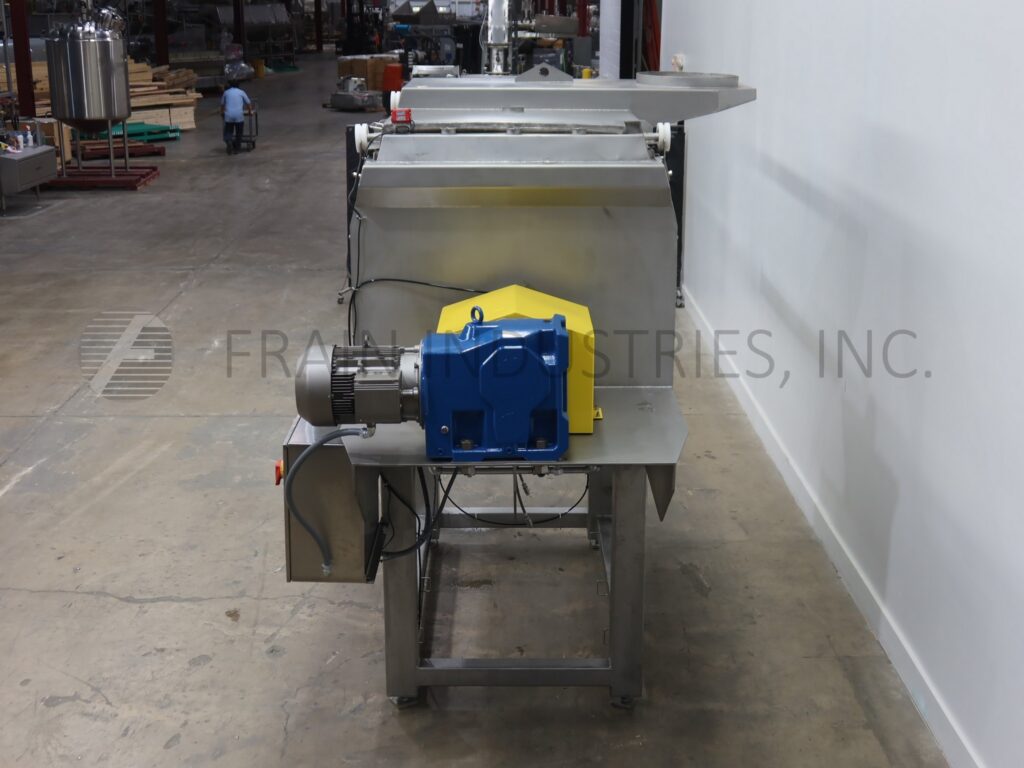

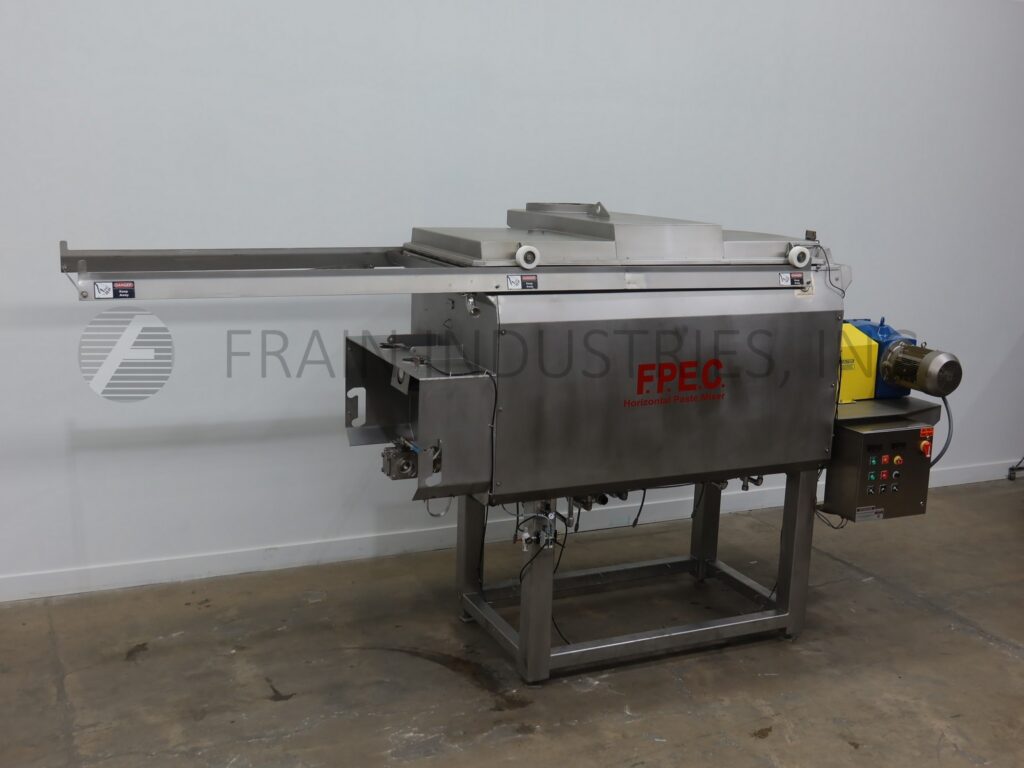

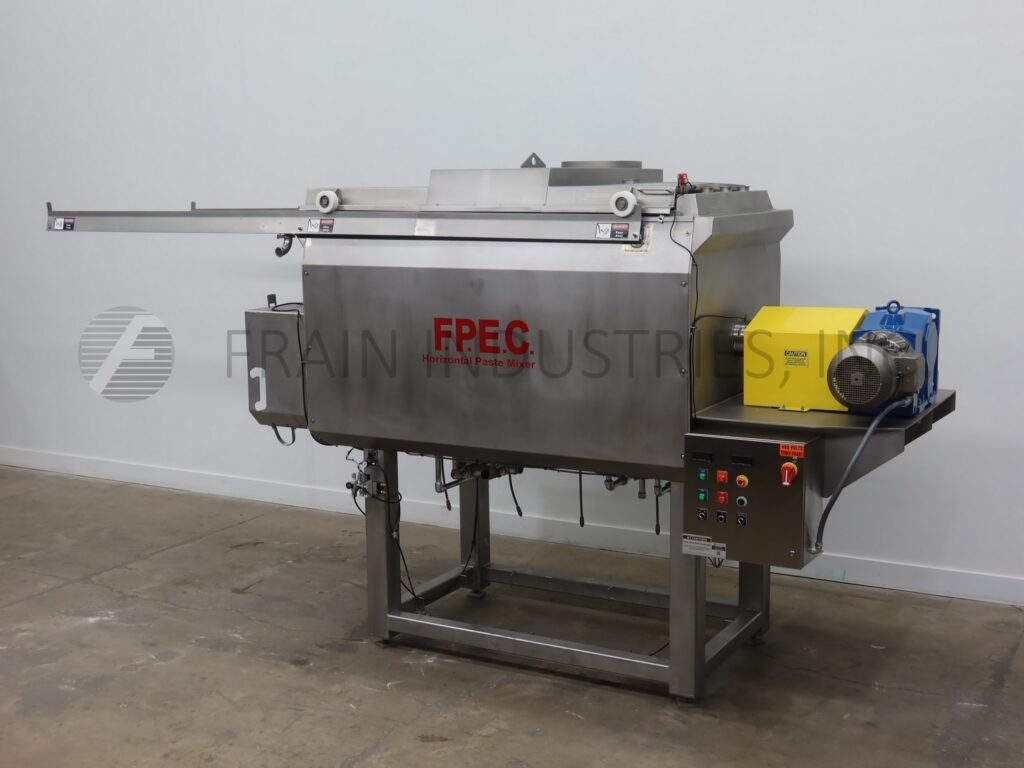

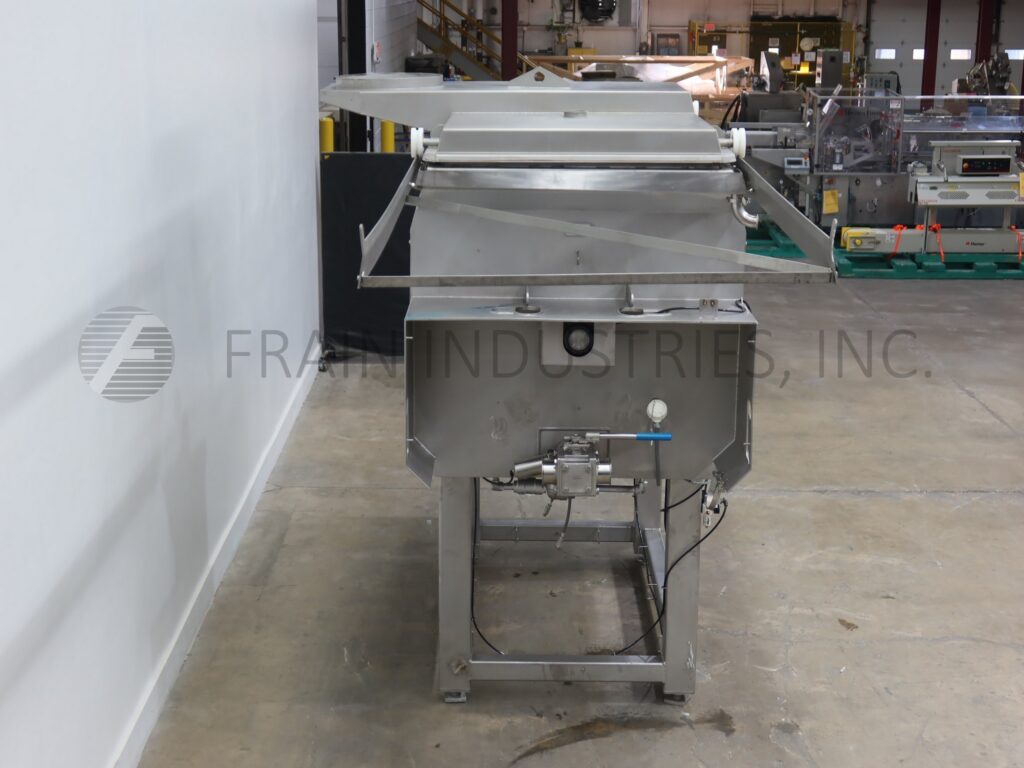

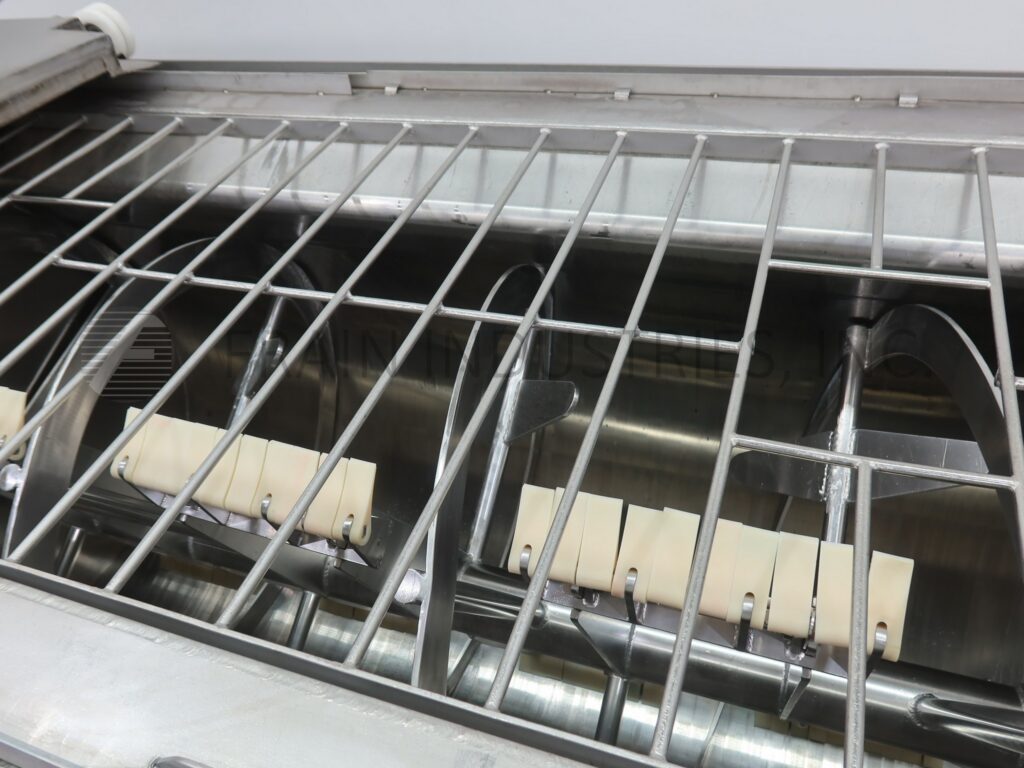

5J5852 FPEC, Model MC, 316 S/S stainless steel, single shaft, jacketed ribbon cooker. Pounds of product per hour – depending on materials and application. Capacity: 100 ft³ total (80 ft³ working). Trough dimensions: 96″ in Length; 50″ in Width; 51″ in Depth. Equipped with rolling top cover, infeed height of 110″ (152″ if mounted on frame), 49″ diameter x ½” thick ribbon, (7) 20″ long x 5″ wide paddles, scrapers, 5″ diameter mixing shaft, (4) steam injection ports fed by ¾” NPTs, 4″ Tri-clamp discharge with 49″ ground clearance (87″ if mounted on frame). Powered by 14¾ Hp drive.

Top ports:
(2) 4″ Tri-clamp
(3) 2½” Tri-clamp

Jacket ports:
(16) 1″ NPT

MAWP (Shell): ATM PSI @ 320°F
MDMT (Shell): -20°F @ ATM PSI

MAWP (Jacket): 90 PSI @ 320°F
MDMT (Jacket): -20°F @ 90 PSI

OAD (without frame): 157″ L x 57″ W x 114″ H
OAD (on frame): 157″ L x 57″ W x 152″ H
