Mixer Powder Machines

Patterson Kelley Mixer Powder Twin Shell 3 FT³

• Manufacturer: Patterson Kelley
• Model Number: 3 FT³
• Frain Number: 5J5790

Patterson Kelley, model 3 ft³, 304 stainless steel, jacketed, vacuum, twin shell mixer. Rated up to 100 lb/ft³. Equipped with (2) 16" boltdown manways, (2) 27" long side V-walls, (2) 12" long inner V-walls, (2) 16" diameter mixing chambers, 6" butterfly valve discharge with 27" ground clearance, liquid/solids bar powered by a 2 hp drive, shell rotation powered by a ¾ hp drive with variable speed gearbox. Requires 81" ceiling clearance with a 27" swing radius / 54" swing diameter and 54" high swing axis.

Jacket ports:
(2) 1" NP

Nat’l Brd: 51987

MAWP(vessel): Full Vac PSI @ 250°F
MAWP (Jacket): 30 PSI @ 250°F

OAD: 84" L x 48" W x 70" H

Patterson Kelley Mixer Powder Twin Shell 2 FT³

• Manufacturer: Patterson Kelley
• Model Number: 2 FT³
• Frain Number: 5J6054

Patterson Kelly, 2 ft³, 316 stainless steel, twin shell mixer. Rated to 365 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 12" ID product ports with bolt down covers, (2) 23" long side V-Walls and (2) 7" long inner V-Walls, shell powered by a 1 Hp drive, 6"ID butterly valve discharge with 36" ground clearance. Requires 80" ceiling clearance with 22" swing radius / 44" swing diameter. Has push button start / stop controls and digital timers. Mounted on (4) stainless steel frame with casters and safety guarding.

OAD: 64"L x 45"W x 72"H

Doyle Equipment Mfg Company Mixer Powder Paddle S.S. 6TDDR BLENDER

• Manufacturer: Doyle Equipment Mfg Company
• Model Number: 6TDDR BLENDER
• Frain Number: 5J2190

Doyle Equipment, 6 ton direct drive stainless steel blending system. Rated up to 6 ton batch capacity – depending on materials, application and machine configuration. Equipped with (3) 95" wide x 144" long x 60" deep 6 ton split hoppers and (1) 95" wide x 144" long x 60" deep conditioning hopper with a 10 hp bottom auger. All (4) hoppers are mounted on RiceLake load cells and have pneumatic slide gate discharges. Product hoppers feed into a 16" wide x 690" long drag chain conveyor with 16" x 7½" UHMW paddles set on 12" centers. Drag chain conveyor feeds into a 88" diameter x 120" long 6 ton rotary blender powered by a 20 hp direct drive motor. Blended product is discharged into a 16" wide x 403" long drag chain conveyor with 16" x 7½" UHMW paddles set on 12" centers with a 238" discharge height.

OAD: 925"L x 501"W x 303"H

Sprout Waldron / Andrtiz Mixer Powder Ribbon S. S. B-79

• Manufacturer: Sprout Waldron / Andrtiz
• Model Number: B-79
• Frain Number: 5J2752

Sprout Waldron, model B-79, 94 ft³, (79 ft³ working capacity), double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel construction. Inner mixing chamber dimensions of 119" in Length; 38" in Width; 40" in Depth. Equipped with lift up cover, 2" wide x ¾" thick (outer) and 4" wide x ½" thick (inner) stainless steel ribbons. 7" diameter flush pneumatic dischage with 38" ground clearance. Ribbons powered by a 15 HP drive.

OAD: 151"L x 50"W x 94"H

AMFEC American Food Equip Coy Mixer Powder Paddle S.S. 510

• Manufacturer: AMFEC American Food Equip Coy
• Model Number: 510
• Frain Number: 5J3999

American Food Equipment Company, 304 stainless steel, 130 ft³ total (90 ft³ workable), dual shaft mixer with pounds of product per hour – depending on materials and application. Inner chamber dimensions: 102" in Length; 57" in Width; 42" in Depth. Equipped with mezzanine with a 24" wide x 119" long standing platform set 72" high with 41" high rails and 8-step staircase, pneumatic lift up safety grate, (2) shafts with 9" x 12" stainless steel paddles independently powered by 20 Hp motor drives, (2) 24" wide x 9½" high end discharges with pneumatic covers and 46" ground clearance. Discharges into a stainless steel funnel for cart loading.

OAD: 123"L x 74"W x 69"H

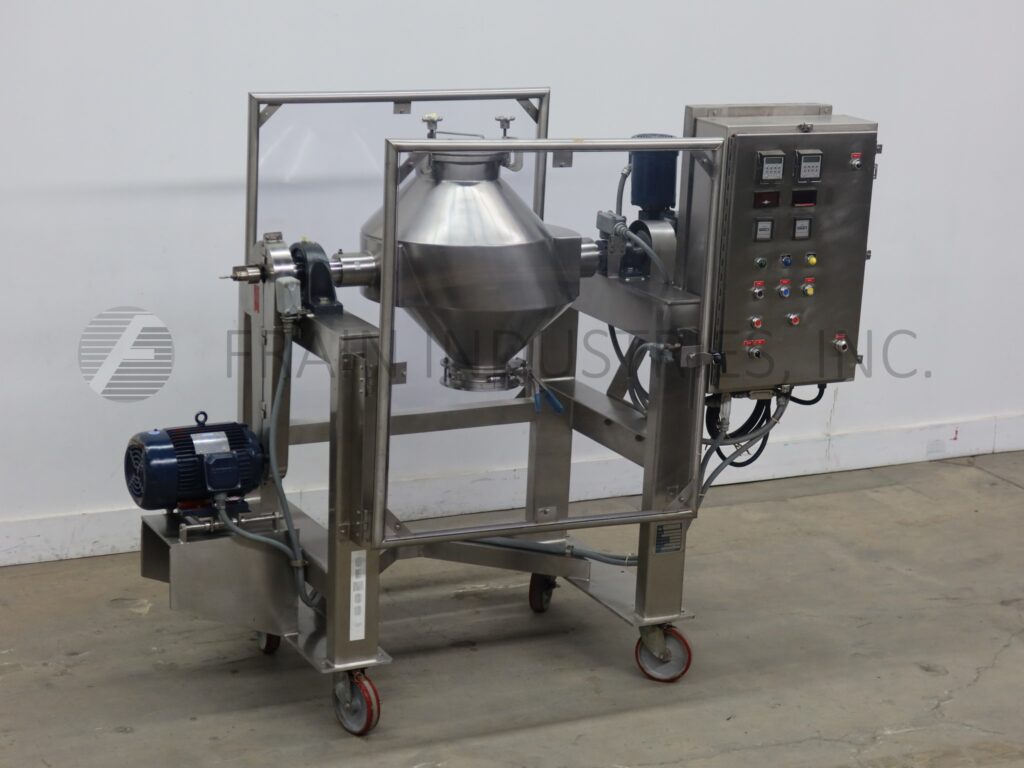

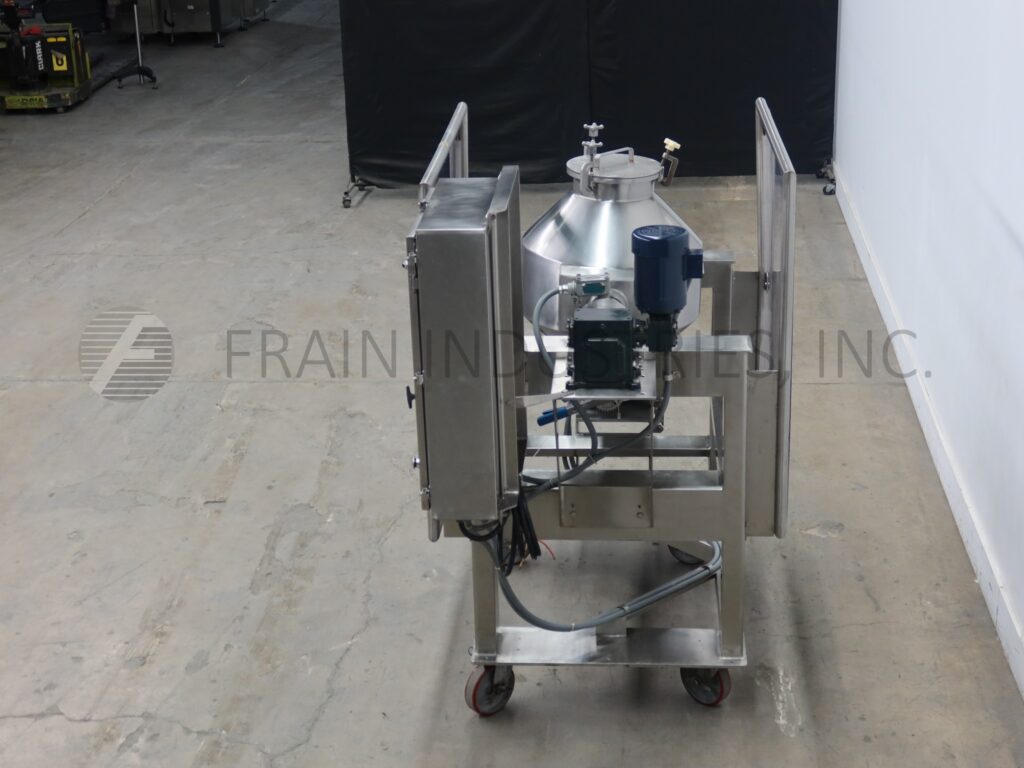

Gemco Mixer Powder Double Cone SLANT

• Manufacturer: Gemco
• Model Number: SLANT
• Frain Number: 5J5131

Gemco, Model Slant, 4½ FT³ Total, (3 FT³ working capacity) 316 stainless steel double cone batch mixer with amount of product per hour – depending on materials and application. Vessel dimensions: 24" diameter, 9" straight wall, 8" deep top cone and 9" deep bottom cone. Equipped with 11" ID product port with bolt down cover and has 6" diameter butterfly valve discharge with 41" ground clearance. Shell powered by a 1 HP drive and liquid solids agitation bar powered by a 7.5/3.8 HP two speed drive. Mixer requires 68" ceiling clearance with 20" swing radius and 40" swing diameter. Control panel with push button start / stop controls and digital timers.

OAD: 98"L x 48"W x 70"H

Patterson Kelley Mixer Powder Twin Shell 3 FT³

• Manufacturer: Patterson Kelley
• Model Number: 3 FT³
• Frain Number: 5J5130

Patterson Kelly, 3 ft³, 316 stainless steel, twin shell mixer. Rated to 62 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 15" ID product ports with bolt down covers, (2) 25" long side V-Walls and (2) 11" long inner V-Walls, shell powered by a 2Hp drive and has 6"ID butterly valve discharge with 34" ground clearance. Requires 81" ceiling clearance with 24" swing radius / 48" swing diameter. Control panel with touch pad HMI.

OAD: 82"L x 58"W x 73"H

Patterson Kelley Mixer Powder Twin Shell 50 FT³

• Manufacturer: Patterson Kelley
• Model Number: 50 FT³
• Frain Number: 5J5637

Patterson Kelley, Model 50 ft³, 304 stainless steel, twin shell mixer. Rated up to 55 lb/ft³. Equipped with (2) 17½" bolt down manways each with a 2½" Tri-clamp, (2) 62" long side V-walls and (2) 24" long inner V-walls with (2) 42" diameter chambers, 12" butterfly valve discharge with 53" ground clearance, shell rotation powered by a 5 hp drive. Requires 180" ceiling clearance with 63" swing radius / 126" swing diameter and 116" high swing axis. Mounted on painted base.

OAD: 157" L x 50" W x 152" H

Patterson Kelley Mixer Powder Twin Shell 1 FT³

• Manufacturer: Patterson Kelley
• Model Number: 1 FT³
• Frain Number: 5J5635

Patterson Kelley, model 1 ft³, 316 stainless steel, jacketed, vacuum, twin shell mixer/dryer. Rated up to 100 lb/ft³. Equipped with (2) 11" boltdown manways, (1) manway lid with vacuum gauge , (2) 17" long side V-walls, (2) 8" long inner V-walls, (2) 11" diameter mixing chambers, 6" butterfly valve discharge with 34" ground clearance, liquid/solids bar powered by a 5 hp drive, shell rotation powered by a ¾ hp drive. Requires 72" ceiling clearance with a 19" swing radius / 38" swing diameter and 51½" high swing axis.

Jacket ports:
(1) ¾" NPT
(2) 1" NP

Nat’l Brd: 63247

MAWP(vessel): Full Vac PSI @ 250°F
MDMT (vessel): 20°F @ F / V
MAWP (Jacket): 30 PSI @ 250°F
MDMT (Jacket): 20°F @ 30 PSI

OAD: 78" L x 45" W x 70" H

Patterson Kelley Mixer Powder Twin Shell 5FT³

• Manufacturer: Patterson Kelley
• Model Number: 5FT³
• Frain Number: 5J5400

Patterson Kelly, 5 ft³, 304 stainless steel, twin shell powder mixer with number of lbs of product per hour – depending on materials, application and machine configuration. Bulk density rating: 90 lbs/ft³. Equipped with (2) 19" ID product ports with bolt down covers, 32" long side V-Walls and 14" long inner V-Walls with 19" diameter chambers. 6" ID butterfly discharge with 32" floor clearance. Mounted on painted "A" frame with a 25" swing radius / 50" swing diameter, 84" ceiling clearance.

OAD: 85" L x 46" W x 79" H

American Process Systems Mixer Powder Paddle S.S. FPB-10

• Manufacturer: American Process Systems
• Model Number: FPB-10
• Frain Number: R38820

American Process Systems, Model FPB-10, 24 ft³ total, 10 ft³ working capacity, 304 stainless steel fluidizing paddle mixer with lbs of product per hour – depending on materials, application and machine configuration. Inner chamber dimmensions: 48" in Length x 26" In Width x 38" in Depth. Equipped with clamp down cover with 6" diameter product charge, 42" x 18" lift out screen with pneumatic vibrator, 42" x 18" lift out safety grate, 3" OD shaft with 4" x 7¼" paddles powered by a 15 hp drive and pneumatic flush mount discharge.

OAD: 85"L x 37"W x 53"H

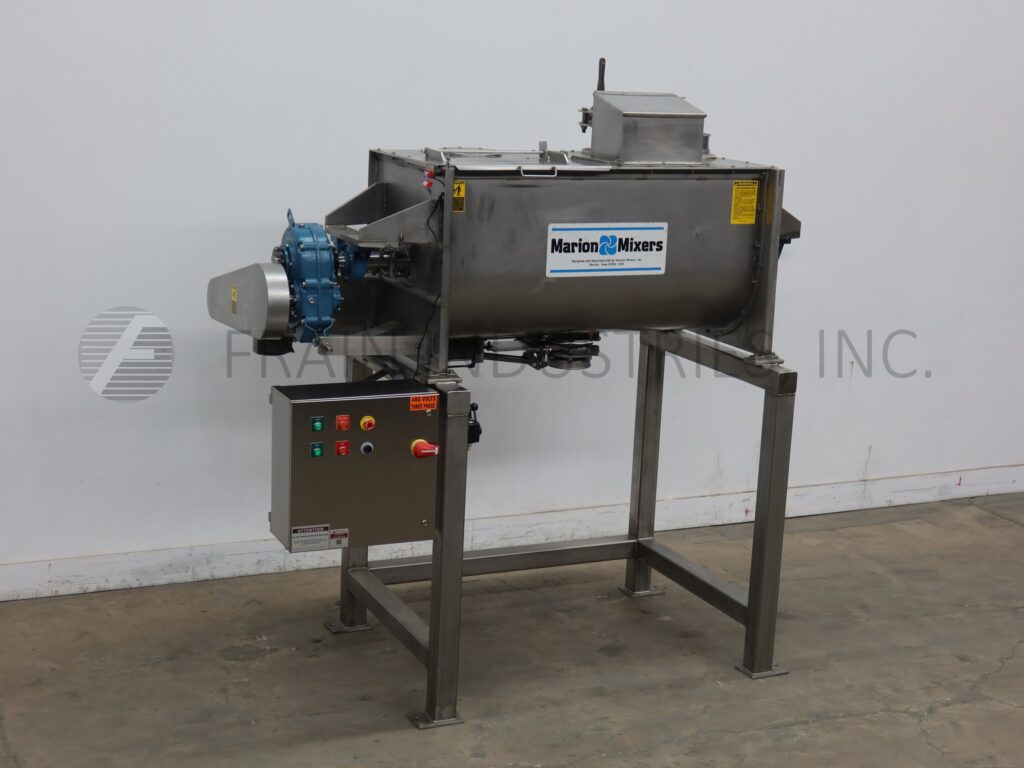

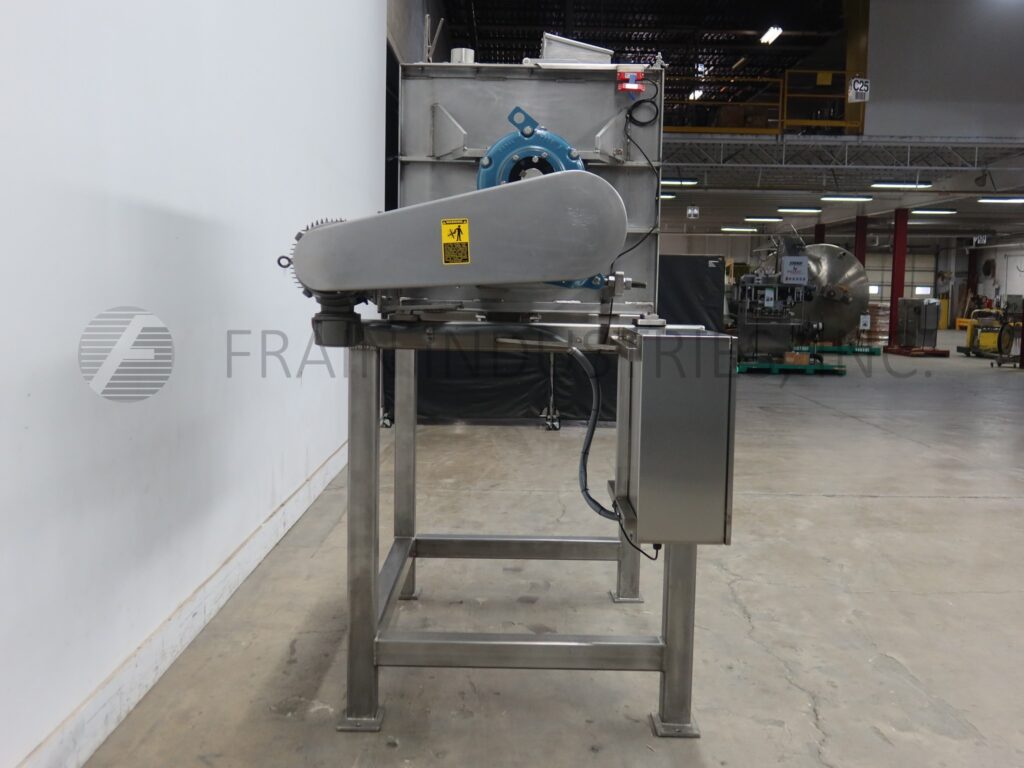

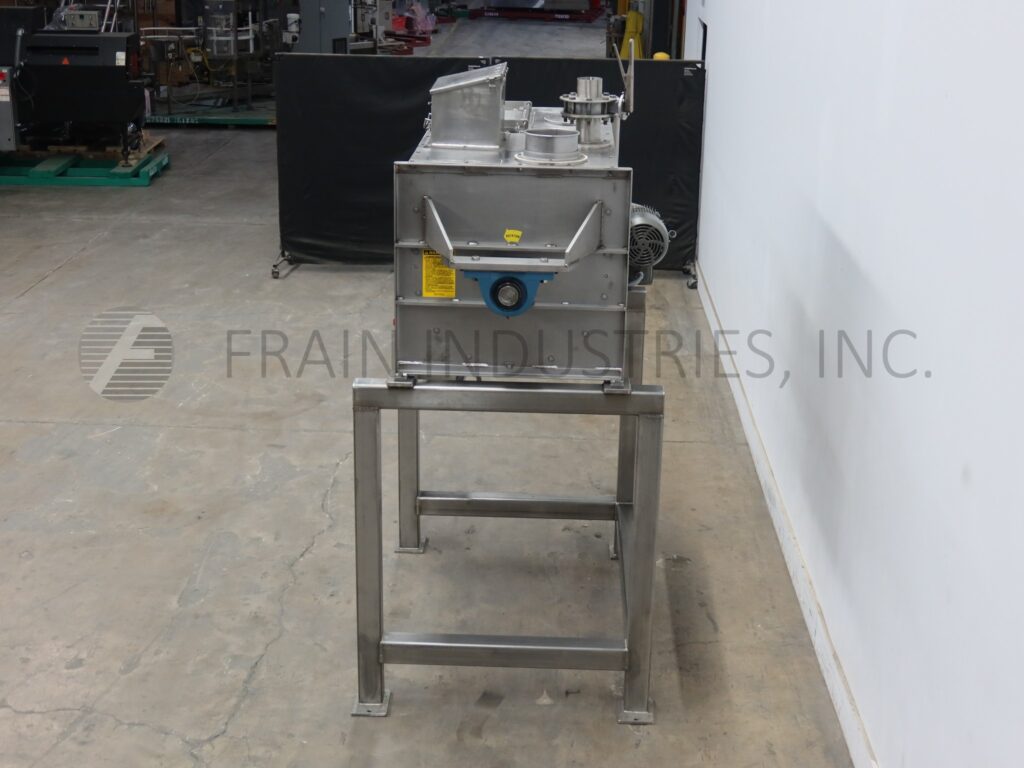

Marion Mixer Powder Paddle S.S. 25FT³

• Manufacturer: Marion
• Model Number: 25FT³
• Frain Number: R40010

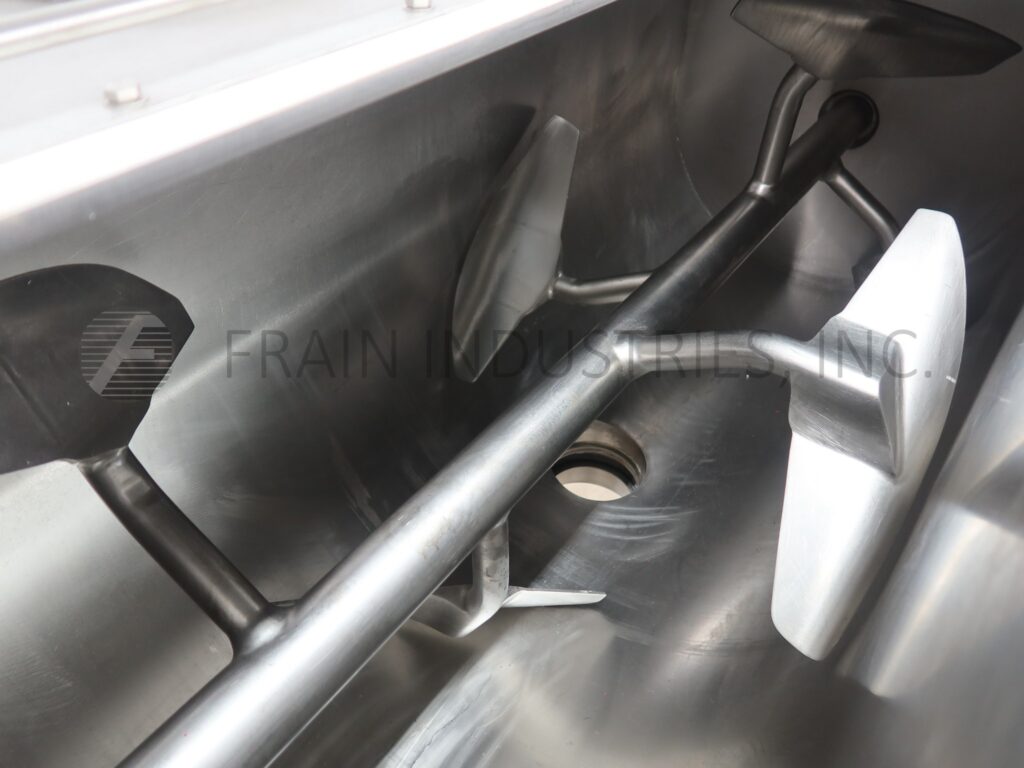

Marion, 25ft³ total (22ft³ working) capacity, 304 stainless steel paddle mixer with lbs of product per hour – depending on materials, application and machine configuration. Inner chamber dimensions: 60" in length x 27" in width x 30½" in depth. Equipped with a boltdown cover with a 12" long x 28" wide manway with liftup / clamp down cover, 3" diameter shaft with 17" long x 5½" wide paddles powered by a 10 HP motor. Bottom discharge with an 8" ID pneumatic slide gate valve.

Top access:
(1) 15½"L x 10½"W square flange
(2) 8" diameter open vents.

OAD: 103"L x 49"W x 47"H
