paddle mixer

Frain Industries has hundreds of paddle blenders, paddle ribbon blenders, and ribbon/ribbon blenders, used, unused, new and reconditioned Mixers, for a wide variety of mixing applications. In  stock,  ranging in price from $3,500 to $150,000. Depending on your product, size, bulk density and material type, Frain engineering specialize in getting to know your, process, product and production requirements in order to optimize the right Paddle Blenders  for a wide variety of mixing applications. Matching you with the right mixer for a complete homogeneous mix of even the most difficult blending applications. Paddle Blender agitators are ideally suited for applications including feed and grain, non-directional liquid or slurry mixes, soap pellets, particulates, abrasive products, pastes, filter cakes, and fragile/friable products. Paddle / Ribbon Blender is the greater range of batch sizes, particularly at the low end of the scale. The combination agitator style allow for smaller batches much like those of a Paddle Blender. They may be as low as 10% of the rated batch capacity of the Paddle / Ribbon Blender depending upon the mix ingredients. They have many ways of accumulating and patterning product. Frain can also integrate 3rd party equipment such as product:  Mixers – temperature controllers, sight gages, batch weigh scales, etc,  which may also be added as need arises. Picking a mixer is as easy as borrow anyone of the big mixers in a lab size and test your batch blend on you materials, chemical, dry goods and other food products. Frain offers a good solution for contract packagers, specialty product makes, limited time offers and new product launches with its (Borrow me program). Because we represent over 30 different varieties of Paddle Blenders manufactures we give the best possible fit over any other single manufacture “OEM”, we have no biases. This result is a high performance process system, able to accommodate all types of blends,  intuitive in its setup and product types and able to run continuously under demanding conditions. Just as general machinery is effective, Frain incorporates custom solutions to ensure all your needs are met in the all process equipment needs.  there’s a Frain industries solution for you.

Frain Industries  is the leading global provider of used Paddle Blenders and used equipment. Our 35 years of being in customer’s rolodexes (Computers)  yield a wide range of used Paddle Blenders from a number of respected OEMs, including: American Process Systems, Ross, Munson, A&M Process, Aaron Stainless, AMF Glenn, Arde Barinco, Asada Iron Works, Babcock Gardner, Baker Perkins, Barinco, Bectochem, Bematek, Big H, Blakes Lee Mixer Co., Bramley Beken, Breddo Likwifier, Brogli, Nicomac Barinco, Charles Ross, Cowles, Crepaco, Crossley,JH Day, Day, Dantco, Drais, Erweka, Forberg, FPEC, Fryma, Fuji Sangyo, Fukae, Gemco, General Food Pckg, Ginhong, GREERCO,  Greaves,  GMX, Hermann Linden, Hobart, Hockmeyer, Hosokawa, Howes, IKA,  Jaygo, JH Day, Keith Industries, KMMC, Komline-Sanderson, Koruma, Krauss Maffei, Ladish Tri-Clover, Lee Industries, Littleford, Littleford Day, Manesty, Marion, MTI Mischtechnik,  Mixer Direct, Mueller, Myers, Nauta, O’Hara, Patterson-Kelly, Patterson Industries, Paul O Abbe, Pfaudler, Phlauer, Premier, Processall, Prodex, Quadro, Quadroytron, Readco, Rietz, Robinson, Silverson,  Sipromac, Sprout Bauer, Stokes, Strong Scott, Scott Turbon Mixer, Summix, Tote, Tower Iron Works, Tri-Clover, Systems, Vector, Vrieco, Walter Equipment, Werner & Phleiderer, Winkworth, Young, Ystra, and many more. We are constantly receiving used Paddle Mixers in a variety of models and capacities. If you don’t see the used Paddle Blenders you are looking for, call one of our representatives and we will find it for you. Application expertise along with engineering and manufacturing flexibility allows us to truly offer tailored mixing solutions for a great many blending  and mixing applications . With well over 8000 machines in stock and 110 mixers  in stock we usually have what you need on hand, it’s what you come to expect Frain Services to be.





Contact Us

Paddle S.S. Equipment In Stock

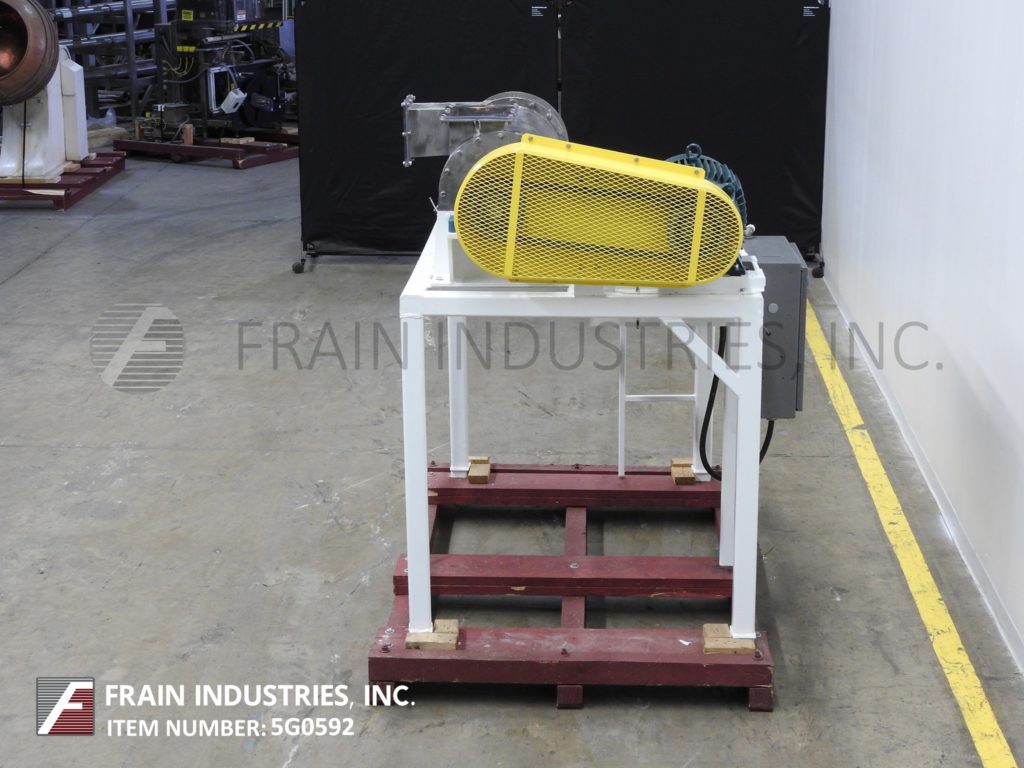

Bepex Mixer Powder Paddle S.S. TURBULIZER

  • Manufacturer: Bepex
  • Model Number: TURBULIZER
  • Frain Number: 5G0592

Bepex Model Turbulizer, continuous, high shear paddle mixer. Equipped with 14" diameter x 42" long 304 stainless steel mixing chamber, 5" long x 2" wide tip mild steel paddles with 2-1/2" diameter shaft, 6-½" diameter top charging port, 6-3/8" wide x 7" deep rectangular flanged discharge, 54" high discharge height. Belt driven 30 hp drive. Mounted on a 75" long x 48" wide x 50" base. For processing dry powder mixing, hydrating hard to wet powders, slurry mixing, coating, sterilization, crystallization, agglomerating / granulating, homogenizing, de-lumping and more.

OAD: 79"L x 48"W x 75"H

Get a Free Quote Call: 630-629-9900

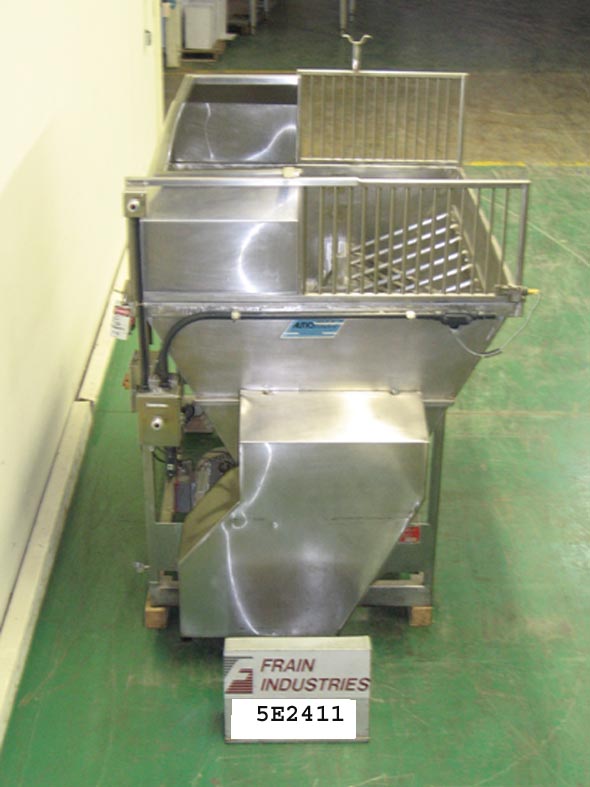

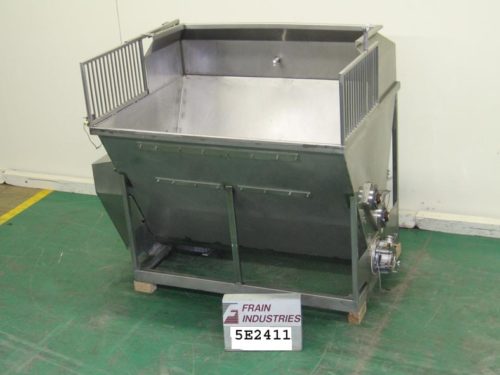

Autio Company Mixer Powder Paddle S.S. AUTIO SACKER

  • Manufacturer: Autio Company
  • Model Number: AUTIO SACKER
  • Frain Number: 5E2411

Autio Model sacker, automatic, stainless steel, paddle mixer, feeder, bulk valve bag, tote filler capable of doing 10 lb to 50 lb bags, to totes, speeds rated on 50 lb bags 1bag in 4 second – depending on materials and application. Equipped with 72" long x 60" wide x 48" deep, 1500 lb capacity stainless steel product hopper, with dual paddle style product breakers / mixers on 4" OD shafts, with 2-1/2" square paddles (3) each spoke, and (8) per shaft, and 2-1/2" OD x 72" long product screw, to the rotary vane pump. The Autio sacker is built around the patented positive displacement screw fed Autio rotary vane pump for precision measuring, and limited product waste, and can be used as a mixer valve bagger (bagging tube size depended on valve bag being filled), mixer tote filler, or a pre-breaker, mixer, product conveying system.

OAD: 76" L x 60" W x 76" H

Get a Free Quote Call: 630-629-9900

Mepaco Mixer Powder Paddle S.S. 170

  • Manufacturer: Mepaco
  • Model Number: 170
  • Frain Number: R29900

Mepaco, Model 170, 304 stainless steel dual trough ribbon blender. Rated from 500 to 6000 pounds of product per batch – depending on materials application and machine configuration. Capacity: 150 ft³ (120 ft³ working). Dual trough dimensions: 102" in Length; 64" in Width; 44" in Depth. Equipped with lift up top cover and lift up grate, double overlapping paddles, dual pneumatic gate discharges with 40" ground clearance. Powered by (2) 20 Hp motor drives. Control panel has AB PanelView Plus 700 touchscreen HMI and push button start / stop.

OAD: 154"L x 88"W x 105"H

Get a Free Quote Call: 630-629-9900

J H Day Mixer Powder Paddle S.S. 10.4 CU PADDLE

  • Manufacturer: J H Day
  • Model Number: 10.4 CU PADDLE
  • Frain Number: 5H3031

J.H. Day 10.4 cubic foot, 304 stainless steel, dimple jacketed paddle mixer, with pounds of product per hour – depending on materials and application. Mixing trough (inner) dimmesions: of 48" in Length; 22" in Width; 26" in Depth. Equipped with full dimpled jacket rated to 125 psi at 353 Deg F. with (2) 1" and (3) 2" ID threaded jacket ports. Flip up cover with electrical safety shut-off and (1) piece top product hopper. (6) interior mixing paddles on 2" OD posts mounted on 4" OD shaft. Dish bottom has 3-1/2" OD center bottom discharge with 22" ground clearence with out discharge valve and 10" floor clearence with the discharge valve. Driven by 5 Hp, belt to motor drive with safety guarding. Control panel has main and auto switches with start, stop and e-stop push buttons. Mounted on stainless steel base frame with casters.

OAD: 91" L x 45" W x 73" H

Get a Free Quote Call: 630-629-9900

Spomasz Mixer Powder Paddle S.S. 10 CU FT 80GL CUA17

  • Manufacturer: Spomasz
  • Model Number: 10 CU FT 80GL CUA17
  • Frain Number: 5F1881

Spomasz, 10 cu ft total, 7.5 cu ft working, 304 stainless steel jacketed paddle mixer. Mixing bowl inner dimmensions: 39" in Length x 19" in Width x 24" in Depth. Equipped with 3" OD shaft with 4 attached paddles, flip top cover, with 17" x 17" top flange port and 24" x 24" x 17" deep slide on and off product feed hopper, 6" x 6" site port with flip up cover and (1) 2-1/2" ID top port. Full dimple jacket has a strap on insulatied cover and (3) 1" ID threaded jacket in / outlet ports. 10" OD, 6" ID flanged center bottom discharge, 24" floor clearence and mounted on a four leg stainless steel base frame.

OAD: 69" L x 40" W x 99" H

Get a Free Quote Call: 630-629-9900

CFR Mixer Powder Paddle S.S. MIXING CONVEYOR

  • Manufacturer: CFR
  • Model Number: MIXING CONVEYOR
  • Frain Number: 5H1176

CFR, Model Mixing Conveyor, 10 ft³, 304 S/S, continuous paddle mixer. Chamber dimensions: 84" long x 16" wide x 22" deep. Equipped with a clamp down traugh cover, 15" long x 14" wide top feed port with lift off cover, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp style port and a 12" diameter end bottom discharge. 3½" diameter mixing shaft with 6" x 7" paddles and ¾" diameter x 6" long pins powered by a 3 hp drive.

OAD: 114"L x 25"W x 33"H

Get a Free Quote Call: 630-629-9900

Strong Scott Bag Dumper Paddle S.S. TURBULIZER

  • Manufacturer: Strong Scott
  • Model Number: TURBULIZER
  • Frain Number: 5E7682

Strong Scott Model TURBULIZER, hi-speed, high shear, continuous paddle mixer with number of Lbs of product per hour – depending on materials and application. Chamber dimensions: 42" long x 12" ID equipped with 4.5" long x 1.5" wide paddles on 4" OD shaft, with flanged (10" x 14" OD, 7" x 9-3/4" ID) top port with (8) 1/2" bolt holes on 6" centers, and flanged (10" x 10" OD, 7-1/2" x 7-1/2" ID) bottom discharge port with (8) 3/8" bolt holes on 4-1/2" centers and 50 Hp (2) belt drive. Mounted on 56" long x 46" wide forkable base platform. Capable of doing dry powders, hydrating hard to wet powders, slurry mixing, coating, sterilization, crystallization, agglomerating granulating, homogenizing, de-lumping and finishing.

OAD: 60" L x 48" W x 34" H

Get a Free Quote Call: 630-629-9900

Mixer Powder Paddle S.S. 40 FT³

  • Model Number: 40 FT³
  • Frain Number: 5G7237

40 ft³ ( 36 ft³ workable), paddle mixer with 304 stainless steel contact parts. Inner mixing chamber dimensions: 78" in Length; 30" in Width; 33" in Depth. Equipped with a 3" diameter motor shaft, 3¾" diameter mixing shaft with 12" x 9" stainless steel paddles powered by a 25 Hp drive, 3½" OD / 3" ID Tri-clamp style center bottom discharge with 36" ground clearance. Mounted on (4) leg base frame.

OAD: 117" L x 38" W x 77" H

Get a Free Quote Call: 630-629-9900

Marion Mixer Powder Paddle S.S. 2041

  • Manufacturer: Marion
  • Model Number: 2041
  • Frain Number: 5G7072

Marion, Model 2041, 20 ft³ (15 ft³ workable), jacketed paddle mixer with 316 stainless steel contact parts. Equipped with 48" in Length x 28" Diameter cylindrical mixing chamber with lift up bolt down top cover, (9) top mounted spray nozzles supplied by a ½" NPT fitting, 2¾" diameter motor shaft, 3" diameter mixing shaft with 18" x 5" stainless steel paddles powered by 7½ Hp drive. 5" diameter butterfly style center bottom discharge with 36" ground clearance. Mounted on (4) leg base frame with casters.

Jacket: (4) 1½" NPT

Nat’l Brd: 10483
MAWP: 125 psi @ 450° F
Jacket SN: T15592

OAD: 94" L x 44" W x 80" H

Get a Free Quote Call: 630-629-9900

Mixer Powder Paddle S.S. 10 FT³

  • Model Number: 10 FT³
  • Frain Number: 5G7073

12 ft³ ( 10 ft³ workable), paddle mixer, 304 stainless steel contact parts. Inner mixing chamber dimensions: 36" in Length; 24" in Width; 27" in Depth. Equipped with 2" diameter motor shaft and mixing shaft with 13" x 5" stainless steel paddles powered by 5 Hp motor drive with forward / reverse switch, 6¼" diameter pneumatic slide gate style center bottom discharge with 25" clearance to rated frame mount. Mounted on forkable base frame.

OAD: 60" L x 60" W x 80" H

Get a Free Quote Call: 630-629-9900

Marion Mixer Powder Paddle S.S. HPS4272

  • Manufacturer: Marion
  • Model Number: HPS4272
  • Frain Number: R26300

Marion Model HPS 60 ft³ 316 stainless steel paddle mixer. Chamber dimensions: 72" in Length; 42" in Width; 53" in Depth. Equipped with three section hinged lid, safety grates, two 6" diameter charge ports, 5"diameter solid shaft, 8"diameter flanged center bottom discharge, butterfly valve and control panel with digital timer, Mounted on stainless steel frame.

OAD: 135" L x 52" W x 130" H

Get a Free Quote Call: 630-629-9900

Forberg / Skala Group Mixer Powder Paddle S.S. .7 CU FT

  • Manufacturer: Forberg
  • Model Number: .7 CU FT
  • Frain Number: R19381

Horizontal, 304 stainless steel dual shaft paddle mixer with a working capacity of 0.7 cu ft (20 liters) ideal for test batches and small production runs. Complete with clamp down cover, optional dual "pin bars" to break up agglomerates, bomb bay bottom discharge, discharge collection pan and locking casters. Spray system option can be added to unit for addition of liquid to the mix.
OAD = 42" w x 37" L x 50"

Get a Free Quote Call: 630-629-9900
