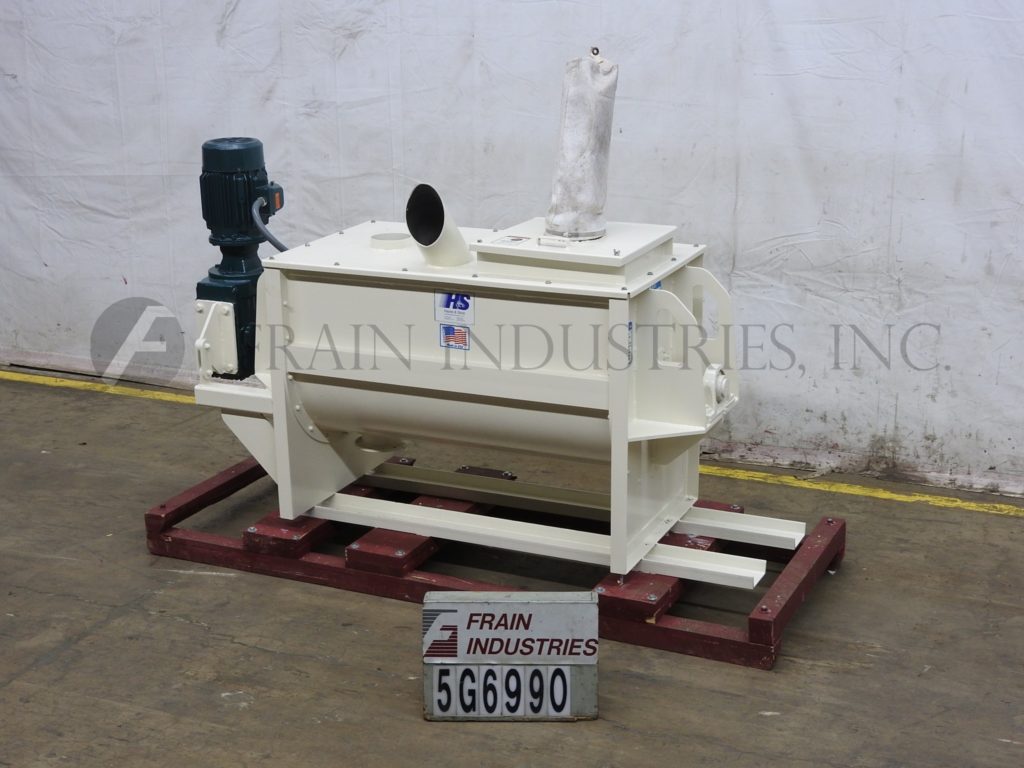

Hayes & Stolz, Model HR15-0502, 20 ft³ (15 ft³ workable), double ribbon mixer with carbon steel contact parts. Inner mixing chamber dimensions: 50" in Length; 26" in Width; 28" in Depth. Equipped with bolt down cover and 18" x 18" flip up manway with (1) 7½" diameter open vent and (2) 5¾" diameter open vent ports. 2½" diameter motor shaft, 4" diameter mixing shaft with 1" wide x 3/8" thick (outer) and 1½" wide x ¼" thick (inner) carbon steel ribbons. 8½" OD / 6" ID 6-bolt pattern flange end bottom discharge has 10" ground clearance. Powered by 5 Hp motor. Mounted on mild steel base frame.
OAD: 87" L x 31" W x 55" H

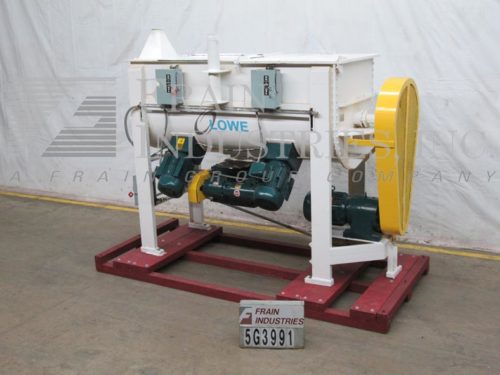

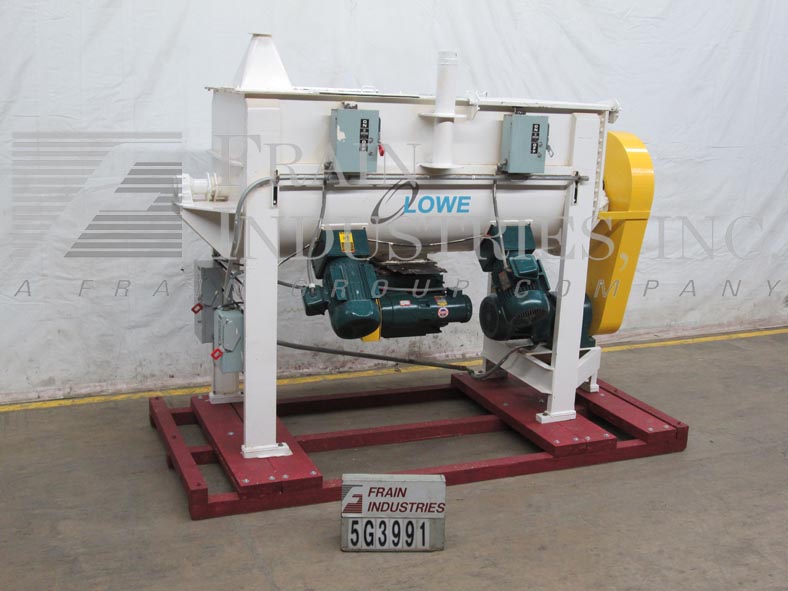

50 Cu.Ft. Horizontal Mixer, 34"w x 38"deep x 90"L hull carbon steel. Equipped with 10 Hp dual bottom mounted choppers, clockwise shaft rotation, belt driven , 11" x 11" square center bottom discharge with knife gate valve, Buhler Type USE 28/30 Rotary Airlock, 1-1/2HP, (3) GE 30amp disconnect, (1) GE 60amp disconnect switch.

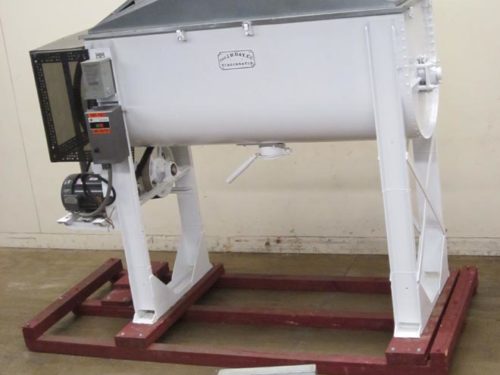

J H Day 50 cu ft total capacity carbon steel, single ribbon mixer. Inner Chamber Dimmensions: 77" in Length x 33" In Width x 38" in Depth. Equipped with clamp down cover has dual 14" x 14" product ports with flip up covers. 2-1/2" OD shaft with 2" Wide x 1/2" Thick ribbons on 1-1/2" spokes. 6" ID center bottom discharge with manual slide gate valve and 48" floor clearence. 5 Hp chain to sproket motor drive with start / stop push button controls and safety guarding. Mounted on four leg base.
OAD: 96" L x 44" W x 89" H
