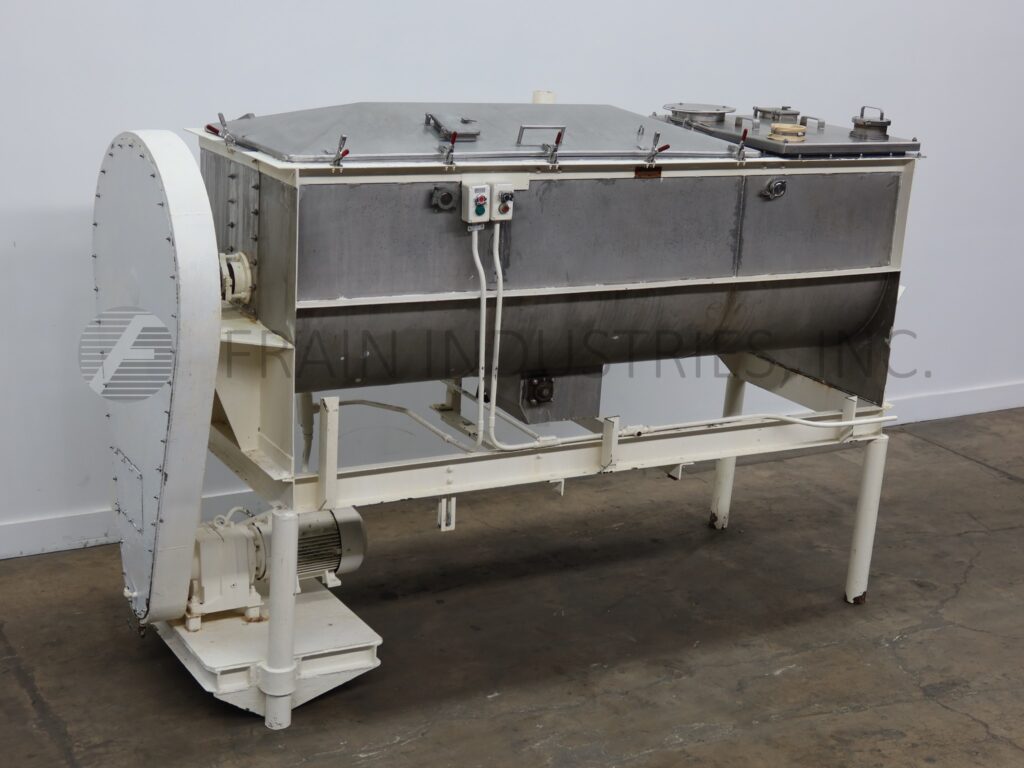

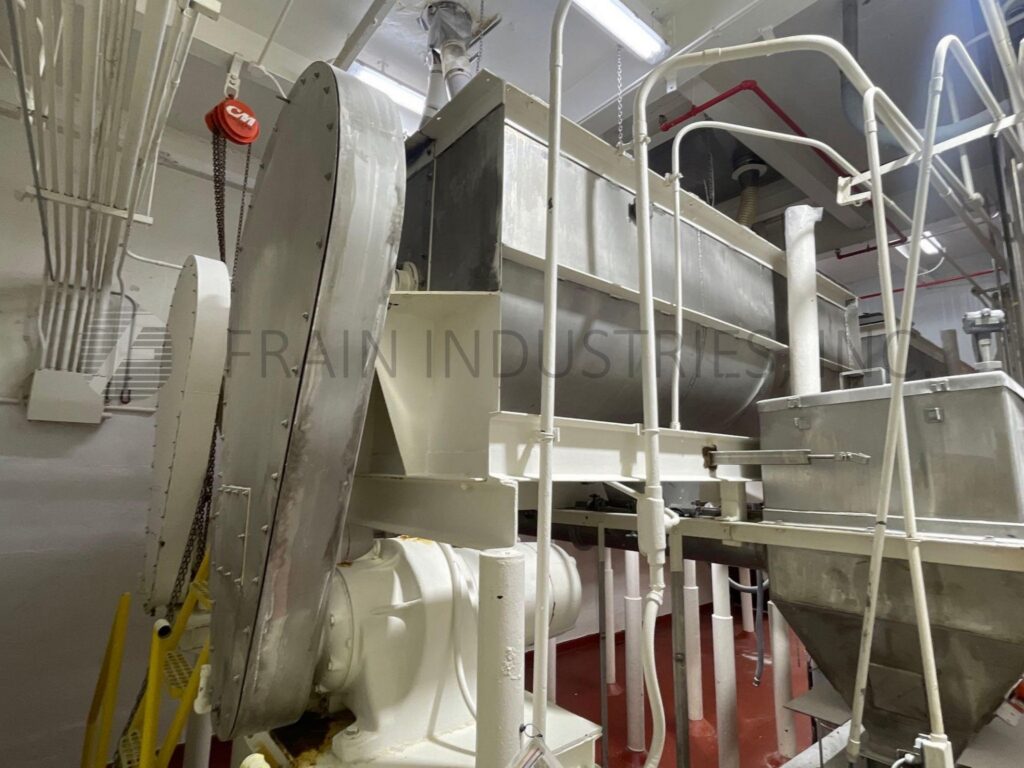

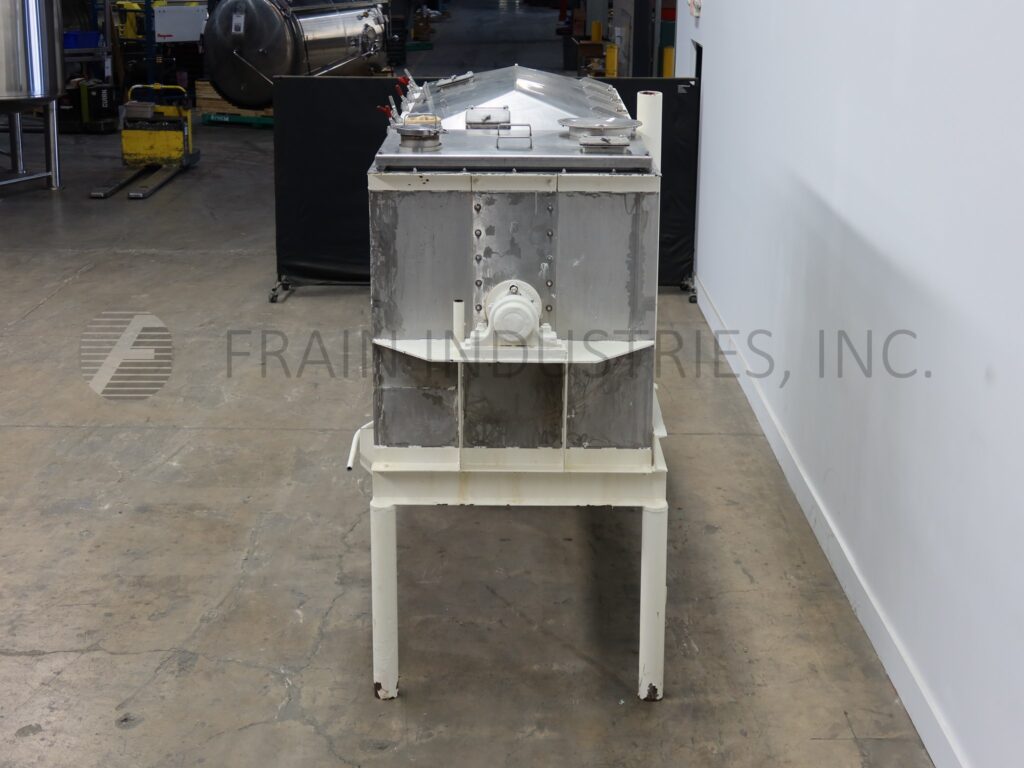

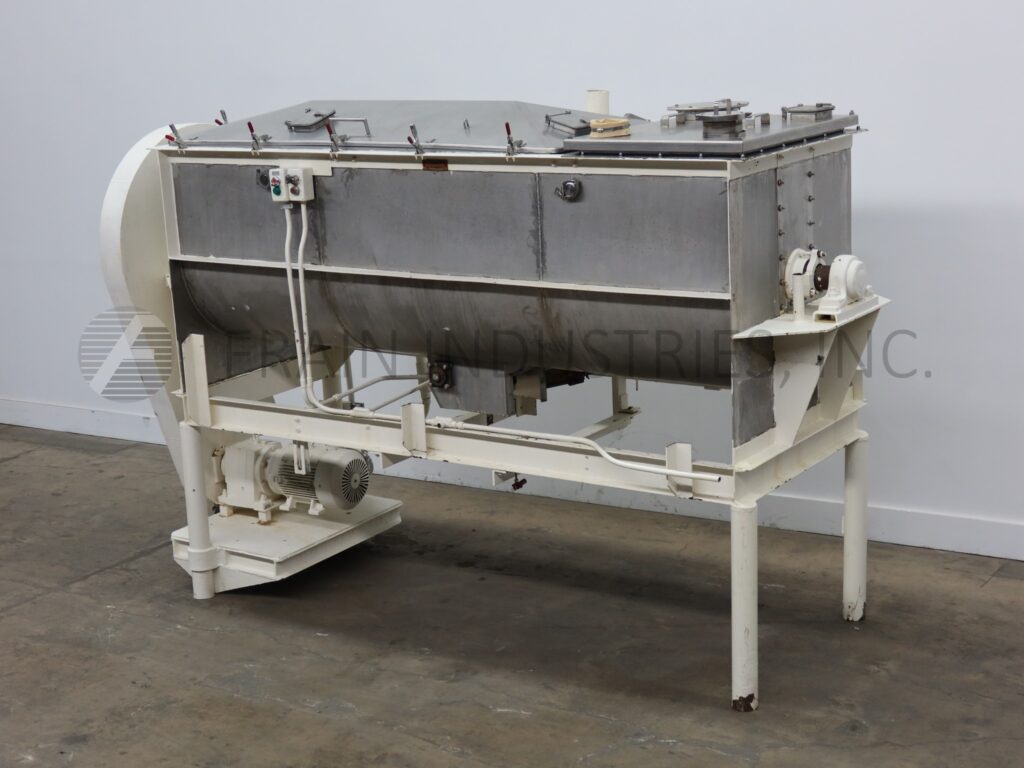

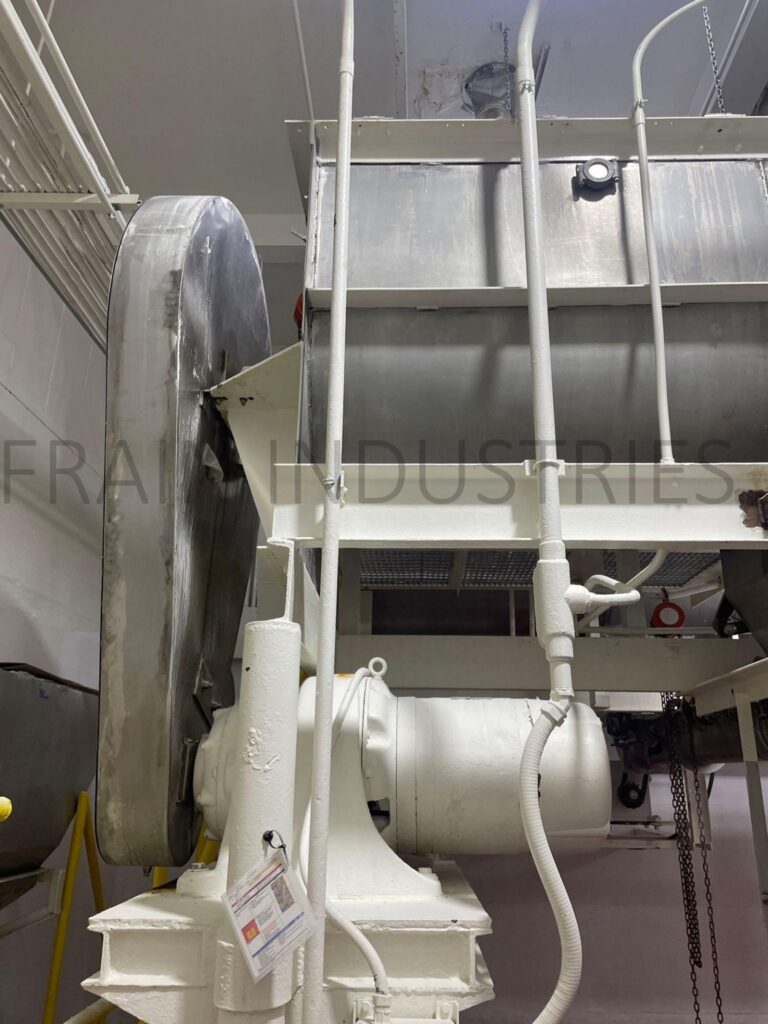

Sprout Waldron, model B-115, 150 ft³, (115 ft³ working capacity), double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel construction. Inner mixing chamber dimensions of 143" in Length; 42" in Width; 48" in Depth. Equipped with top bolt down covers, 2" wide x ½" thick (outer) and 4" wide x ½" thick (inner) stainless steel ribbons. (1) 8"ID / 21"OD flanged discharge and (1) 9"ID / 19"OD flanged discharge. Ribbons powered by a 30 HP drive.
Top Access: (1) 16"W x 48"L lift off cover (1) 8" ID flange (1) 6" Dia Open Vent
OAD: 177"L x 64"W x 95"H
Sprout Waldron, model B-79, 94 ft³, (79 ft³ working capacity), double ribbon mixer with pounds of product per hour – depending on materials and application. 304 stainless steel construction. Inner mixing chamber dimensions of 119" in Length; 38" in Width; 40" in Depth. Equipped with lift up cover, 2" wide x ¾" thick (outer) and 4" wide x ½" thick (inner) stainless steel ribbons. 7" diameter flush pneumatic dischage with 38" ground clearance. Ribbons powered by a 15 HP drive.
OAD: 151"L x 50"W x 94"H

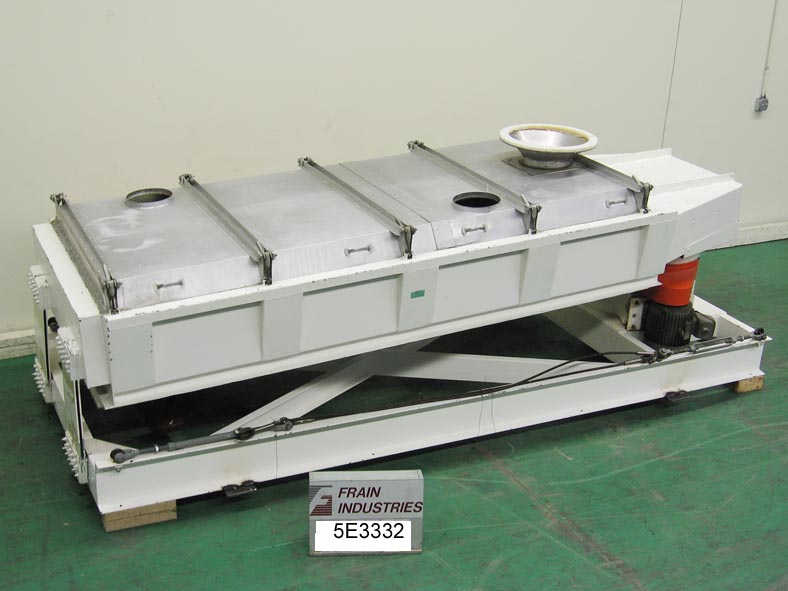

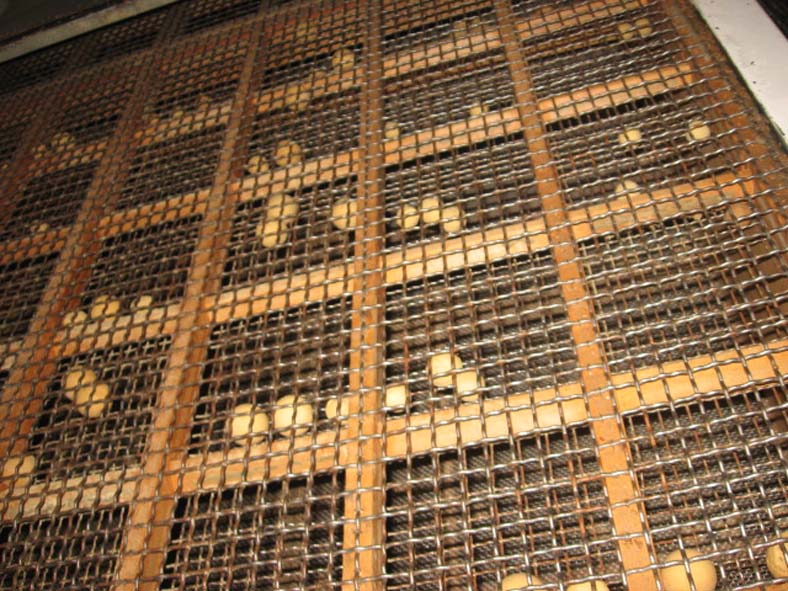

Sprout Waldron, 2 deck, 2 screen, roto shaker, gyratory, screener, with pounds of product per hour – depending on materials, application and size reduction. Equipped with 54" wide x 96" long sift area with gyratory and reciprocating screening action, top scalping section has 3/4" x 3/4" top screen and 1/8" x 1/8" bottom screen, top cover, with quick release clamps and 19" ID funnel type product infeed with (2) 10" OD top cover access ports. 4" wide x 21" long end bottom and re-circulation discharge ports with 12” floor clearance, self cleaning ball system and 3 Hp V-Belt drive. Mounted on heavy duty frame.
OAD: 168" L x 64" W x 60" H
