Patterson Kelley Mixer Powder Twin Shell 1FT³

  Back to All Equipment

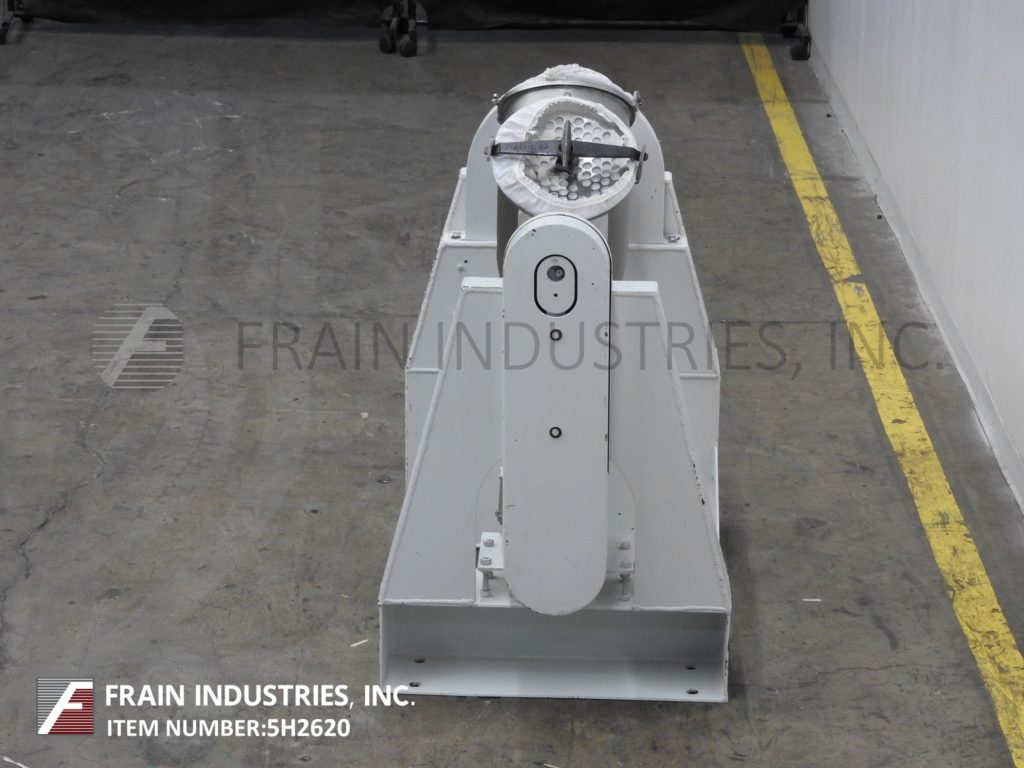

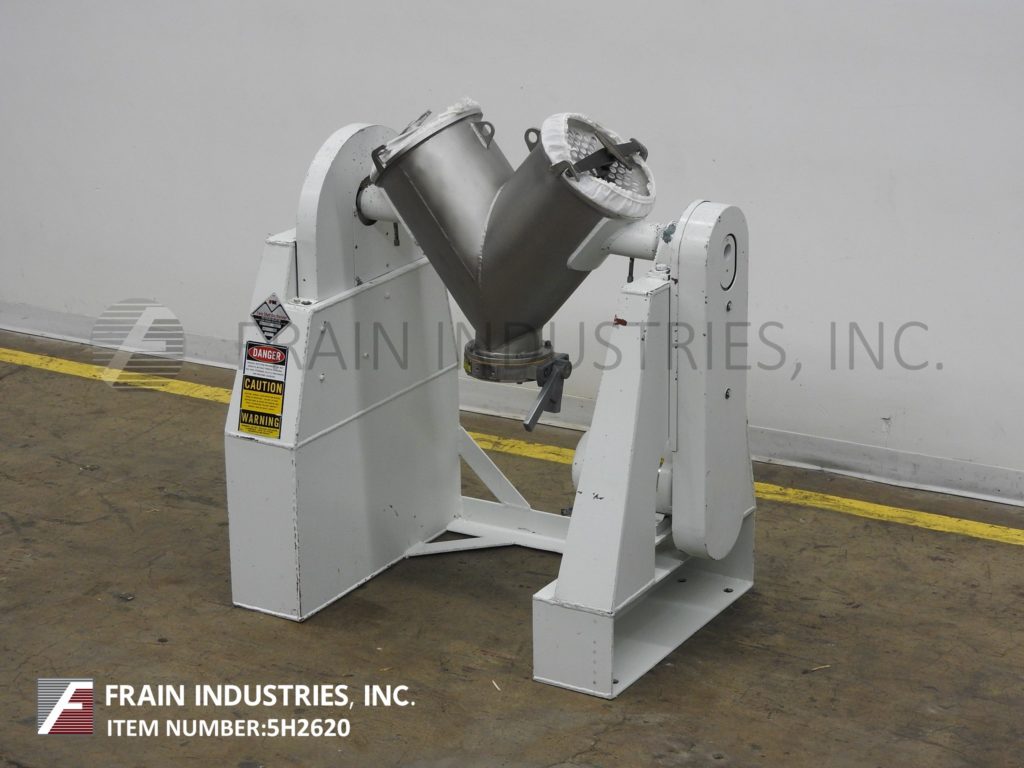

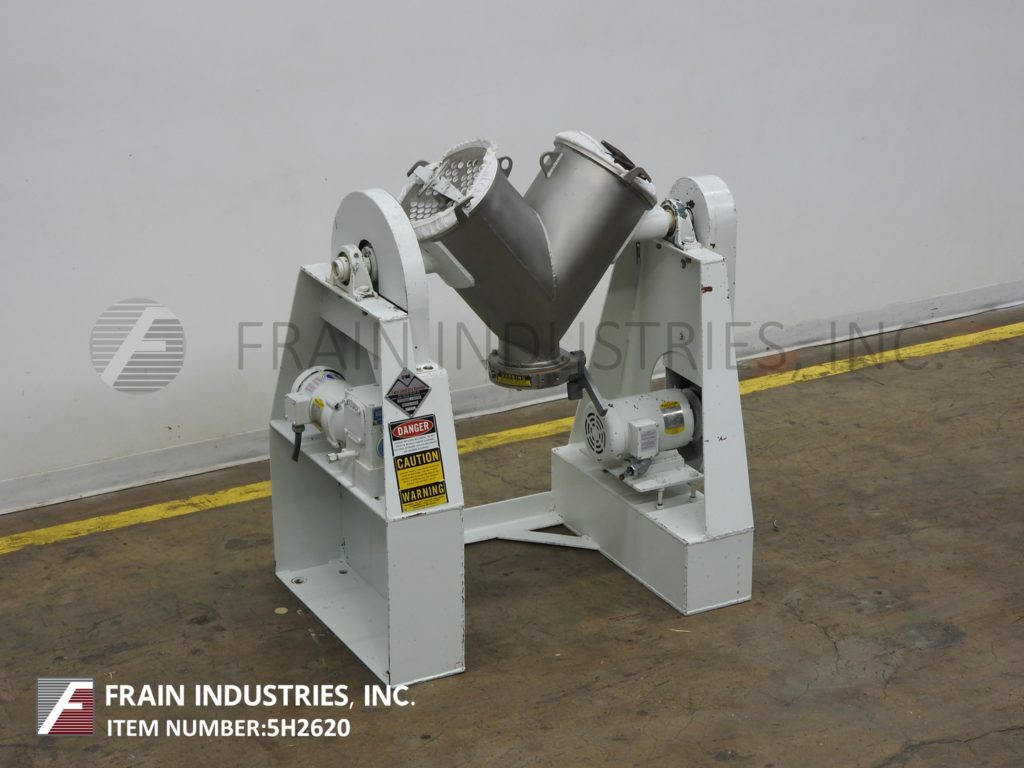

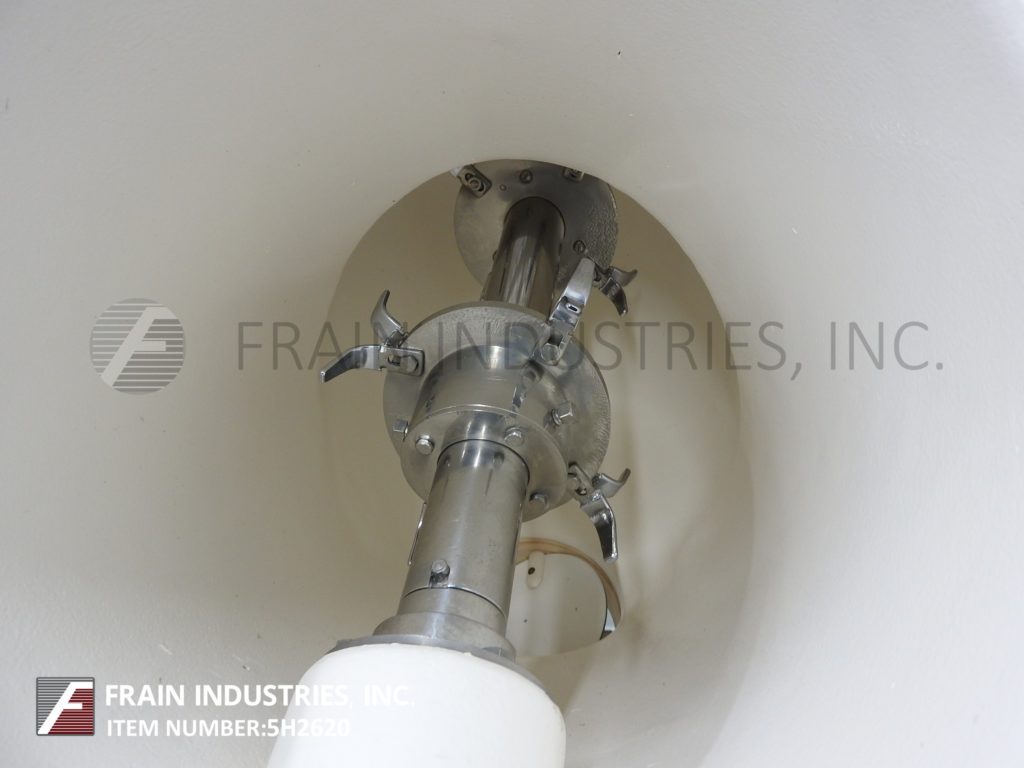

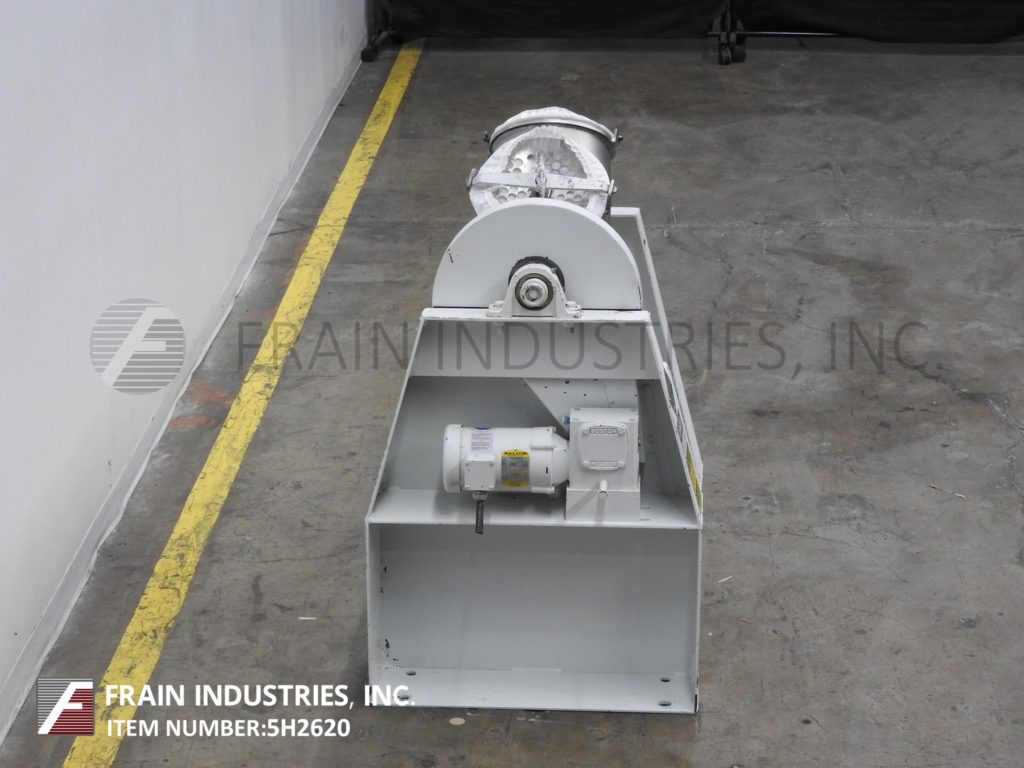

Patterson Kelly, 1 ft³, Kynar (PVDF) coated, twin shell mixer. Rated to 60 lbs per ft³ with Ibs per hour – depending on materials and application. Equipped with (2) 11½" ID product ports with bolt down covers, (2) 16" long side V-Walls and (2) 7" long inner V-Walls. 6"ID butterly valve discharge with 24" ground clearance. Shell powered by ¾ Hp drive and dog ear style intensifier bar powered by 2 Hp drive. Requires 56" ceiling clearance with 17" swing radius / 34" swing diameter. Control panel has push buttons start / stop and timer dial. Mounted on painted base frame.

OAD: 48"L x 31"W x 50"H
