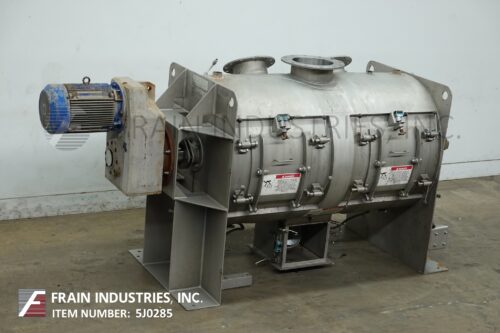

American Process Systems Mixer Powder Plow CPB-30

• Manufacturer: American Process Systems
• Model: CPB-30
• Category: Mixer Powder
• Subcategory: Plow

American Process Systems, Model CPB-30, 52ft³ total and 30 ft³ working capacity, 304 stainless steel jacketed plow mixer with pounds of product per hour – depending on materials and application. Interior chamber dimensions: 40" in Diameter x 72" in Length. Equipped with (8) plows powered by 20 Hp drive, (2) side chamber safety interlocked access doors, flanged 22" OD / 18" ID center bottom discharge with safety grate and pneumatic valve with 2" floor clearance. Mounted on heavy duty frame.

MAWP: 150 PSI @ 650°F

Jacket Access:
(2) 2" NPT

Top Access:
(2) 10" ID; 16"OD

Bottom Access:
(2) 3" NPT

Steam Injections:
(6) 3" NPT

OAD: 232"L x 46"W x 65"H
