Patterson Kelley Mixer Powder Twin Shell 1 FT³

  Back to All Equipment

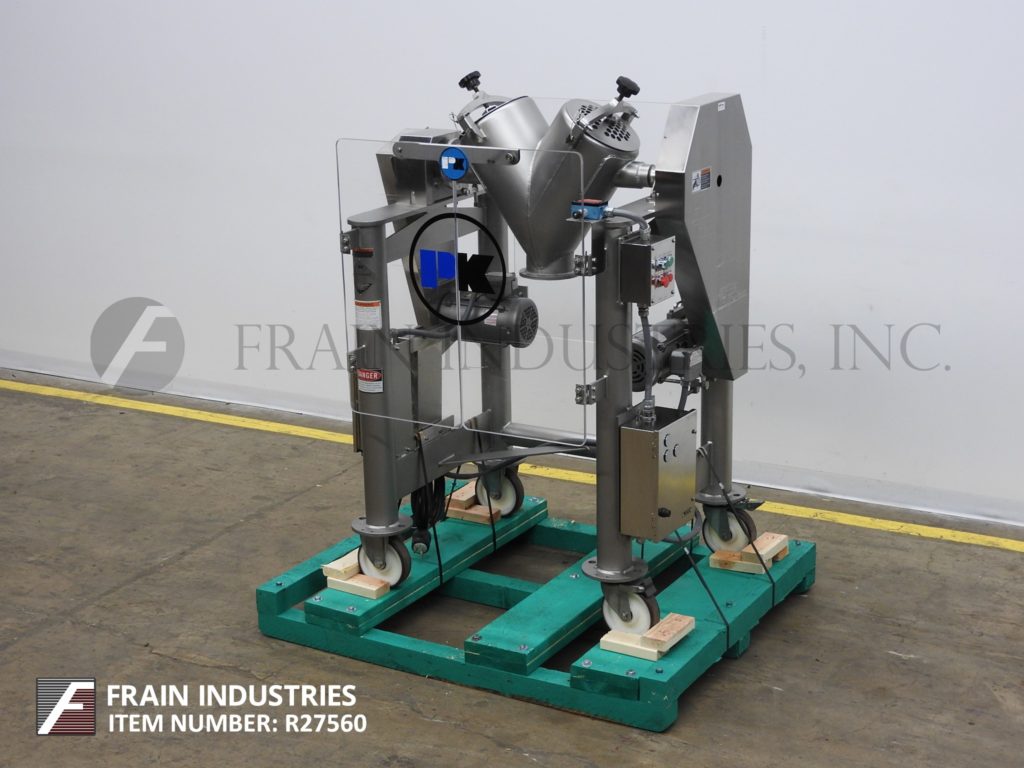

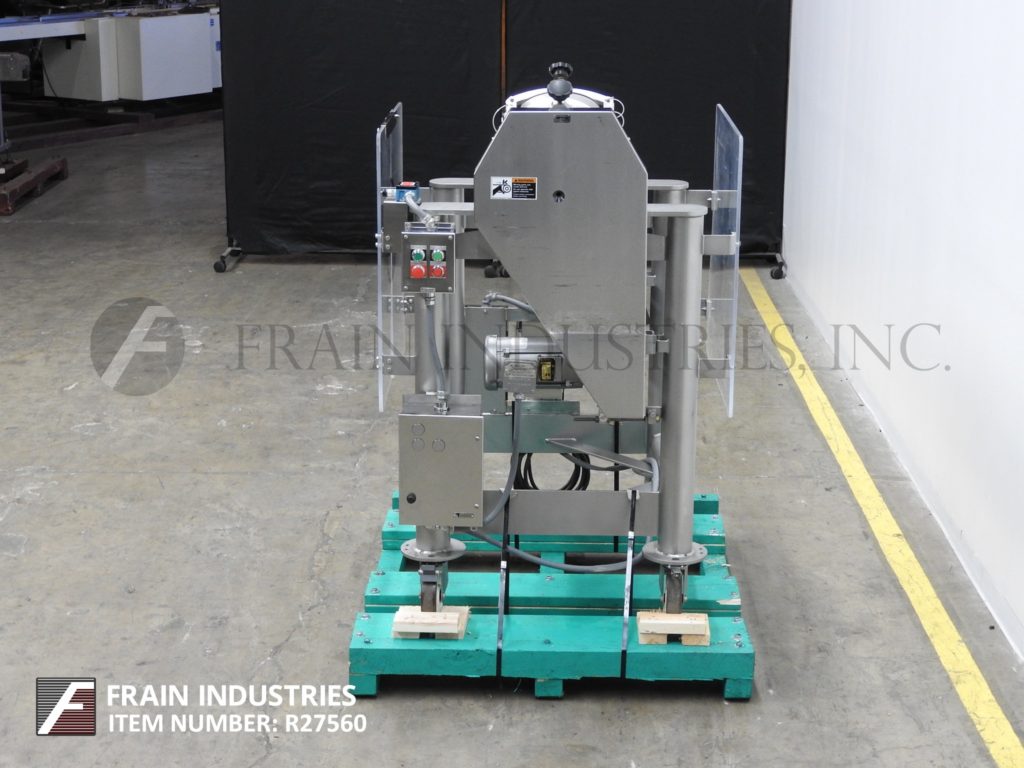

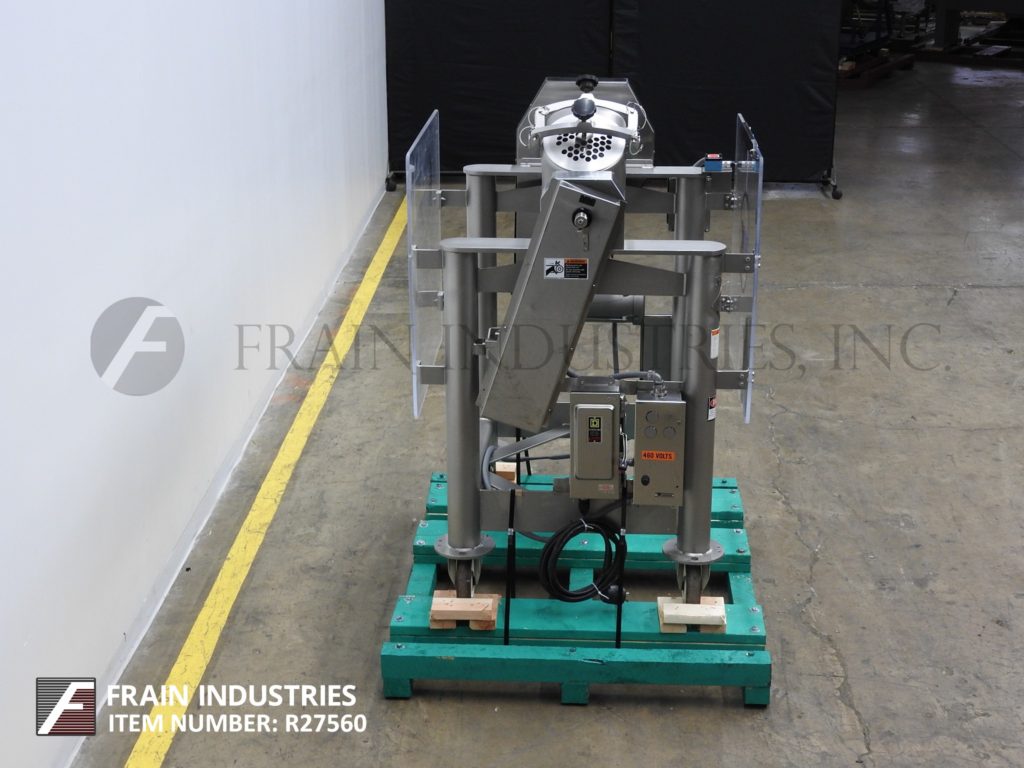

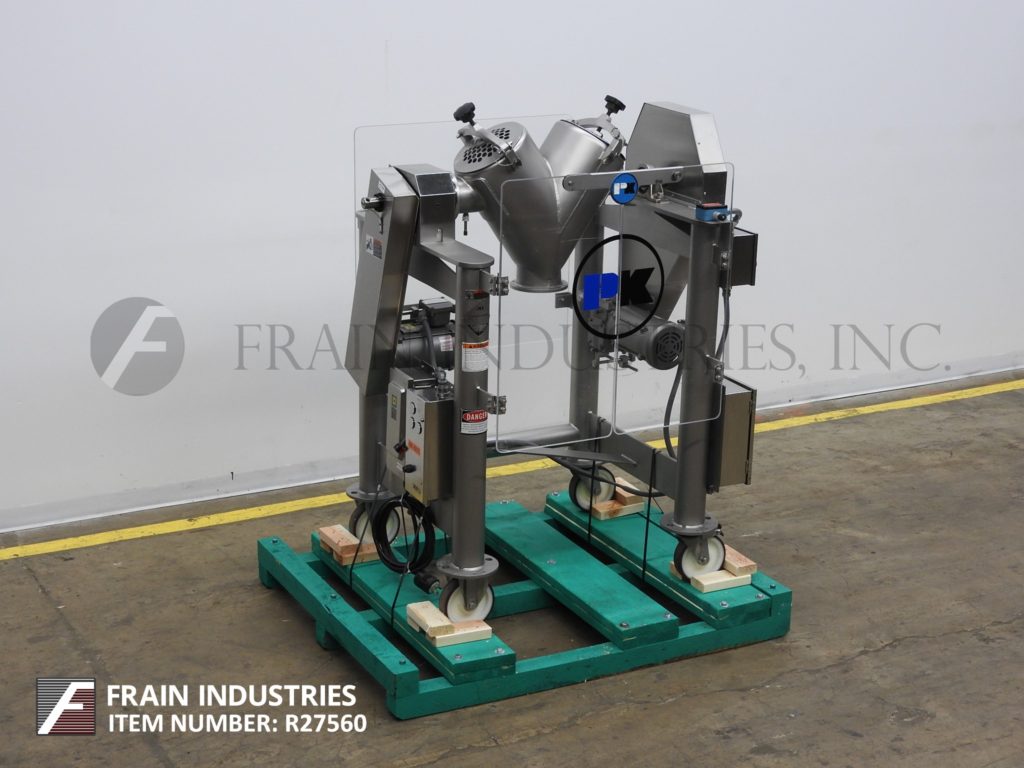

Patterson Kelly, 1 ft³, stainless steel, twin shell mixer. Rated to 60 lbs per ft³ and Ibs per hour – depending on materials, application and machine configuration. Equipped with (2) 10" ID product ports with quick release pin covers, (2) 17" long side V-Walls and (2) 6" long inner V-Walls and liquid solids bar. Shell rotation powered by 1 hp motor drive and liquid solids bar powered by a 2 hp motor drive. 8½"OD / 6½"ID flanged discharge with 43" ground clearance. Requires 72" ceiling clearance with 15" swing radius / 30" swing diameter. Control panel, has start / e-stop and reset push buttons and run/jog control switch. Mounted on stainless steel base frame with casters and lexan guarding.

OAD: 53" L x 46" W x 68" H
