Hapman Machines


Hapman Machines In Stock

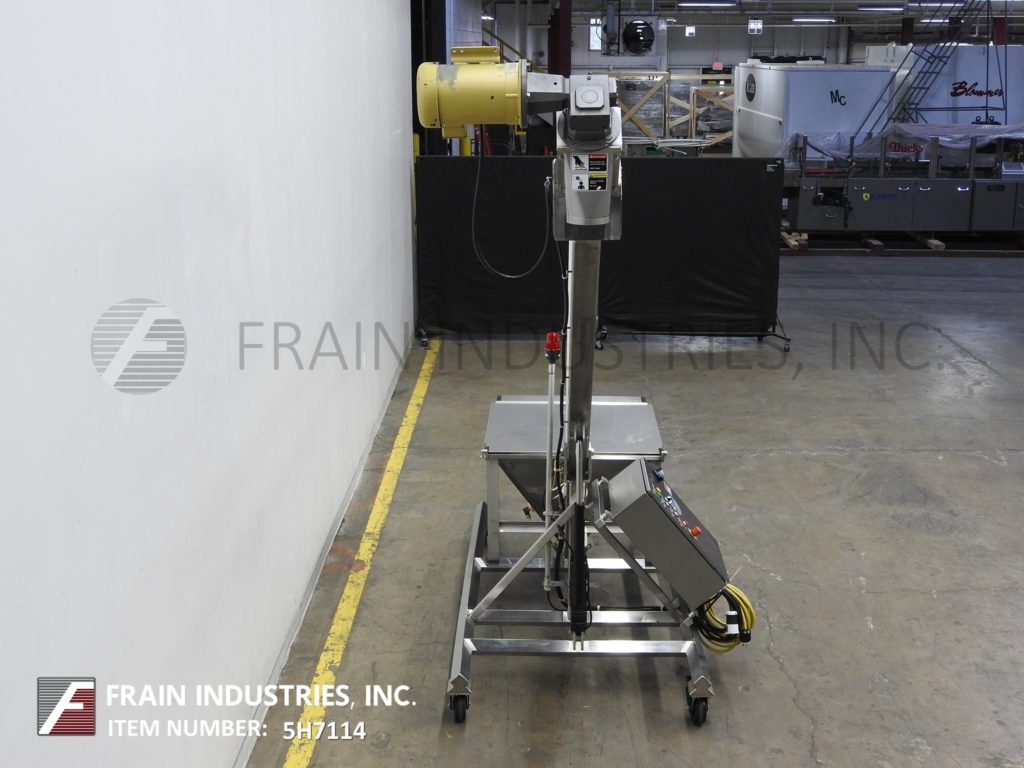

Hapman Conveyor Screw HELIX

  • Manufacturer: Hapman
  • Model Number: HELIX
  • Frain Number: 5H7114

Hapman, screw conveyor and product hopper. Rated from 120 to 360 ft³ / h with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 35” long x 35” wide x 32” deep stainless steel product hopper, 4" diameter x 144" long product auger conveying screw, 5" ID x 96" long flexable poly tube and top mounted 3 Hp motor drive has 6” OD product discharge port with 96" ground clearance. Control panel with raise / lower switch, variable speed, E-stop and start / stop and reverse push button controls. Mounted on frame with casters.

OAD: 135"L x 50"W x 117"H

Get a Free Quote Call: 630-629-9900

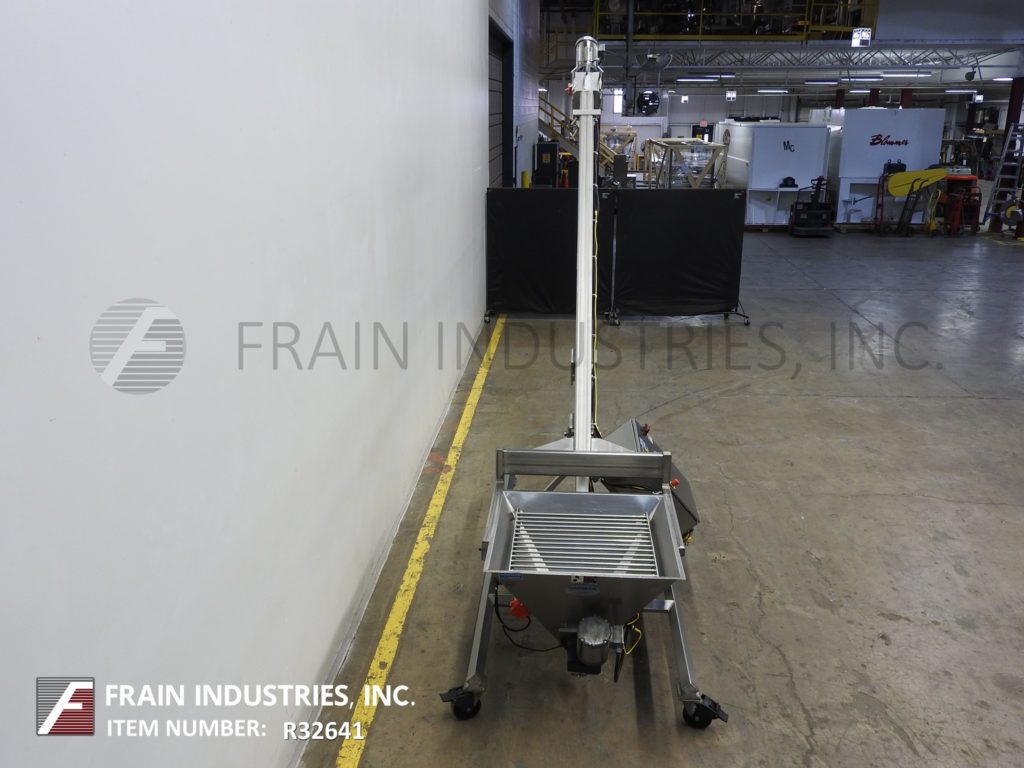

Hapman Conveyor Screw HELIX

  • Manufacturer: Hapman
  • Model Number: HELIX
  • Frain Number: R32641

Hapman, Model 300 series, screw conveyor and product hopper. Rated from _ to _ ft³ / min with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 36” long x 36” wide x 30” deep stainless steel product hopper with safety grid, tree agitation and vibratory agitation, 2¾" OD x 168" long stainless steel product auger conveying screw, 3" ID x 128" long flexable poly tube and top mounted 2 Hp motor drive has 6” OD product discharge port with 113" ground clearance. Control panel with raise / lower switch, variable speed, E-stop and start / stop and reverse push button controls. Mounted on stainless frame with casters.

OAD: 165"L x 55"W x 140"H

Get a Free Quote Call: 630-629-9900

Hapman Feeder Auger HELIX

  • Manufacturer: Hapman
  • Model Number: HELIX
  • Frain Number: 5G9121

Hapman, Model 400 series, screw conveyor and product hopper. Rated from 1 to 4 ft³/min with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 34" wide x 26"long x 6" deep feed pan, 30” long x 30” wide x 25” deep stainless steel product hopper with ¾ hp bottom agitation, auger feed and cover, 3¾" OD x 103" long stainless steel product auger conveying screw, with 4" ID x 82" long flexable poly tube with top mounted 5 Hp motor drive and 6” OD product discharge port with 75" ground clearance. Control panel with variable speed, start, stop reset and e-stop controls. Mounted on stainless base frame with casters.

OAD: 150" L x 46" W x 96" H

Get a Free Quote Call: 630-629-9900

Hapman Feeder Auger HELIX

  • Manufacturer: Hapman
  • Model Number: HELIX
  • Frain Number: 5G9120

Hapman, Model 400 series, screw conveyor and product hopper. Rated from 1 to 4 ft³/min with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 36” long x 36” wide x 25” deep stainless steel product hopper, safety grid and cover, 3¾" OD x 103" long stainless steel product auger conveying screw, with 4" ID x 82" long flexable poly tube with top mounted 5 Hp motor drive and 6” OD product discharge port with 75" ground clearance. Control panel with variable speed, E-stop and start, stop and reverse push button controls. Mounted on stainless base frame with casters.

OAD: 103" L x 41" W x 97" H

Get a Free Quote Call: 630-629-9900

Hapman Material Handling Bulk Sack BAG UNLOADER

  • Manufacturer: Hapman
  • Model Number: BAG UNLOADER
  • Frain Number: 5G5310

Hapman, bulk bag / super sack unloading system. Capable of moving and unloading bags with capacities up to 2,000 lbs – depending on materials and application. Equipped with dual chain hoist system, 96"L runway "I" beam that extends 36" beyond the frame, 16 ft/min lift speed, 40 ft/min travel speed and a remote hand held controller with start/stop/up/down/forward/reverse controls.

Hapman screw feeder. Equipped with 8 ft³ hopper measuring 35" long x 35" wide x 30" deep, 105" long x 2½" diameter screw powered by a 2 Hp drive, cover with a 12" diameter Iris valve and christmas tree agitation powered by a ½ Hp motor. Mounted on (4) legs.

OAD: 103"L x 70"W x 182"H (unloader)
38"L x 38"W x 57"H (feeder)

Get a Free Quote Call: 630-629-9900
