Automatic, dual lane, blister machine capable rated to 90 cycles per minute. Specification: Bottom web 100mm; Top web 98mm; Index of 25mm; Forming depth to15mm. Mid-line perforation, knife edge trim, E-stop and self contained chiller. Mounted on casters. Optional with product feed hopper (1/2 cu ft), product brush into blisters, top web printer.
OAD: 79"L x 36"W x 64"H
Automatic intermittent motion, 2 station axis servo driven horizontal cartoner capable of speeds from 30 to 65 cpm – speeds depending on materials and application. Rotary four head carton placer has an extended 12′ carton feeding conveyor. Currently set with 7 1/2" centers for a carton size range: (length) 2 1/2" – 6" (width) 3/4" – 4" (depth) 4" – 12". Has AB SLC 5/04 plc controls with MMI digital display boom mounted and swings 360 deg. around machine with wonderware node and computer for same. Smart belt infeed to position random articles in position fo transfer ro the bucket infeed conveyor. Currently set up with Nordson 3100 glue system with exhaust hoods and duct work/hoses for fume/smoke exacuation. Has an 8′ L adjustable bucket infeed system (current buckets are 5 1/4") with complete inspection system that has no product no carton and open flap reject with reject station to remove any reject units onto a discharge conveyor. MGS Intermittent Pick n’ Place Leaflet placer available for additional cost. Equipped with Full wing style barrier guarding.
OAD: 380" (L) x 84" (W) x 86" (H)

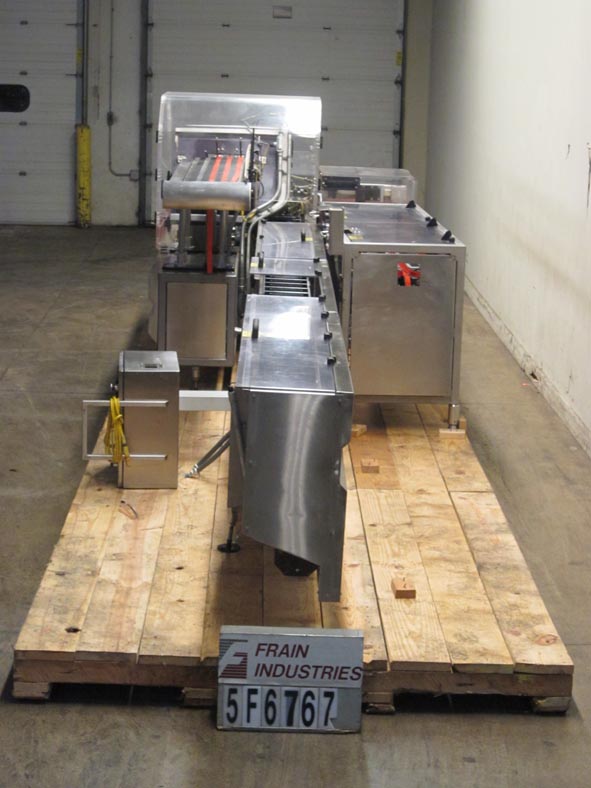

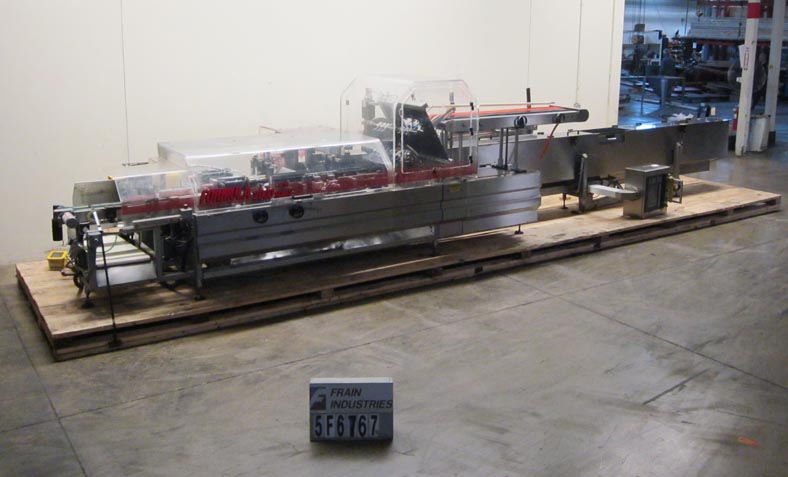

Klockner Bartelt, Model CMC 6, automatic, horizontial, continous motion, hot melt glue cartoner rated 50 to 400 cartons per minute – depending on materials and application. Carton size range: 1-1/2" to 4-1/2" in Length; 3/4" to 3-1/2" in Width; 4-1/2" to 9" in Depth. Equipped with (3) chains adjustable set on 6" centers, with 1-1/2" wide x 2" high lugs, 216" long product in feed conveyor with 3-1/4" long x 1-1/2" high x 7" deep fixed product buckets, 36" long (3) chain powered blank carton magazine, (2) head rotary pic-n-place, no-product / no-carton, barrel cam loader, Nordson ProBlue hot melt glue and self contained vacuum pump systems. Control Panel has main, jog, run, vacuum on / off switches with vari speed controller and start, stop, e-stop push buttons. Mounted on heavy duty base frame with interlock safety door guarding and statis light.
OAD: 278" L x 90" W x 77" H
