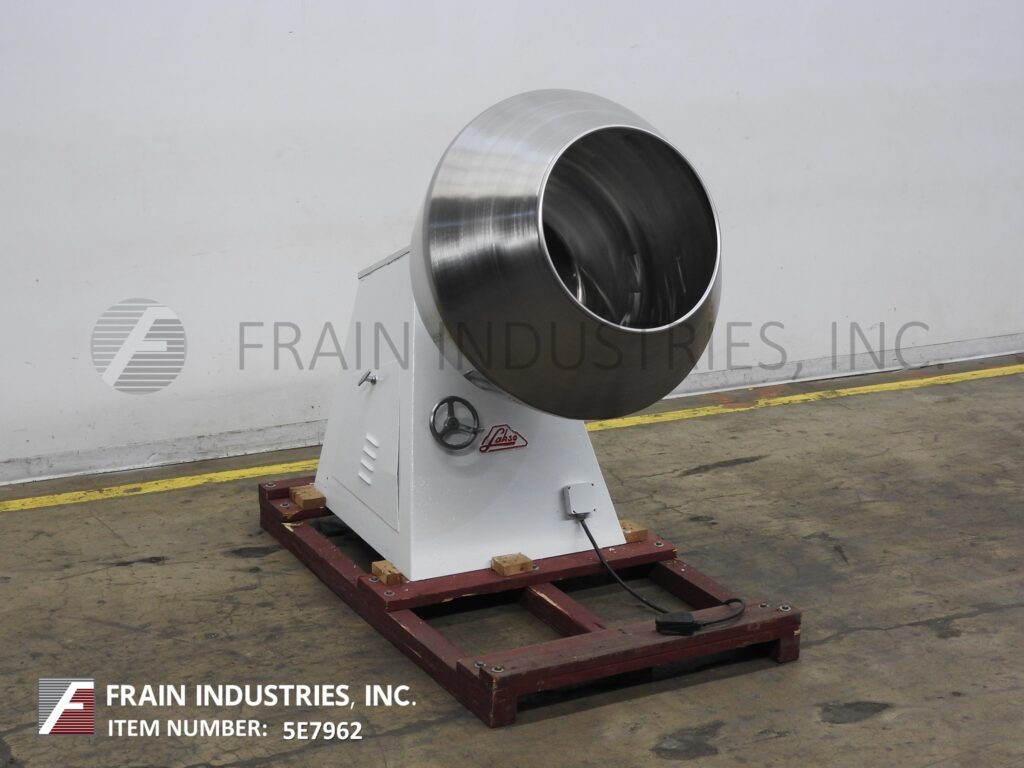

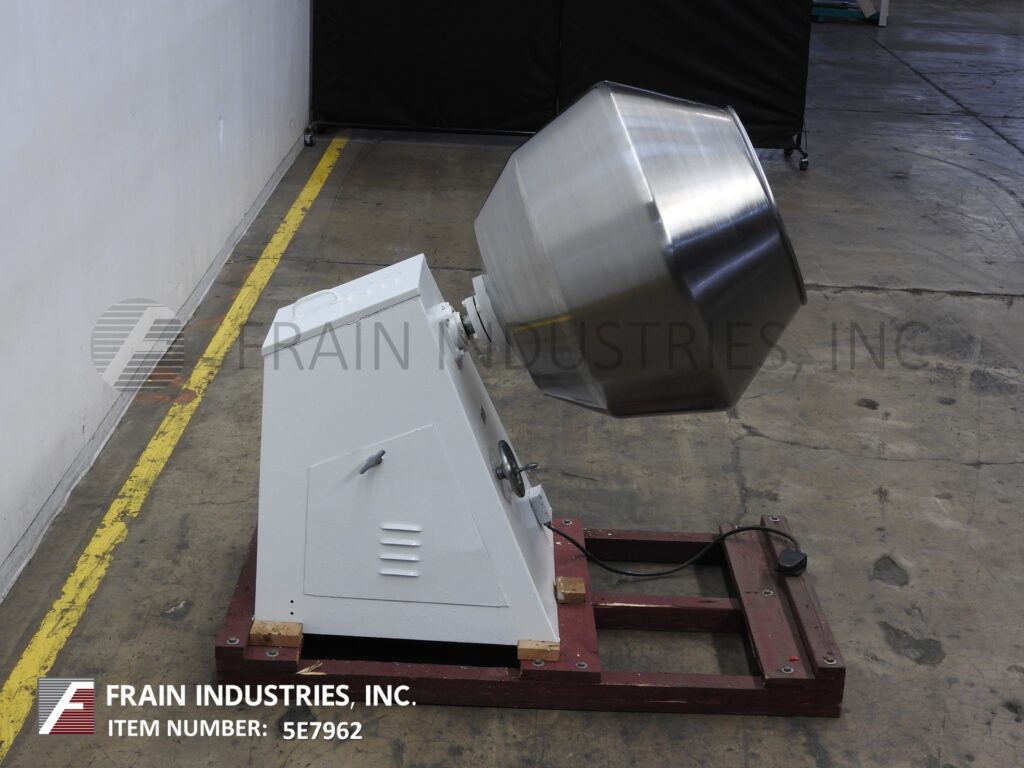

42" Diameter, stainless steel coating pan Pan dimensions: 42" ID; 34" deep; 24" access opening. 1 hp Variable speed drive, 1- 25 rpm.
OAD: 60" L x 36" W x 64" H
Automatic inline slat counter/filler capable of speeds 50 to 170 bottles per minute – depending on materials and application. Stainless steel construction. Bimba air cylinder container indexing system. OAD: 50" W x 62" L x 80" H.

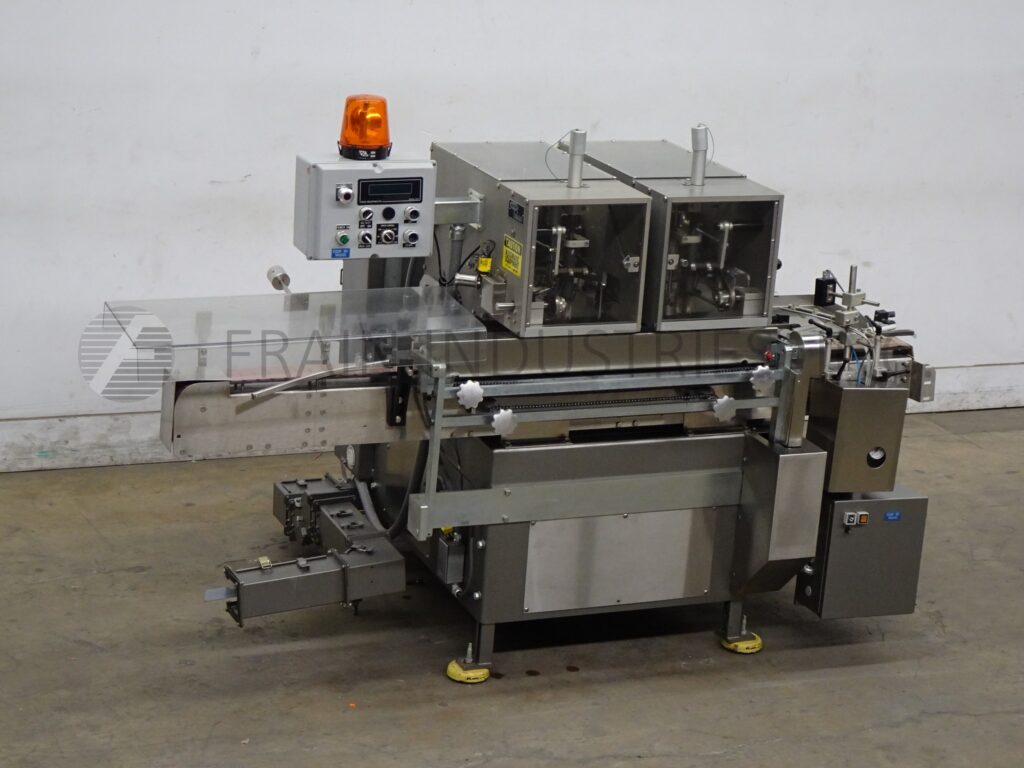

Lakso, Model 300, Automatic, inline, stainless steel, (2) head, cotton inserter, rated up to 300 containers per minute,150 each head – depending on materials application and machine configuration. Inverted "U" technique has maximum cotton weight of 26 grams per yard with cut off length range of 2½" to 7" and capable of (1 insertion full speed or 2 insertions per bottle at ½ speed). Bottle size range: 38mm to 115mm in Diameter and 41mm to 228mm in height. Equipped with 4" wide x 80" long table top conveyor and has worm screw indexing, dual cotton inserting heads with safety door guarding. Control panel has variable speed controller with detect on / off, run / jog and power on switches with up / down and e-stop push button controls with digital readout and status light. Mounted on stainless steel frame with leveling legs.
OAD: 96" L x 60" W x 63" H

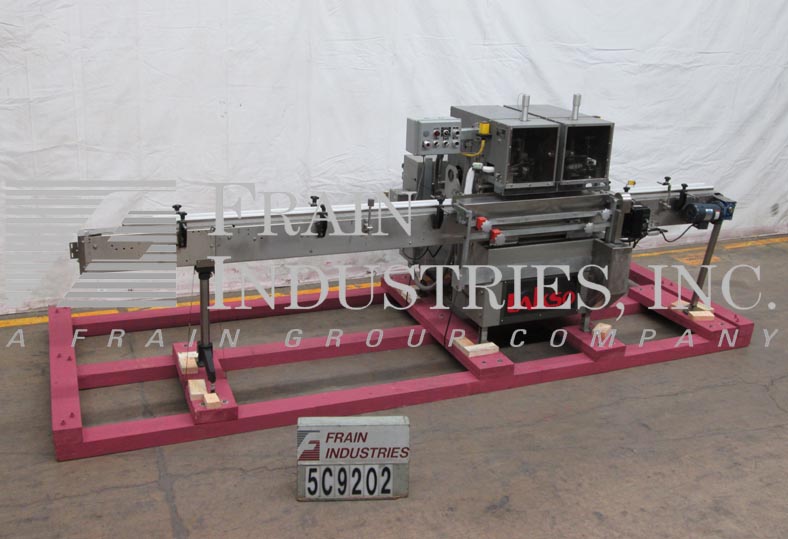

Lakso, Model 300, Automatic, inline, stainless steel, twin head, cotton inserter. Rated from 25 to 300 containers per minute – depending on materials, application and machine configuration. Maximum cotton weight range of: 26 grams per yard with cut off length range of: 2½" to 7" and capable of (1) or (2) insertions per bottle (½ speed), bottle diameter of 38mm to 115mm and bottle height 41mm to 228mm. Equipped with 3½" wide x 132" long conveyor and dual cotton inserter heads with safety door guarding. Control panel has machine on / off and variable speed controls, with e-stop and status light bar. Mounted on stainless steel height adjustable frame.
OAD: 138"L x 60"W x 64"H

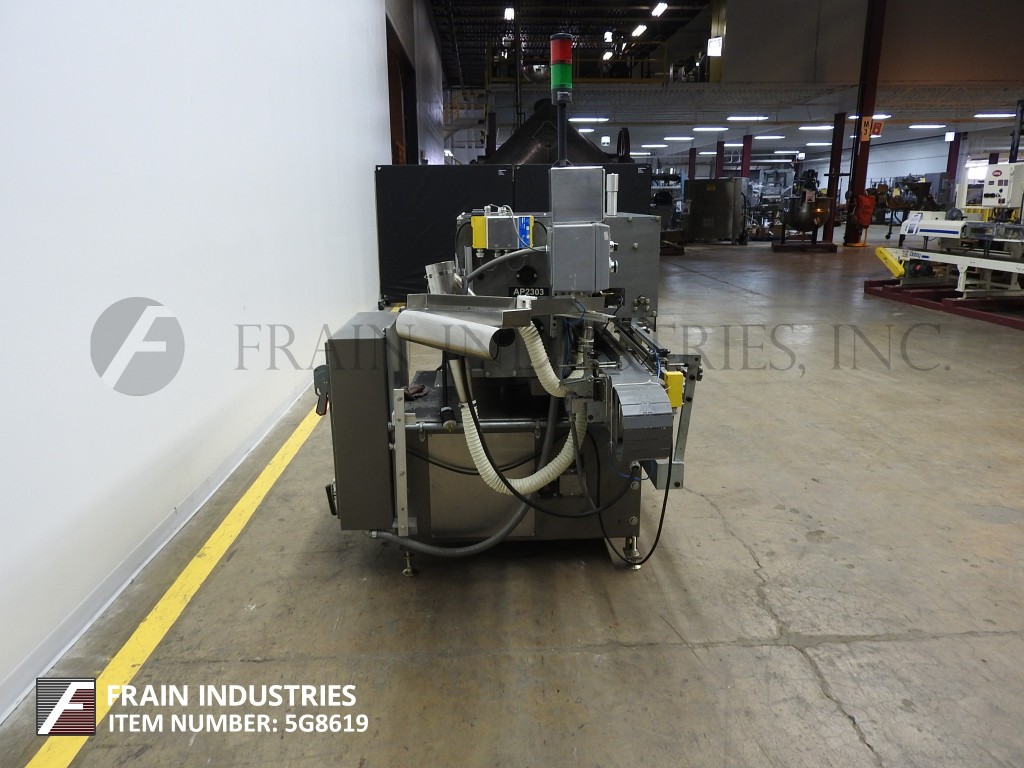

Lakso Model 150, Automatic, in line, stainless steel, single head cotton inserter rated to 150 containers per minute – depending on materials, application and with worm screw in feed. Cotton size range: 2" to 7" in Length. Material weight: up to 26 grams per yard. Bottle Diameter range: 38mm to 115mm Bottle height range: 41mm to 228mm (with proper change parts). Equipped with 98" Long x 3¼" Wide delrin belt, adjustable guide rails, worm screw container indexing and is container height adjustable, with inverted "U" cotton inserter and knife cut-off. No cotton sensor eyes and air reject. Control panel has A/B PLC controller with touch screen HMI, statis light bar and e-stop. Mounted on stainless steel frame with safety guarding and leveling legs.
OAD: 102"L x 43"W x 83"H
Lakso, Model 73, stainless steel hopper feeder and hoist. Equipped with a 36" long x 36" wide x 25" deep stainless steel hopper with lift up cover and 7" wide x 19" long vibratory feeding conveyor. Hopper is mounted on a hoist for a discharge range of 7½" to 52". Control panel with push button up / down, on / off switch and variable speed dial.
OAD: 60"L x 38"W x 70"H
Lakso, Model 990, Inline, slat tablet and capsule counter / filler. Rated from 40 to 240 bottles per minute on 100 count – depending on materials and application. Stainless steel and annodized aluminum construction. Equipped with 200" long x 3¼" wide container conveyor with 57" long worm screw container indexer, 72 set of 42" wide slats, rotating overhead brush, rotating vacuum brush dust collection system, static removal, funnels with a divider chute and Micro-Scan inspection. Control panel has an A/B controller. Mounted on stainless steel base frame
OAD: 200"L x 60"W x 94"H

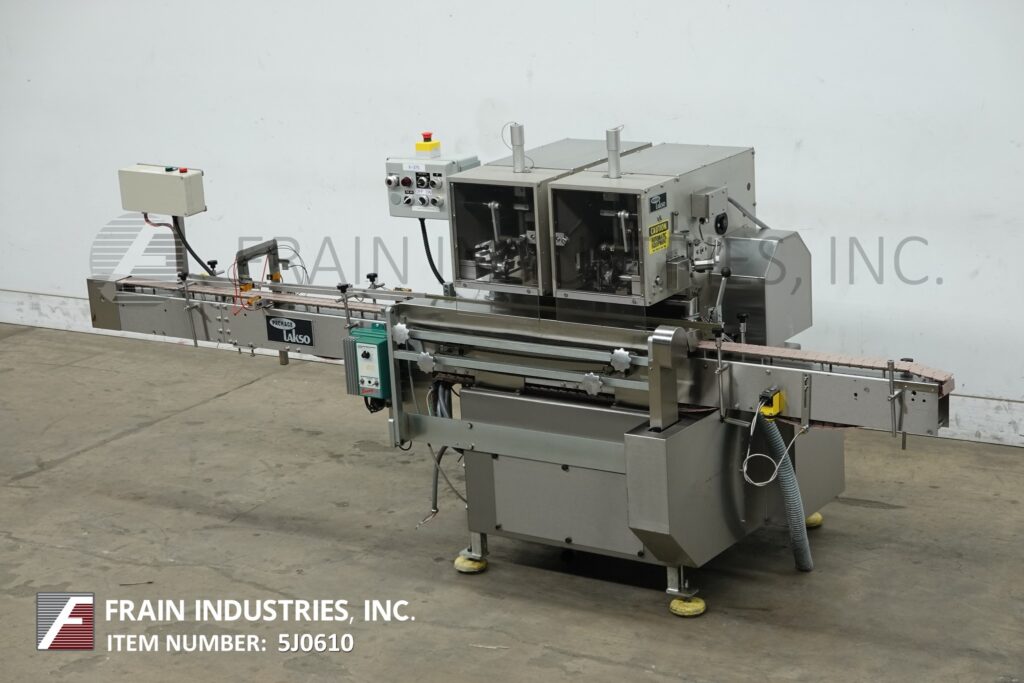

Lakso Model 450, automatic, inline, stainless steel, twin head, cotton inserter. Maximum cotton weight of 26 grams per yard, cut off length of 2" to 7". Equipped with a 4½" wide x 72" long conveyor with 36" long timing screw. Push-button adjustable head and height, cotton feed detection, bottle jam detection and reject station. Control panel with AB controller, touch pad controls, start, stop, e-stop push button controls and status light bar. Rated from 50 to 300 containers per minute – depending materials, application and machine configuration. Capable of one or two insertions per bottle – two insertions reduces speed capabilities. Mounted on stainless steel height adjustable base frame.
OAD: 72" L x 60" W x 75" H
Lakso, Model 300, automatic, inline, stainless steel, twin head, cotton inserter. Rated from 25 to 300 containers per minute – depending on materials, application and machine configuration. Maximum cotton weight range of 26 grams per yard with cut off length range of 2½" to 7" and capable of one or two insertions per bottle (at ½ speed). Equipped with a 5" wide x 64" long conveyor. Control panel with an AB PanelView Plus 600 touch screen display, variable speed control, start, stop, e-stop push button controls and status light bar. Mounted on stainless steel height adjustable base frame.
OAD: 75" L x 58" W x 76" H
