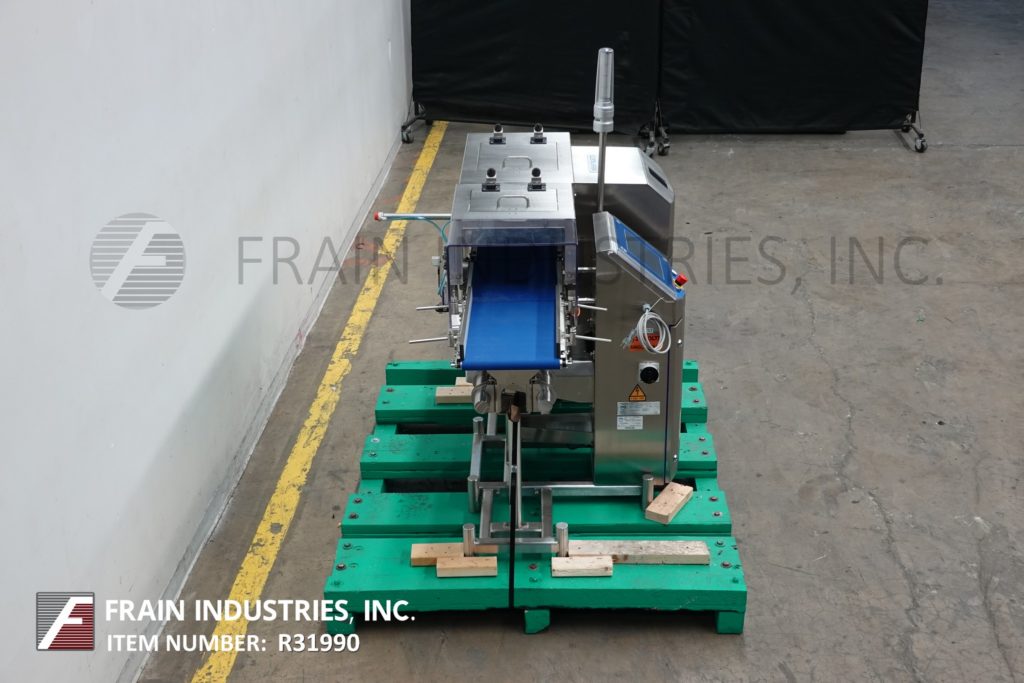

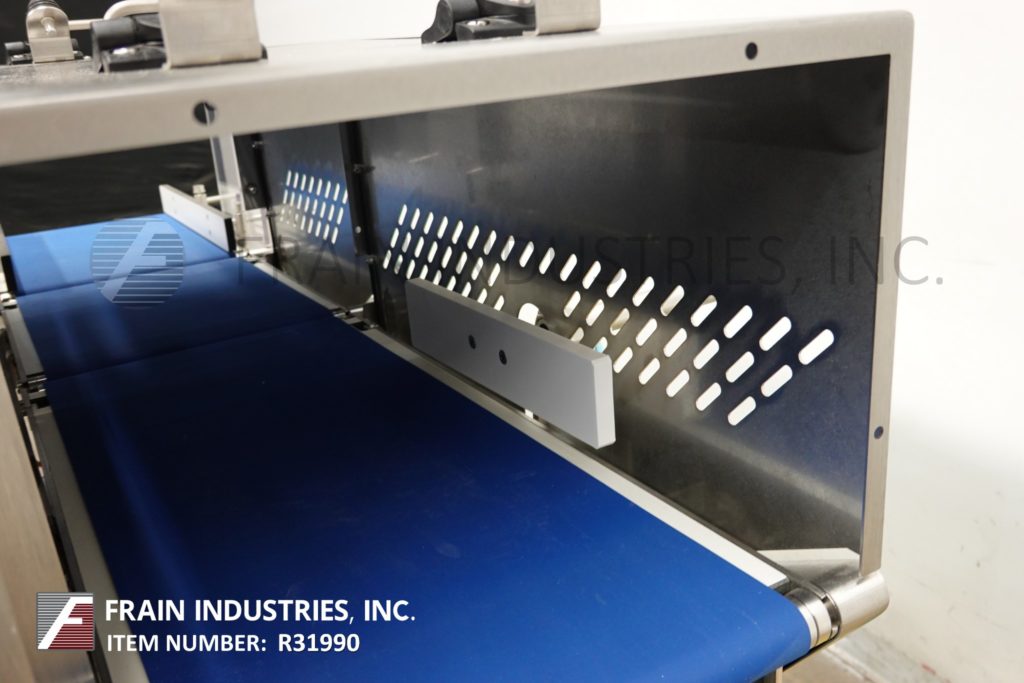

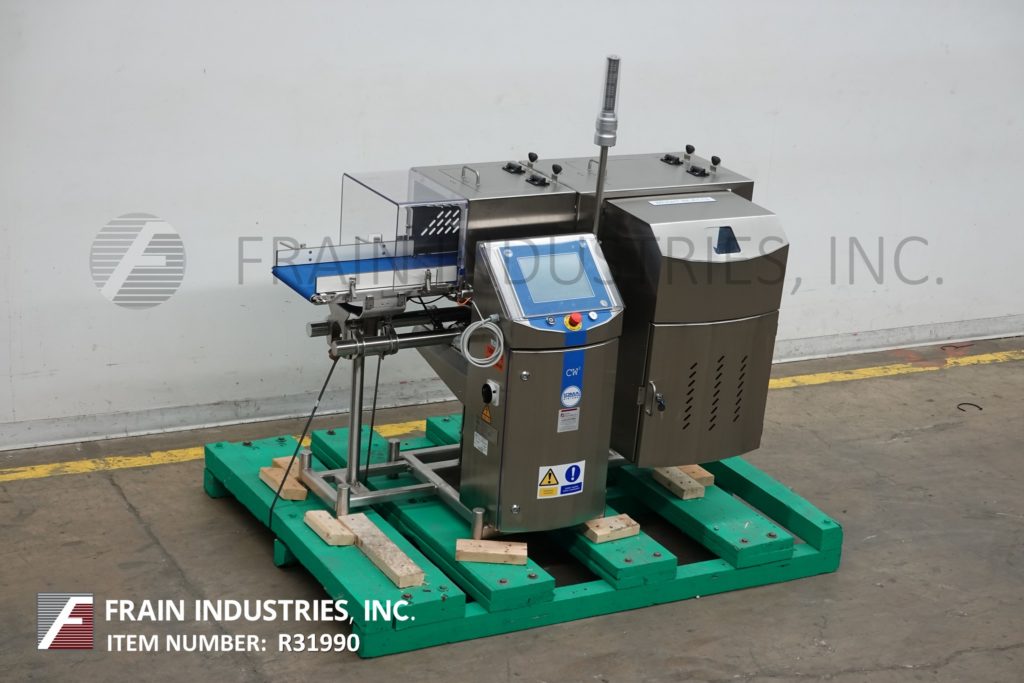

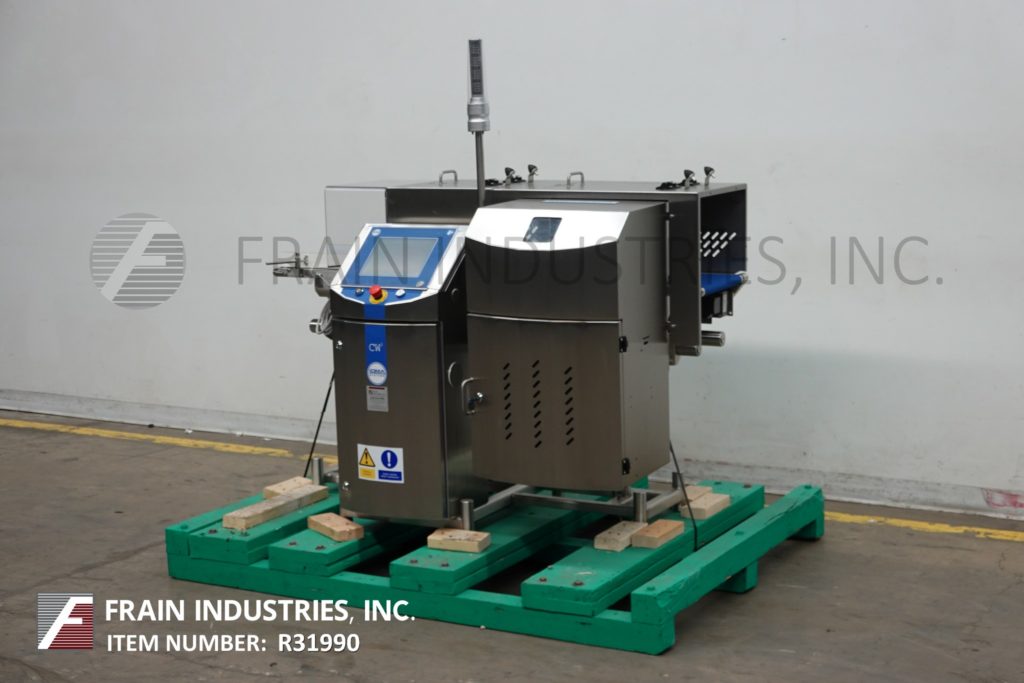

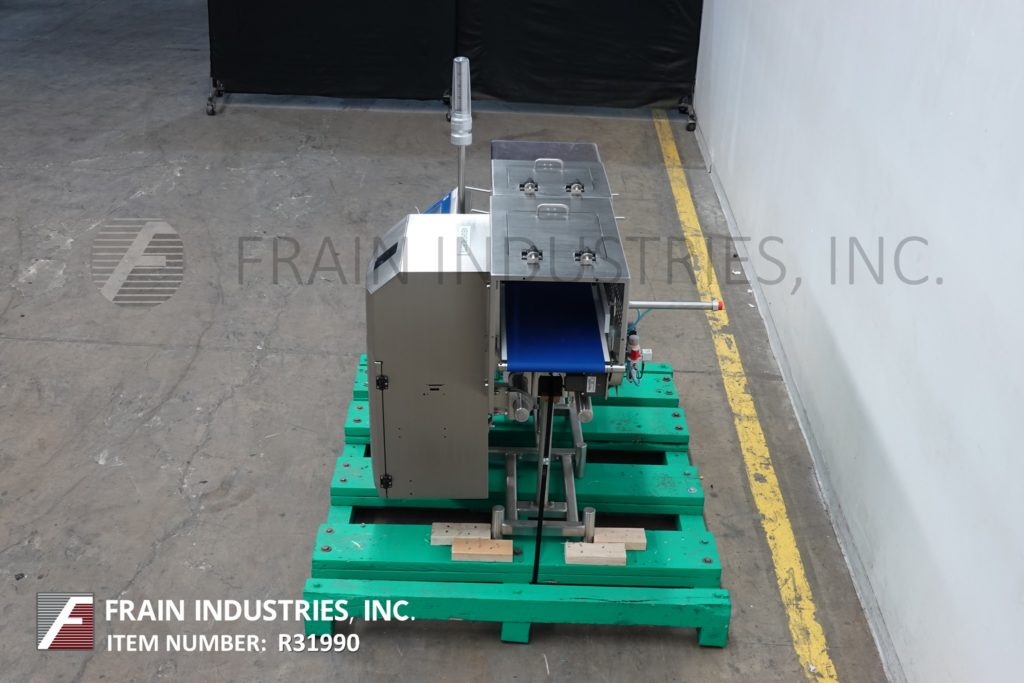

Loma Model CW3 6000M, inline, 304 stainless steel checkweigher rated from 33 to 147 feet per minute. Weight range: 20 to 6000 grams. Accuracies +/- 0.30 gram. Operating temperatures from 0 to 40 Deg C. Equipped with 19-3/4" long x 15-3/4" wide in feed, 19-3/4" long x 15-3/4" wide load cell and 28" long x 15-3/4" wide discharge anti-static conveyors with single air ram arm reject, reject collection bin and status light bar. Control panel has touch pad controller with readout, start, stop, e-stop push buttons and data retrieval is capable via USB, Ethernet, E-Net and Tracs. Mounted on height adjustable (4) leg base frame. Speed and accuracies dependent on materials, application, machine configuration and environment being run in.
OAD: 68" L x 48" W x 64" H
Loma, Model IQ4, automatic, in line, 304 stainless steel construction, metal detector with number of product per minute – depending on materials and application. Working Aperture: 4.5" in Height; 24" in Width. Equipped with 24" wide x 70" long Intralox product conveyor with single pusher arm reject and safety guarding. Touch pad controls with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg stainless steel base frame with height adjustable leveling legs and safety guarding.
OAD: 72"L x 54"W x 58"H
Loma, Model IQ4, automatic, in line, 304 stainless steel construction, metal detector with number of product per minute – depending on materials and application. Working Aperture: 4.5" in Height; 24" in Width. Equipped with 24" wide x 60" long Intralox product conveyor with single pusher arm reject and safety guarding. Touch pad controls with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg stainless steel base frame with height adjustable leveling legs and safety guarding.
OAD: 60" L x 36" W 40" H

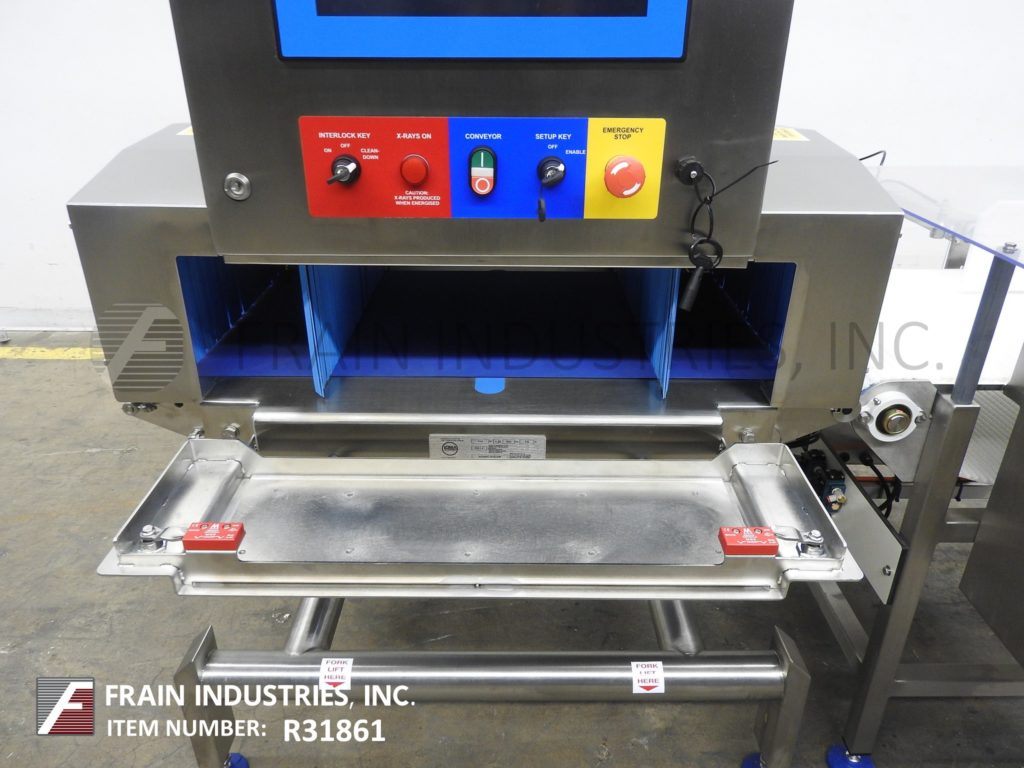

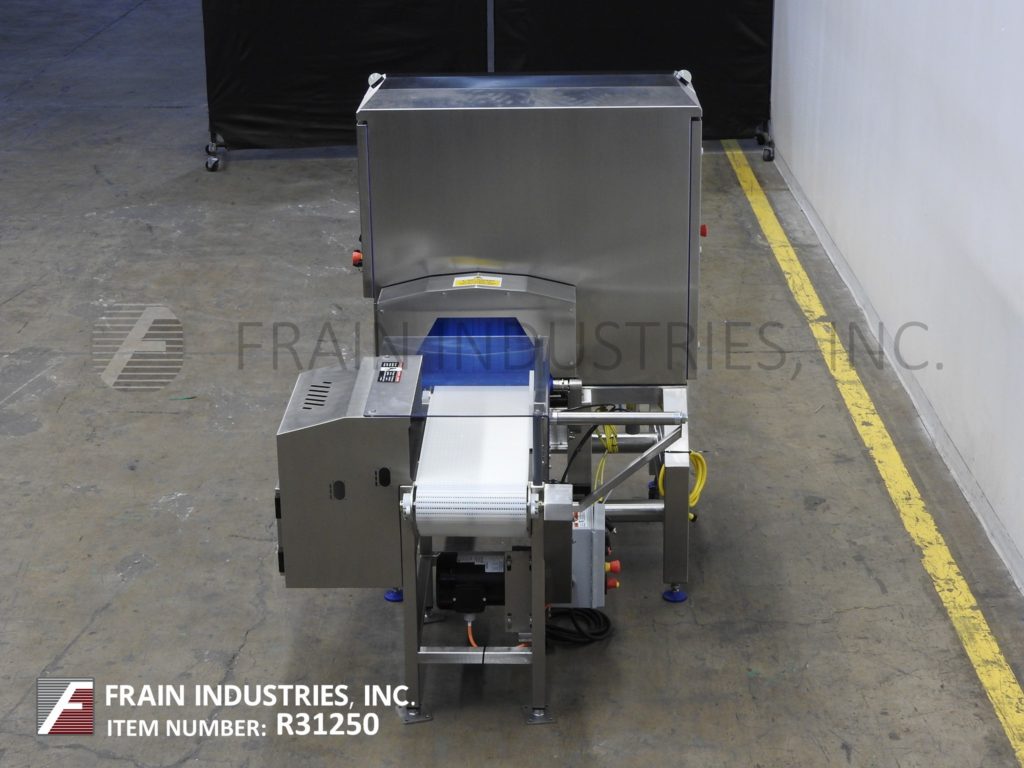

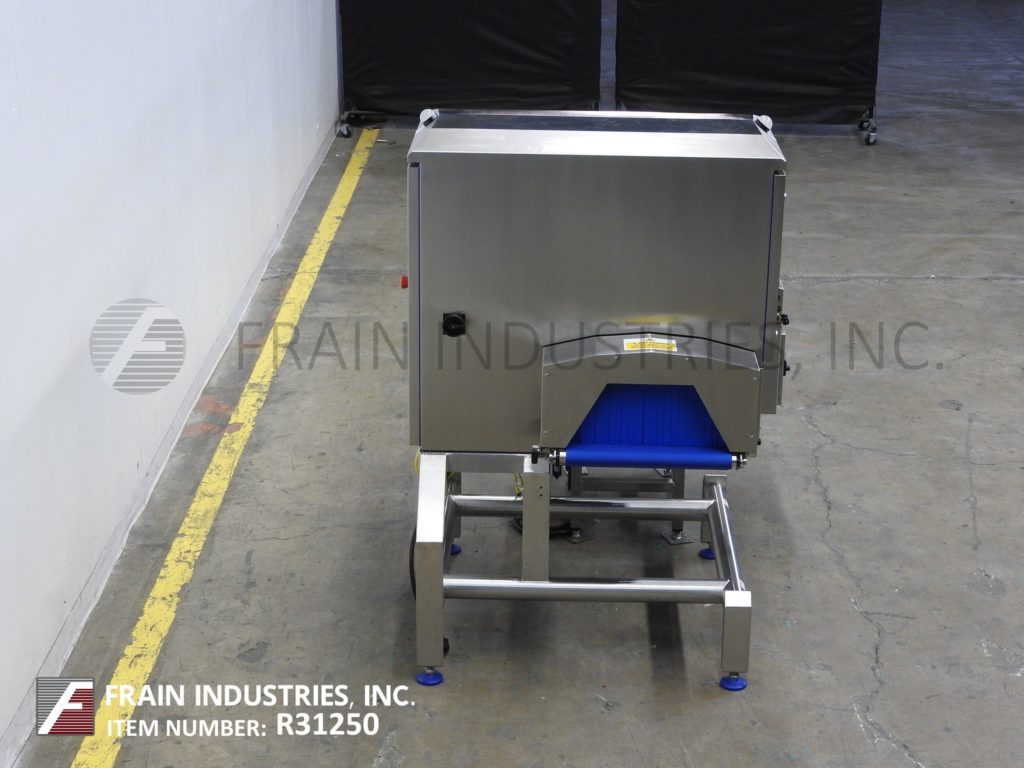

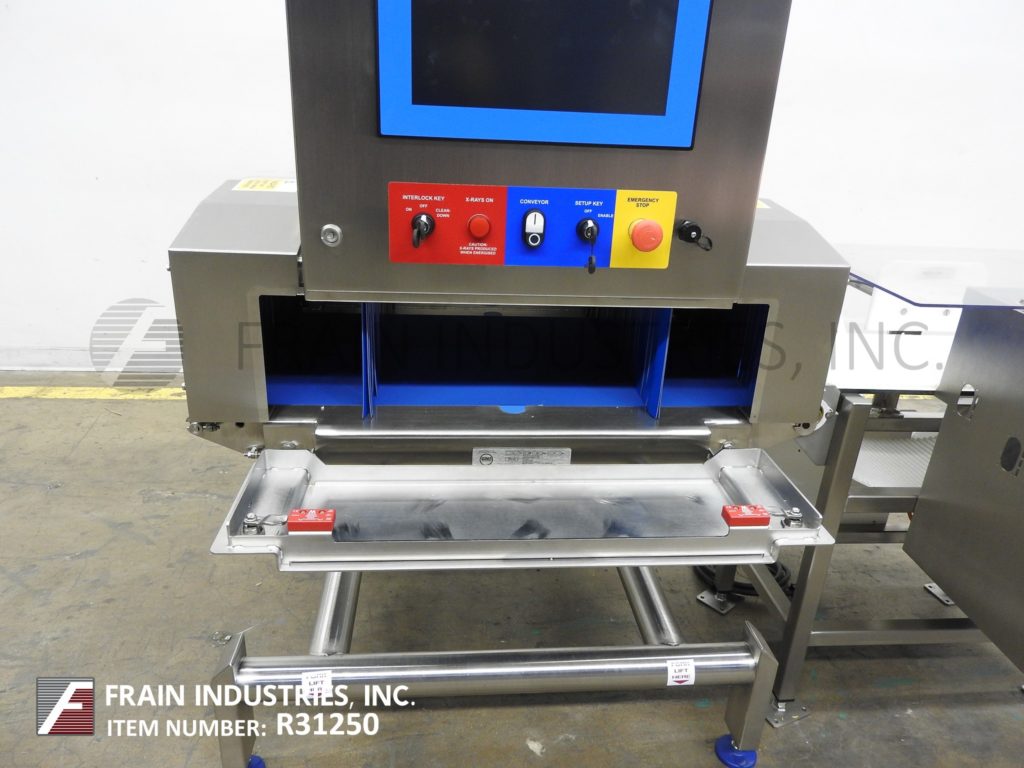

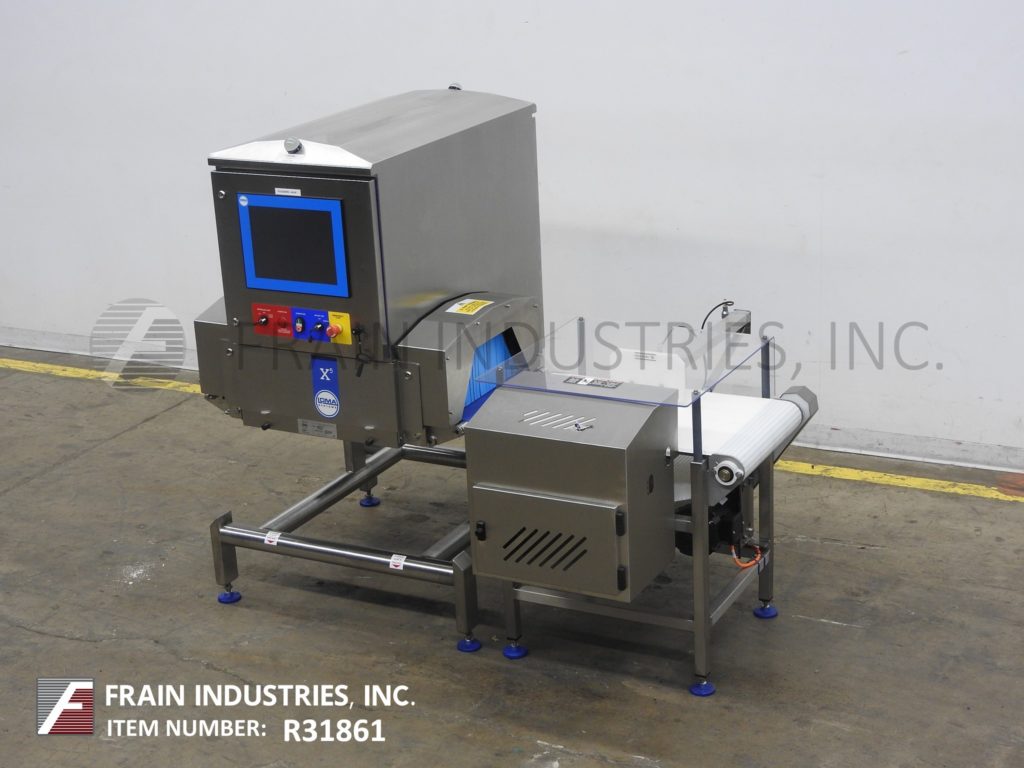

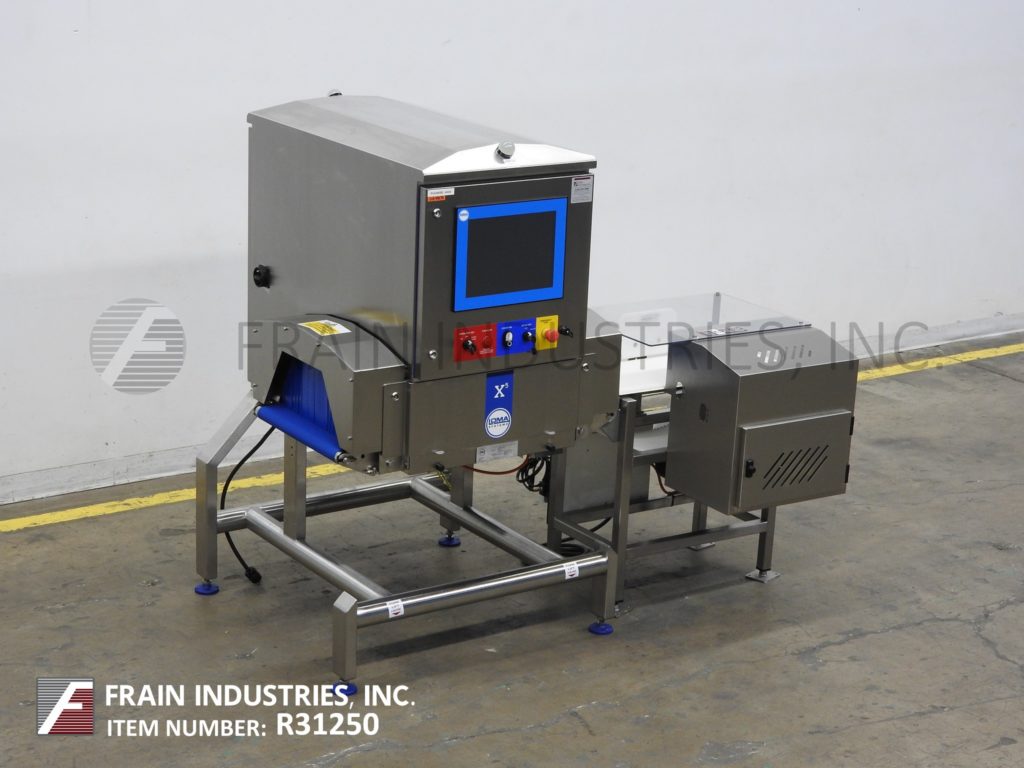

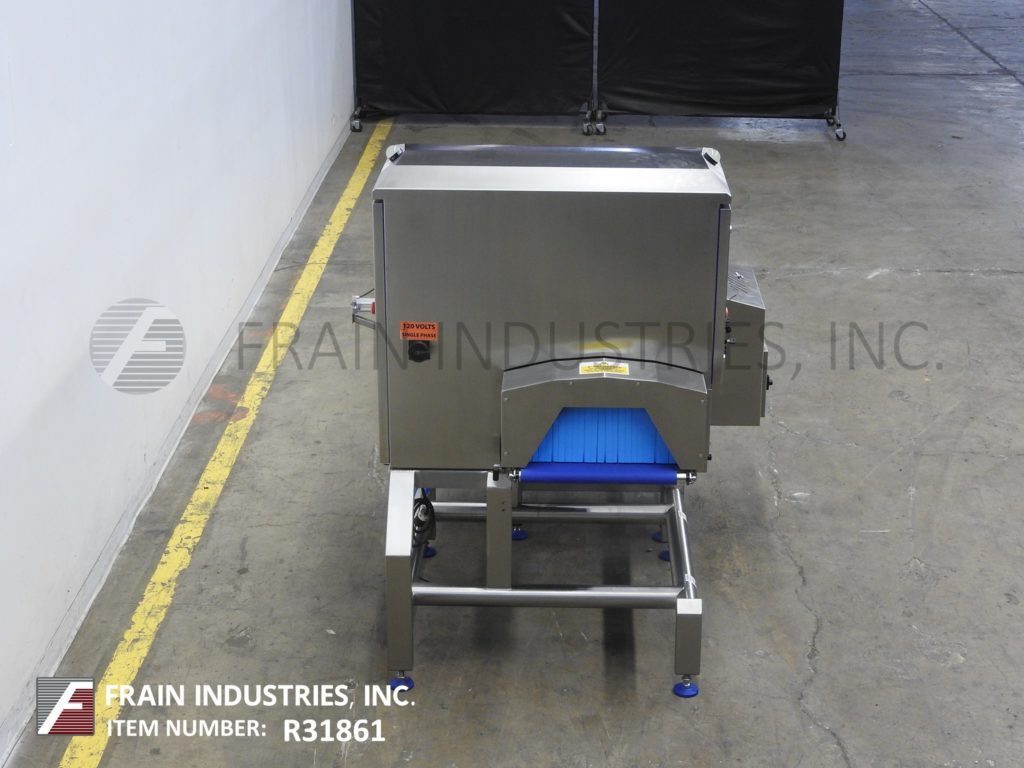

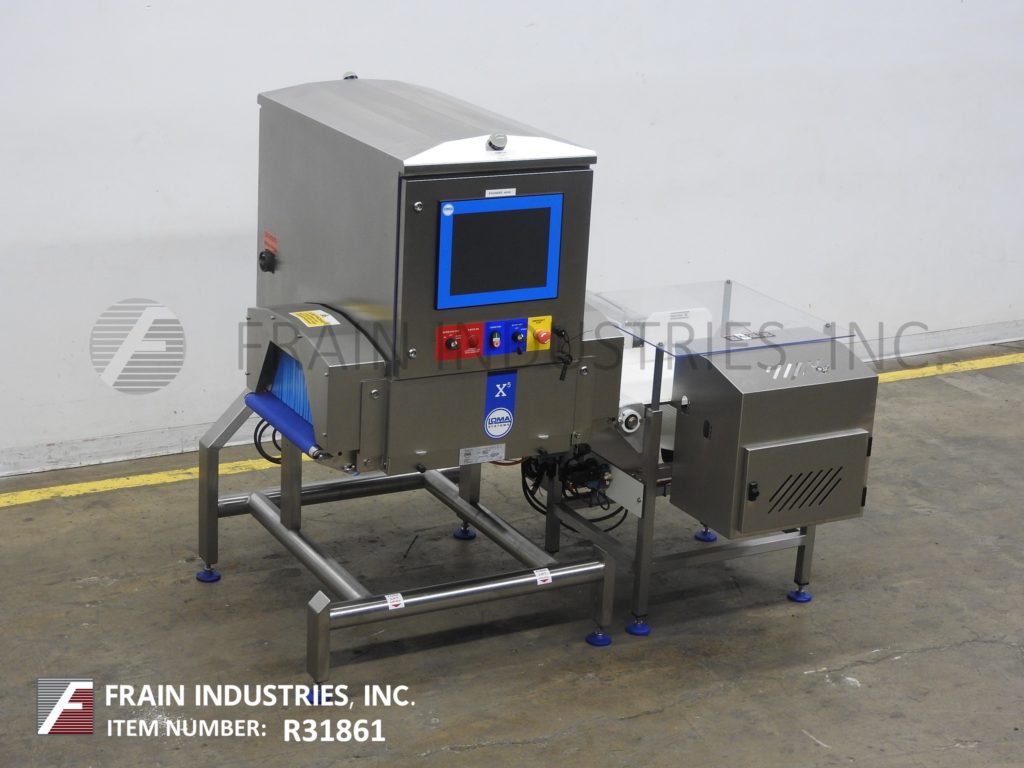

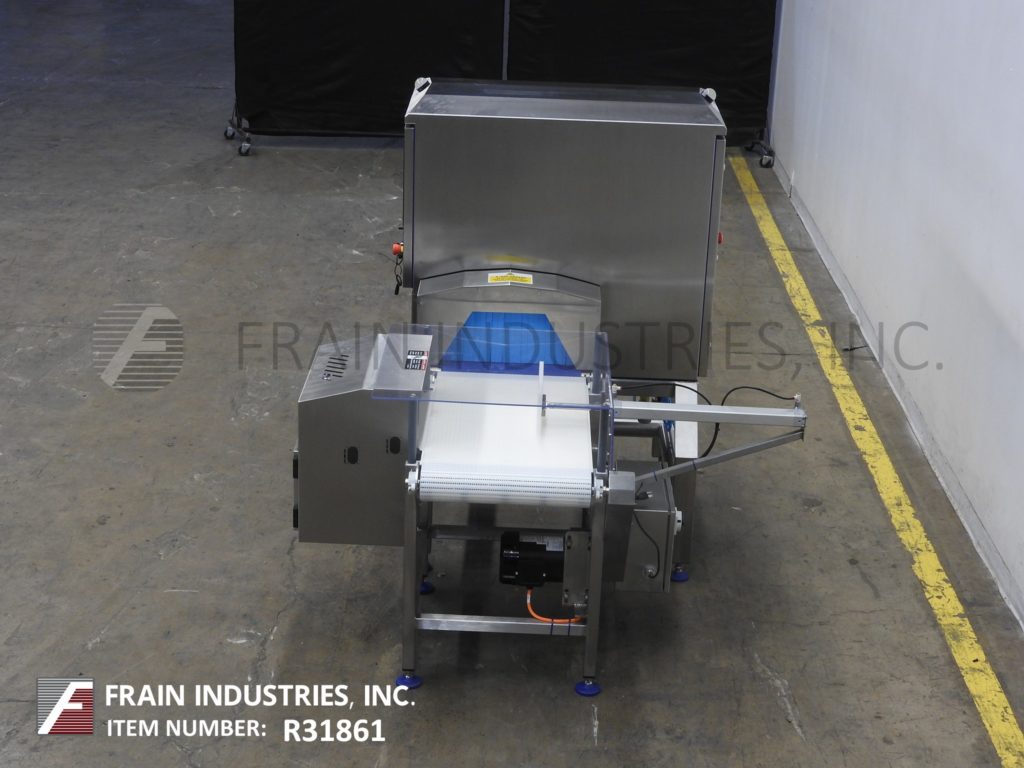

Loma Model X5C, stainless steel, X-Ray inspection system. Rated Conveyor speed; 33 to 164 feet per minute with number of product – depending on materials and application. 304 Stainless steel dry wipe down construction. Equipped with food grade anti static conveyor and Intralox style discharge conveyor with mechanical reject and collection bin. Total aperture: 13¾" in Width; 5" in Height. Inspection Window: 100mm in Height; 300mm in Width. Features touch screen interface (data log capable via USB). Operating environment: 50°F to 95°F. Performance dependant on materials, application, machine configuration and environment. Mounted on height adjustable leveling pads.
OAD: 86"L x 32"W x 55"H (Guards extend 23" past product conveyor – on each side) Reject Conveyor: 37" Long (23" fits under guard)
Lock, Model Insight 3F/HF HDE, automatic, in line, stainless steel, three frequency, metal detector with number of product per minute – depending on materials and application. Working Aperture: 10½" in Height; 5.25" in Width. Equipped with 4" wide x 60" long white flex link product conveyor with push arm reject, variable speed. Sensitivities: depending on product, container and enviorment being run in. Touch pad controls with display. Mounted on (4) leg base frame.
OAD: 60"L x 36"W x 58"H
Loma, Model IQ3, automatic conveyor through metal detector. Total Aperture: 6" in Height; 21¾" in Width. Working Aperature: 3¾" in Height; 18" in Width. Equipped with a 35" wide x 40" long x 20" deep hopper, 18" wide cleated inclined belt conveyor with 1½" high cleats set on 8" centers and 150" discharge height. Sensitivities: depending on application and enviroment being run in. Control panel has touch pad operator interface and push button start / stop. Mounted on base frame with casters.
OAD: 160"L x 36"W x 150"H
Loma, Model IQ4, automatic, in line, 304 stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and safety guarding. Touch pad controller with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg base stainless steel frame with locking casters and statis light bar.
OAD: 60" L x 54" W x 56" H
Loma, Model IQ4, automatic, in line, 304 stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and safety guarding. Touch pad controller with display and variable speed controls. Sensitivities: depending on product, container and environment being run in. Temperature range: -10 to +40 Deg C, 14 to 104 Deg F. Ethernet and USB capable. Mounted on (4) leg stainless steel base frame with locking casters and statis light bar.
Loma, Model IQ4, automatic, in line, stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 6" in Height; 17" in Width. Equipped with 15¾" wide x 60" long Intralox product conveyor with push arm reject and variable speed controls. Sensitivites: depending on product, container and environment being run in. Touch pad controls with display. Mounted on (4) leg base frame.
OAD: 60"L x 54"W x 56"H
