Quadro Machines In Stock

Quadro Mill Colloid Z1

  • Manufacturer: Quadro
  • Model Number: Z1
  • Frain Number: 5H5812

Quadro, Model Z1, stainless steel emulsifying processor. Gallons per hour – depending on materials, application and machine configuration. Equipped with 2"OD / 1½"ID Tri-clamp style charge port into (2) stage cutting set and a 2" OD / 1½" ID Tri-clamp discharge. Rotor powered by a 7½ hp drive with variable speed controller for an operating range of 900 to 6000 RPM.

OAD: 36"L x 24"W x 40"H

Get a Free Quote Call: 630-629-9900

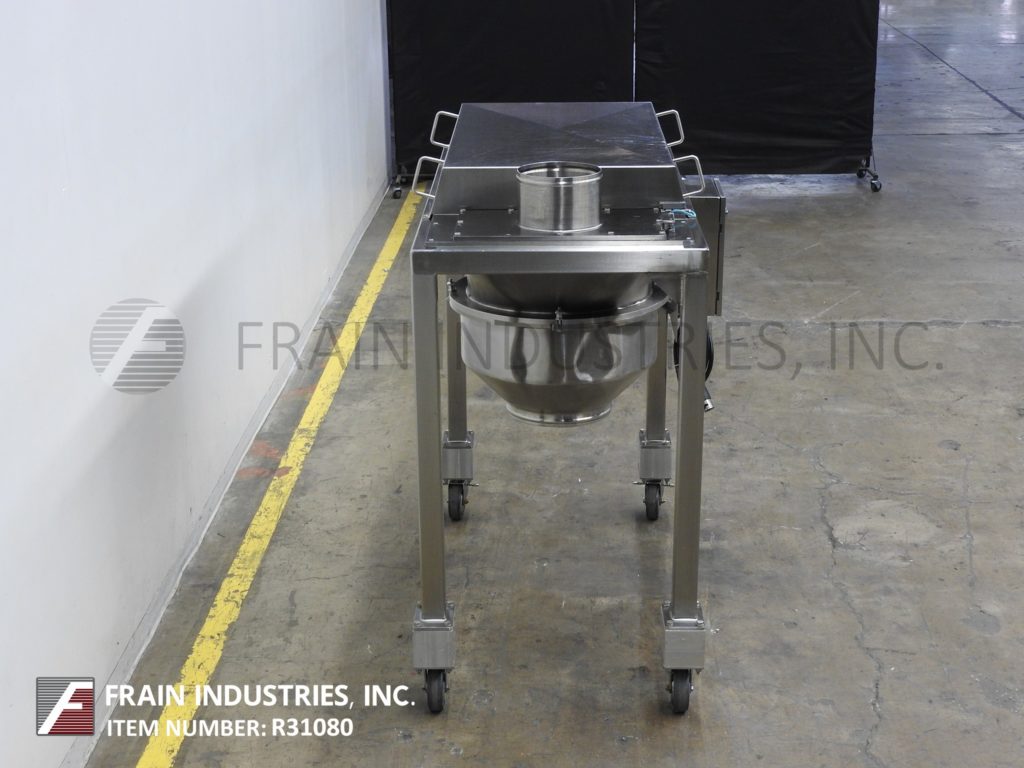

Quadro Mill Hammer 198

  • Manufacturer: Quadro
  • Model Number: 198
  • Frain Number: R31080

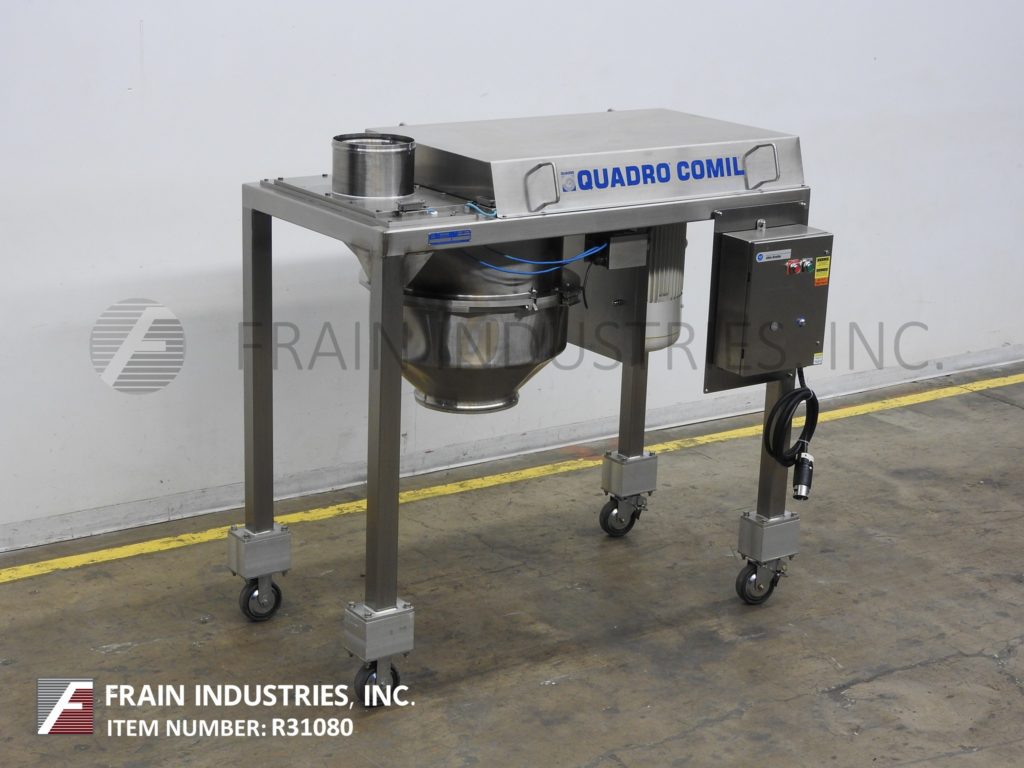

Quadro Model 198 Comil, stainless steel, large volume production, reduction mill rated from 7,000 to 16,000 lbs of product per hour – depending on materials, application and screen. Equipped with 10" OD stainless steel product port with 20 Hp motor drive, 1185 rpm and top belt to sprocket drive with 51" x 32" top bolt down lift off safety cover. Bottom bolt discharge hopper with side scrape product impeller and 12" OD discharge port with 20" floor clearance. Control panel with start and stop push button controls and safety disconnects. Mounted on (4) stainless steel legs with casters. Used for dry milling, controlled grinding, dry mixing / dispersion, deagglomeration and wet material reduction in food, pharmaceutical, cosmetic, fine chemical and other related processes

OAD: 69" L x 48" W x 52" H

Get a Free Quote Call: 630-629-9900

Quadro Mill Hammer 196

  • Manufacturer: Quadro
  • Model Number: 196
  • Frain Number: 5H3871

Quadro Model 196S, stainless steel particle size reduction Comil. Rated to 10,000 lbs of product per hour – depending on materials and application. Equipped with a 24" wide x 30" long x 12" deep stainless steel feed pan, 12" diameter screen and 14" diameter discharge port with 41" ground clearance. Mounted on stainless steel (4) leg base frame with casters.

OAD: 84"L x 28"W x 77"H

Get a Free Quote Call: 630-629-9900

Quadro Mill Colloid 197

  • Manufacturer: Quadro
  • Model Number: 197
  • Frain Number: 5H3950

Quadro Model 197S, 316 stainless steel particle size reduction Comil. Rated from 360 to 800 lbs of product per hour – depending on materials and application. Equipped with 10" diameter x 6" deep stainless steel product hopper, 3" diameter feed throat, 5" diameter screen and 6" diameter discharge port with 26" ground clearance. Mounted on stainless steel (4) leg base frame. Discharge manifold with 5" OD connection for dust collection.

OAD: 35"L x 30"W x 43"H

Get a Free Quote Call: 630-629-9900

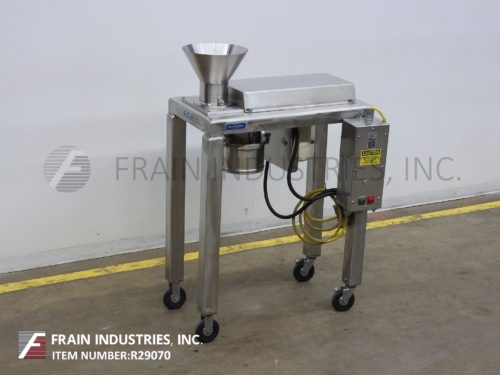

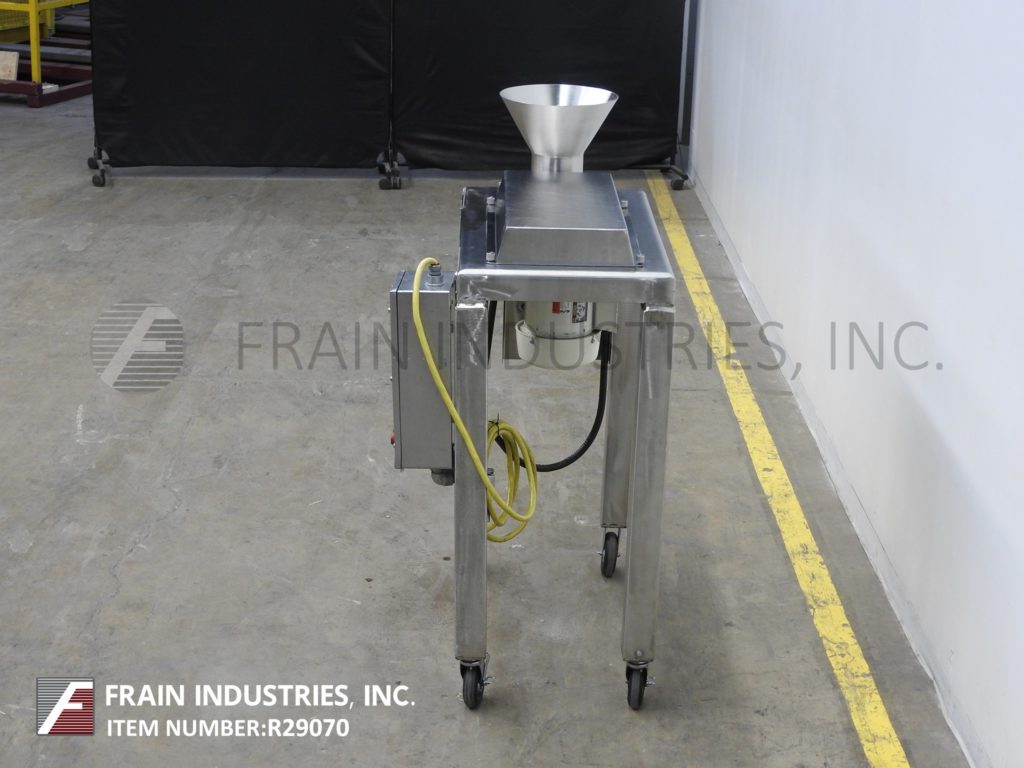

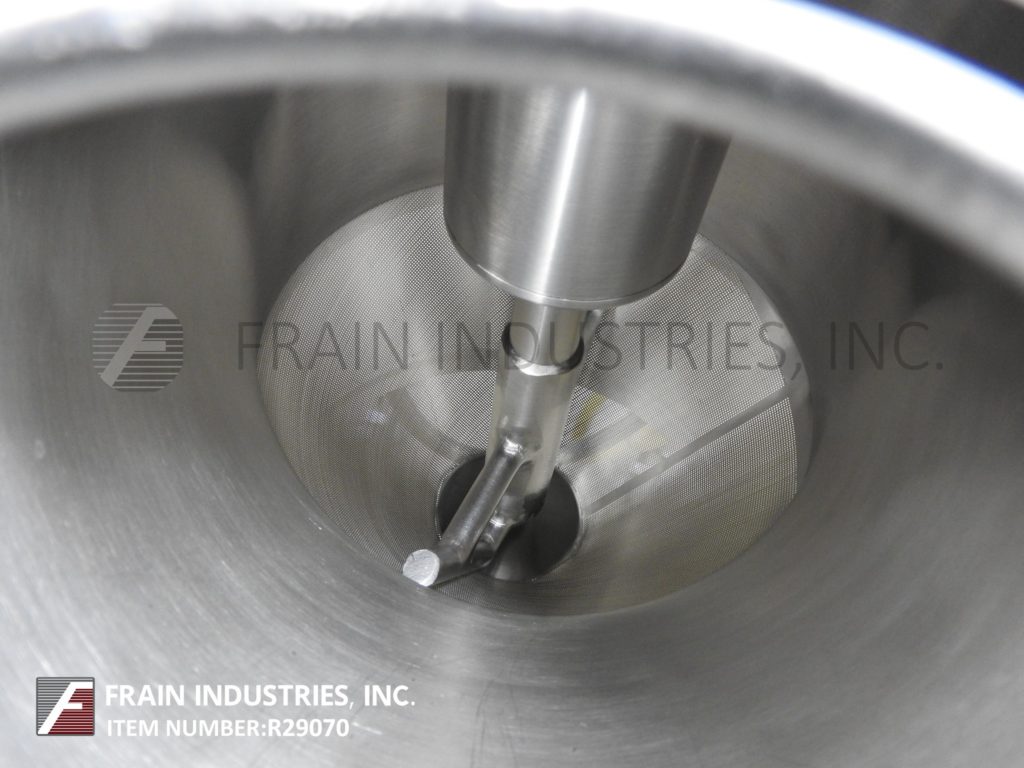

Quadro Mill Hammer 194S

  • Manufacturer: Quadro
  • Model Number: 194S
  • Frain Number: R29070

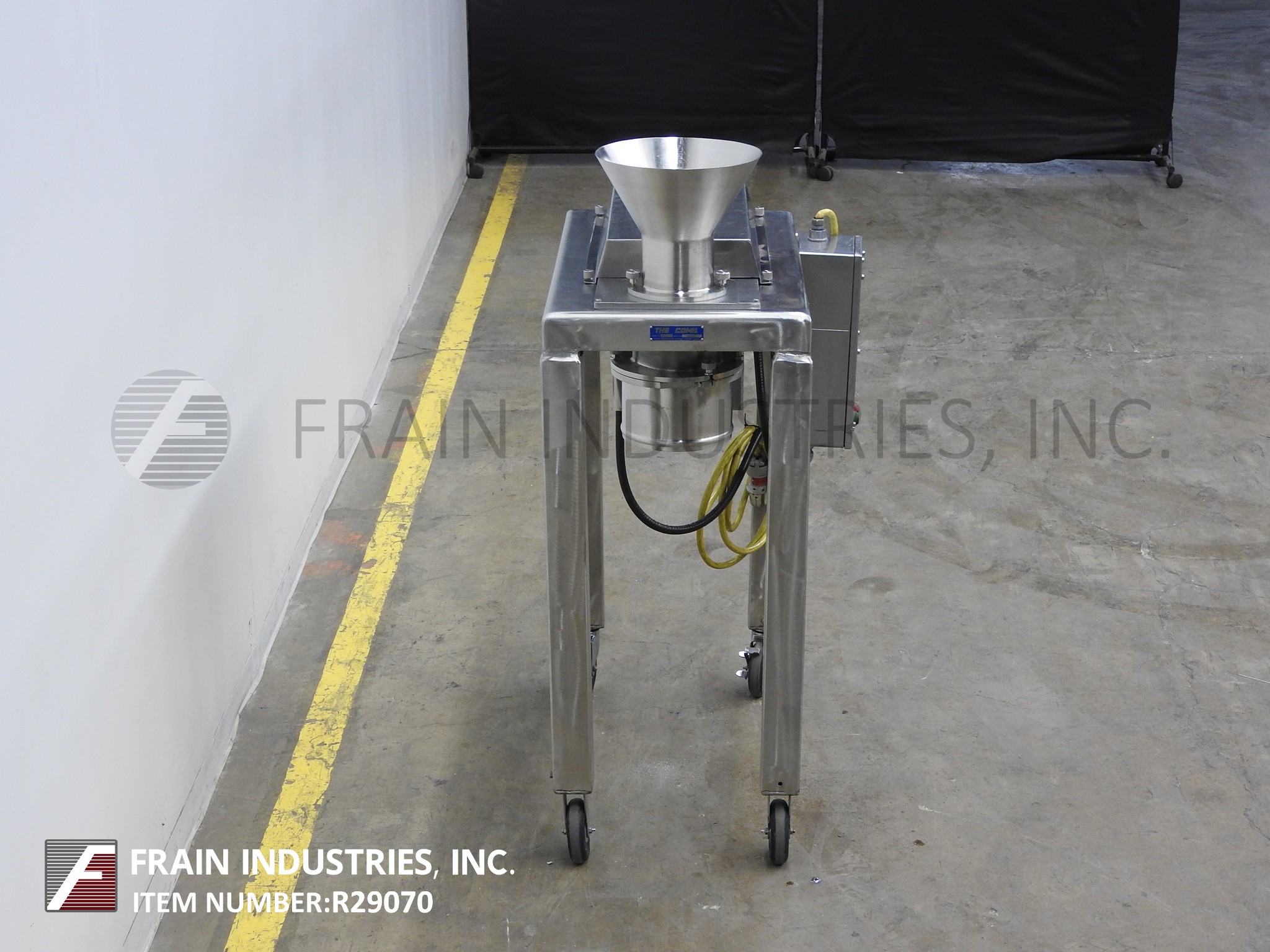

Quadro Model 194S, 316 stainless steel particle size reduction Comil. Rated from 1,800 to 4,000 lbs of product per hour – depending on materials and application. Equipped with 14" diameter x 12" dep stainless steel product hopper, 6" diameter feed throat, 8" diameter screen and 10" diameter discharge port with 36" ground clearance. Control panel with push button start / stop. Mounted on stainless steel (4) leg base frame.

OAD: 42"L x 30"W x 64"H

Get a Free Quote Call: 630-629-9900

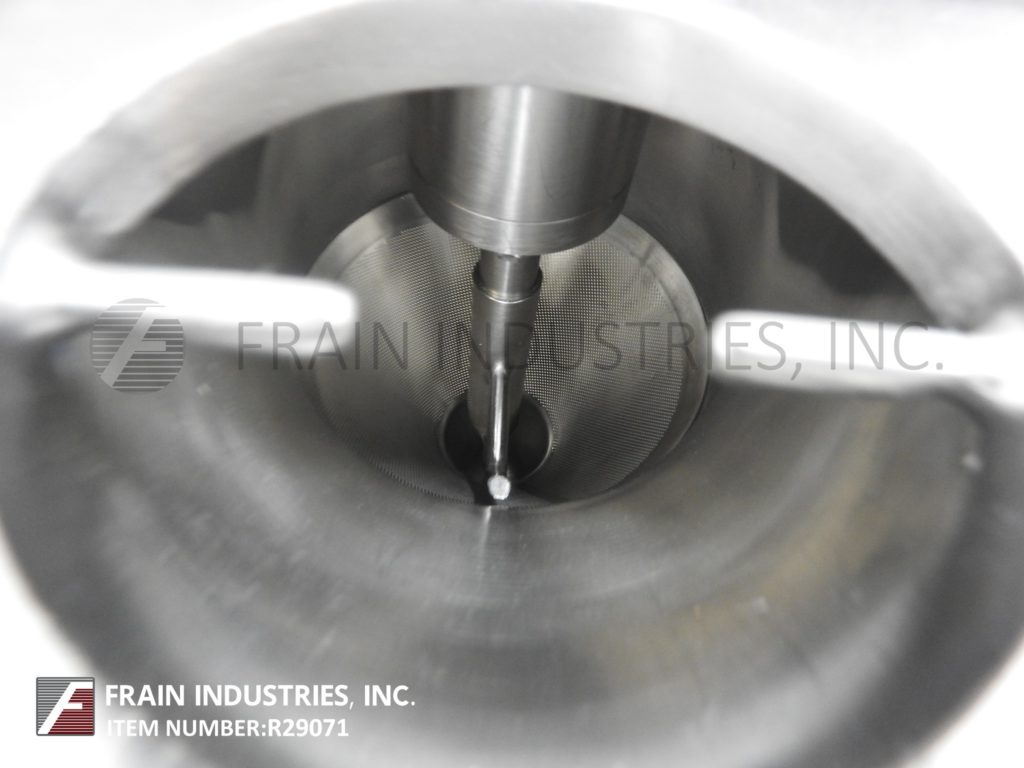

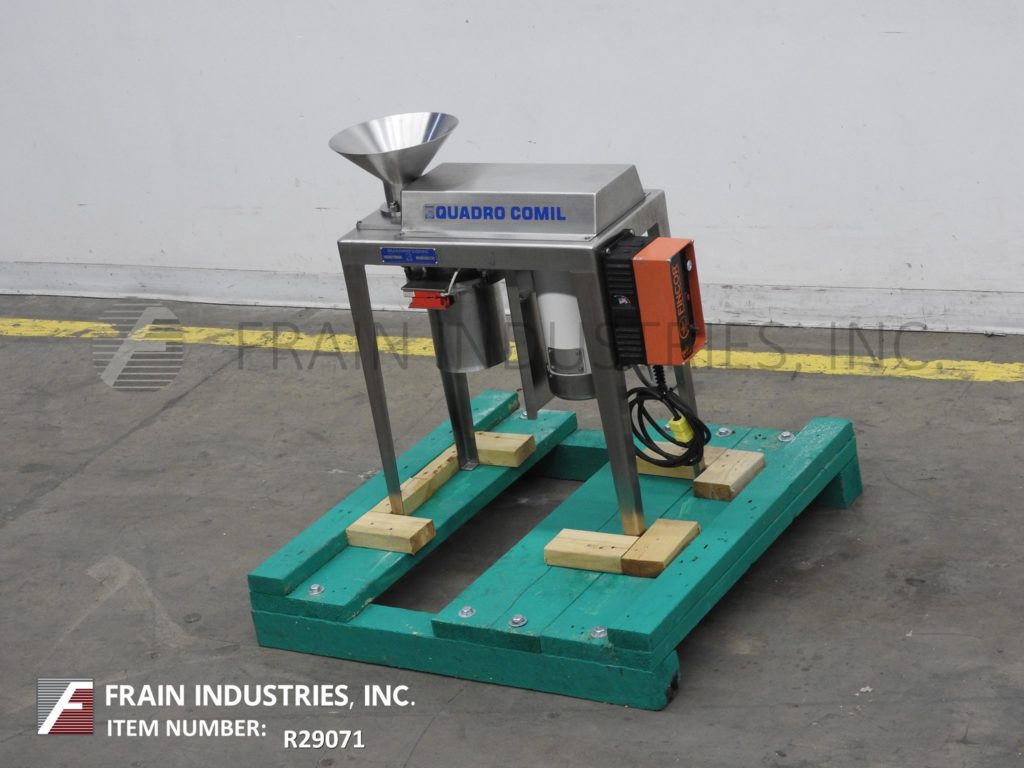

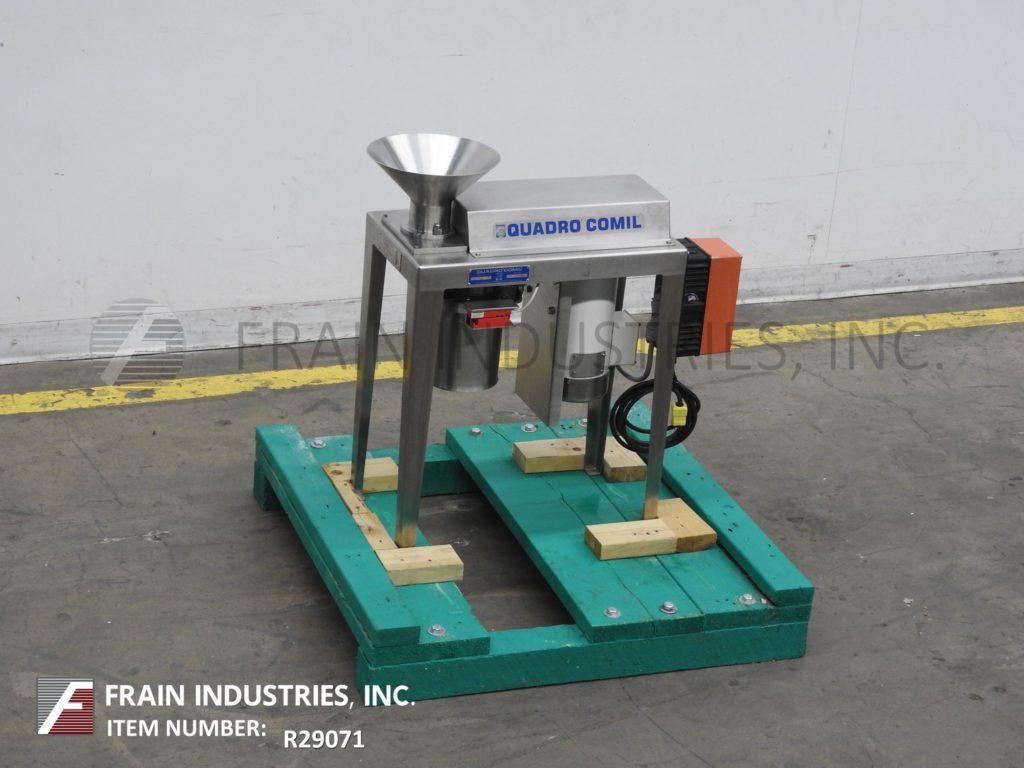

Quadro Mill Hammer 197

  • Manufacturer: Quadro
  • Model Number: 197
  • Frain Number: R29071

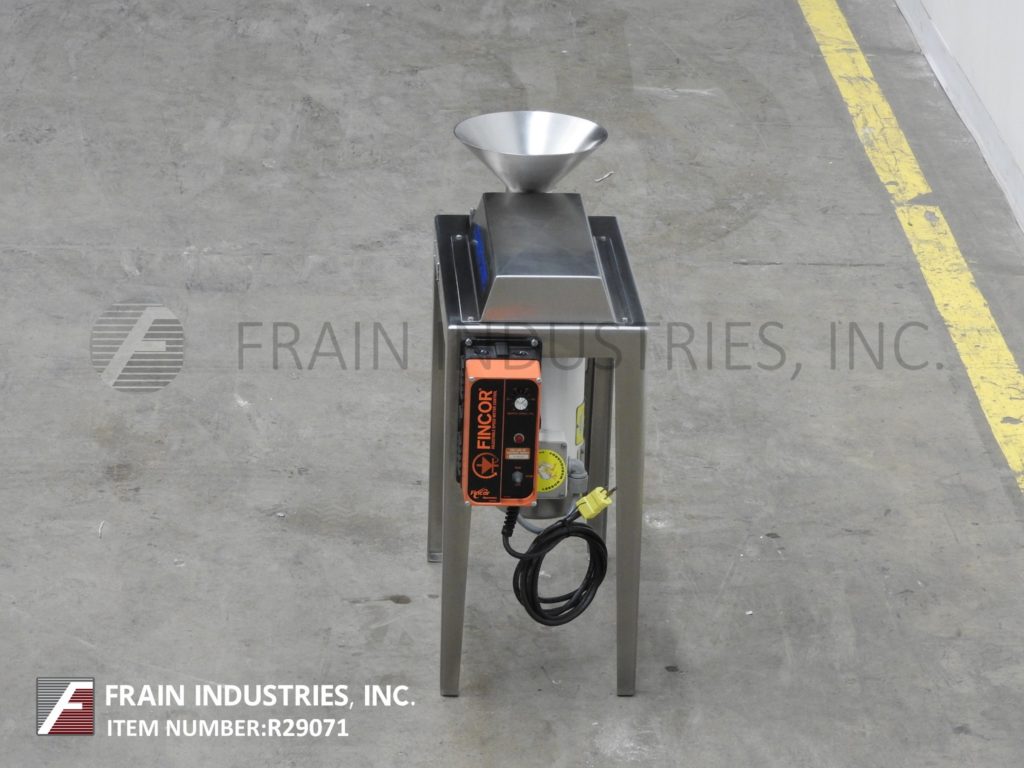

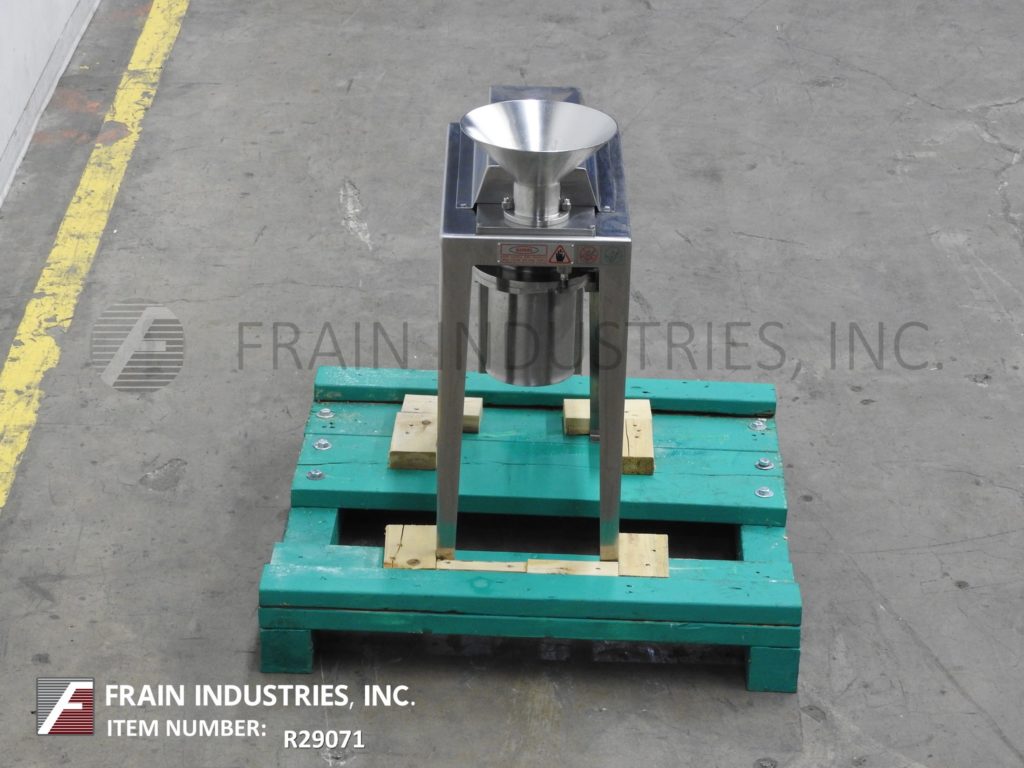

Quadro Model 197, 316 stainless steel particle size reduction Comil. Rated from 360 to 800 lbs of product per hour – depending on materials and application. Equipped with 10" diameter x 6" deep stainless steel product hopper, 3" diameter feed throat, 5" diameter screen and 6" diameter discharge port with 13" ground clearance. Mounted on stainless steel (4) leg base frame with variable speed control.

OAD: 28"L x 13"W x 32"H

Get a Free Quote Call: 630-629-9900

Quadro Mill Hammer 196

  • Manufacturer: Quadro
  • Model Number: 196
  • Frain Number: R27030

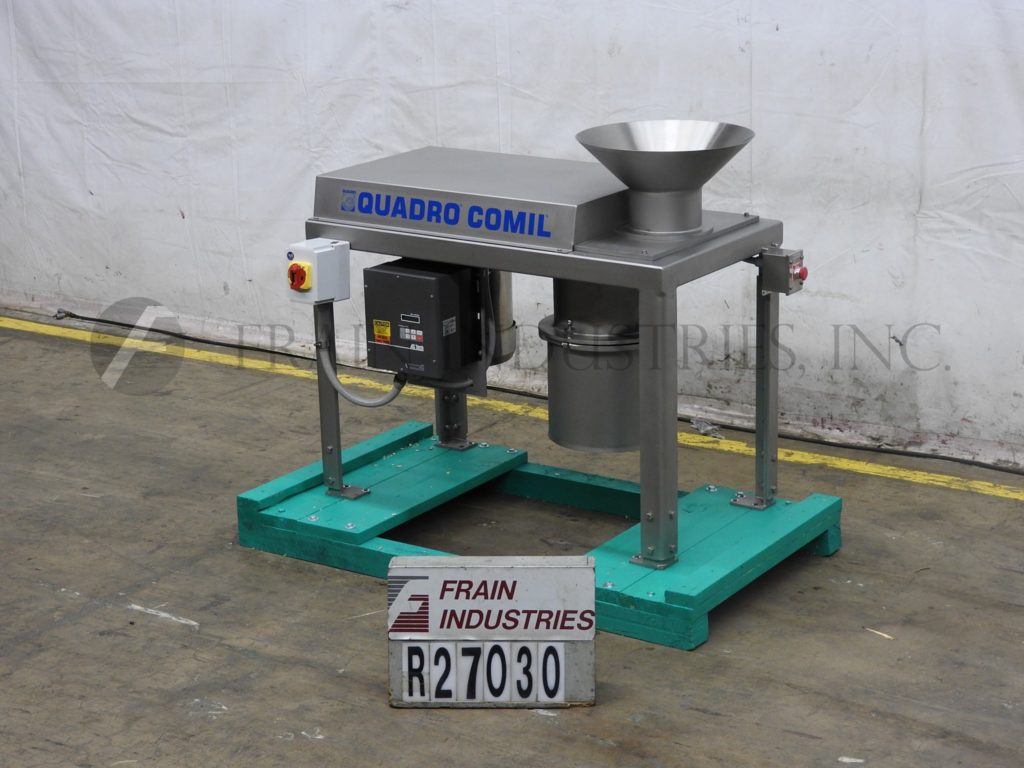

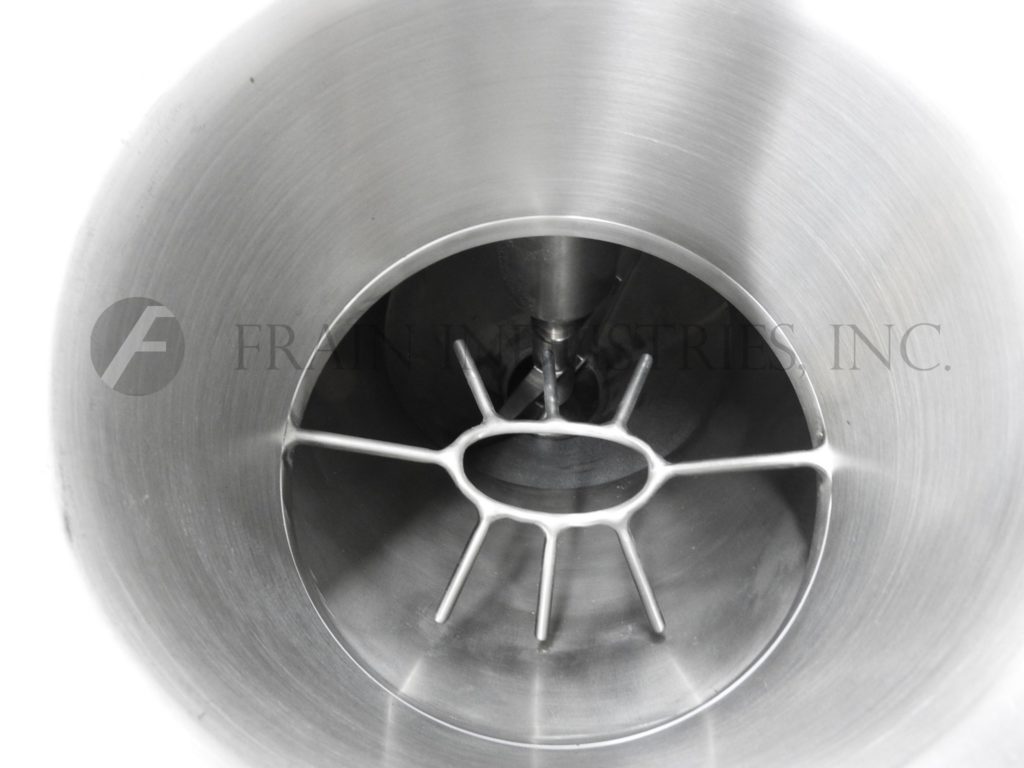

Quadro Model 196, 316 stainless steel particle size reduction Comil. Rated from up to 10,000 lbs of product per hour – depending on materials and application. Equipped with a ¾ cubic foot stainless steel product hopper, 12" diameter screen and 14" diameter discharge port with 10" ground clearance. Includes an AC variable speed control with an output rpm of 450 – 2700. Mounted on stainless steel (4) leg base frame.

OAD: 55"L x 28"W x 47"H

Get a Free Quote Call: 630-629-9900

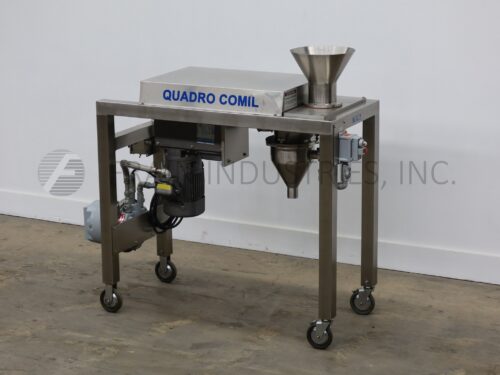

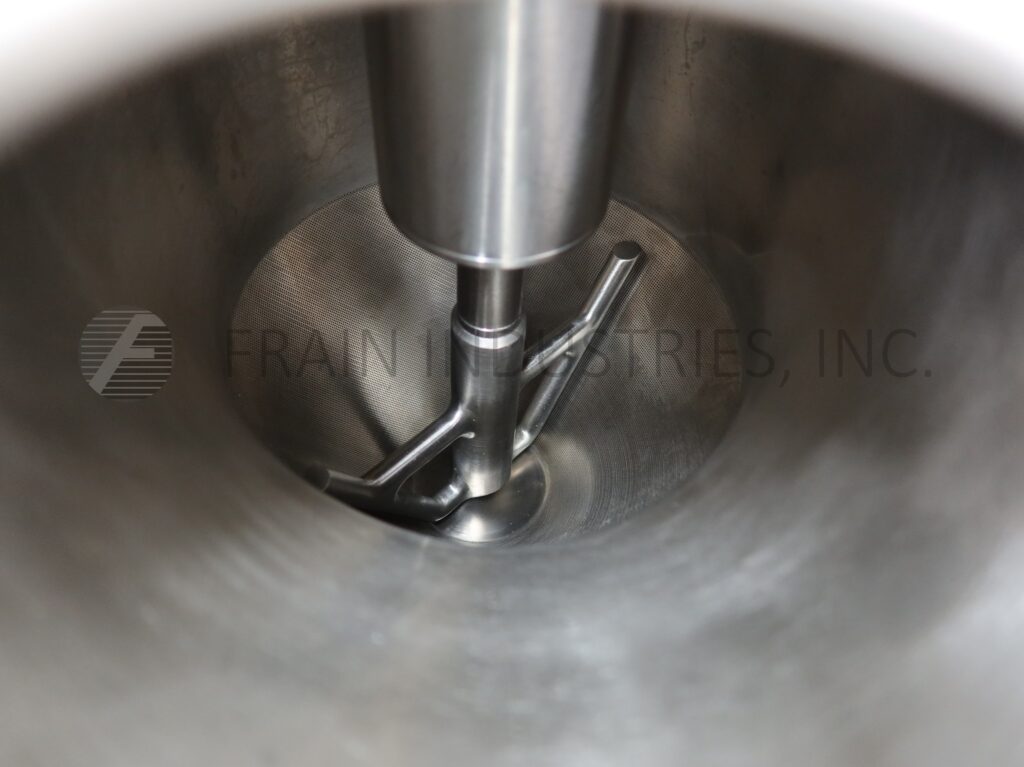

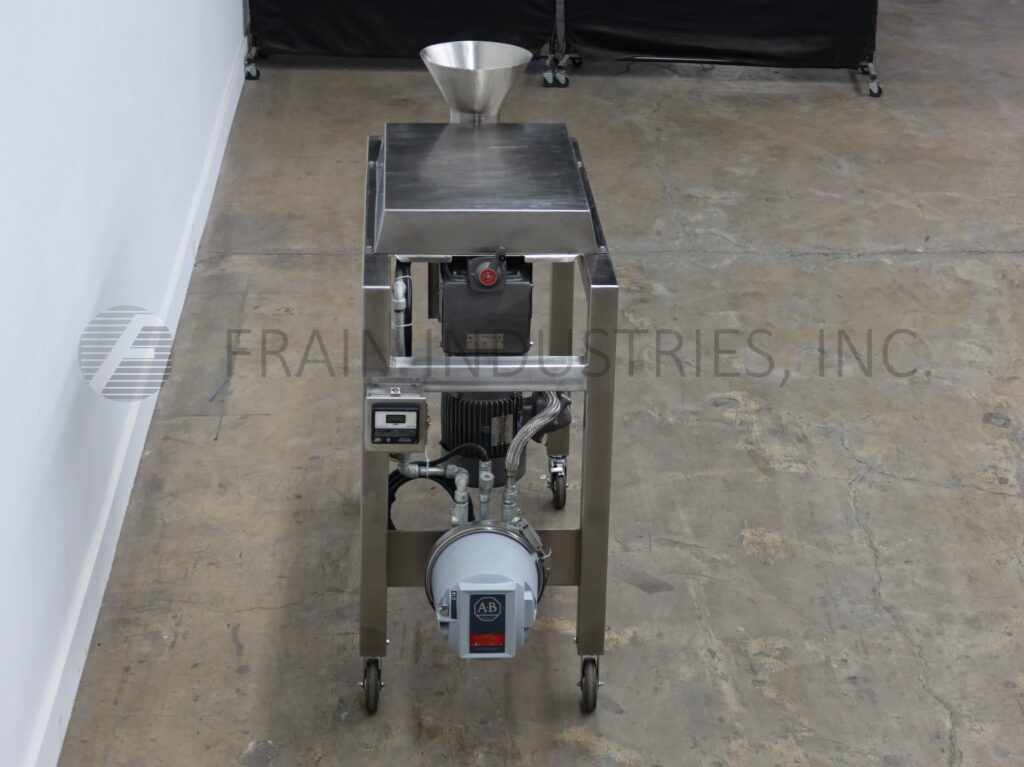

Quadro Mill Hammer 194

  • Manufacturer: Quadro
  • Model Number: 194
  • Frain Number: R21521

Quadro 194 Comil 316L stainless steel with capabilities of 500-5000 lb/hr. 8" screen span. Typical applications include: dry milling (to reduce coarse material to a smaller, uniform particle size), controlled grinding, dry mixing dispersion, de-agglomeration and wet material reduction. Unit mounted on casters.

OAD: 64"L x 28"W x 62"H

Get a Free Quote Call: 630-629-9900
