Redington Machines


Redington Machines In Stock

Redington Cartoner Auto Horiz. Glue (Auto) 2X3

  • Manufacturer: Redington
  • Model Number: 2X3
  • Frain Number: 5A9741

Specifications- Automatic, Horizontal, Intermittent, Glue flap, Centers 6", Carton range- D 5.5" x 12", W 0.56" x 3", L 0.76" x 4.5": Capable of speeds from 20 to 100 cpm – speeds depending on materials and application. Four chain unit is equipped w/11′ L lugged infeed w/18" centers, 3′ L magazine, hot melt system w/two hoses and guns and 4′ L side discharge belt. Has right angle continuous motion infeed.

Cartoner: 13′ long x 34" wide
infeed: 138" long x 13" wide

Get a Free Quote Call: 630-629-9900

Redington Cartoner Auto Horiz. Tuck (Auto) 23D24

  • Manufacturer: Redington
  • Model Number: 23D24
  • Frain Number: 59265

Specifications- automatic, horizontal, continuous, reverse tuck, centers 4", : capable of speeds from 80 to 200 cpm – speeds depending on materials and application. Complete with automatic barrel loader, verticle carton magazine, and an adjustable bucket infeed conveyor (last running 4 carton sizes). Equipped with Allen Bradley SLC 5/01 PLC system; Has Lexan barrier guarding. Price includes set to one carton size (subject to receipt of samples). Options available include automatic bottle loader.
On skid 17′ 1" long by 6′ 1" wide.

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: 5C5412

Redington semi-automatic continuous motion vertical tuck cartoner.Speeds from 10 to 80 cpm – depending on materials, application and machine configuration. Carton Size Range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2-1/2"to 9" in Depth. Equipped with Carton magazine, recipicating carton pick-n-place, 4 chain carrier system set on 6" centers. 8′ product load area (4′ each side), top and bottom carton tucking mechanisms, dicharge conveyor, Mounted on caster.

OAD: 151"L x 51"W x 70" H

Get a Free Quote Call: 630-629-9900

Redington Wrapper Cut,Wrap,Twist 47D4

  • Manufacturer: Redington
  • Model Number: 47D4
  • Frain Number: 5D4020

Redington 47D4, Fully automatic intermittent motion rotary roll wrapper and bander rated from 60 to 180 ppm – depending on materials and application with a 12 count max, with inner wrap width of 3 1/2" max and outer wrap of 2 3/4" x 2 3/4" with a diameter of 3/4". Features an adjustable temperature resistant foil sealer, cold glue for the outer wrapper, jam safety switch an auto reject, and a foot safety switch. Designed to wrap pressed powder tablets such as (mints, and antacids, etc). Has orientation and transfer unit consisting of a conveyor assisted product hopper, a broken or irregular size sorter feeder, with 12 track feed lanes for feeding the tablets into the roll to be wrapped. Will do both an inner waxed paper or foil, and outer paper roll wrap on unwrapped individual pieces. Last running 12 count of 3/4" diameter x 1/4 thick mints.

OAD: (L) 42" x (W) 60" x (H) 72".

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: R16291

Specifications- Semi-Automatic, Vertical, Continuous, Centers 6.00", Carton range- D 2.50" x 9.00", W 0.75" x 4.00", L 0.75" x 5.00": Capable of speeds up to 120 cpm. Three chain unit has an extended frame. Comes with a 6’7" L x 4" W canvass discharge conveyor belt. Emboss coder for top flap is available at add’L cost of $6,500. Leaflet feeder available for $15,000.
OAD: 19′ L x 4’W x 6′ H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Glue 9V Redington Semi Auto Cartoner Hot Melt 8" Center 90cpm

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: R16591

Redington Model 9V, semi automatic, vertical, continuous, Slauter Back Hot melt, Capable of speeds from 40 to 90 cpm – speeds depending on materials and application. Centers 8.00", Carton range- D 2.50" x 9.00", W 0.75" x 4.00", L 0.75" x7.00": Three chain unit has an extended frame. for total of 10′ extension. Comes with a 6’7" L x 4" W canvass discharge conveyor belt. Optional coder(s) available at addtional cost.
OAD: 19′ L x 4’W x 6′ H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: 5C7405

Redington semi-automatic continuous motion vertical tuck cartoner.Speeds from 10 to 80 cpm – depending on materials, application and machine configuration. Carton Size Range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2-1/2"to 9" in Depth. Equipped with Carton magazine, recipicating carton pick-n-place, 4 chain carrier system set on 6" centers. 8′ product load area (4′ each side), top and bottom carton tucking mechanisms, dicharge conveyor,

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: 5H2291

Redington, Model 9V, semi-automatic continuous motion vertical hand load, tuck cartoner. Rated from 25 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2½"to 9" in Depth. Equipped with 3 chains adjustable set on 6" centers, 24" long blank carton magazine, recipicating carton pick-n-place, (2) 48" long hand load areas (one each side), top and bottom carton tucking mechanisms. Control panel with start, stop and e-stop controls. Mounted on heavy duty base frame with caster and leveling legs.

Norwood hot stamp coder available at additional charge

OAD: 146"L x 46"W x 75"H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Glue 9V Redington 9V Semi Auto Continuous Motion Vertical Glue Cartoner 120 cpm

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: 5C5561

Redington 9V, Semi-automatic continuous motion vertical glue cartoner is capable of speeds from 20 – 120 cpm – speeds depending on materials and application. Four chain adjustable unit is set on 6" centers. Carton size range of: 3/4" – 5" in Lenght; 5/8" – 4" in Width; 2-1/2"- 9" in Depth. Equipped with recipicating carton pick-n-place, 28" L carton magazine and 4′ product load area on each side of machine for a total of 8′ of load area. Includes Nordson hot melt glue system.
OAD: 151"L x 51"W x 77" H

Get a Free Quote Call: 630-629-9900

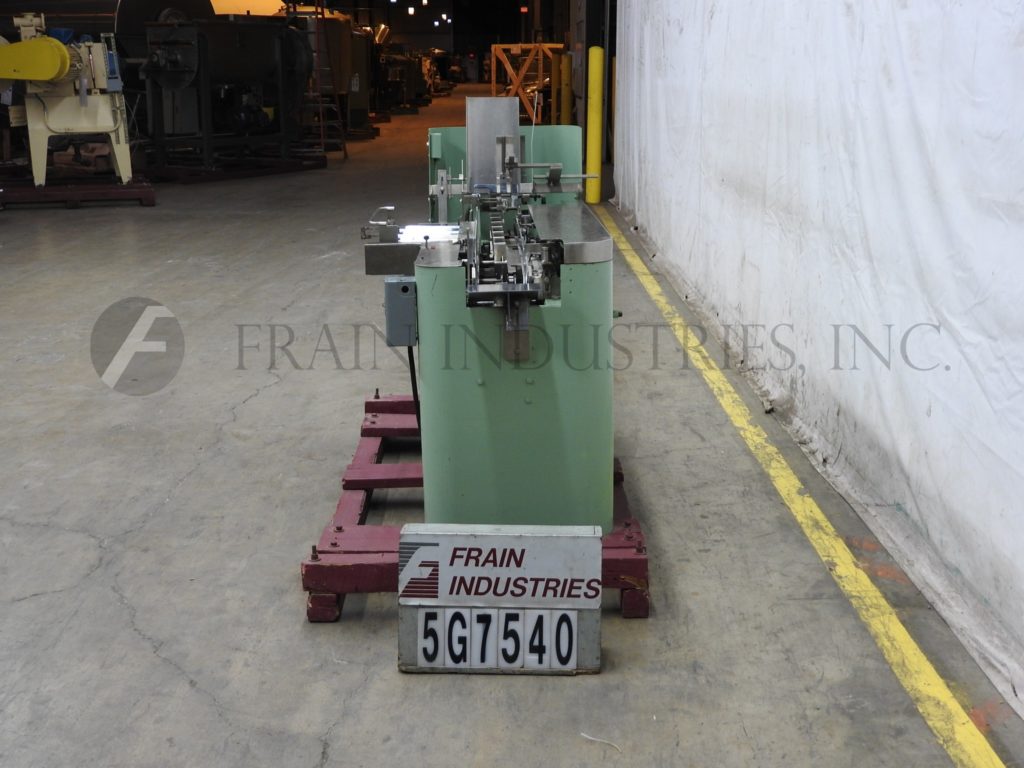

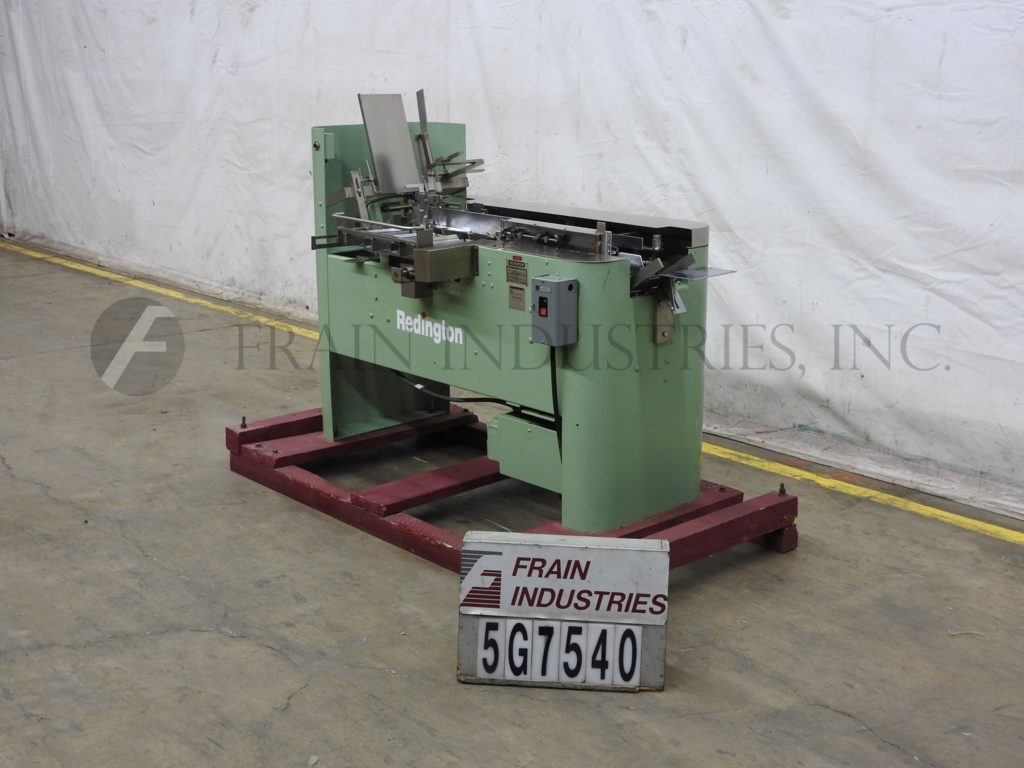

Redington Cartoner Semi Horiz. Tuck (Semi) 19A

  • Manufacturer: Redington
  • Model Number: 19A
  • Frain Number: 5G7540

Redington, Model 19A, semi-automatic, horizontal, Intermittent motion, tuck cartoner rated from 3 to 30 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1¼" to 4" in Length; ¾" to 2½" in Width; 2" to 7" in Depth. Equipped with 3 bucket manual product load station and capable of running straight or reverse tuck and glued end carton configurations with proper change parts.

OAD: 71"L x 36"W x 52"H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: R22361

Redington semi-automatic continuous motion, vertical tuck cartoner. Carton Size Range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2-1/2" to 9" in Depth. Equipped with carton magazine, reciprocating carton pick-n-place, 4 chain carrier system set on 6" centers. 12′ product load area (6′ each side on machine), top and bottom carton tucking mechanisms and discharge conveyor. Speeds dependant on materials, application and machine configuration.

OAD: 228" L x 48" W x 72" H

Get a Free Quote Call: 630-629-9900

Redington Cartoner Semi Vertical Tuck 9V

  • Manufacturer: Redington
  • Model Number: 9V
  • Frain Number: R16711

Redington semi-automatic continuous motion vertical tuck cartoner.Speeds from 10 to 80 cpm – depending on materials, application and machine configuration. Carton Size Range: 3/4" to 5" in Length; 3/4" to 4" in Width; 2-1/2"to 9" in Depth. Equipped with Carton magazine, recipicating carton pick-n-place, 4 chain carrier system set on 6" centers. 8′ product load area (4′ each side), top and bottom carton tucking mechanisms, dicharge conveyor,

Get a Free Quote Call: 630-629-9900
