Alpha Brewing Operations Tank SS JKT 2200 GAL

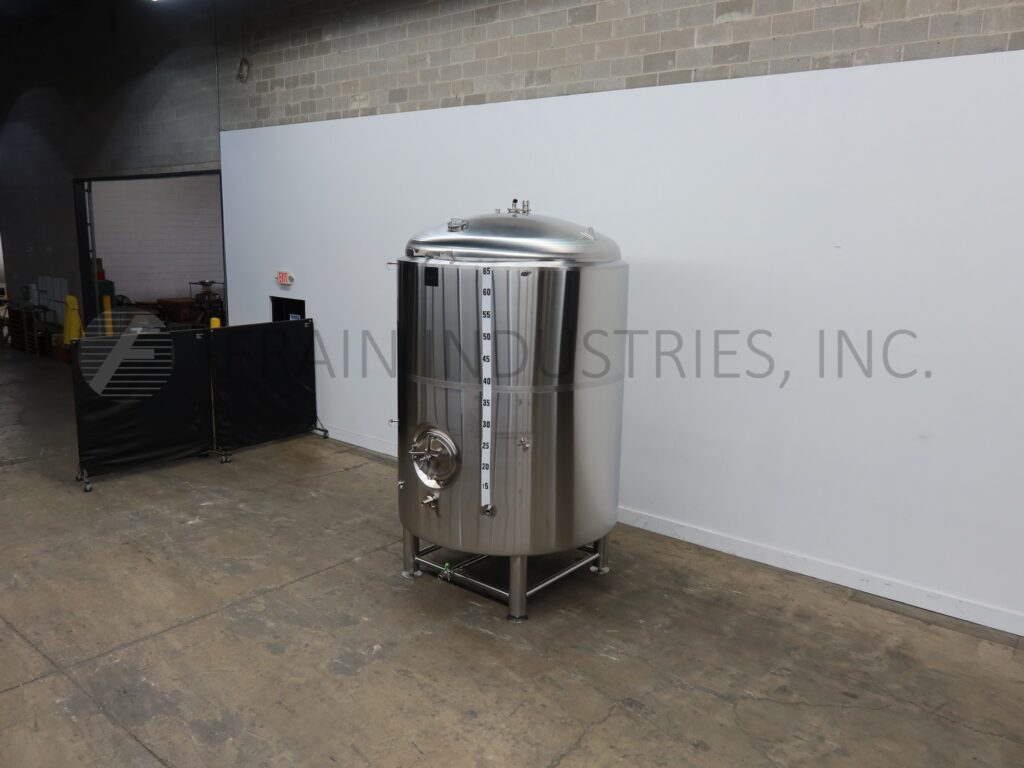

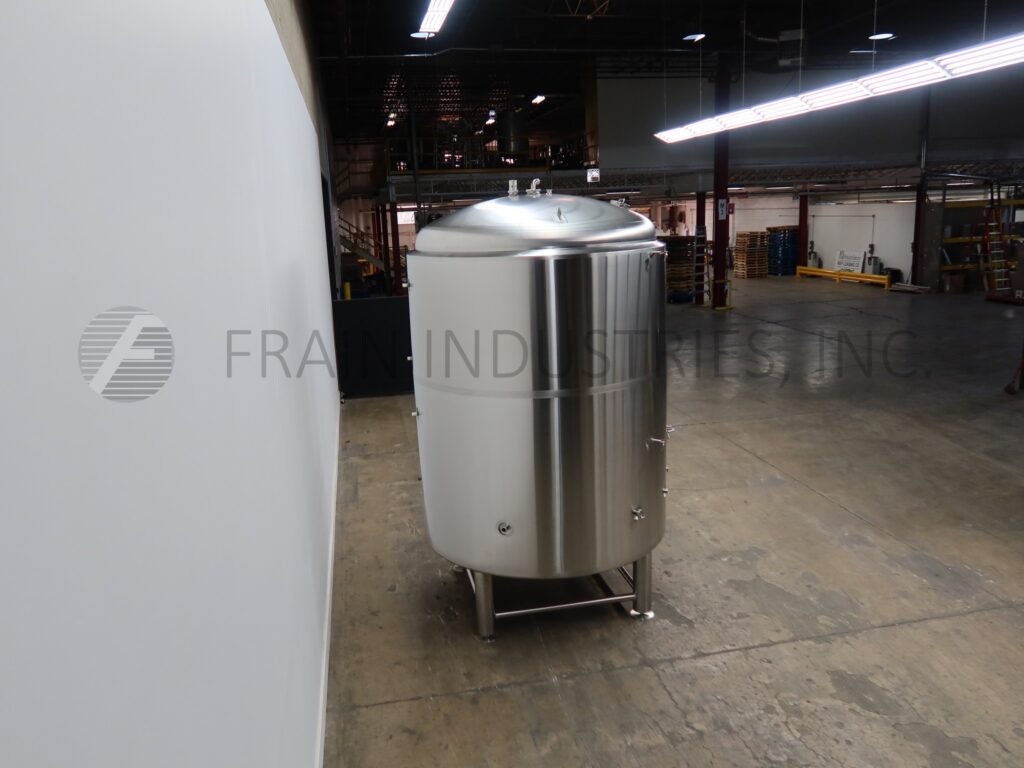

Back to All EquipmentAlpha, 2,200 gallon, 304 stainless steel, jacketed tank. Vessel Dimensions: 79" diameter x 97" straight wall with a dish bottom. Equipped with 13" x 17" side manway with bolt down cover. Tri-clamp discharge with 6" ground clearance.
Top Ports:
(1) 6½" OD x 6" ID Tri-Clamp
(1) 4½" OD x 4" ID Tri-Clamp
(1) 3" OD x 2½" ID Tri-Clamp
(1) 2" OD x 1½ ID Tri-Clamp
Side Port:
(5) 2" OD x 1½" ID Tri-Clamp
Bottom Port:
(1) 2" OD x 1½" ID Tri-Clamp
Jacket Port:
(6) 1" NPT
MAWP: 29 PSI (Vessel)
MAWP: 43 PSI (Jacket)
OAD: 92"L x 84"W x 144"H
