Arpac Palletizer Full case ARBOT1000

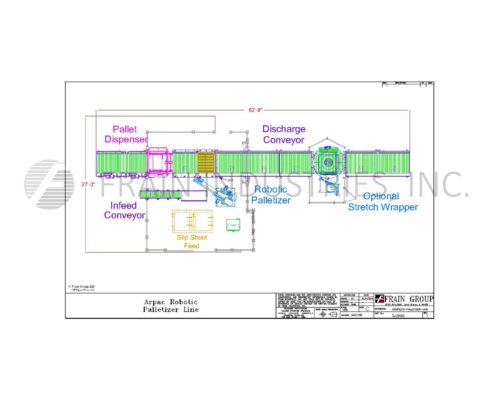

Back to All EquipmentArpac, Model ARBOT 1000, (4) axes, servo driven, articulated, rotary joint, pic-n-place robotic arm palletizing system. Rated from 10 to 45 pallets per hour with number of product – depending on materials, application, machine configuration and pack pattern. Capable of moving product from floor level up to 119" in height, rated up to maximum pick-up weight of 418 lbs. Equipped with Yaskawa PL190 robotic arm, suction cup vacuum with fork pic-n-place head mounted on robotic arm with 124" maximum horizontal reach and vacuum pump, 50" wide x 48" deep x 64" high pallet magazine, (1) 52" wide x 60" long powered roller conveyor load zone, 18" wide x 60" long product picking conveyor, (2) 45" wide x 52" long slip sheet holders and cage style safety guarding. Control panel with touch screen HMI.
