Collette Mixer Paste Vertical GRAL75

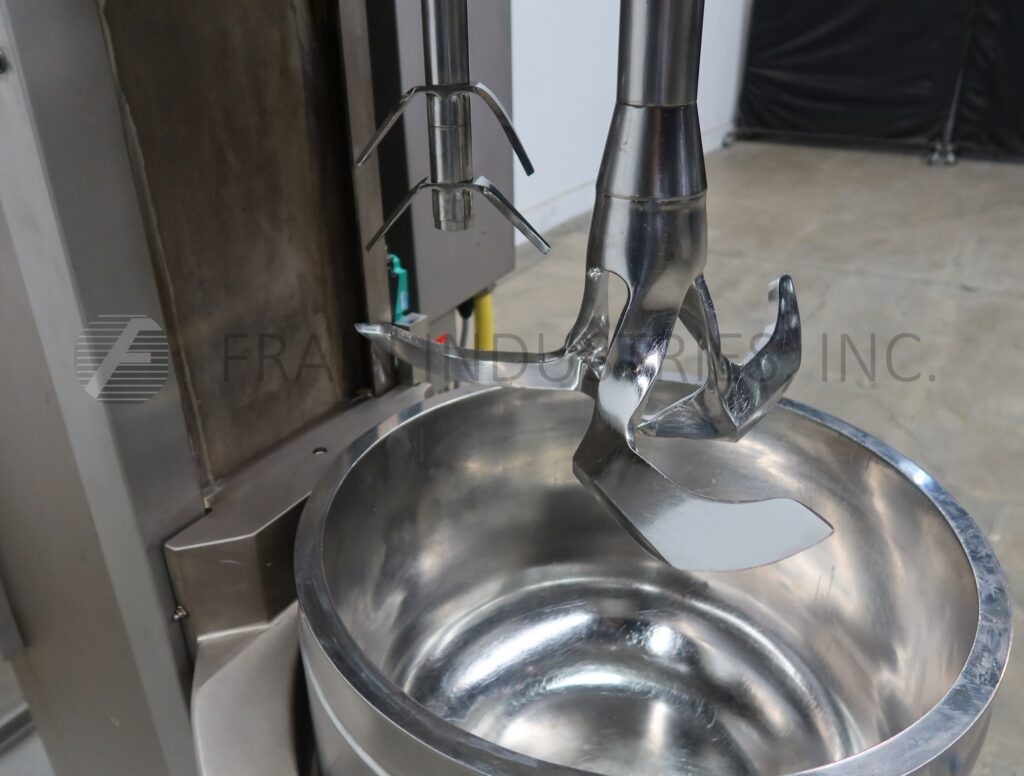

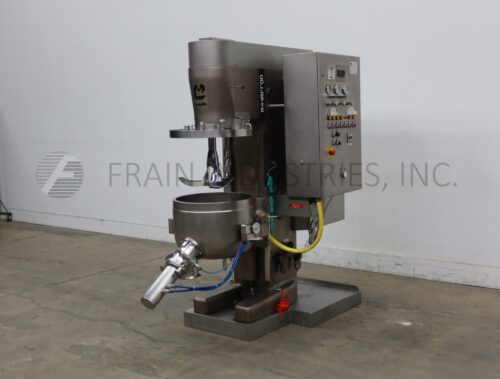

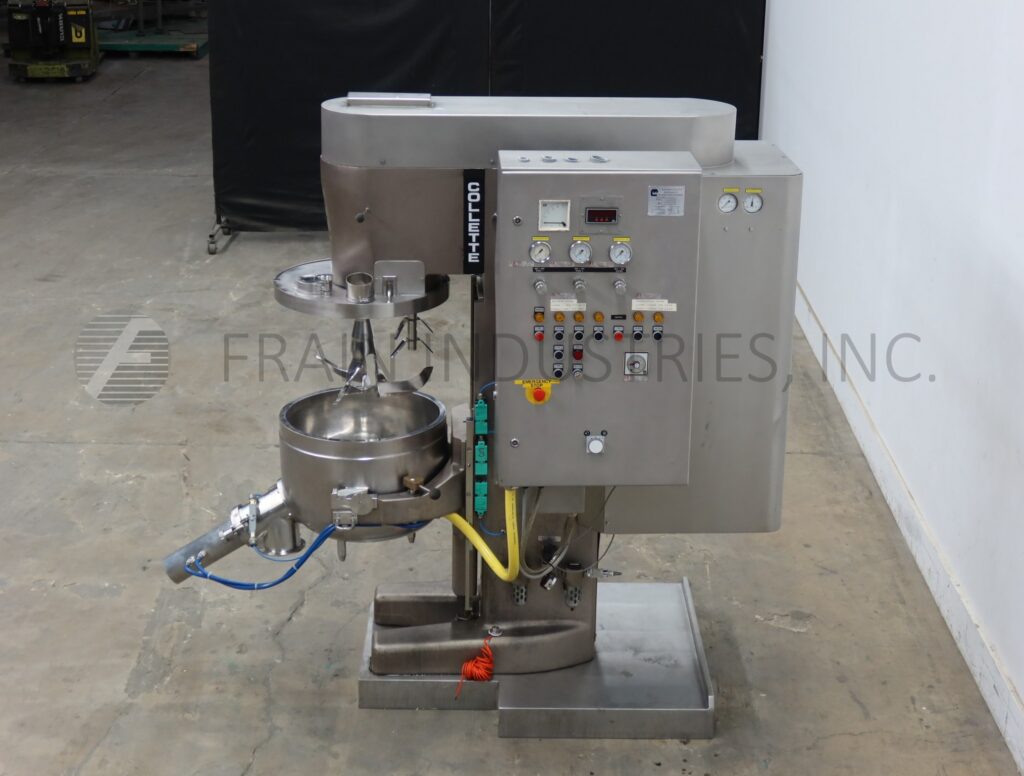

Back to All EquipmentCollette, Model GRAL 75, variable speed agitation, dual speed high shear, 316 stainless steel, jacketed, removable vessel granualtor. Gross capacity of 75 liters (19.81 gallons) and working capacity of 60 liters (15.85 gallons) per batch. Vessel dimensions: 20½" ID x 15" Deep. Equipped with Hydraulic vessel lift up with a fixed top cover, 16" diameter (3) blade anchor style mixer with 10" long x 2" wide x ½" thick blades powered by a variable speed 10 hp drive, 6" diameter (4) blade high shear mixer with 3" long x 1" wide blades powered by a dual speed 4 / 3 hp drive , 5" ID / 6¾" OD flange discharge with 19" ground clearance. Control panel with high and low speed, start, stop, jog and hydraulic lift controls with pressure, rpm and temperature gauges.
Top ports:
(1) 3¼" open vent
(1) 3" glass view port
(1) 1½" Tri-clamp
Jacket Ports:
(2) 1" NPT
MAWP: 29 PSI
OAD: 68" L x 42" W x 81" H
