Filamatic Filler Liquid Pos Disp VLA

  Back to All Equipment

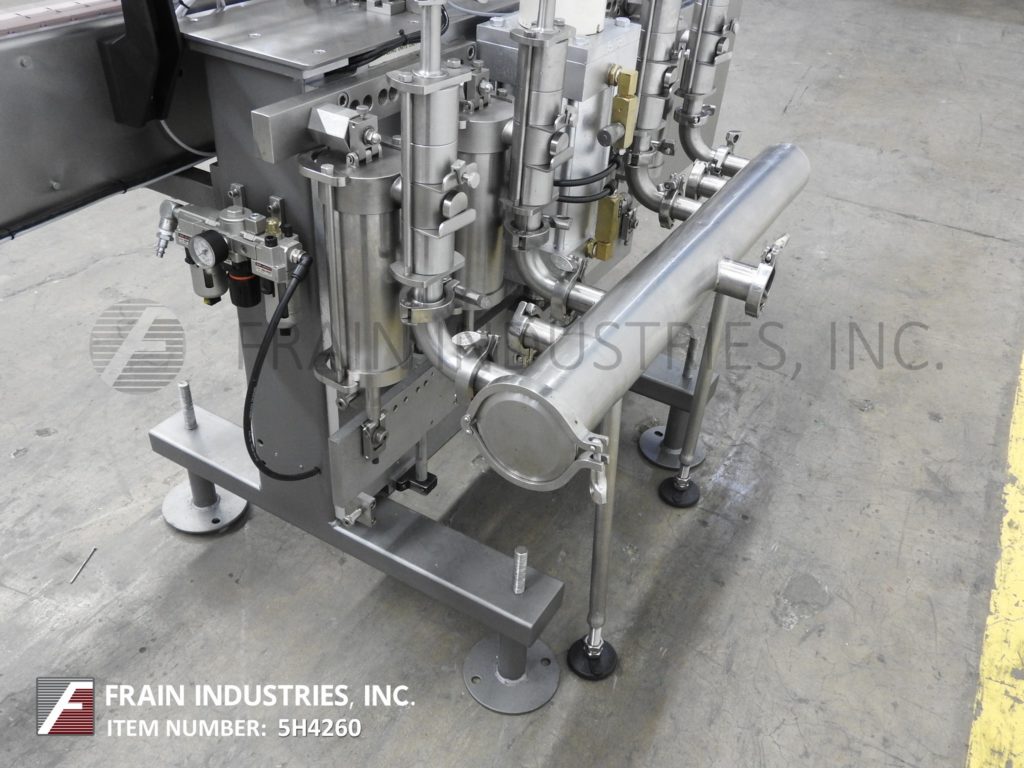

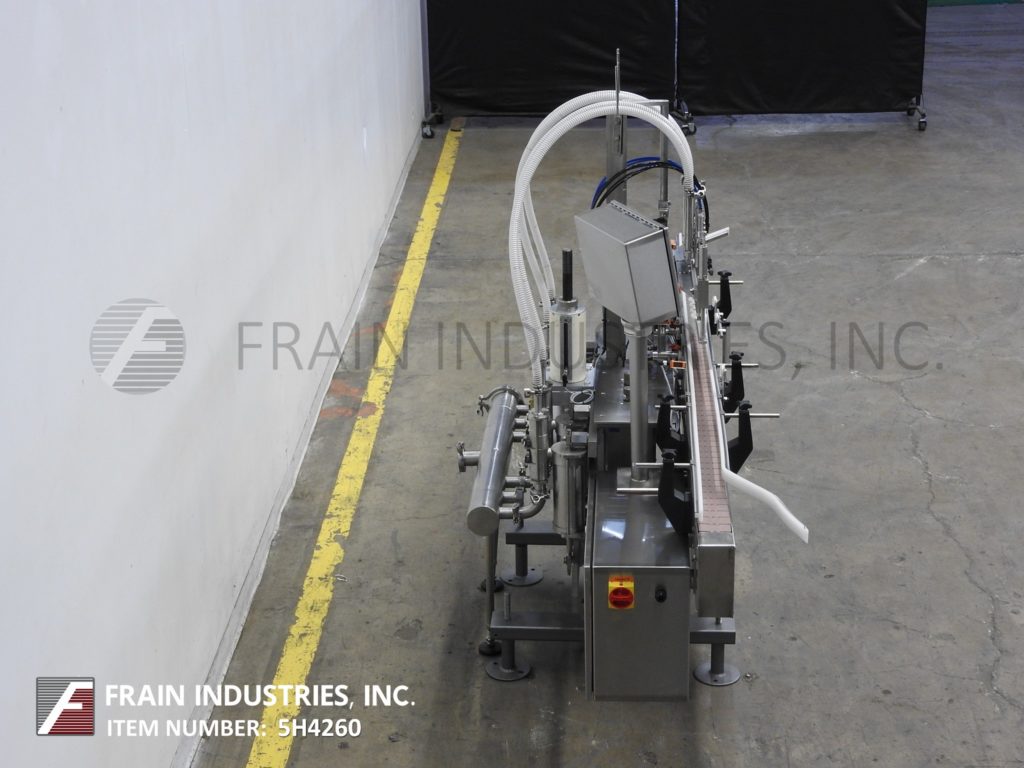

Filamatic, Model VLD, 4 head inline piston filler. Rated from 12 to 72 bottles per minute with a fill range of 60ml to 520ml with proper change parts – depending on materials, application and machine configuration. Equipped with 96" long by 3¼" wide Delrin conveyor, star wheel indexing, adjustable guide rails, (4) 520cc pistons and (4) (5/8)" OD diving nozzles with positive cut off mounted on a 16" long slide bar. Control panel with Omron PLC and push button start / stop / reset / e-stop controls. Mounted on base frame with leveling legs.

OAD: 102"L x 32"W x 72"H
