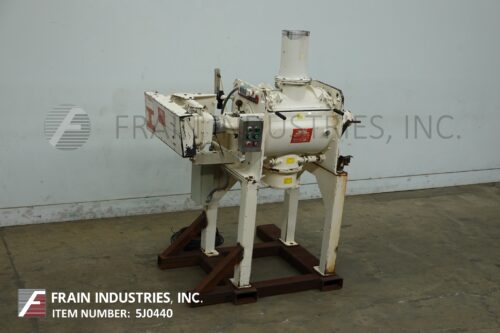

Littleford Mixer Powder Plow FM130D
Back to All EquipmentLIttleford, Model FM-130-D, 130 litre total drum volume with 35 to 90 litre (1.2 ft³ to 3.2 ft³) working capacity, 304 stainless steel, jacketed, laboratory mixer with amount of product per hour – depending on materials and application. Equipped with jacketed chamber and has inner dimensions of: 18" diameter x 26" long with (4) 1" threaded jacket fittings and (4) plows on 3" OD shaft powered by 10 Hp motor, 7" OD (4) blade chopper with 10 Hp drive, 22" x 13" lift up cover with 8"ID charge port. Control panel has start and stop for mixer and chopper, with jog button and timer. 6"W x 4"L center bottom flush valve with 10" OD / 14" ID bolt flange discharge with 35" ground clearance. Mounted on heavy duty (4) leg frame.
MAWP: 75 PSIG @ 320°F
OAD: 52" L x 65" W x 86" H
