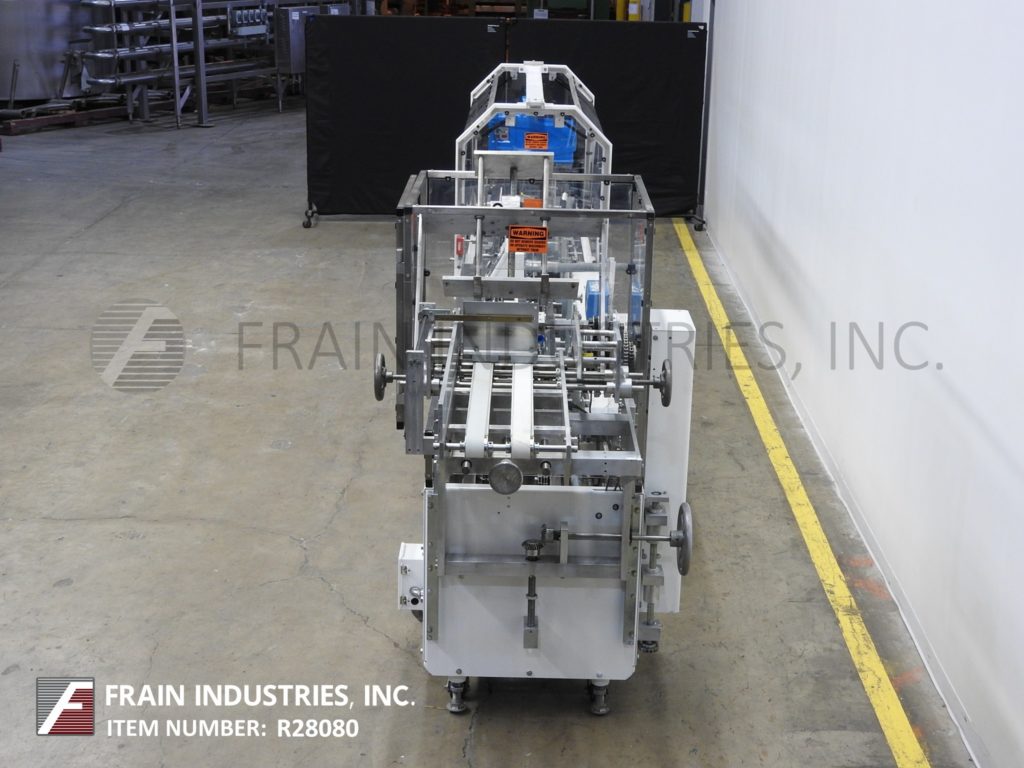

Photo of Adco Cartoner Semi Horiz. Glue (Semi) 15D105-EC

Adco Cartoner Semi Horiz. Glue (Semi) 15D105-EC

  Back to All Equipment

Adco Model 15D105EC, semi automatic, horizontal, hot melt glue cartoner rated from 25 to 100 cartons per minute – depending on materials, application and operator dexterity. Equipped with 4 chains adjustable set on 15" centers, with 1-3/4" wide x 4" high lugs. Carton size range: 1" to 13" in Length; 3/4" to 4" in Width; 4" to 11-1/2" in Depth. 42" long automatic adjustable blank carton magazine, with 2 head rotary vacuum pick and place, top carton hold down rail, 108" long hand loading area, Nordson hot melt glue system, flap tuckers and Seko gauges. Control panel has A/B PLC controller and operator controls with vacuum and control on / off switches, start, stop and e-stop push button controls with foot pedal jog. Mounted on heavy duty base frame with interlock safety guarding, casters and leveling legs.

OAD: 300" L x 48" W x 74" H
