Semi-Automatic Horizontal Glue Machines

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R38585

Langen Model B1, Semi-automatic, horizontal, continuous motion, hand load, hot melt glue cartoner, rated from 15 to 80 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1-3/4" to 12" long x 3/4" to 6" wide x 3-3/4" to 14" deep. Equipped with blank carton magazine, rotary vacuum carton pick and place, (4) chain adjustable set on 18" centers, 72" load area, 10" wide x 144" long product conveyor belt, major flap plows, minor flap closers, top hold down rail, Nordson glue system, side belt compression discharge and safety guarding. Mounted on base frame with barrier guarding, leveling legs and casters.

OAD: 225" L x 61" W x 70" H

Jones Cartoner Semi Horiz. Glue (Semi) L200HL

• Manufacturer: Jones
• Model Number: L200HL
• Frain Number: 5J6060

Jones, model L200HL, semi-automatic, continous, or intermittent motion, horizontal cartoner capable of speeds up to 80 cpm depending on application. 4 chain adjustable unit is set on 12" centers with 4" high lugs. Carton size range of: 4" – 11½" long x 1" – 10½" wide x 5¾" – 12" deep. All stainless steel contruction, with 60" L x 20" W back pressure control blank carton magazine, 3 head rotary vacuum carton pic-n-place, 50" long product hand load area, Nordson H/M, 34" discharge height, complete interlock barrier saftey guarding.

OAD: 264" L x 75" W x 97" H

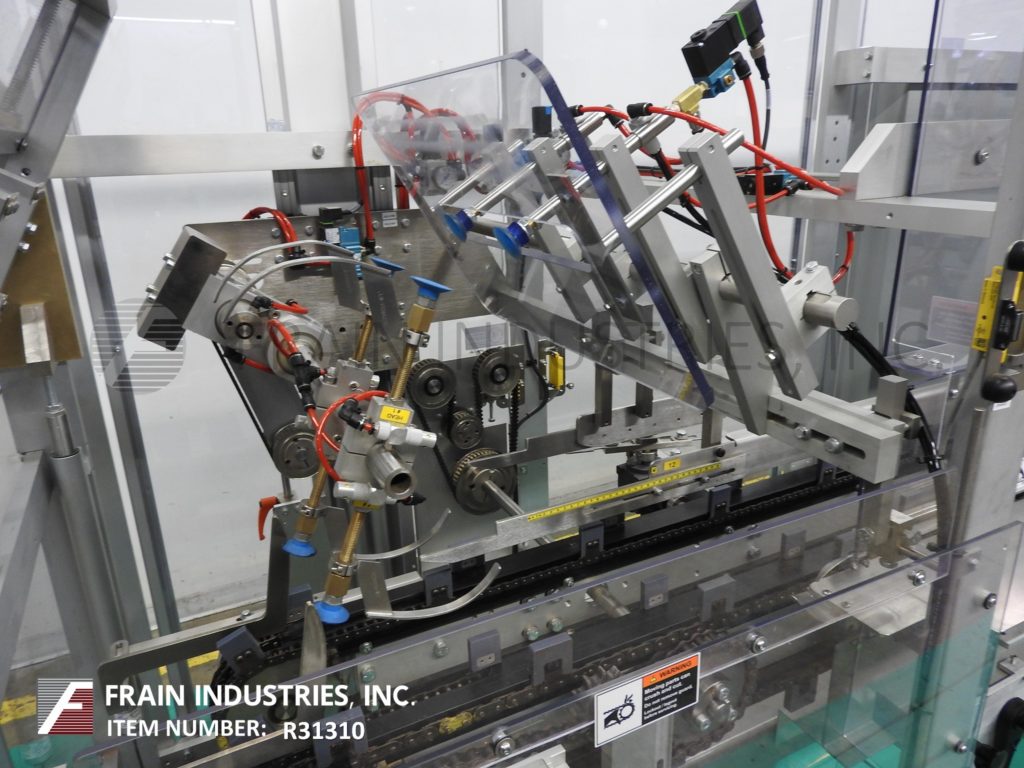

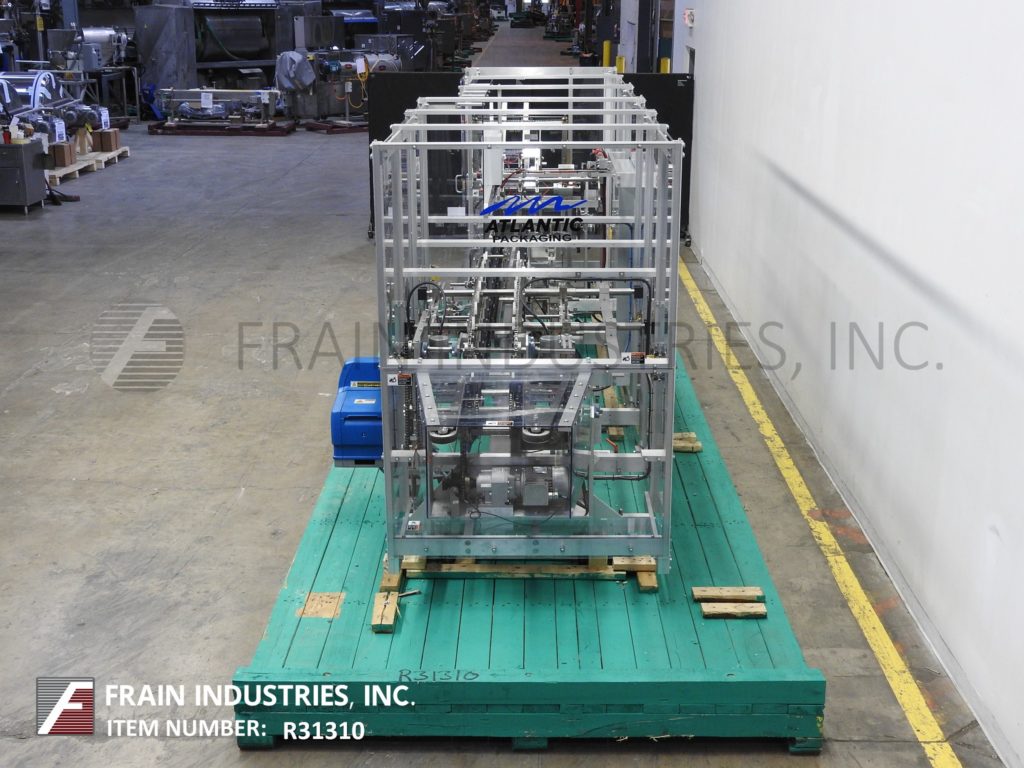

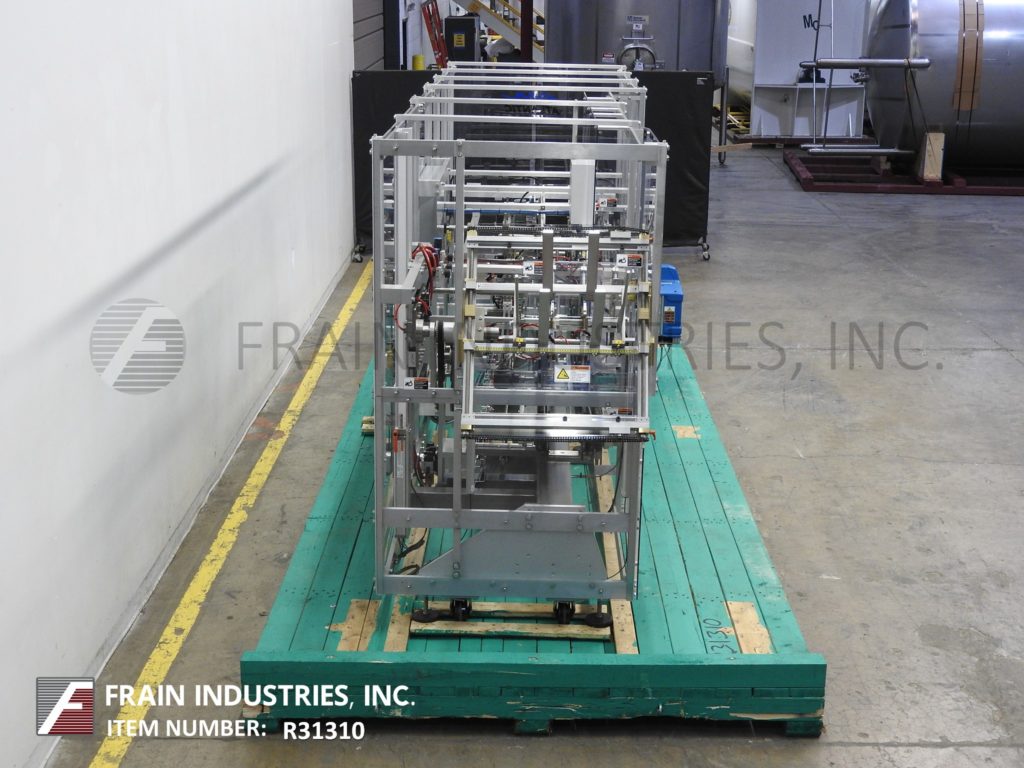

Langen Cartoner Semi Horiz. Glue (Semi) B1M

• Manufacturer: Langen
• Model Number: B1M
• Frain Number: R31310

Langen, Model B1-M, Semi automatic, continous motion, servo driven, left to right, horizontal, hand load, hot melt glue cartoner. Rated from 50 to 120 cartons per minute – depending on materials, application, machines configuration and operator dexterity. Carton size range: 1¾ to 7" in Length; 1" to 6" in Width; 4¾" to 14" in Depth. Equipped with (4) chains adjustable set on 9 centers, with 2" wide x 1-1/2" high lugs, 19" long blank carton magazine, 2-head rotary pic n place, with pre-break, top carton confining rail, 72" long operator load area, Nordsen ProBlue (2) gun hot melt glue unit, with major flap plows and minor flap closers, quick change carton adjustment, Siko counter and top lugged carton squaring chain, with independent 27" long x 1" wide side belt carton discharge conveyors that accelerate carton away from trailing lugs preventing carton damage. Control panel has A/B Micrologics PLC and A/B HMI, VFD speed controller, with cycle, start / stop, carton feed, e-stop and e-stop reset controls. Mounted on frame with interlock safety guarding, casters and height adjustable leveling legs.

OAD: 236" L x 72" W x 81" H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R38582

Langen Model B1, Semi-automatic, horizontal, continuous motion, hand load, hot melt glue cartoner, rated from 15 to 80 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1-3/4" to 12" long x 3/4" to 6" wide x 3-3/4" to 14" deep. Equipped with dual head rotary carton feed, four chain adjustable unit set on 18" centers, 6′ product load area, Nordson hot melt. Control panel has PLC controller. Mounted on base frame with barrier guarding and leveling legs.
Includes a 12" wide x 144" long product conveyor with variable speed control.

OAD: 228" L x 50" W x 84′ H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R36010

Langen, Model B1, Semi automatic, continous motion, horizontal, hot melt glue cartoner. Rated from 40 to 120 cartons per minute – depending on materials, application and operator dexterity. Equipped with (4) chains adjustable set on 18" centers, with 2" long x 3" high lugs. Carton size range: 1¾" to 15¾" in Length; ½" to 6" in Width; 3¾" to 14" in Depth. Equipped with 96" long powered blank carton magazine, 2 head rotary vacuum pic n place, top squaring system, 72" long product hand load area, major flap plows, minor flap closers, Nordsen hot melt glue system and vacuum system. Control panel with start / stop, jog / run, glue on / off and vacuum pump on / off. Mounted on base frame with lexan guarding and height adjustable legs with casters.

OAD: 225"L x 62"W x 72"H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105SS

• Manufacturer: Adco
• Model Number: 15D105SS
• Frain Number: R37400

Adco, Model 15DBC105SS, Semi-automatic, continuous motion, horizontal, hot melt glue cartoner rated from 25 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1" to 9-1/2" in Length; 3/4" to 4" in Width 4 to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers and has 3½" high lugs, with automatic 46" long belt blank carton magazine, (2) head rotary pic-n-place, with pre-break, no-product / no-carton, top carton hold down, barrel cam loader, Nordson hot melt glue unit and built in vacuum system. Control Panel has relay logic controller with machine, vacuum, speed, pattern control with jog / run, on / off switches and start, stop, e-stop push button controls and statis light. Mounted on heavy duty height adjustable frame with casters, leveling legs and interlock safety guarding.

OAD: 288" L x 63" W x 75 " H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R38587

Langen Model B1, Semi-automatic, horizontal, continuous motion, hand load, hot melt glue cartoner, rated from 15 to 80 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1-3/4" to 12" long x 3/4" to 6" wide x 3-3/4" to 14" deep. Equipped with (4) chains adjustable set on 18" centers and 1" high x 2" long lugs, blank carton magazine, (2) head reciprocating vacuum carton pick n place, 9′ long load area, carton squaring rail, (2) gun hot melt glue systems with pattern controller, compression discharge and vacuum system with pump. Control panel with start machine jog, glue gun carton, vacuum pump, controls with e-stop. Tilt-able frame for gravity assist product loading. Mounted on base frame with barrier guarding and leveling legs.

OAD: 300"L x 58"W x 72"H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R38581

Langen Model B1, Semi-automatic, horizontal, continuous motion, hand load, hot melt glue cartoner, rated from 15 to 80 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1-3/4" to 12" long x 3/4" to 6" wide x 3-3/4" to 14" deep. Equipped with blank carton magazine with rotary pick n place with carton hold down, set on 18" centers with 6′ long manual load area that can be tilted 0 to 30 degrees allowing for gravity assisted loading, Nordson hot melt glue system, carton discharge belts and vacuum pump. Mounted on painted "steelit" base frame with barrier guarding and leveling legs.

Includes a 12" wide x 144" long product conveyor with variable speed control.

Code dater available at additional cost.

OAD: 20’L x 5’6"W x 6’H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105SS

• Manufacturer: Adco
• Model Number: 15D105SS
• Frain Number: R36600

Adco, Model 15DBC105SS, Automatic, continuous motion, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials and application. Carton size range: 1" to 9-1/2" in Length; 3/4" to 4" in Width; 4 to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers and has 3½" high lugs, with automatic 46" belt blank carton magazine, (2) head rotary pic-n-place, with pre-break, no-product / no-carton, top carton hold down, barrel cam loader, Nordson hot melt glue unit and built in vacuum system. Control Panel has relay logic controller with machine, vacuum, speed, pattern control with jog / run, on / off switches and start, stop, e-stop push button controls and statis light. Mounted on heavy duty height adjustable frame with caster with leveling legs and interlock safety guarding.

OAD: 288" L x 63" W x 75 " H

Langen Cartoner Semi Horiz. Glue (Semi) B1

• Manufacturer: Langen
• Model Number: B1
• Frain Number: R38530

Langen, Model B1, Semi automatic, horizontal, hot melt glue cartoner, rated from 40 to 120 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 1¾" to 12" in Length; ½" to 6" in Width; 3¾" to 14" in Depth. (4) chains adjustable set on 9" centers with 2" long x 3" high lugs, 96" long powered blank carton magazine, (2) head rotary vacuum pic n place, 72" long product hand load area, top squaring system, major flap plows, minor flap closers, Nordsen hot melt glue unit and vacuum system. Control panel has start / stop, jog / run, glue on / off and vacuum pump on / off. controls. Mounted on multi-leg frame with cage style safety guarding, casters and height adjustable leveling legs.

OAD: 225" L x 66" W x 72" H

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105SS

• Manufacturer: Adco
• Model Number: 15D105SS
• Frain Number: R36120

Adco, Model 15D105SS, Semi automatic, stainless steel, horizontal, continuous motion, hot melt glue cartoner rated from 25 to 120 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1" to 9.5" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers with 2-1/2" wide x 3-1/2" high lugs, 48" long carton magazine, (2) head rotary vacuum pick and place, top carton hold down rail, 119" long x 12" wide product in feed conveyor with 72" long operator hand load area, Nordson ProBlue hot melt glue system, flap closers and 24" long side compression discharge belts, Seco gauges with interlock flip-up safety guarding. Control panel has A/B relay logic controller with A/B VFD controls, start, stop, e-stop push buttons, on / off switches for hot melt glue and oiless vacuum system with foot pedal activated carton feed controls. Mounted on stainless steel frame with casters and leveling legs.

OAD: 266"L x 62"W x 74"H

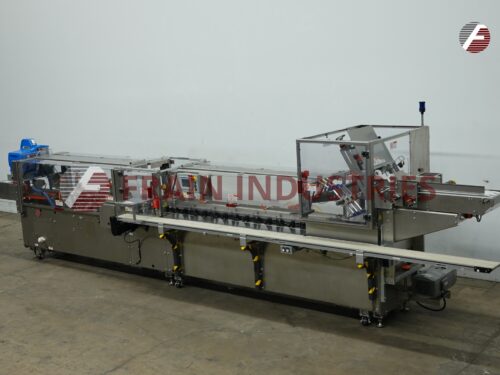

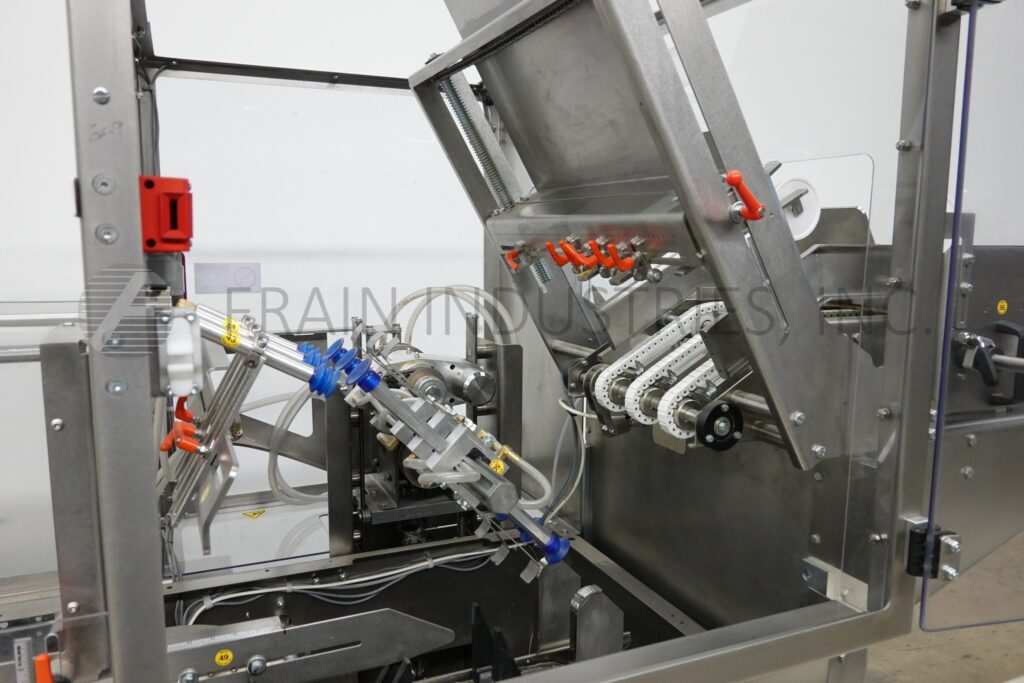

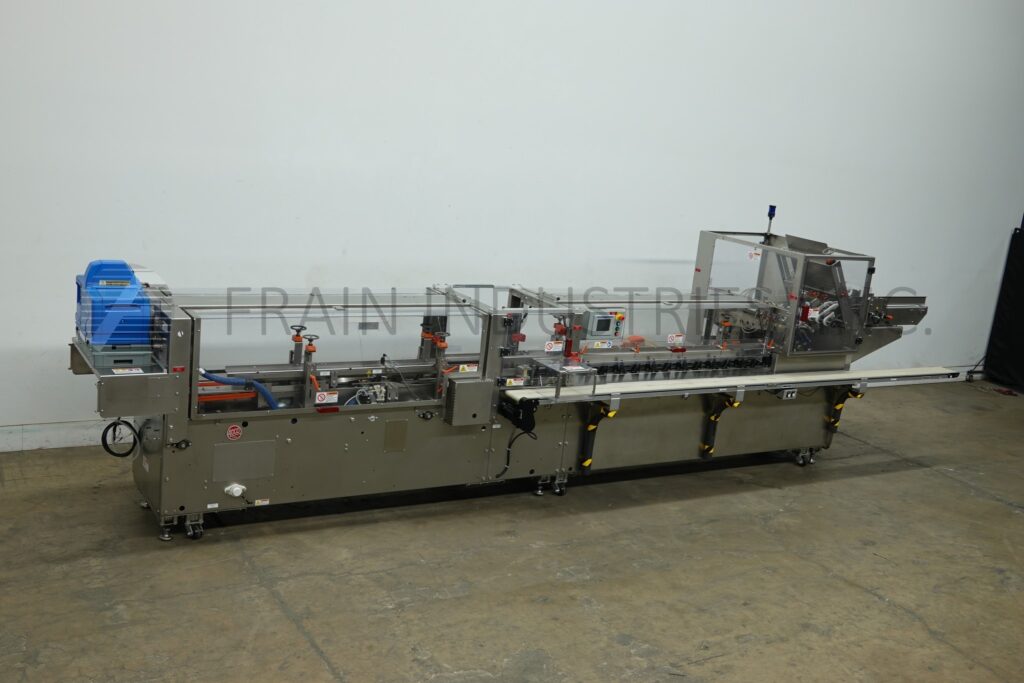

Adco Manufacturing Inc Cartoner Semi Horiz. Glue (Semi) 15D105SS

• Manufacturer: Adco
• Model Number: 15D105SS
• Frain Number: R36782

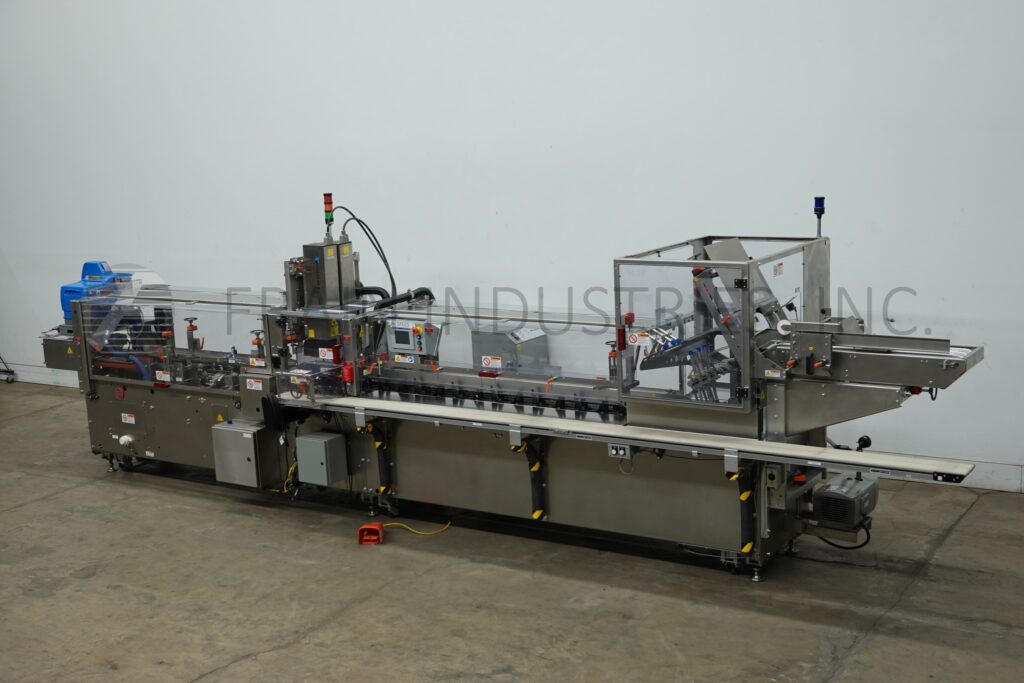

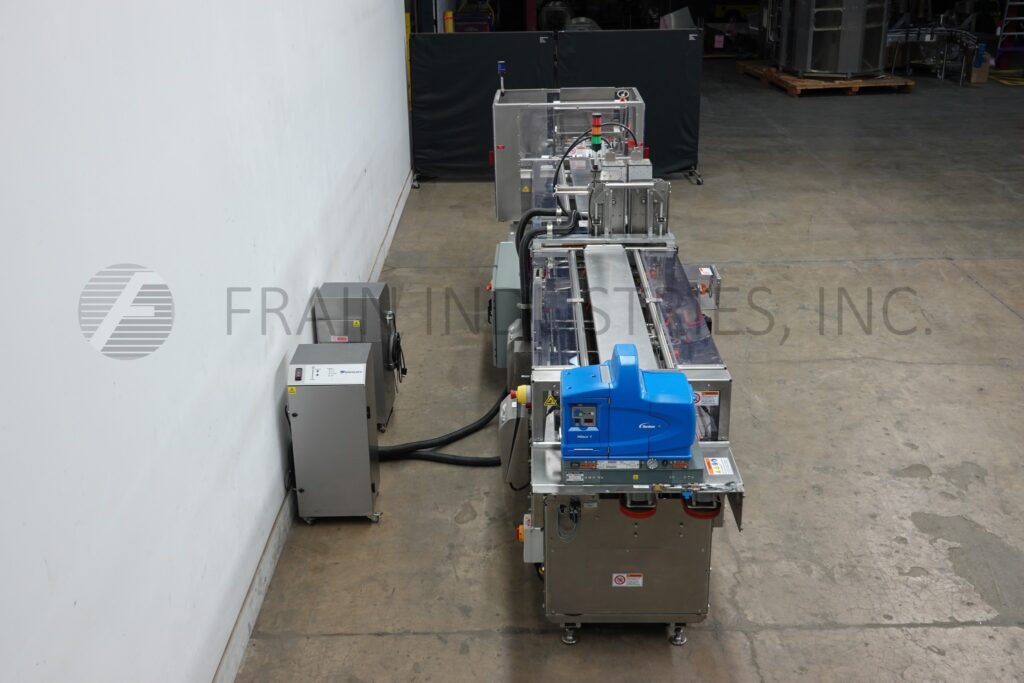

Adco, Model 15D105-SS, Stainless steel, semi-automatic, horizontal, hot melt glue, cartoner. Rated from 25 to 120 cartons per minute – depending on materials, application, machine configuration and operator dexterity. Carton size range: 1" to 9½" in Length; ¾" to 4" in Width; 4½" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers, with 3½" high lugs,46" long blank carton magazine, with 2 head rotary vacuum pick and place, (2) Videojet model 3340 laser coders each with a fume extractor, top carton hold down rail, 78" long hand product loading area, forming plows and flap tuckers, Nordson hot glue system with interlock safety guarding. Control panel with push button start, stop, e-stop controls, on / off switches for glue and vacuum and foot pedal. Mounted on stainless steel frame with casters and interlock safety guarding.

OAD: 285" L x 62" W x 86" H
