Sealer (Cart Semi) Machines

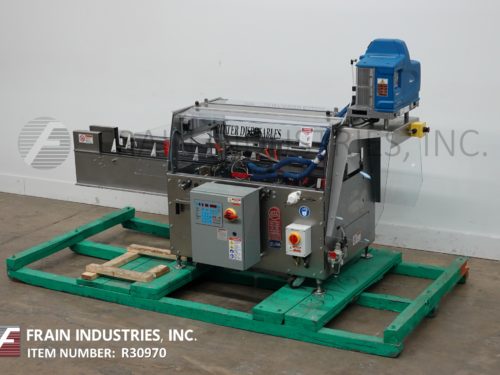

Adco Cartoner Semi Sealer (Semi) 15HCS50SS

• Manufacturer: Adco
• Model Number: 15HCS50SS
• Frain Number: R30970

Adco Model 15HCS-50-SS, semi automatic, stainless steel, horizontal, continous motion, hot melt glue carton sealer. Rated from 5 to 50 cartons per minute – depending on materials, application and operator dexterity. Carton size range; 2" to 12" in Length; 3/4" to 4.5" in Width; 3.5" to 15" in Depth. Equipped with (2) lugged corrosion resistant coated chains set on 15" centers with 2" wide x 5" high lugs and 32" long operator load area each side, scale gauge hand adjustable, Nordson ProBlue hot melt glue system with separate disconnect, compression rails and 36" in feed / discharge height adjustable to +/- 1". Control panel has Control panel has AB control package with 5000 Plus controller and has start, stop, e-stop push buttons, on / off glue switch and vari-speed control dial. Mounted on stainless steel frame with interlock barrier guarding, casters and height adjustable leveling legs.

OAD: 108" L x 46" W x 66" H

Adco Cartoner Semi Sealer (Semi) 15HCS50SS

• Manufacturer: Adco
• Model Number: 15HCS50SS
• Frain Number: R30971

Adco Model 15HCS-50-SS, semi automatic, stainless steel, horizontal, continous motion, hot melt glue carton sealer. Rated from 5 to 50 cartons per minute – depending on materials, application and operator dexterity. Carton size range; 2" to 12" in Length; 3/4" to 4.5" in Width; 3.5" to 15" in Depth. Equipped with (2) lugged corrosion resistant coated chains set on 15" centers with 2" wide x 5" high lugs and 32" long operator load area each side, scale gauge hand adjustable, Nordson ProBlue hot melt glue system with separate disconnect, compression rails and 36" in feed / discharge height adjustable to +/- 1". Control panel has AB control package with 5000 Plus controller and has start, stop, e-stop push buttons, on / off glue switch and vari-speed control dial. Mounted on stainless steel frame with interlock barrier guarding, casters and height adjustable leveling legs.

OAD: 108" L x 46" W x 66" H

Adco Cartoner Semi Sealer (Semi) 15CHLSS

• Manufacturer: Adco
• Model Number: 15CHLSS
• Frain Number: 5H5431

Adco Model 15CHLSS, semi-automatic, stainless steel, horizontal, carton sealer rated 1 to 25 cartons per minute – depending on materials, application and operator dexterity. Maximum carton size: 36" in Length; 6-1/2" in Width; 13" in Depth. Equipped with adjustable flap plow area and overhead hold down, (2) hot glue wheel applicators and (2) palm actuated cycle buttons. Control panel has start / stop buttons, on / off, glue and inside panel glue pot temperature controls from 200 to 550 Deg F. Operator squares up carton, loads product, then folds trailing dust flaps and inserts carton into feed end of machine. Mounted on stainless steel frame with casters and leveling legs.

Emboss coder available at additional cost.

OAD: 70" L x 38" W x 42" H

Hoerner Waldorf Cartoner Semi Sealer (Semi) MIDGET SEALER

• Manufacturer: Hoerner Waldorf
• Model Number: MIDGET SEALER
• Frain Number: 5F4235

Hoerner Waldof MIDGET SEALER, semi automatic, horizontal, stainless hot melt glue cartoner rated up to 25 cartons per minute – speeds depending on materials, application and operator dexterity. Carton size range: 3 to 12" in Length; 3/4" to 3-1/2" in Width; 5" to 12" in Depth. Equipped with a 2 chain carrier system set on 16" centers with 4-1/2" high lugs, adjustable guide rails, two hot glue pots with wheel applicators, and a 24" long compression section. Mounted on a stainless steel frame with casters:

Emboss coder available at additional cost

OAD: 96" L x 32" W x 42" H

Adco Cartoner Semi Sealer (Semi) 15CHLLCSS

• Manufacturer: Adco
• Model Number: 15CHLLCSS
• Frain Number: 5H4710

Adco, Model 15CHL-LC-SS, semi automatic, stainless steel, horizontal, hot melt glue carton sealer rated from 5 to 25 cartons per minute – depending on materials, application and operator dexterity. Carton size range; 2" to 12" in length; ¾" to 4½" in width; 3½" to 12" in depth. Equipped with 2 chains fixed with ¾" wide x 4¼" high lugs set on 27" centers, adjustable flap plow area and overhead carton hold down, Nordson Problue hot melt glue system and pattern controller, with major and minor flap closers. Control panel with start / stop buttons, on / off and e-stop. Mounted on stainless steel base frame with lexan safety guarding locking casters and leveling legs.

OAD: 85" L x 56" W x 60" H

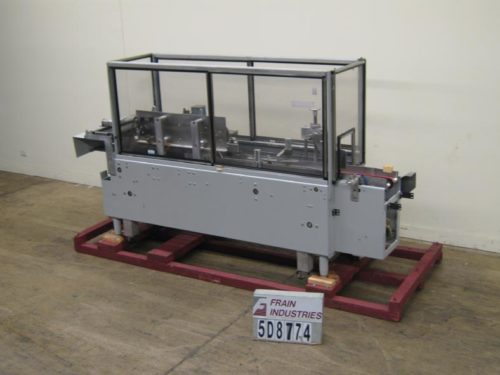

Adco Cartoner Semi Sealer (Semi) TOP FLAP

• Manufacturer: Adco
• Model Number: TOP FLAP
• Frain Number: 5D8774

Adco semi automatic, top flap closer and sealer with number of cartons per minute – depending on materials, application and operator dexterity. Carton size range: 2-1/2" to 18" in Length; 2-3/8" to 5-1/2" in Width; 4" to 15" in Depth. Equipped with 2 chains with 3-1/4" high lugs set on 21" centers, dual belt in-feed, top case squaring lugs during sealing, right angle pneumatic discharge, E-stop and barrier guarding. Mounted (4) leg frame with casters.
Operation ploughs leading and trailing minor flaps then ploughs over top flap and glue seals,

OAD: 130" L x 43" W x 72" H

Hoerner Waldorf Cartoner Semi Sealer (Semi) MIDGET

• Manufacturer: Hoerner Waldorf
• Model Number: MIDGET
• Frain Number: R15432

Hoerner Waldorf MIDGET, semi automatic horizontal carton sealer capable of speeds up to 25 cpm – speeds depending on materials, application and operator dexterity. Carton size range: (Length) 3" – 12" (Width) 1/2" – 3-1/2" (Depth) 7" – 12". Includes Two Hot Glue Wheel Type Aplicators. Easy Changover Can Be Completed In 10 Minutes. Operator Squares Up Carton, Loads Product, Then Folds Trailing Dust Flaps & Inserts Carton Into Feed End Of Machine. Mounted On Casters.

OAD: 108" L x 26" W x 45" H

Hoerner Waldorf Cartoner Semi Sealer (Semi) MIDGET

• Manufacturer: Hoerner Waldorf
• Model Number: MIDGET
• Frain Number: R23810

Semi-auto, horizontal, hot glue, stainless steel carton sealer capable of speeds up to 25 cpm – depending on materials and application. Carton size range: 3" to 12" in Length; 3/4" to 3-1/2" in width; 5" to 12" in depth. Two chain unit set on 16" centers with 2" wide x 3 1/2" high lugs. Equipped with carton in feed, hot glue wheel applicators, end flap plows, cooling bars and discharge table. Mounted on casters.

(Deboss Coder Dater Available At Addition Cost)

OAD: 112" L x 56" W x 45" H

Scandia Cartoner Semi Sealer (Semi) HLC

• Manufacturer: Scandia
• Model Number: HLC
• Frain Number: R27191

Scandia Model HLC, semi-automatic, horizontal, hot melt glue, carton sealer. Rated from 5 to 30 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 3" to 10" in Length; ½" to 4" in Width; 5" to 12" in Depth. Equipped with (2) chain carton carrier system set on 12" centers with (3/8)" wide x 1" high lugs, 115" long product hand load area with Nordson hot melt glue system, and compression discharge. Control panel with push button start / stop / e-stop and switches for run / jog and glue on / off. Mounted on heavy duty base frame with casters.

OAD: 199"L x 48"W x 78"H

Bivans Cartoner Semi Sealer (Semi) 82

• Manufacturer: Bivans
• Model Number: 82
• Frain Number: 5G7770

Bivans, Model 82, semi automatic, intermittent motion, top tuck cartoner closer. Rated from 5 to 60 container per minute – depending on materials, application and operator dexterity. Carton size range: 1" to 7" in Length; ½" to 3" in Width; 2¼" to 12" in Depth. (3) chain unit set on 10" centers with 3½" long product lugs, 17" long x 3" wide rubber belt discharge conveyor with 35" discharge height. Control panel has start, stop and e-stop push buttons, a run/jog switch and interlock safety guarding.

OAD: 90"L x 33"W x 75"H

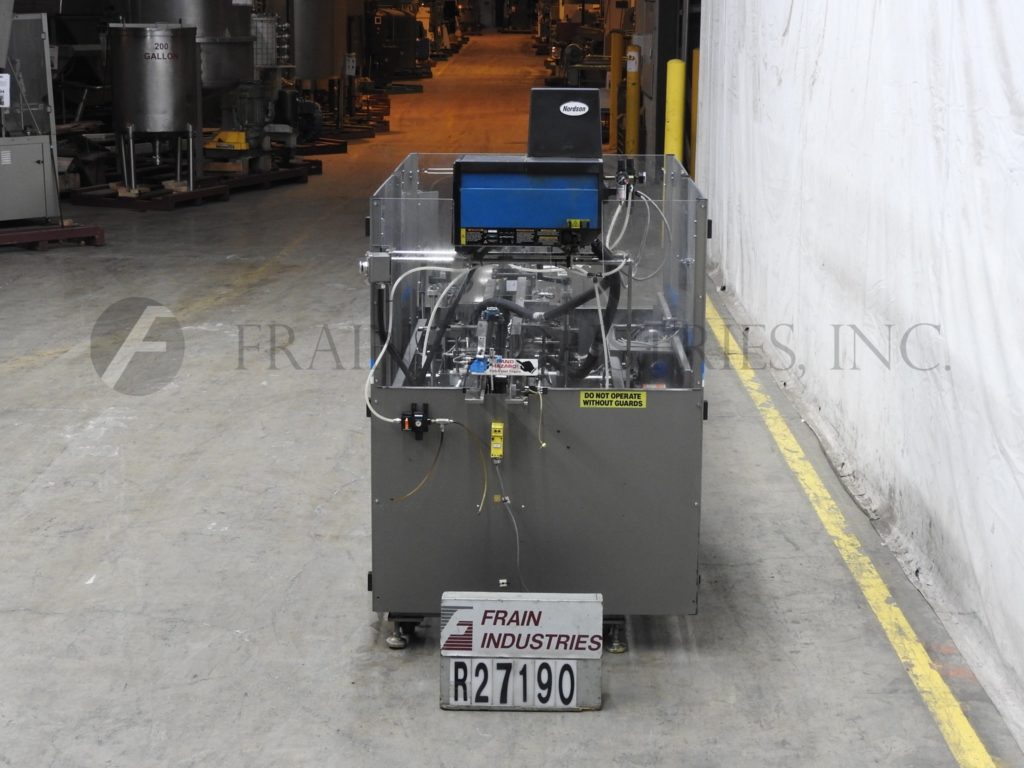

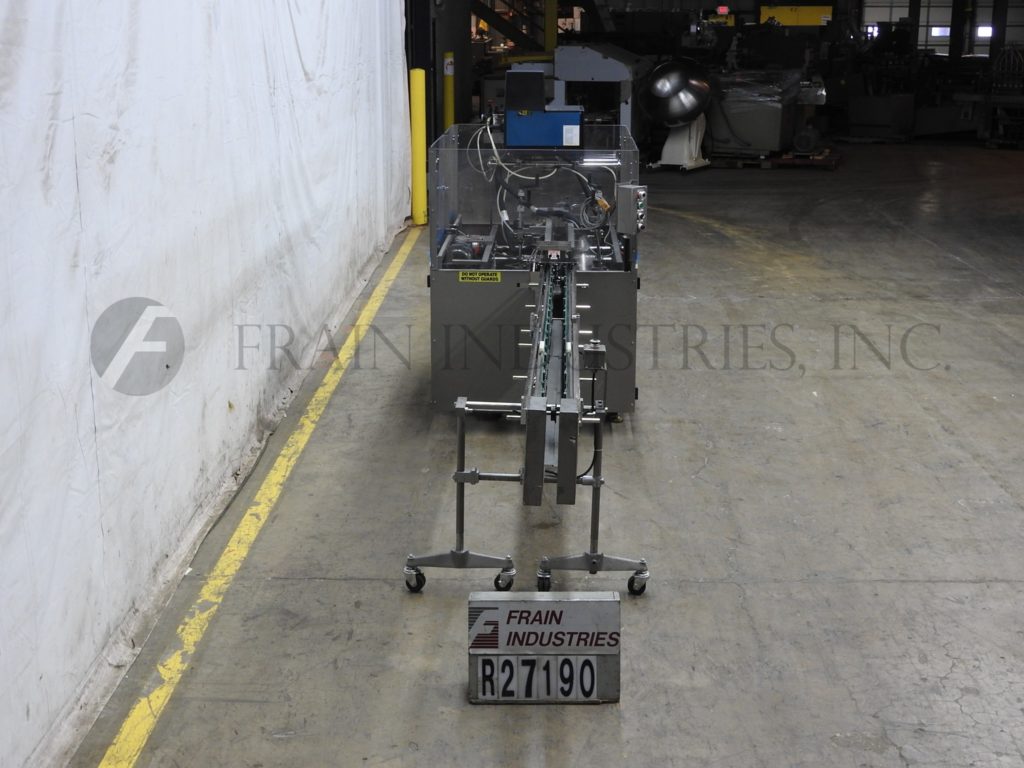

Scandia Cartoner Semi Sealer (Semi) HLC

• Manufacturer: Scandia
• Model Number: HLC
• Frain Number: R27190

Scandia Model HLC, semi-automatic, horizontal, hot melt glue, carton sealer. Rated from 5 to 30 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 3" to 10" in Length; ½" to 4" in Width; 5" to 12" in Depth. Equipped with (2) chain carton carrier system set on 12" centers with (3/8)" wide x 1" high lugs, 115" long product hand load area with Nordson hot melt glue system, and compression discharge. Control panel with push button start / stop / e-stop and switches for run / jog and glue on / off. Mounted on heavy duty base frame with casters.

OAD: 199"L x 48"W x 78"H

Hoerner Waldorf Cartoner Semi Sealer (Semi) MIDGET

• Manufacturer: Hoerner Waldorf
• Model Number: MIDGET
• Frain Number: 5G5640

Hoerner Waldof, Model MIDGET sealer, semi-automatic, horizontal, stainless steel, hot glue end carton sealer. Rated from 0 to 25 cartons per minute – depending on materials, application and operator dexterity. Carton size range: 3" to 12" in Length; ¾" to 3½" in Width; 5" to12" in Depth. Equipped with 2-chain drive set on 16" centers with 4½" high lugs and hot glue mechanical wheel applicators. Mounted on stainless steel base frame with casters. Operator manually erects, squares and loads carton, folds minor flaps and places into carton sealer.

OAD: 109"L x 38"W x 45"H
